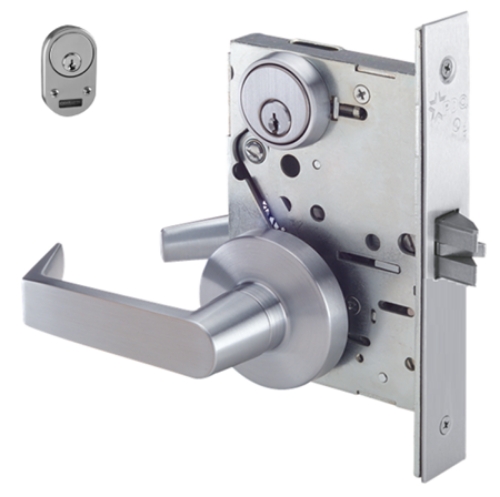

PDQ MR236, J Series Grade 1 Extra Heavy Duty Dormitory, Entrance w/Indicator Mortise Lock

PDQ MR236, J Series Grade 1 Extra Heavy Duty Dormitory, Entrance w/Indicator Mortise Lock

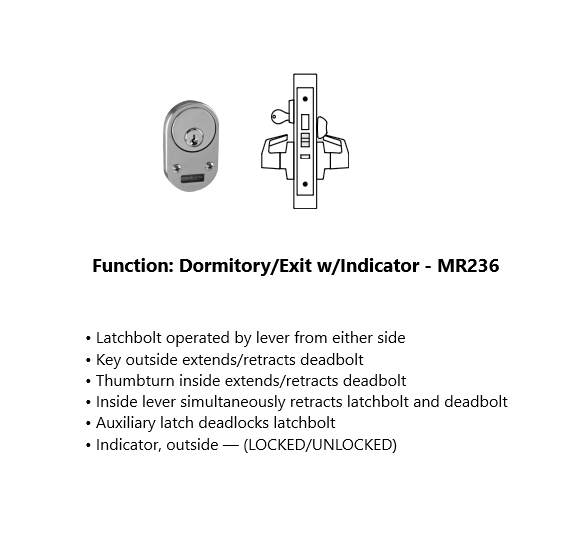

Function:Dormitory, Entrance w/Indicator.

Latchbolt operated by lever from either side.Key outside extends/retracts deadbolt.Thumbturn inside extends/retracts deadbolt.Inside lever simultaneously retracts latchbolt and deadbolt.Auxiliary latch deadlocks latchbolt.Indicator, outside. Locked/Unlocked Indicator conforms with ANSI Z535.1     Safety Colors: Red and Green.ANSI: F13MR series specs.

Built to Last. Lifetime Warranty.

Cycled tested - Over 12X BHMA standard and counting!

Versatile - single cam for all locking functions.

Available in multiple escutcheon widths. DOOR PREP:   Fits standard ANSI/BHMA A156.115 for Mortise Locks. FOR DOORS:  1-3/4" standard, 2" and 2-1/4" special order from factory. BACKSET:  2-3/4". CASE:  12-gauge cold rolled steel mechanism. Dichromated for corrosion resistance. ARMOR FRONT:  Beveled 1/8" on 2". 625 (US26) & 630 (US32D) use stainless steel as base material, all other finishes use stainless steel or brass as base material. STRIKE:  Handed Curved Lip Strike. 625 (US26) & 630 (US32D) use stainless steel as base material, all other finishes use stainless steel or brass as base material. LATCHBOLT:  3/4" Throw. Investment Cast Stainless Steel. Anti-friction. DEADBOLT:  1" Throw Investment Cast Stainless Steel HANDING:  Most functions field reversible. Specify handing for strikes. KEYS:  Two (2) per Lock KEYWAYS:  SCC standard (Schlage C Compatible) Also available in keyways of other manufacturers INTERCHANGEABLE CORE:  6 or 7-pin Compatible with Best, Falcon & Arrow Large Format IC Cores compatible with Schlage. CYLINDER:  6 or 7-pin Brass Mortise Cylinder KEYING:  Options: MK, CMK or GMK Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing master key systems TRIM:  J & JW trim - stainless steel escutcheon and levers, PHL, Mem, MIA and BSN are solid levers, ORL, DAL and CHI are tube levers. Ball Knobs are wrought. F trim - forged brass levers, escutcheons and turns. FINISHES:  J and JW Series Trim: 605 (US3) Bright Brass, 606 (US4) Satin Brass, 612 (US10) Satin Bronze, 613 (US10B) Oil Rubbed Bronze, 629 (US32) Bright Stainless Steel, 630 (US32D) Satin Stainless Steel. Antimicrobial Coating available on 626 (US26D) & 630 (US32D) for F, J, and J Wide Series. F Series Trim: 626 (US26D) Satin Chrome. CERTIFICATIONS, LISTINGS, COMPLIANCES:  UL/CUL 10C listed for 3 hrs, for single doors up to 4'0" x 8'0". Certified to ANSI/BHMA 156.13-2005 Operational Grade 1 and Security Grade 1. Florida Building Code HVHZ (High Velocity Hurricane Zone) listed, FL21376. Maximum design load rating: 80 PSF for single doors 3' x 7' (functions with deadbolts only). Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings. Wide Series Escutcheon Trim complies with Unified Facilities Guide Specification 08 71 00 (August 2008). Meets Federal Specification FF-H-106C. WARRANTY:  Lifetime Limited Warranty. COUNTRY OF ORIGIN:  Assembled in the U.S.A. with U.S. and foreign material. Meets requirements of the Buy American Act. Note:Heavy Duty Spindle for High Abuse situations is available for F trim.

PDQ MR236, MR236 PDQ, PDQMR236, MR236PDQ, PDQMR236J,PDQMR236PDQJ

LATCHBOLT:  3/4" Throw Investment Cast Stainless Steel Anti-friction
