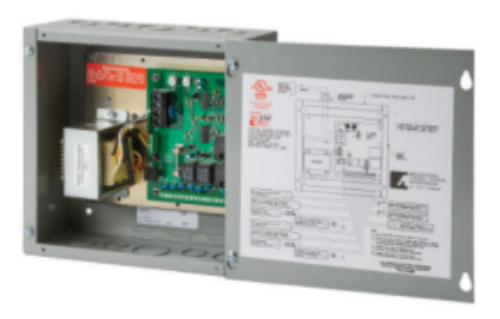

PDQ PS220 Electrified Access Control Power Supply

PDQ PS220*Electrified Access Control Power Supply*

PS220 Series Power Supply:

Features:

- UL 294 Listed. -  Filtered and Regulated 24 VDC OUTPUT for multiple devices, 2.0A maximum load. -  Locking device outputs are isolated from control switch. - Continuous 24 VDC output for devices such as keypads, motion detectors or door status indicators. - Multiple power input options. - Class 2 rated outputs. Input: - 120 VAC, 0.9A, 50/60Hz. - 240 VAC, 0.6A, 50/60Hz. - Automatic input voltage detection. Output: - Switched* 24 VDC, 2.0A filtered and regulated. - Continuous 24 VDC, 2.0A* filtered and regulated * - 24 VDC, 2.0A maximum across all outputs ** - Isolated from continuous terminal block and surge suppressed Protection: - Overload. - Over voltage. -  Short Circuit Enclosure . Dimensions:  - 10" x 10" x 4". Enclosure Type:  - NEMA 1 screw cover junction box, interior mounting only Enclosure Weight: - 8.5 lbs.

PDQ 81440, 81440 PDQ, PDQ81440, 81440PDQ
