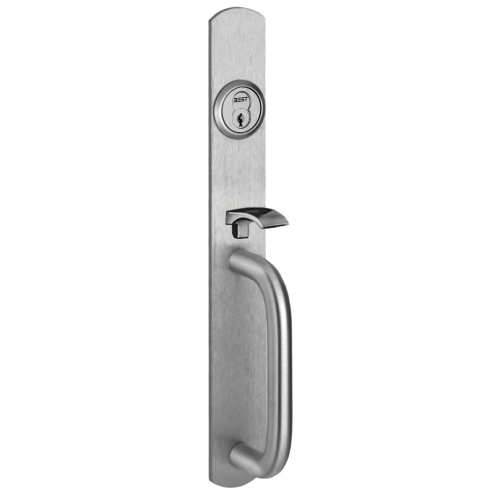

PHI Precision M2005C-630 Apex Series Narrow Stile Trim, Key Controls Thumb Piece, C Design Pull - Mortise Type Cylinder - Satin Stainless Steel

PHI Precision M2005C-630 Apex Series Narrow Stile Trim, Key Controls Thumb Piece, C Design Pull, Mortise Type Cylinder - Satin Stainless Steel

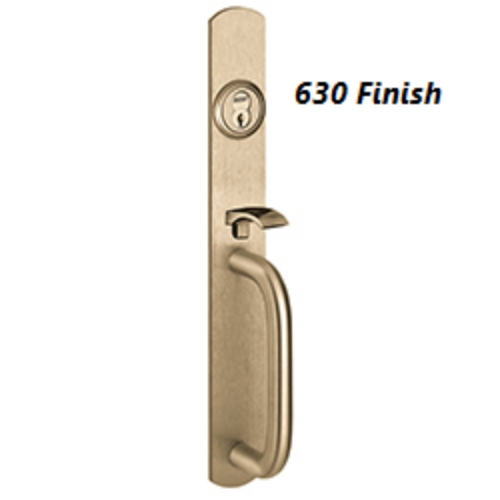

The PHI Precision M2005C-630 is an Apex Series narrow stile trim used with compatible Precision exit devices. It features a C design pull and a key-controlled thumb piece, so the trim can be set to allow entry only when unlocked by key. The 630 finish is satin stainless steel, giving a clean, modern look that fits many commercial doors.

Function

This trim uses a key-controlled thumb piece to control outside entry, and it is designed to work with a 1-1/4 inch mortise-type cylinder (cylinder not furnished as standard).

Applications

It is commonly used on narrow stile aluminum doors where an exit device is installed and you want keyed control on the outside trim for controlled access from the corridor side.

Best for

• Narrow stile storefront doors with an exit device

• Interior aluminum framed doors in offices and facilities

• Doors that need keyed entry control from the outside

• Locations that want a pull-style trim instead of a lever



It helps by

• Allowing keyed control of the thumb piece for entry management

• Using a narrow stile trim format for aluminum framed door prep

• Supporting field reversibility for easier handing changes

• Using through-bolted trim construction for a solid, secure mount



Key highlights

• Key-controlled thumb piece for entry control

• C design pull in 630 satin stainless steel

• Built for Apex narrow stile exit device applications

• Uses a 1-1/4 inch mortise cylinder format (cylinder not included by default)

• Through-bolted trim build for dependable mounting



What’s included

• Narrow stile trim assembly with C design pull and thumb piece

• Mounting components used for through-bolted trim installation

• Cylinder is not included as a standard supplied part



Key features

• Key controls thumb piece

• C design pull

• 630 / US32D satin stainless steel

• Requires 1-1/4 inch mortise cylinder

• Narrow stile trim format for Apex series devices



Keying options

• Less cylinder (mortise cylinder not furnished as standard)

• Requires 1-1/4 inch mortise-type cylinder (keying is determined by the cylinder you select)



Warranty

• PHI Exit Devices: 5-year mechanical warranty coverage (trim is a mechanical component)

Specifications

• Model: M2005C

• Series: Apex, Precision exit device trims

• Trim style: C design pull

• Control type: key controls thumb piece

• Cylinder type: requires 1-1/4 inch mortise-type cylinder; cylinder not furnished as standard

• Finish: 630 / US32D satin stainless steel
  Base material: stainless steel

• Plate and grip construction: wrought plate with extruded solid C grip (trim family detail)

• Mounting: through bolted (trim family detail)

• Handing: non-handed / field reversible (commonly listed for this trim style)
