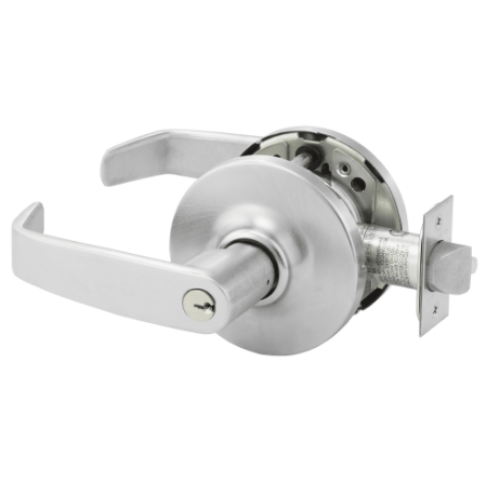

Sargent 10G05 Entrance or Office Lever Lock

Sargent 10G05 Entrance or Office Lever Lock

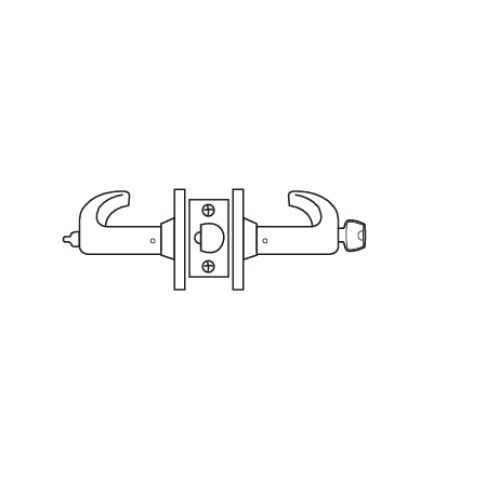

Entrance or Office *-ANSI - F109*

Deadlocking latch.Latch by either lever unless outside lever islocked by push/turn button in inside lever.Push button released by key outside orlever inside.Turn button must be released manually.Key retracts latch when outside lever is locked

Meets and greatly exceeds ANSI A156.2 Series 4000 - Grade 1

Lever:*LLL Lever L Rose,LJJ Lever L Rose,LBB Lever L Rose,LP*P Lever L Rose

Finishes:US3 (605) Bright Brass, US4 (606) Satin Brass, US10 (612) Satin Bronze, US10B (613) Dark Oxidized Satin Bronze, Oil Rubbed, US26 (625) Bright Chromium Plated, US26D (626) Satin Chromium Plated

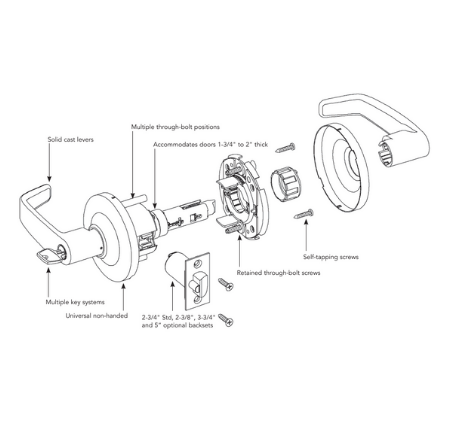

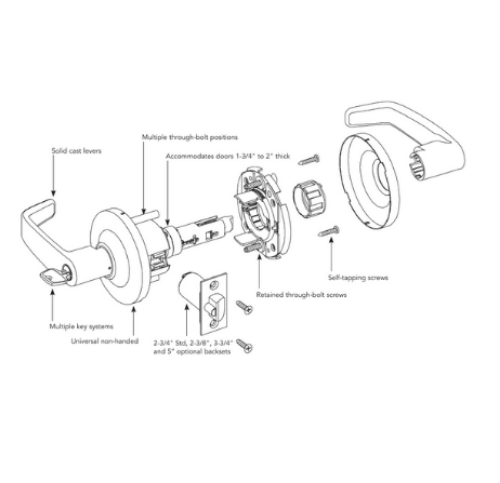

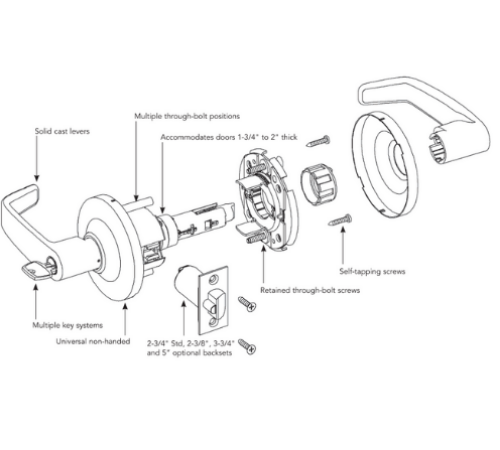

Accommodates doors 1-3/4" to 2" thick (1-3/8" (35mm) thick door, 1- Option for Adapter plates)

Available with 2-3/8", 2-3/4", 3-3/4" and 5" backsets

1/2" latch bolt throw standard; 3/4" throw (41- prefix) for pairs of doors

Front: Wrought brass, bronze or stainless steel2-1/4" x 1-1/8" (57mmx 29mm)

Strike: Wrought brass, bronze or stainless steel 800 curved lip strike 2-3/4" x 1-1/4" x 1-1/4" or 808 curved lip ANSI strike 4-7/8" x 1-1/8" x 1-1/4"standard

Cylinder: Brass, 6-pin, LA keyway standard.

Keying Features Available:**Master keying, Construction master keying, Interchangeable core (IC).

Keys:Two nickel silver standard

Freewheeling Locked Lever Option Available (FW),Provides protection from vandalism and added security (Not available inJLever Design)

7 year limited warrantyno service required to maintain warranty

Model:Sargent, 10G05, 2810G05, 286010G05, 287010G05, 10G05LL, 2810G05LL, 286010G05LL, 287010G05LL, 10G05LP, 2810G05LP, 286010G05LP, 287010G05LP, 10G05LB, 2810G05LB, 286010G05LB, 287010G05LB, 10G05LJ, 2810G05LJ, 286010G05LJ, 287010G05LJ

Sargent, US26D, 626, 10G05LL26D, 2810G05LL26D, 286010G05LL26D, 287010G05LL26D, 10G05LP26D, 2810G05LP26D, 286010G05LP26D, 287010G05LP26D, 10G05LB26D, 2810G05LB26D, 286010G05LB26D, 287010G05LB26D, 10G05LJ26D, 2810G05LJ26D, 286010G05LJ26D, 287010G05LJ26D

Sargent,  US26, 625, 10G05LL26, 2810G05LL26, 286010G05LL26, 287010G05LL26, 10G05LP26, 2810G05LP26, 286010G05LP26, 287010G05LP26, 10G05LB26, 2810G05LB26, 286010G05LB26, 287010G05LB26, 10G05LJ26, 2810G05LJ26, 286010G05LJ26, 287010G05LJ26

Sargent, US10, 612, 10G05LL10, 2810G05LL10, 286010G05LL10, 287010G05LL10, 10G05LP10, 2810G05LP10, 286010G05LP10, 287010G05LP10, 10G05LB10, 2810G05LB10, 286010G05LB10, 287010G05LB10, 10G05LJ10, 2810G05LJ10, 286010G05LJ10, 287010G05LJ10

Sargent, US10B, 613, 10G05LL10B, 2810G05LL10B, 286010G05LL10B, 287010G05LL10B, 10G05LP10B, 2810G05LP10B, 286010G05LP10B, 287010G05LP10B, 10G05LB10B, 2810G05LB10B, 286010G05LB10B, 287010G05LB10B, 10G05LJ10B, 2810G05LJ10B, 286010G05LJ10B, 287010G05LJ10B

Sargent, US3, 605,10G05LL3, 2810G05LL3, 286010G05LL3, 287010G05LL3, 10G05LP3, 2810G05LP3, 286010G05LP3, 287010G05LP3, 10G05LB3, 2810G05LB3, 286010G05LB3, 287010G05LB3, 10G05LJ3, 2810G05LJ3, 286010G05LJ3, 287010G05LJ3

Sargent, US4, 606, 10G05LL4, 2810G05LL4, 286010G05LL4, 287010G05LL4, 10G05LP4, 2810G05LP4, 286010G05LP4, 287010G05LP4, 10G05LB4, 2810G05LB4, 286010G05LB4, 287010G05LB4, 10G05LJ4, 2810G05LJ4, 286010G05LJ4, 287010G05LJ4

 Sargent, US26D, 626,10G05-, 28-10G05 10G05LL26D, 281-0G05-LL-26D, 2860-10G05-LL-26D, 2870-10G05-LL-26D, 10G05LP26D, 28-10G05-LP-26D, 2860-10G05-LP2-6D, 2870-10G05-LP-26D, 10G05-LB-26D, 28-10G05-LB-26D, 28-6010G05-LB-26D, 287010G05-LB26D, 10G05-LJ-26D, 28-10G05-LJ-26D, 28601-0G05-LJ-26D, 2870-10G05-LJ-26D

Specifications

Cylindrical Housing -Steel, zinc dichromate finish

Roses -Heavy wrought brass and bronze

Minimum Stile:4-1/2" (114mm)

Certification Compliance

ANSI/BHMA Certified ANSI A156.2 Series 4000 - Grade 1

UL UL listed to U.S.A. and Canadian safety standards Listed for 3 hour doors (double doors require 41 - option)

Positive Pressure Meets UL 10C and UBC 7-2 (1997)

ADA All levers conform to ADA requirement for barrier-free accessibility

California Code Levers (L, J & P) conform to California Administrative Code Title 19 and 24
