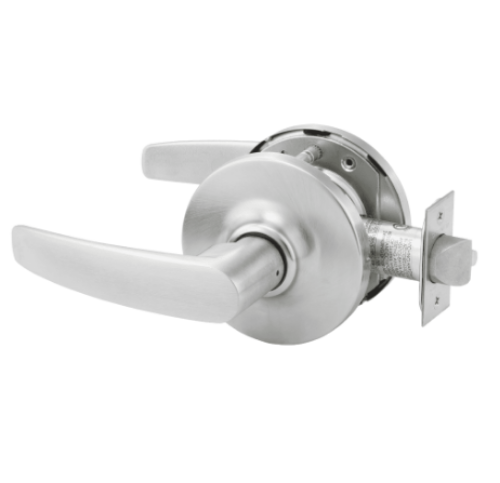

Sargent 10G13 Exit Lever Set

Sargent 10G13 Exit Lever Set

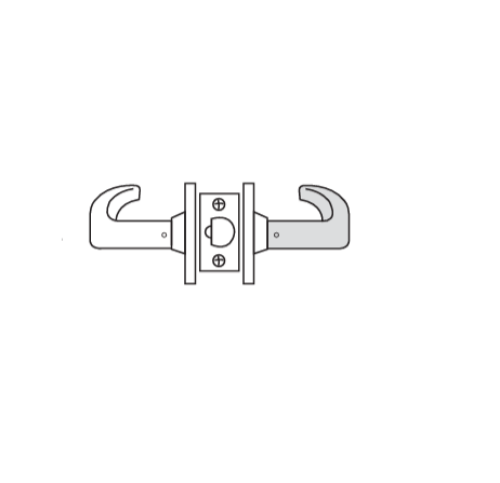

Exit - ANSI F89

Deadlocking latch. Latch by inside lever. Outside lever rigid at all times

Meets and greatly exceeds ANSI A156.2 Series 4000 - Grade 1

Lever:LL L Lever L Rose, LJ J Lever L Rose, LB B Lever L Rose, LP P Lever L Rose

Finishes:US3 (605) Bright Brass, US4 (606) Satin Brass, US10 (612) Satin Bronze, US10B (613) Dark Oxidized Satin Bronze, Oil Rubbed, US26 (625) Bright Chromium Plated, US26D (626) Satin Chromium Plated

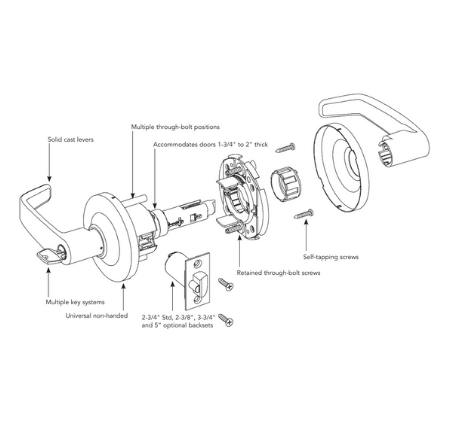

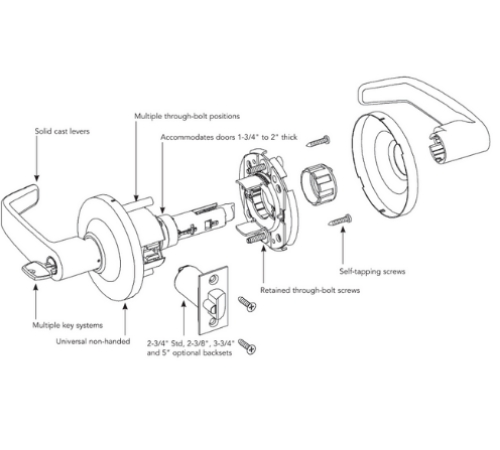

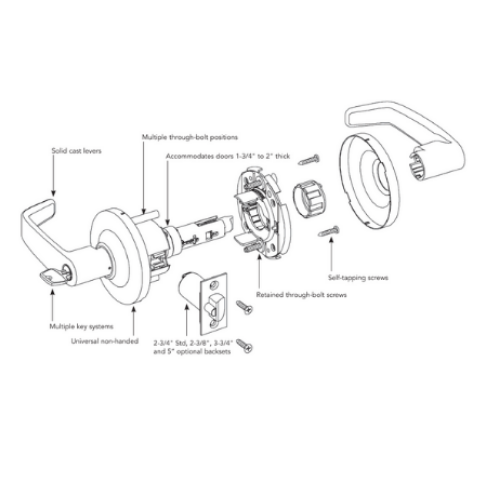

Accommodates doors 1-3/4" to 2" thick (1-3/8" (35mm) thick door, 1- Option for Adapter plates)

Available with 2-3/8", 2-3/4", 3-3/4" and 5" backsets

1/2" latch bolt throw standard; 3/4" throw (41- prefix) for pairs of doors

Front: Wrought brass, bronze or stainless steel 2-1/4" x 1-1/8" (57mmx 29mm)

Strike: Wrought brass, bronze or stainless steel 800 curved lip strike 2-3/4" x 1-1/4" x 1-1/4" or 808 curved lip ANSI strike 4-7/8" x 1-1/8" x 1-1/4" standard

7 year limited warranty no service required to maintain warranty

Model: Sargent, 10G13, 2810G13, 287010G13, 10G13LL, 2810G13LL, 10G13LP, 2810G13LP, 10G13LB, 2810G13LB, 10G13LJ, 2810G13LJ

Sargent, US26D, 626, 10G13LL26D, 2810G13LL26D, 10G13LP26D, 10G13LP26D, 2810G13LB26D, 2810G13LB26D, 10G13LJ26D, 2810G13LJ26D

10G13LL26D, 28-10G13-LL-26D, 10G13-LP-26D, 10G13-LP-26D, 28-10G13-LB-26D, 28-10G13-LB-26D, 10G13-LJ-26D, 28-10G13-LJ2-6D

Specifications

Cylindrical Housing -Steel, zinc dichromate finish

Roses -Heavy wrought brass and bronze

Minimum Stile:4-1/2" (114mm)

Certification Compliance

ANSI/BHMA Certified ANSI A156.2 Series 4000 - Grade 1

UL UL listed to U.S.A. and Canadian safety standards Listed for 3 hour doors (double doors require 41 - option)

Positive Pressure Meets UL 10C and UBC 7-2 (1997)

ADA All levers conform to ADA requirement for barrier-free accessibility

California Code Levers (L, J & P) conform to California Administrative Code Title 19 and 24
