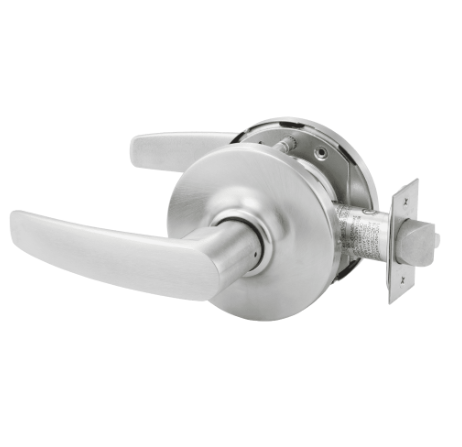

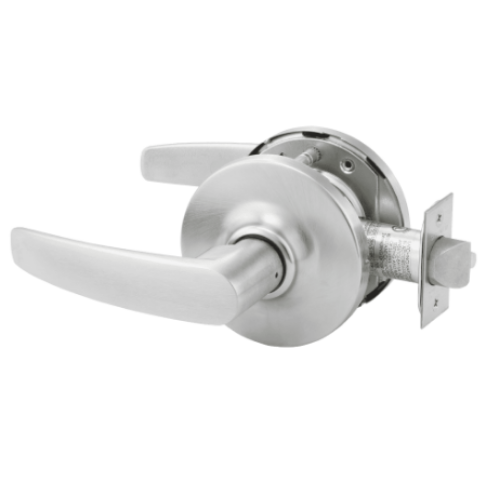

Sargent 10G15-3 Exit or Communicating Lever Set

Sargent 10G15-3 Exit or Communicating Lever SetExit or Communicating

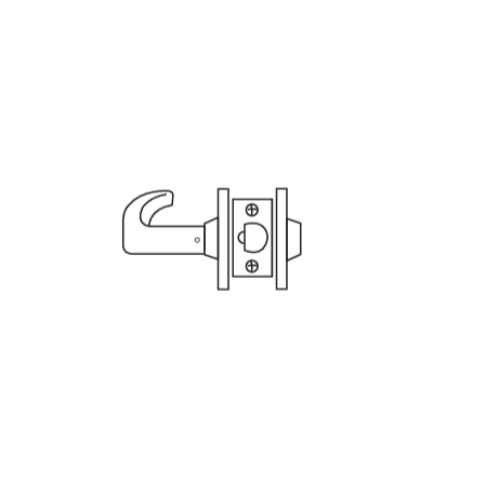

Deadlocking latch.Blank rose outsideLatch by lever inside

Lever:*LLL Lever L Rose,LJJ Lever L Rose,LBB Lever L Rose,LP*P Lever L Rose

Finishes:US3 (605) Bright Brass, US4 (606) Satin Brass, US10 (612) Satin Bronze, US10B (613) Dark Oxidized Satin Bronze, Oil Rubbed, US26 (625) Bright Chromium Plated, US26D (626) Satin Chromium Plated

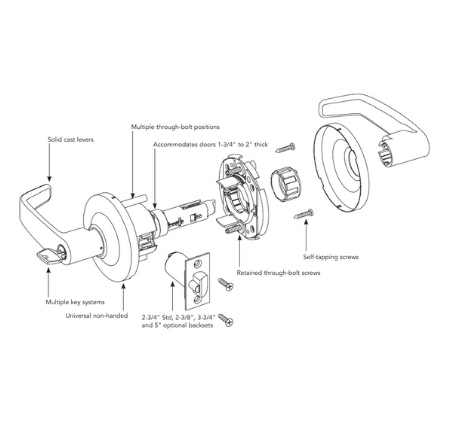

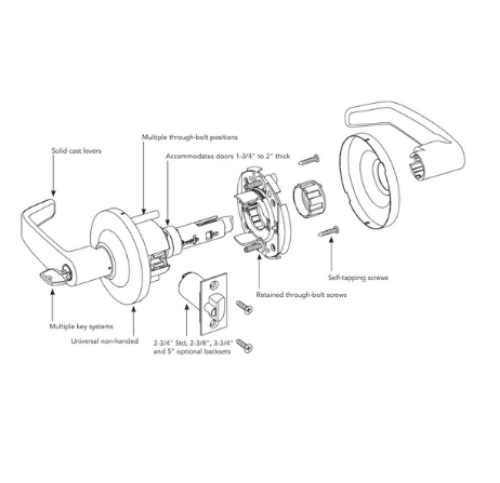

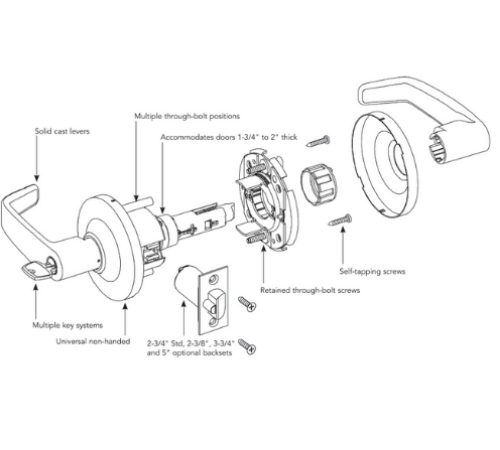

Accommodates doors 1-3/4" to 2" thick (1-3/8" (35mm) thick door, 1- Option for Adapter plates)

Available with 2-3/8", 2-3/4", 3-3/4" and 5" backsets

1/2" latch bolt throw standard; 3/4" throw (41- prefix) for pairs of doors

Front: Wrought brass, bronze or stainless steel2-1/4" x 1-1/8" (57mmx 29mm)

Strike: Wrought brass, bronze or stainless steel 800 curved lip strike 2-3/4" x 1-1/4" x 1-1/4" or 808 curved lip ANSI strike 4-7/8" x 1-1/8" x 1-1/4"standard

7 year limited warrantyno service required to maintain warranty

Model:Sargent,10G153, 2810G153, 287010G153, 10G153LL, 2810G153LL, 10G153LP, 2810G153LP, 10G153LB, 2810G153LB, 10G153LJ, 2810G153LJ

10G153, 28-10G15-3, 28-70-10G15-3, 10G15-3-LL, 2810G15-3-LL, 10G15-3-LP, 28-10G15-3-LP, 10G15-3-LB, 28-10G15-3-LB, 10G-153-LJ, 28-10G15-3-LJ

Sargent, US26D, 626, 10G153LL26D, 2810G153LL26D, 10G153LP26D, 10G153LP26D, 2810G153LB26D, 2810G153LB26D, 10G153LJ26D, 2810G153LJ26D

Minimum clearance of 1-1/8" on single doors and 2-1/4" between double doors

Meets and greatly exceeds ANSI A156.2 Series 4000 - Grade 1

Specifications

Cylindrical Housing -Steel, zinc dichromate finish

Roses -Heavy wrought brass and bronze

Minimum Stile:4-1/2" (114mm)

Certification Compliance

ANSI/BHMA Certified ANSI A156.2 Series 4000 - Grade 1

UL UL listed to U.S.A. and Canadian safety standards Listed for 3 hour doors (double doors require 41 - option)

Positive Pressure Meets UL 10C and UBC 7-2 (1997)

ADA All levers conform to ADA requirement for barrier-free accessibility

California Code Levers (L, J & P) conform to California Administrative Code Title 19 and 24
