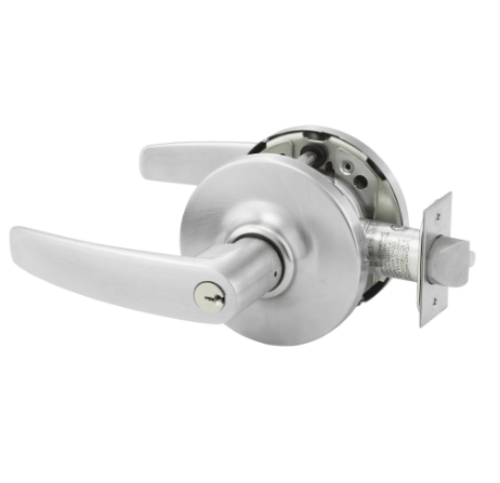

Sargent 10G16 Classroom Security, Apartment, Exit, Privacy Lock

Sargent 10G16 Classroom Security, Apartment, Exit, Privacy Lock

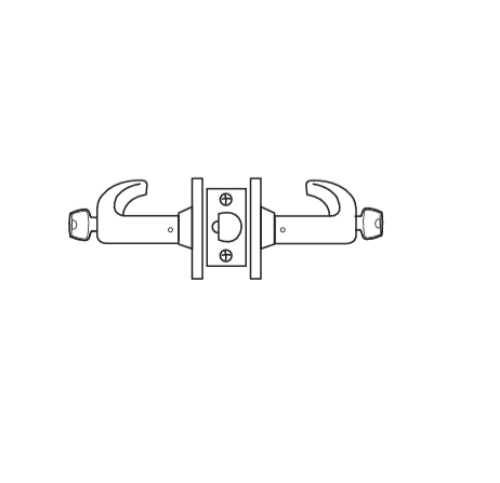

Deadlocking latch.Latch by either lever unless outside lever islocked by key in inside lever.Key in outside lever retracts latch whenoutside lever is lockedInside lever always operative

Lever:*LLL Lever L Rose,LJJ Lever L Rose,LBB Lever L Rose,LP*P Lever L Rose

Finishes:US3 (605) Bright Brass, US4 (606) Satin Brass, US10 (612) Satin Bronze, US10B (613) Dark Oxidized Satin Bronze, Oil Rubbed, US26 (625) Bright Chromium Plated, US26D (626) Satin Chromium Plated

Meets and greatly exceeds ANSI A156.2 Series 4000 - Grade 1

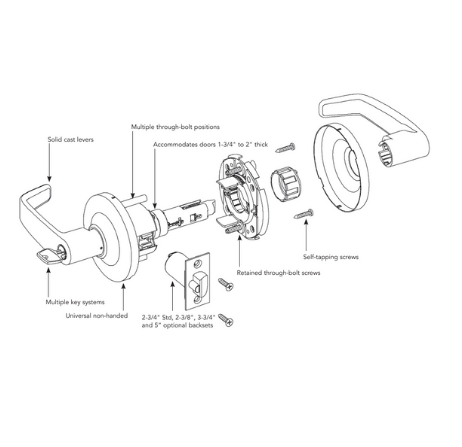

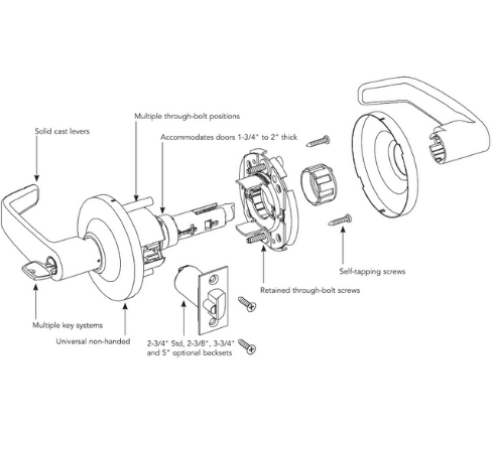

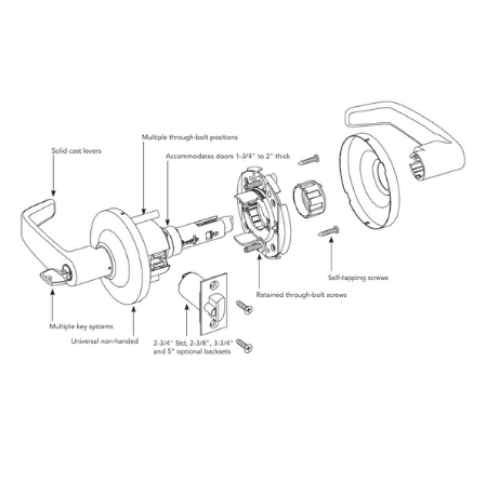

Accommodates doors 1-3/4" to 2" thick (1-3/8" (35mm) thick door, 1- Option for Adapter plates)

Available with 2-3/8", 2-3/4", 3-3/4" and 5" backsets

1/2" latch bolt throw standard; 3/4" throw (41- prefix) for pairs of doors

Front: Wrought brass, bronze or stainless steel2-1/4" x 1-1/8" (57mmx 29mm)

Strike: Wrought brass, bronze or stainless steel 800 curved lip strike 2-3/4" x 1-1/4" x 1-1/4" or 808 curved lip ANSI strike 4-7/8" x 1-1/8" x 1-1/4"standard

Cylinder: Brass, 6-pin, LA keyway standard.

Keying Features Available:**Master keying, Construction master keying, Interchangeable core (IC).

Keys:Two nickel silver standard

Freewheeling Locked Lever Option Available (FW),Provides protection from vandalism and added security (Not available inJLever Design)

7 year limited warrantyno service required to maintain warranty

Classroom Security, Apartment, Exit, Privacy*-ANSI - F88*

Model:Sargent, 10G16, 2810G16, 10G16LL, 2810G16LL, 10G16LP, 2810G16LP, 10G16LB, 2810G16LB,  10G16LJ, 2810G16LJ

Sargent, US26D, 626, 10G16LL26D, 2810G16LL26D, 10G16LP26D, 2810G16LP26D, 10G16LB26D, 2810G16LB26D, 10G16LJ26D, 2810G16LJ26D

Sargent,  US26, 625, 10G16LL26, 2810G16LL26, 10G16LP26, 2810G16LP26, 10G16LB26, 2810G16LB26, 10G16LJ26, 2810G16LJ26

Sargent, US10, 612, 10G16LL10, 2810G16LL10, 10G16LP10, 2810G16LP10, 10G16LB10, 2810G16LB10, 10G16LJ10, 2810G16LJ10

Sargent, US10B, 613, 10G16LL10B, 2810G16LL10B, 10G16LP10B, 2810G16LP10B, 10G16LB10B, 2810G16LB10B, 10G16LJ10B, 2810G16LJ10B

Sargent, US3, 605,10G16LL3, 2810G16LL3, 10G16LP3, 2810G16LP3, 10G16LB3, 2810G16LB3, 10G16LJ3, 2810G16LJ3

Sargent, US4, 606, 10G16LL4, 2810G16LL4, 10G16LP4, 2810G16LP4, 10G16LB4, 2810G16LB4, 10G16LJ4, 2810G16LJ4

Specifications

Cylindrical Housing -Steel, zinc dichromate finish

Roses -Heavy wrought brass and bronze

Minimum Stile:4-1/2" (114mm)

Certification Compliance

ANSI/BHMA Certified ANSI A156.2 Series 4000 - Grade 1

UL UL listed to U.S.A. and Canadian safety standards Listed for 3 hour doors (double doors require 41 - option)

Positive Pressure Meets UL 10C and UBC 7-2 (1997)

ADA All levers conform to ADA requirement for barrier-free accessibility

California Code Levers (L, J & P) conform to California Administrative Code Title 19 and 24
