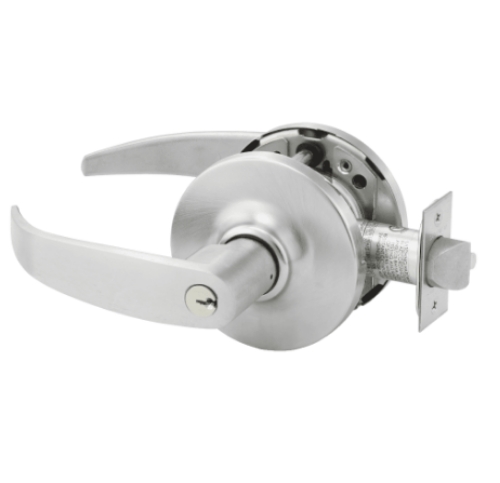

Sargent 10G24 Entrance or Office Lever Lock

The Sargent 10G24 is a heavy-duty Grade 1 commercial cylindrical entrance/office lever lock from the Sargent 10 Line Grade 1 platform, Sargent's flagship institutional cylindrical lever family and the standard for medical, educational, and municipal facility specifications. The full part number breaks down as: 10 (10 Line Grade 1 cylindrical lever series), G (cylindrical lever architecture), 24 (function digit for entrance/office ANSI F82). Lever style and rose are appended (LL, LJ, LB, or LP), then finished (3, 4, 10, 10B, 26, 26D), backset, strike, and cylinder configuration. Sargent is part of the ASSA ABLOY family of brands. Meets and greatly exceeds ANSI/BHMA A156.2 Series 4000 Grade 1. UL Listed to U.S. and Canadian safety standards for 3-hour fire-rated doors. ADA compliant. SKU 10G24. In stock under Sargent Lever Locks within Cylindrical Lever Locks in Commercial Locks.

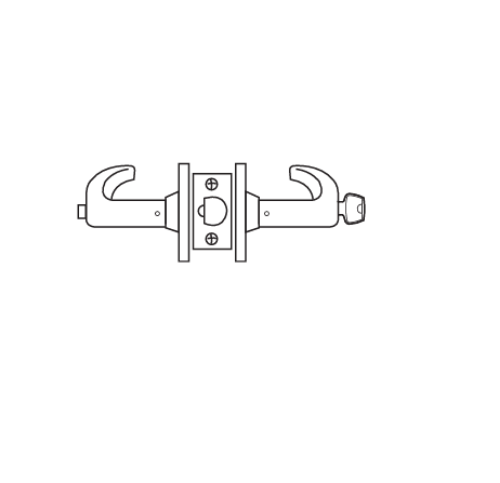

ANSI F82 Entrance/Office Function Explained

Function code F82 is the standard ANSI entrance/office function and one of the highest-volume specifications in the commercial cylindrical category. The latch retracts by either lever unless the outside lever is locked by pushing the push button in the inside lever. The push button is released by key from outside or by turning the inside lever. Closing the door does not unlock the outside lever or release the button (this is the difference between F82 and F109; F82 stays locked once locked, while F109 auto-unlocks when the inside button is in standard position). The key in the outside lever retracts the latch when the outside lever is locked and simultaneously releases the inside push button. The inside lever is always free for unobstructed egress. Specify F82 on private offices, faculty offices, exam rooms, treatment rooms, conference rooms, hospital admin offices, courthouse chambers, and any commercial opening that needs keyed entry from outside, push-button locking from inside, and code-compliant always-free interior egress.

Specifications

Function: ANSI F82 entrance/office with deadlocking latch. Compliance: ANSI/BHMA Certified A156.2 Series 4000 Grade 1; UL Listed to U.S. and Canadian safety standards for 3-hour fire-rated doors (double doors require 41- option); UL 10C and UBC 7-2 (1997) Positive Pressure compliant; all levers conform to ADA barrier-free accessibility requirement; L, J, and P levers conform to California Administrative Code Title 19 and Title 24. Cylindrical housing: steel, zinc dichromate finish. Roses: heavy wrought brass and bronze. Minimum stile: 4-1/2" (114mm). Door thickness: 1-3/4" to 2" standard; 1-3/8" (35mm) accommodated with adapter plates (1- option). Backset: 2-3/4" standard; 2-3/8", 3-3/4", and 5" available. Latchbolt: 1/2" throw standard; 3/4" throw (41- prefix) for pairs of fire-rated doors. Latch front: wrought brass, bronze, or stainless steel, 2-1/4" x 1-1/8" (57mm x 29mm). Strike: wrought brass, bronze, or stainless steel; 800 curved lip strike 2-3/4" x 1-1/4" x 1-1/4" or 808 curved lip ANSI strike 4-7/8" x 1-1/8" x 1-1/4". Cylinder: 6-pin solid brass, LA keyway standard, two nickel silver keys included. Warranty: 7-year limited (no service required to maintain).

Lever and Rose Configuration

Four lever styles available, all paired with the L Rose: LL (L Lever, the most-specified, traditional curved lever), LJ (J Lever, flat extended lever, ADA-preferred for healthcare), LB (B Lever, contemporary squared profile), and LP (P Lever, transitional curved profile). Each lever is configurable in 626 (US26D) Satin Chrome standard; 605 (US3) Bright Brass, 606 (US4) Satin Brass, 612 (US10) Satin Bronze, 613 (US10B) Oil Rubbed Bronze, and 625 (US26) Bright Chrome are available at order.

Freewheeling Lever (FW) Anti-Vandalism Option

Sargent's optional FW (Freewheeling) configuration allows the outside lever to spin freely when locked, instead of transferring force into the chassis when someone hangs body weight on the handle or twists hard. This eliminates the most common failure mode for commercial cylindrical locks in abusive applications: snapped lever spindles and stripped chassis from forced-handle attacks. Specify FW on schools, dormitories, behavioral health units, multi-family common doors, and any opening exposed to vandalism. Note: FW is not available with J Lever (LJ) trim. For schools and student housing where vandalism is the primary failure mode, the FW option is the difference between annual lever replacements and 7-year warranty service.

Cylinder and Keyway Configurations

Four cylinder configurations in order: Standard Cylinder (LA keyway included), LC Less Cylinder (ships without cylinder, pin to existing keyway), 60 Large Format IC Core Less Core (LFIC prep), and 70 Small Format IC Core Less Core (SFIC prep). Keyway selector includes 27 options across the LA-LL, HA-HL, and RA-RL series for facilities running existing Sargent keying. Master Keyed (MK), Construction Master Keyed, and Keyed Alike (KA) options available. The IC core options integrate the 10G24 directly into existing facility keying systems without rekeying or migration. The LFIC option is the right choice for facilities standardizing on Sargent or Schlage Large Format IC keying; the SFIC option is the right choice for facilities running BEST or Falcon SFIC keying.

Where to Specify the 10G24

Hospital admin offices and exam rooms, medical and dental office private rooms, university faculty offices, school administrative offices, courthouse chambers and judicial offices, government office building tenant doors, multi-tenant building unit entries, conference rooms, training rooms, supervisory offices, treatment rooms, and any commercial opening that needs ANSI Grade 1 keyed entry plus push-button inside locking with always-free interior egress on a budget below mortise pricing.
