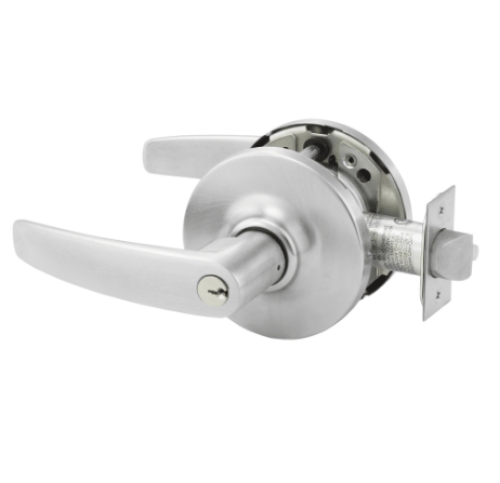

Sargent 10G44 Service Station Lever Lock

Sargent 10G44 Service Station Lever Lock -ANSI - F92

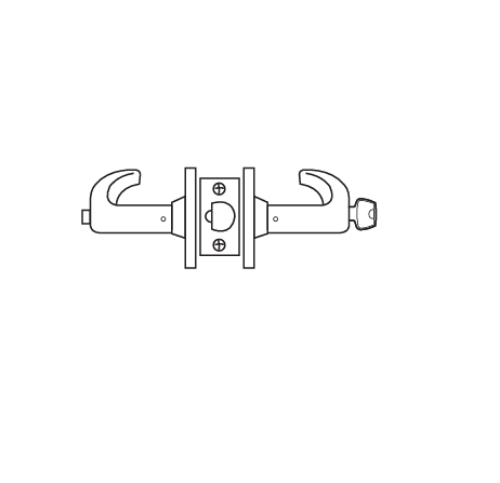

Deadlocking latch.Latch by either lever unless outside lever islocked by push button in inside lever.Key retracts latch when outside lever is locked.Push button released by turning inside lever,closing door, or by key in outside lever unless pushbutton is fixed in locked position by turning coinslot in inside lever.Slotted inside button must be manually released

Lever:*LLL Lever L Rose,LJJ Lever L Rose,LBB Lever L Rose,LP*P Lever L Rose

Finishes:US3 (605) Bright Brass, US4 (606) Satin Brass, US10 (612) Satin Bronze, US10B (613) Dark Oxidized Satin Bronze, Oil Rubbed, US26 (625) Bright Chromium Plated, US26D (626) Satin Chromium Plated

Meets and greatly exceeds ANSI A156.2 Series 4000 - Grade 1

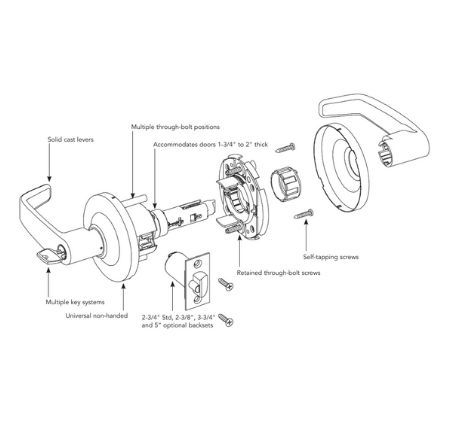

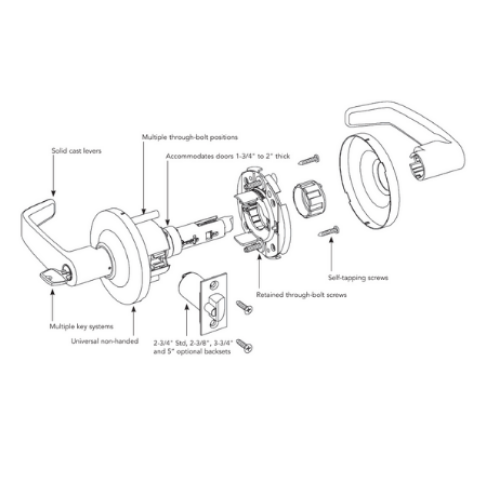

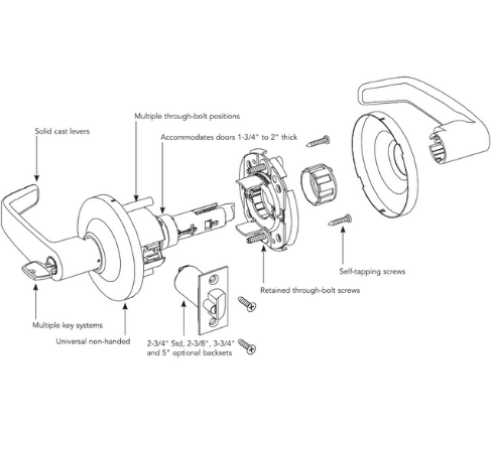

Accommodates doors 1-3/4" to 2" thick (1-3/8" (35mm) thick door, 1- Option for Adapter plates)

Available with 2-3/8", 2-3/4", 3-3/4" and 5" backsets

1/2" latch bolt throw standard; 3/4" throw (41- prefix) for pairs of doors

Front: Wrought brass, bronze or stainless steel2-1/4" x 1-1/8" (57mmx 29mm)

Strike: Wrought brass, bronze or stainless steel 800 curved lip strike 2-3/4" x 1-1/4" x 1-1/4" or 808 curved lip ANSI strike 4-7/8" x 1-1/8" x 1-1/4"standard

Cylinder: Brass, 6-pin, LA keyway standard.

Keying Features Available:**Master keying, Construction master keying, Interchangeable core (IC).

Keys:Two nickel silver standard

Freewheeling Locked Lever Option Available (FW),Provides protection from vandalism and added security (Not available inJLever Design)

7 year limited warrantyno service required to maintain warranty

Model:Sargent, 10G44, 2810G44, 286010G44, 287010G44, 10G44LL, 2810G44LL, 286010G44LL, 287010G44LL, 10G44LP, 2810G44LP, 286010G44LP, 287010G44LP, 10G44LB, 2810G44LB, 286010G44LB, 287010G44LB, 10G44LJ, 2810G44LJ, 286010G44LJ, 287010G44LJ

Sargent, US26D, 626, 10G44LL26D, 2810G44LL26D, 286010G44LL26D, 287010G44LL26D, 10G44LP26D, 2810G44LP26D, 286010G44LP26D, 287010G44LP26D, 10G44LB26D, 2810G44LB26D, 286010G44LB26D, 287010G44LB26D, 10G44LJ26D, 2810G44LJ26D, 286010G44LJ26D, 287010G44LJ26D

Sargent,  US26, 625, 10G44LL26, 2810G44LL26, 286010G44LL26, 287010G44LL26, 10G44LP26, 2810G44LP26, 286010G44LP26, 287010G44LP26, 10G44LB26, 2810G44LB26, 286010G44LB26, 287010G44LB26, 10G44LJ26, 2810G44LJ26, 286010G44LJ26, 287010G44LJ26

Sargent, US10, 612, 10G44LL10, 2810G44LL10, 286010G44LL10, 287010G44LL10, 10G44LP10, 2810G44LP10, 286010G44LP10, 287010G44LP10, 10G44LB10, 2810G44LB10, 286010G44LB10, 287010G44LB10, 10G44LJ10, 2810G44LJ10, 286010G44LJ10, 287010G44LJ10

Sargent, US10B, 613, 10G44LL10B, 2810G44LL10B, 286010G44LL10B, 287010G44LL10B, 10G44LP10B, 2810G44LP10B, 286010G44LP10B, 287010G44LP10B, 10G44LB10B, 2810G44LB10B, 286010G44LB10B, 287010G44LB10B, 10G44LJ10B, 2810G44LJ10B, 286010G44LJ10B, 287010G44LJ10B

Sargent, US3, 605,10G44LL3, 2810G44LL3, 286010G44LL3, 287010G44LL3, 10G44LP3, 2810G44LP3, 286010G44LP3, 287010G44LP3, 10G44LB3, 2810G44LB3, 286010G44LB3, 287010G44LB3, 10G44LJ3, 2810G44LJ3, 286010G44LJ3, 287010G44LJ3

Sargent, US4, 606, 10G44LL4, 2810G44LL4, 286010G44LL4, 287010G44LL4, 10G44LP4, 2810G44LP4, 286010G44LP4, 287010G44LP4, 10G44LB4, 2810G44LB4, 286010G44LB4, 287010G44LB4, 10G44LJ4, 2810G44LJ4, 286010G44LJ4, 287010G44LJ4

Specifications

Cylindrical Housing -Steel, zinc dichromate finish

Roses -Heavy wrought brass and bronze

Minimum Stile:4-1/2" (114mm)

Certification Compliance

ANSI/BHMA Certified ANSI A156.2 Series 4000 - Grade 1

UL UL listed to U.S.A. and Canadian safety standards Listed for 3 hour doors (double doors require 41 - option)

Positive Pressure Meets UL 10C and UBC 7-2 (1997)

ADA All levers conform to ADA requirement for barrier-free accessibility

California Code Levers (L, J & P) conform to California Administrative Code Title 19 and 24
