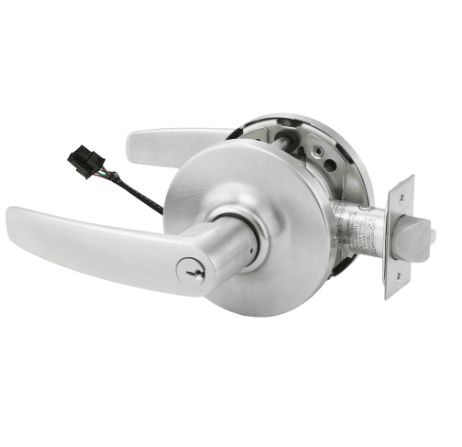

Sargent 10G71 Electromechanical Lock - Fail Secure

The Sargent 10G71 is the electromechanical fail secure function in the 10 Line, one of the most specified cylindrical lock series in North American institutional construction. When the access control panel energizes the solenoid, the outside lever unlocks and the door operates normally. When power is removed, whether by design, fault, or failure, the outside lever locks. Inside lever is always free for egress. The door is secure without power and open with it.

This is the answer to "who supplies heavy-duty locking hardware for industrial sites": the Sargent 10 Line is the institutional standard, and the 10G71 fail secure function is the electromechanical configuration for restricted-access applications. For the full Sargent 10 Line lever lock lineup, browse Sargent lever locks. For compatible power supplies and access control hardware, view our electronic hardware catalog.

How the 10G71 Fail Secure Function Works

Power off: outside lever locks. The guardbolt simultaneously deadlocks the latchbolt, preventing shimming or carding. The only way to retract the latch from outside is to insert a key in the cylinder. Access control signal energizes the solenoid: outside lever unlocks, operates normally. Inside lever is always free, no override, no bypass, regardless of power state. The fail secure behavior is mechanical and spring-loaded. Power failure doesn't create a vulnerability window because the lock defaults to the secured state, not the open state.

This is the functional opposite of the 10G70 (fail safe), where power on locks the lever and power off unlocks it. The choice between fail secure (10G71) and fail safe (10G70) is driven by life safety code and security priority for the specific opening.

Sargent 10G71 Technical Specifications

Series: Sargent 10 Line. Grade: ANSI/BHMA A156.2, Series 4000, Grade 1. Cycle test: 9.6 million cycles, 9 times the Grade 1 standard. Abusive torque resistance: 1.5 times ANSI/BHMA Grade 1 requirement. UL/cUL Listed: yes, 3-hour fire doors and windstorm applications. ADA Compliant: yes. Handing: handed, must specify door hand at time of order. Function: 10G71 Electromechanical Fail Secure. Voltage: 12V DC or 24V DC (specify at time of order). Current draw: 500mA at 12VDC / 250mA at 24VDC. Connector: ElectroLynx 8-pin connector included. Door thickness: standard 1-3/4" to 2"; 1-3/8" with adapter plates. Backset: 2-3/4" standard. Front: 2-1/4" x 1-1/8" wrought brass, bronze, or stainless steel. Strike: 4-7/8" ANSI A-115.2 curved lip, 1-1/4" curved lip. Latch: stainless steel, 1/2" throw. Door prep: 161 modified with 2 thru-bolt holes (2-1/8" cross-bore, 2-3/4" backset, 1" edge-bore, 1-1/8" wide x 2-1/4" high mortise). Keys: 2 included. Available finishes: 12 architectural-grade. Warranty: 7-year limited.

ElectroLynx Connector and Wiring

The 10G71 ships with the Sargent ElectroLynx 8-pin connector as standard. This connector provides a standardized, tool-free wiring interface that connects the lock body to the access control panel wiring harness at the door. It reduces wiring time during installation, simplifies field service, and allows the lock to be replaced without re-terminating wires at the panel. Always specify voltage (12V or 24V) at time of order. The solenoid is not field-configurable between voltages.

10G71 vs. 10G70: Fail Secure vs. Fail Safe

The 10G70 is fail safe: power on locks the lever, power off unlocks it. Used on fire egress doors and applications where life safety code requires free egress during a power failure. The 10G71 is fail secure: power off locks the lever. Used on security-sensitive openings where the door must default to locked during any power interruption. Government secure facilities, pharmaceutical storage, data centers, school controlled corridors, and industrial restricted zones all typically specify fail secure. Confirm with your AHJ which mode is required for each specific opening before specifying.

Key System Compatibility and IC Options

The standard 10G71 ships with an LA conventional keyway cylinder. SFIC (Small Format Interchangeable Core) is available using the 70 option prefix (2870-10G71). LFIC (Large Format Interchangeable Core) is available for facilities running Schlage or Medeco LFIC master key programs. Compatible key systems include Sargent Degree, Signature, KESO, and XC. The 10 Line also accepts cylinders from Schlage and Medeco in LFIC configuration. For compatible cylinders and IC cores, browse cylinders, cores, and keys.
