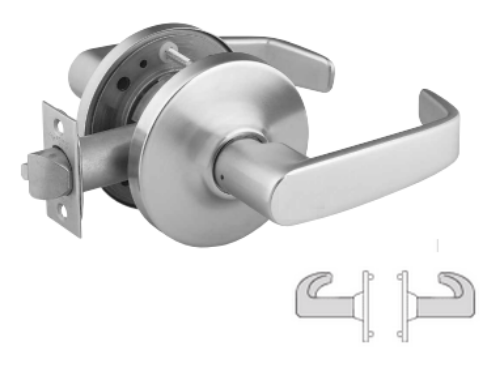

Sargent 10U94 Double Lever Pull

Sargent 10U94 Double Lever Pull

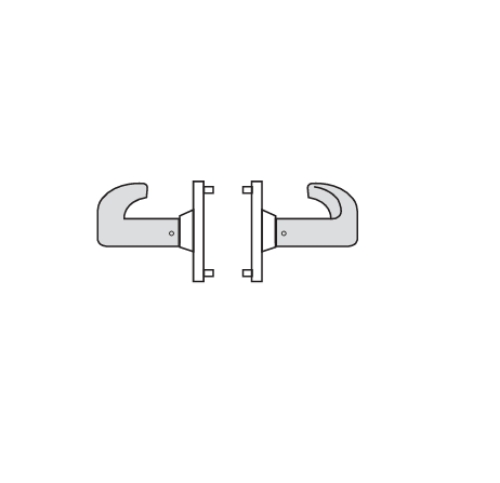

Lever:*LLL Lever L Rose,LJJ Lever L Rose,LBB Lever L Rose,LP*P Lever L Rose

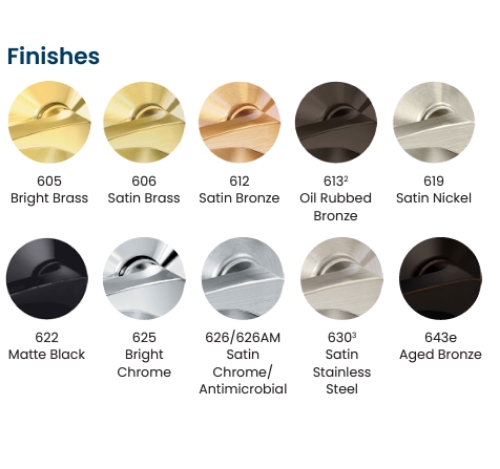

Finishes:US3 (605) Bright Brass, US4 (606) Satin Brass, US10 (612) Satin Bronze, US10B (613) Dark Oxidized Satin Bronze, Oil Rubbed, US26 (625) Bright Chromium Plated, US26D (626) Satin Chromium Plated

Accommodates doors 1-3/4" to 2" thick (1-3/8" (35mm) thick door, 1- Option for Adapter plates)

7 year limited warrantyno service required to maintain warranty

Model:Sargent, 10U94, 10U94LL, 10U94LP, 10U94LB, 10U94LJ, 2810U94LJ

Sargent, US26D, 626, 10U94LL26D,  10U94LP26D, 10U94LP26D, 10U94LJ26D

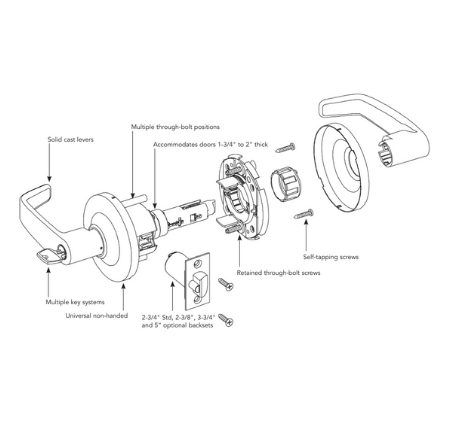

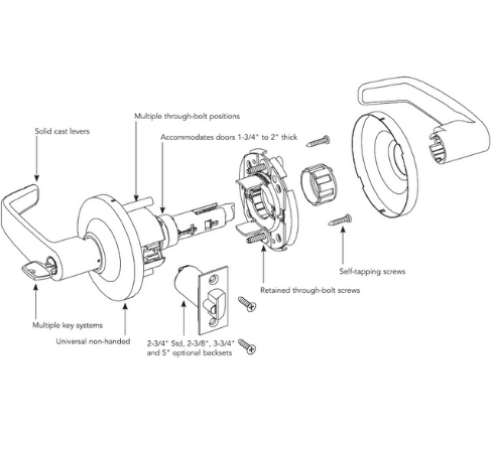

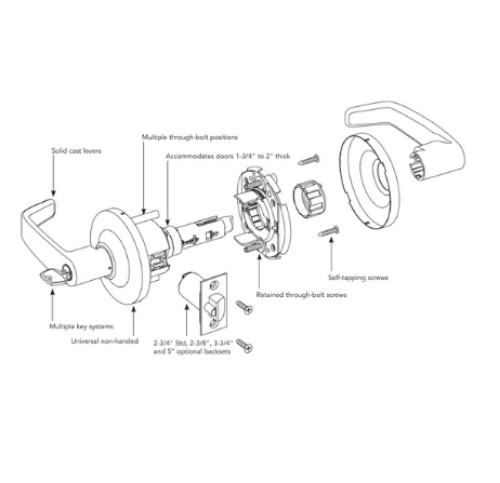

For wood or custom hollow metal doors Lever and rose both sides joined by two through-bolts Requires special door preparation see template

Meets and greatly exceeds ANSI A156.2 Series 4000 - Grade 1

Specifications

Roses -Heavy wrought brass and bronze

Minimum Stile:4-1/2" (114mm)

Certification Compliance

ANSI/BHMA Certified ANSI A156.2 Series 4000 - Grade 1

UL UL listed to U.S.A. and Canadian safety standards Listed for 3 hour doors (double doors require 41 - option)

Positive Pressure Meets UL 10C and UBC 7-2 (1997)

ADA All levers conform to ADA requirement for barrier-free accessibility

California Code Levers (L, J & P) conform to California Administrative Code Title 19 and 24
