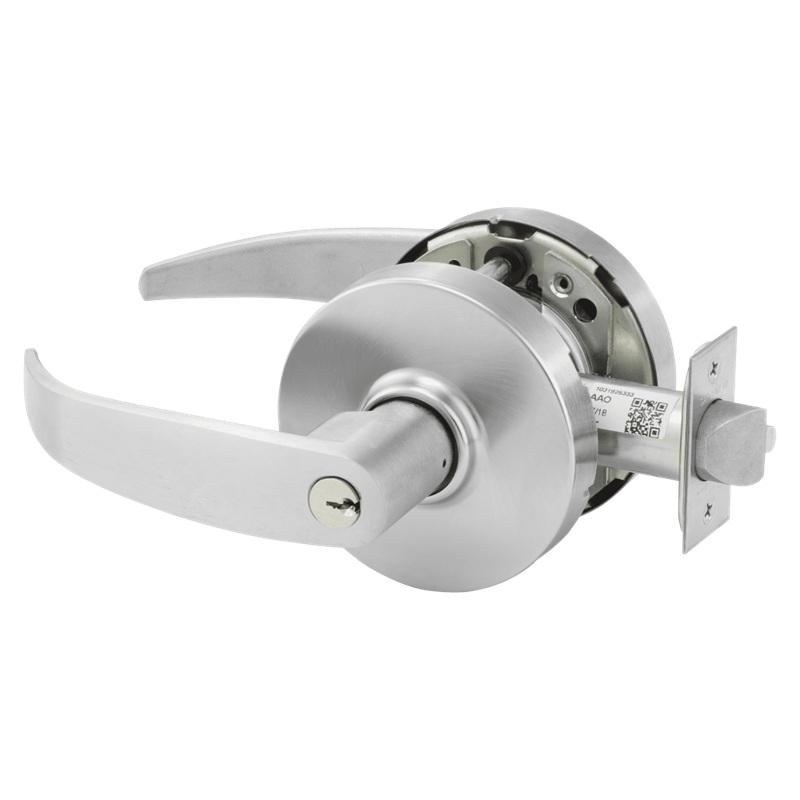

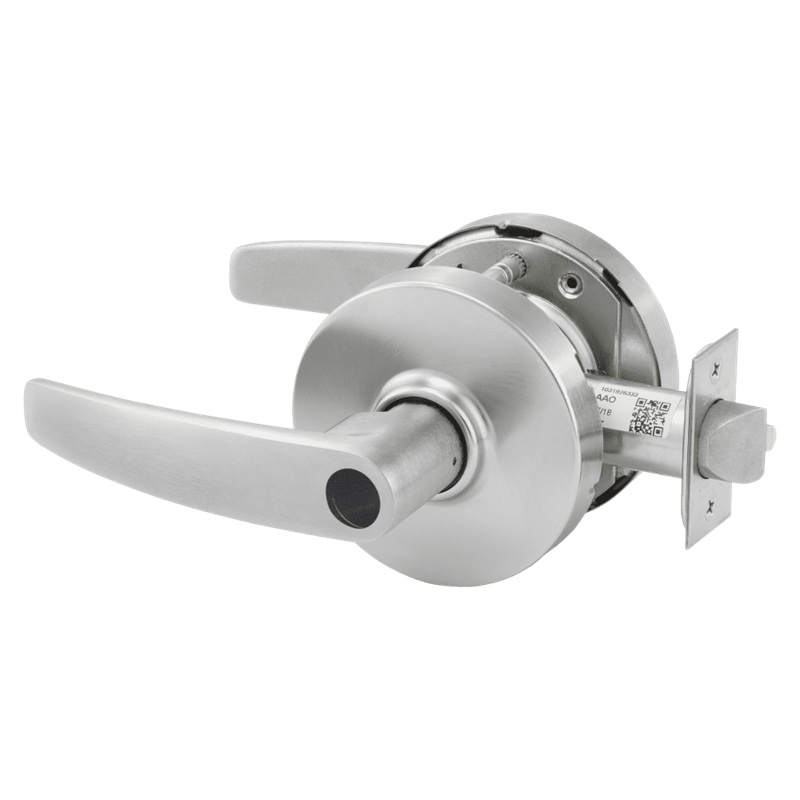

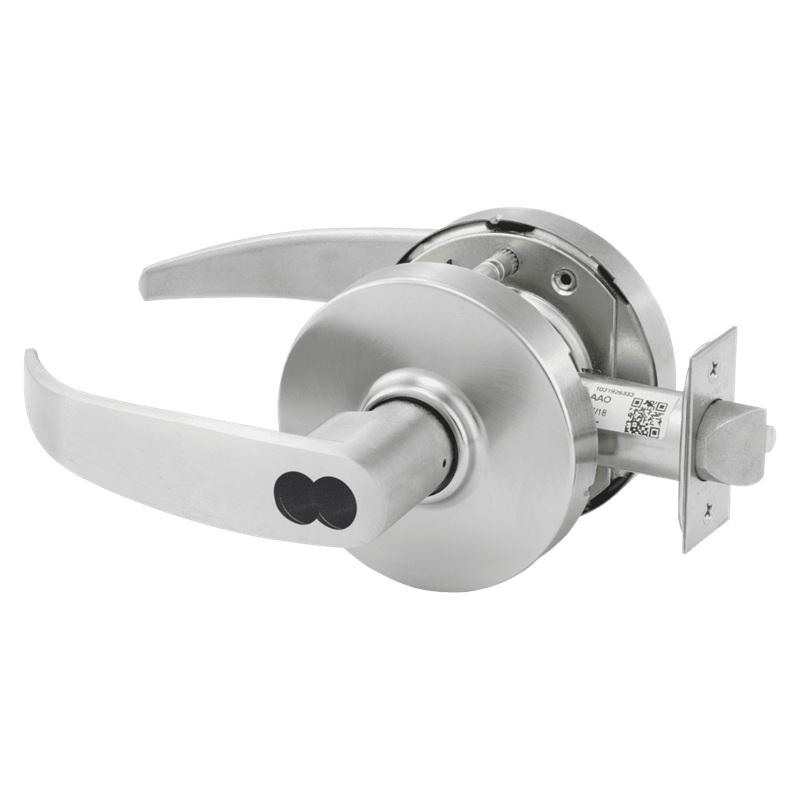

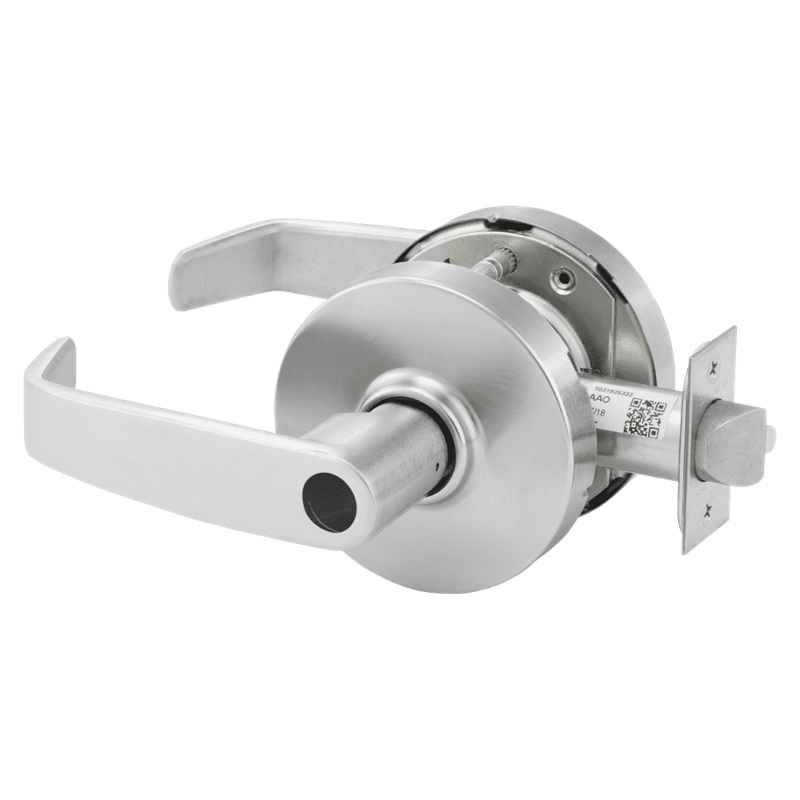

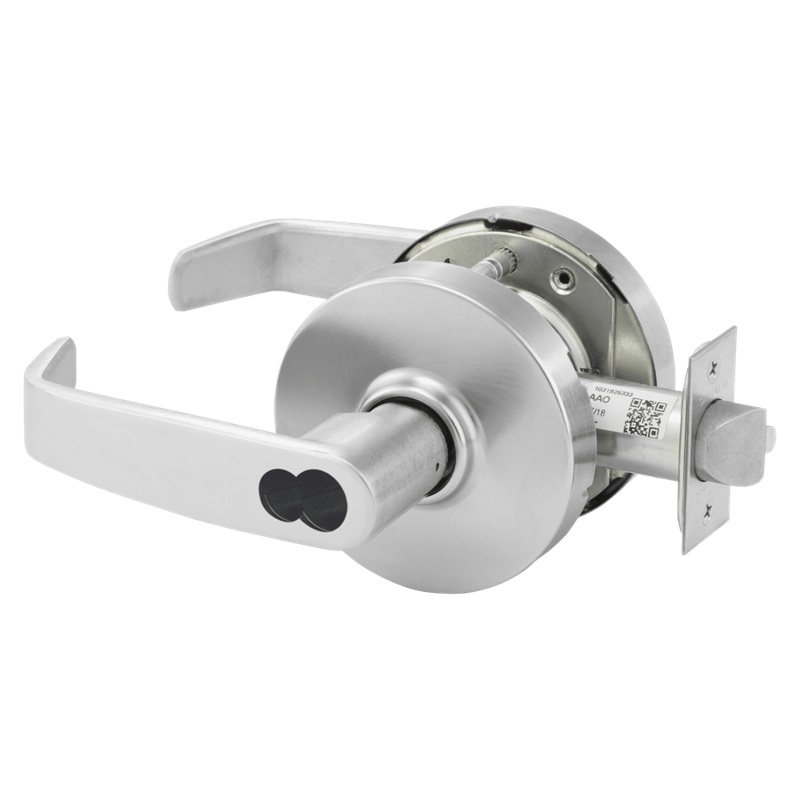

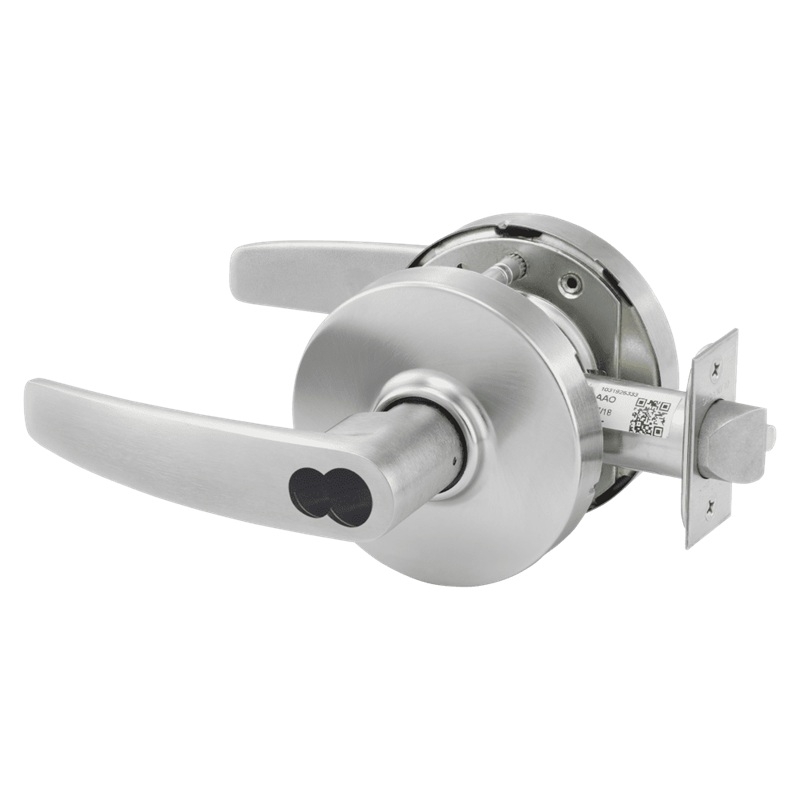

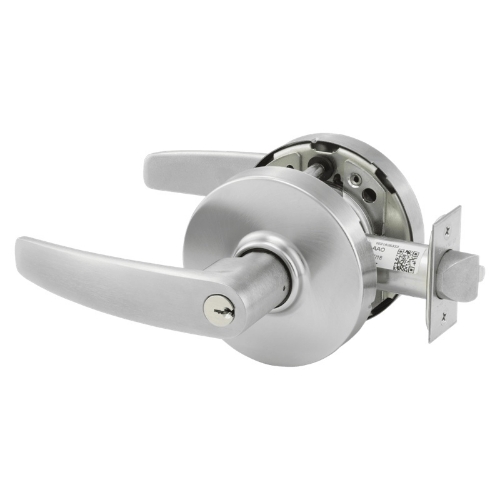

Sargent 10XG24 Grade 1 Entrance or Office Cylindrical Lock

Sargent 10XG24 Grade 1 Entrance or Office Cylindrical Lock, Non-handed

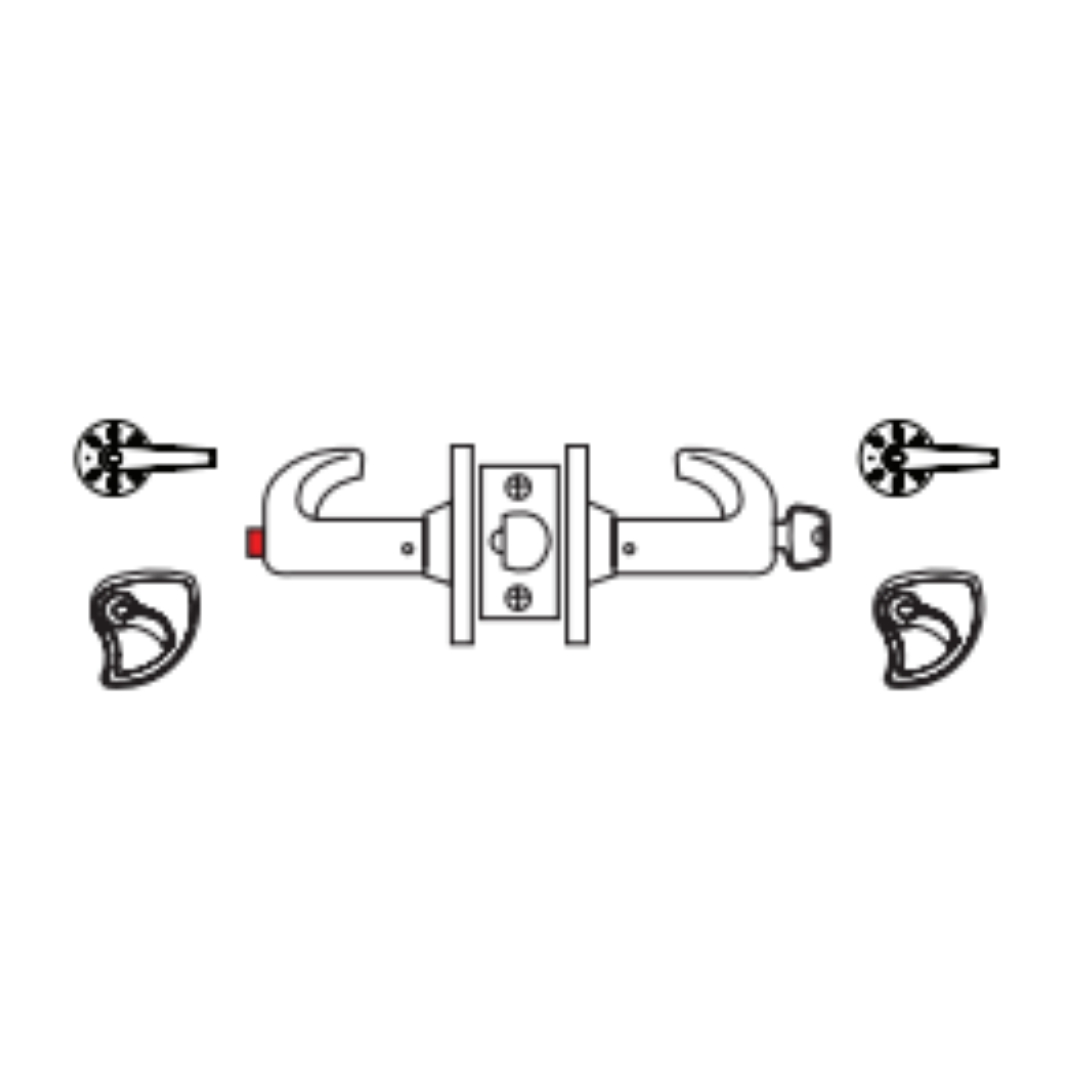

Function: 10XG24 - Entrance or Office - ANSI No. F82A

• Deadlocking latch
• Latch by either lever unless outside lever is locked by push button in inside lever
• Push button released by key or turning inside lever
• Closing door does not unlock outside lever or release button
• Key in outside lever retracts latch when outside lever is locked and releases inside push button

Door Prep: ANSI/SDI A250.14

Door Thickness: 1-3/4" (44mm) thick door adjusts to 2" (51mm) standard

Minimum Stile: 4-1/2" (114mm)

Handing: Non-handed

Backset: 2-3/4" (70mm) backset w/ 1-1/8" (29mm) front (standard)

Latchbolt: Stainless steel, 1/2" (13mm) throw

Front: Wrought brass and stainless steel
            2-1/4" x 1-1-8" (57mm x 29mm) Fixed Bevel
            2-1/4" x 1" (57mm x 25mm) (included with 20- Option)

Strike: Wrought brass, bronze and stainless steel
            808 curved lip ANSI 4-7/8" strike - standard

Cylinder: Brass, 6-pin LA keyway

Keys: Two nickel silver change keys per lock standard

Warranty: Ten-year limited

Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements) Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bindProhibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148)Utilizes EcoFlex technology on all electromechanical functions, creating up to 92% energy savingsInnovative push/turn button design prevents damage from door stops and walls26 mechanical and 2 electromechanical functions offeredAvailable in 15 finishes with multiple lever designsLockbody design supports all cylinder formats - from fixed to interchangeable core - and all SARGENT Key SystemsWindstorm certified to comply with Florida Building Code requirements & UL listing

Benefits: Provides maximum resistance to vandalism and other malicious attacks Complements the look of any design style Minimizes inventory stocking requirements Simplifies installation in new and retrofit applicationsIntegrates with new or existing facility's key systems

ANSI/BHMA: Certified ANSI/BHMA A156.2 (2022) Series 4000 — Grade 1
Certified ANSI/BHMA A156.41
UL/cUL UL/cUL listed to US and Canadian safety standards for 3 hour doors up to 4' x 10' (double doors require 41- option)
UL294 Listed as an Access Control Accessory (10XG70 & 10XG71)
NFPA 80 Conforms for life safety and property protection, Standard for Fire Doors and Other Opening Protectives
Positive Pressure Meets ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies
ADA The force required to activate all levers shall be 5 pounds (22.2N) maximum. All levers conform to ADA clear opening width
requirements of ANSI A117.1.
California State
Reference Code
(Formerly Title 19,
California State Fire
Marshal Standard)
All levers with returns comply; levers return to within 1/2" (13mm) of door face
Windstorm/Hurricane All individual components of a total door opening are required to comply with each code.
