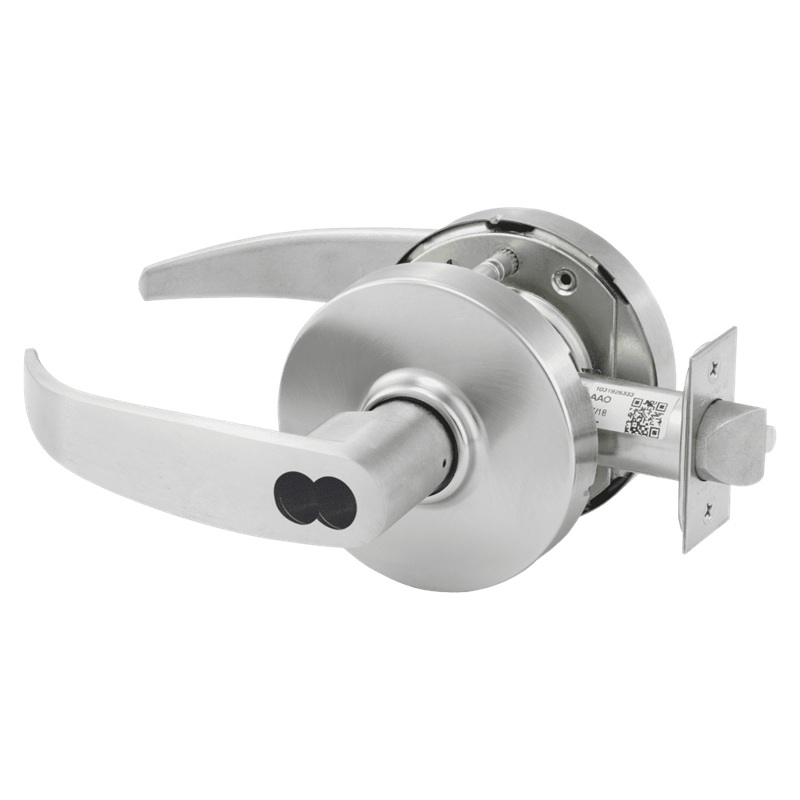

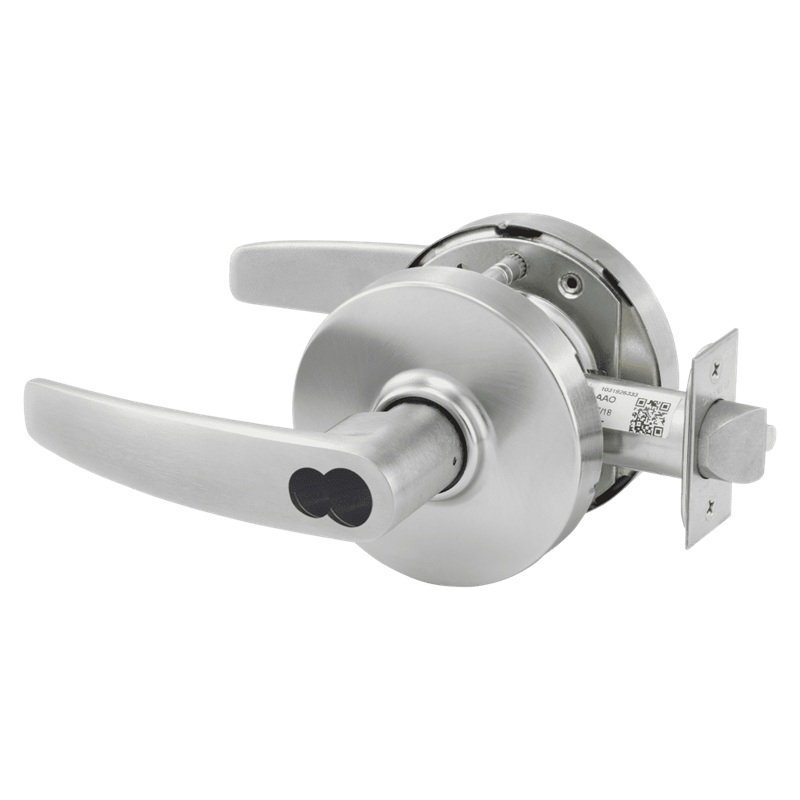

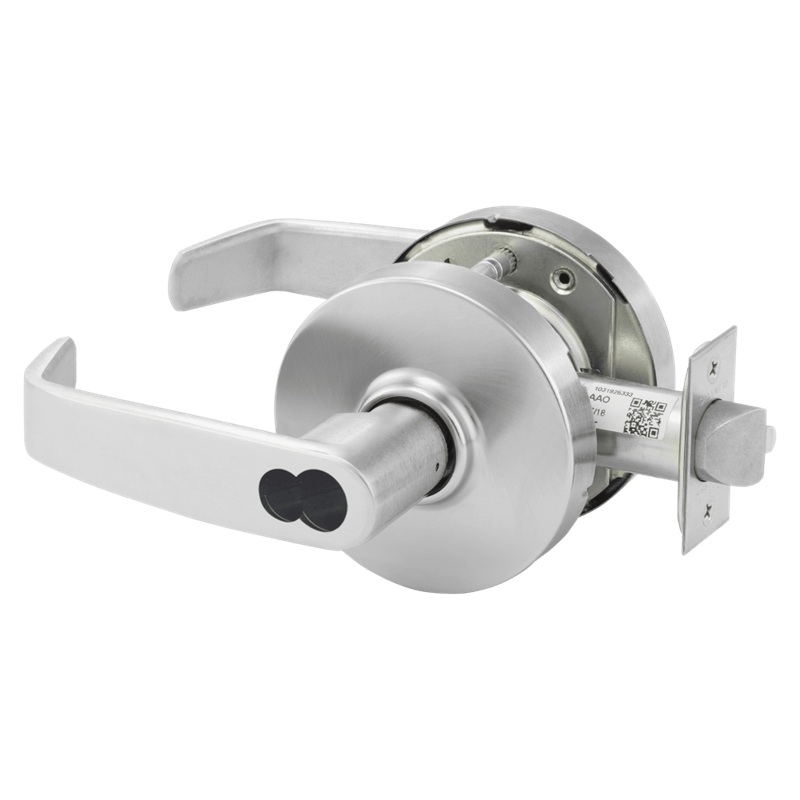

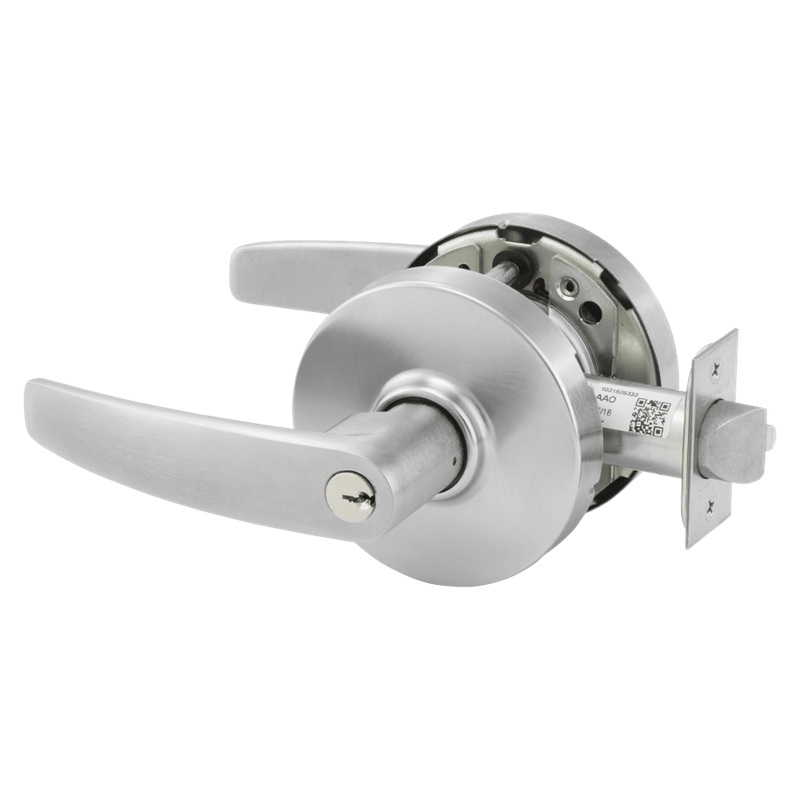

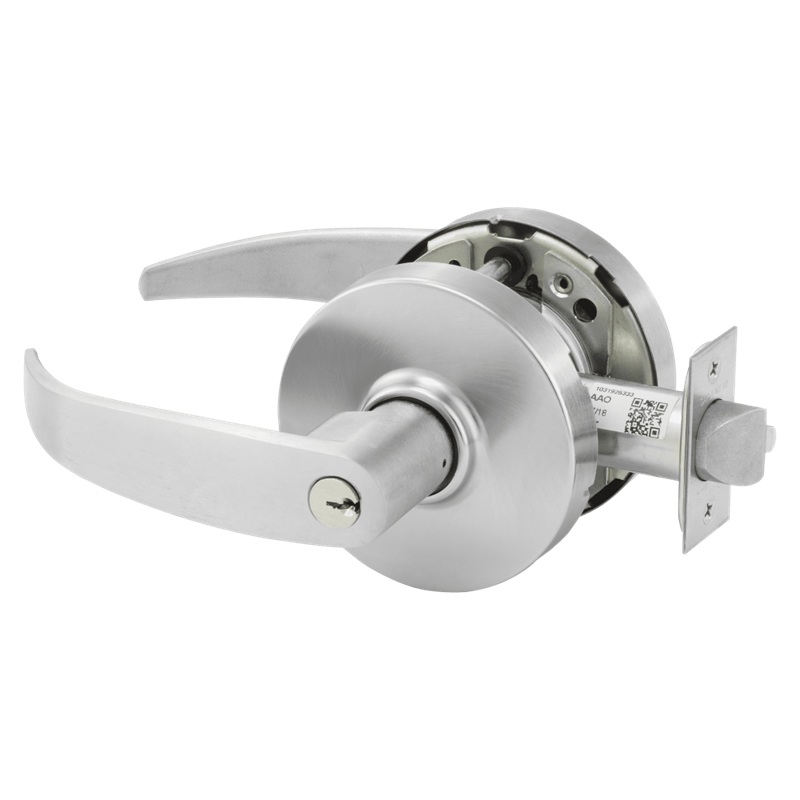

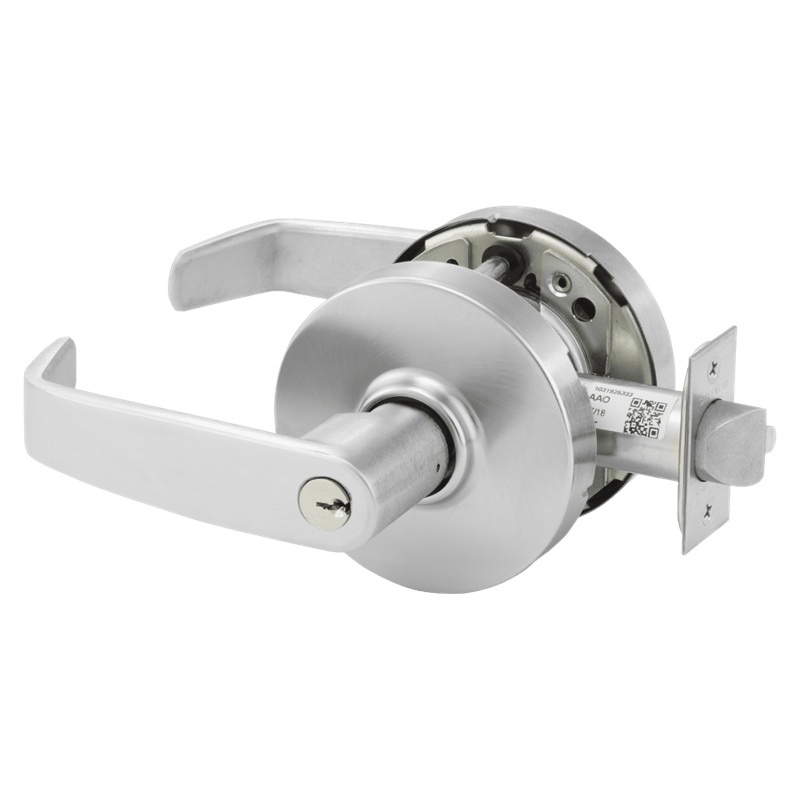

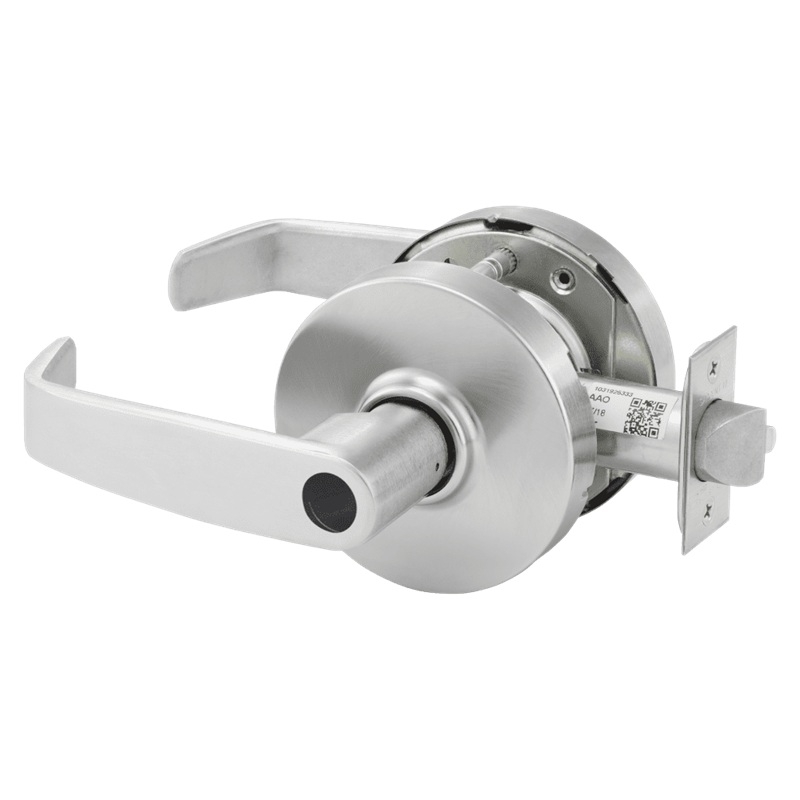

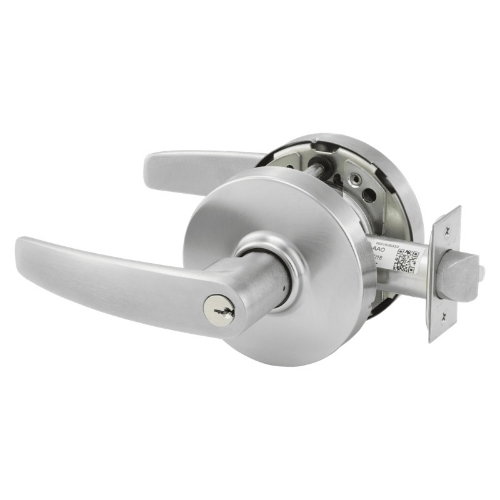

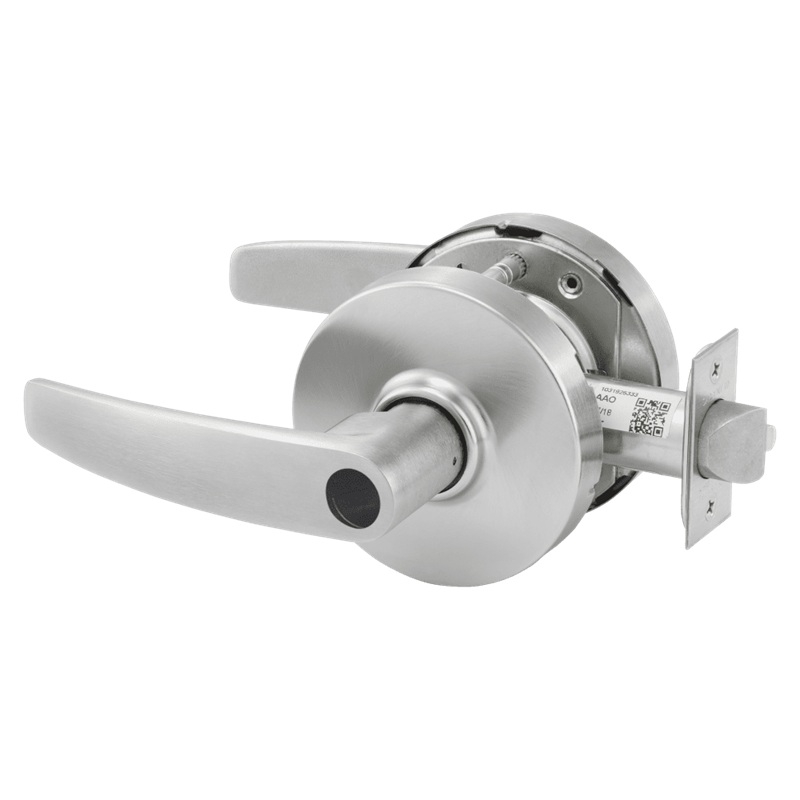

Sargent 10XG50 Grade 1 Hotel, Dormitory or Apartment Cylindrical Lock

Sargent 10XG50 Grade 1 Hotel, Dormitory or Apartment Cylindrical Lock

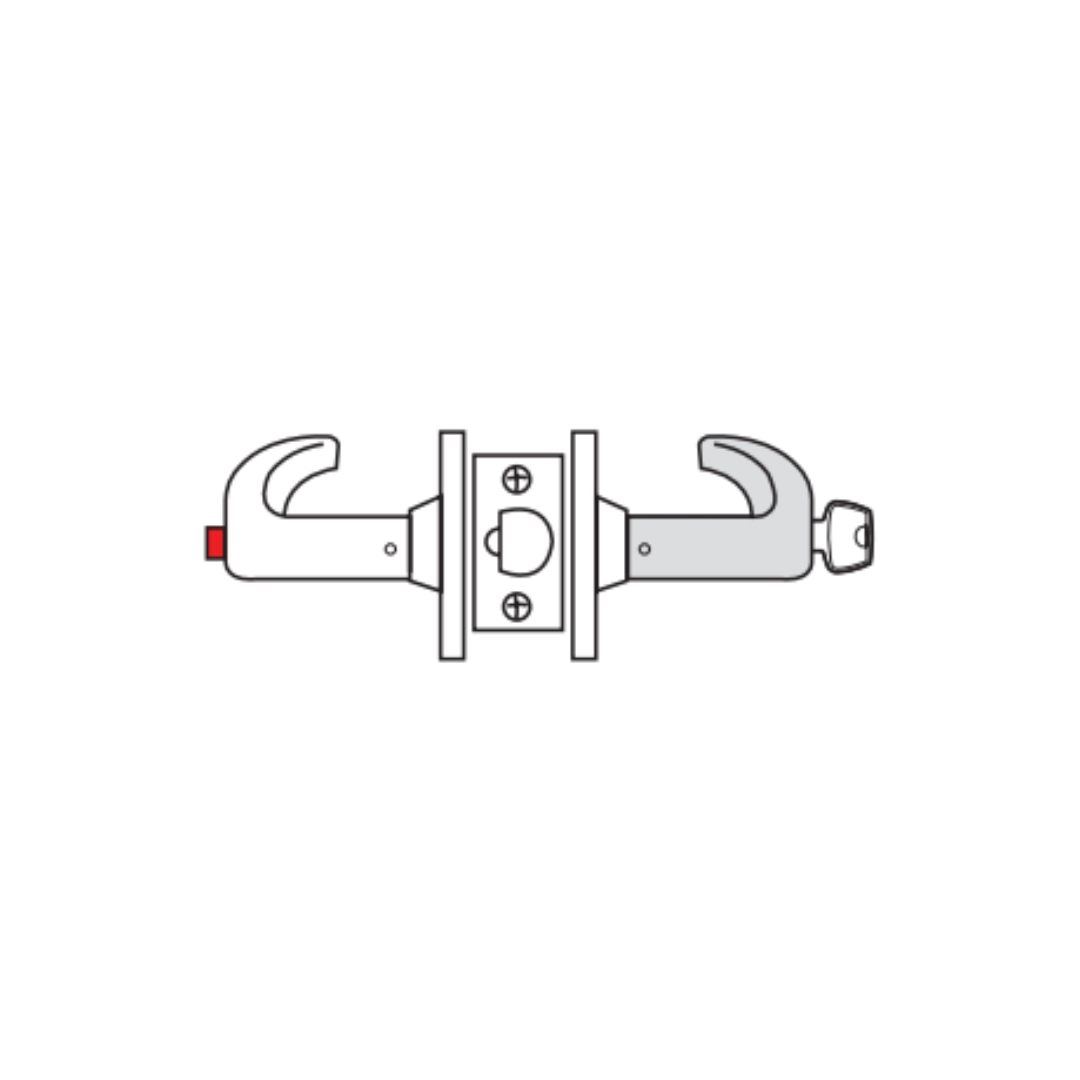

Function: 10XG50 - Hotel, Dormitory or Apartment - ANSI No. F93

•  Deadlocking latch
• Latch by key outside and lever inside
• Outside lever always locked
• Depressing push button when door is closed shuts out all keys except emergency key and projects visual occupancy indicator in cylinder face
• Push button released by turning inside lever or by closing door, unless push button has been fixed in locked position by spanner key (provided).
• When push button is fixed in locked position by spanner key, lock is operable only by emergency key.
• See option page for restrictions to 50 function
• Emergency key ordered separately. Part # 6267EMK plus key system registry number

Deadlocking latch: Latch by either lever unless outside lever is locked by key- Key in outside lever locks or unlocks outside lever and retracts latch- Inside lever always operative

Lever: Standard

Rose: Standard

Cylinder: Conventional

Applications: Heavy duty commercial and institutional interior and exterior doors, Offices, Schools/Universities, Hospitals, Manufacturing facilities, Government

ANSI/BHMA Code: A156.2

Backset Depth (Standard): 2-3/4" (70mm) backset w/ 1-1/8" (29mm) front (standard); 2-3/8" (60mm) backset w/ 1" (25mm) wide front (specify 20- Option)

Cylinder Format: Large Format, Small Format, Conventional

Cylinder Pins: 6 pin, 7 pin

Door Thickness (Standard): 1 3/4"

Grade: Grade 1

Handing: Non-handed

Latchbolt Throw: 1/2"

Maximum Backset: 5"

Minimum Backset: 2 3/8"

Maximum Door Thickness: 2"

Minimum Door Thickness: 1 3/8"

Number of Keys: 2

Strike Type (Standard): T-Strike Curved Lip

UL Listed: Yes

ULC Listed: Yes

Warranty: 10-year limited warranty; 2-year for electrical components

Benefits: Provides maximum resistance to vandalism and other malicious attacksComplements the look of any design styleMinimizes inventory stocking requirementsSimplifies installation in new and retrofit applicationsIntegrates with new or existing facility's key systems

ANSI/BHMA: Certified ANSI/BHMA A156.2 (2022) Series 4000 — Grade 1; Certified ANSI/BHMA A156.41

UL/cUL: UL/cUL listed to US and Canadian safety standards for 3 hour doors up to 4' x 10' (double doors require 41- option)

UL294: Listed as an Access Control Accessory (10XG70 & 10XG71)

NFPA 80: Conforms for life safety and property protection, Standard for Fire Doors and Other Opening Protectives

Positive Pressure: Meets ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies

ADA: The force required to activate all levers shall be 5 pounds (22.2N) maximum. All levers conform to ADA clear opening width
requirements of ANSI A117.1.

California State Reference Code (Formerly Title 19, California State Fire Marshal Standard): All levers with returns comply; levers return to within 1/2" (13mm) of door face

Windstorm/Hurricane: All individual components of a total door opening are required to comply with each code.
