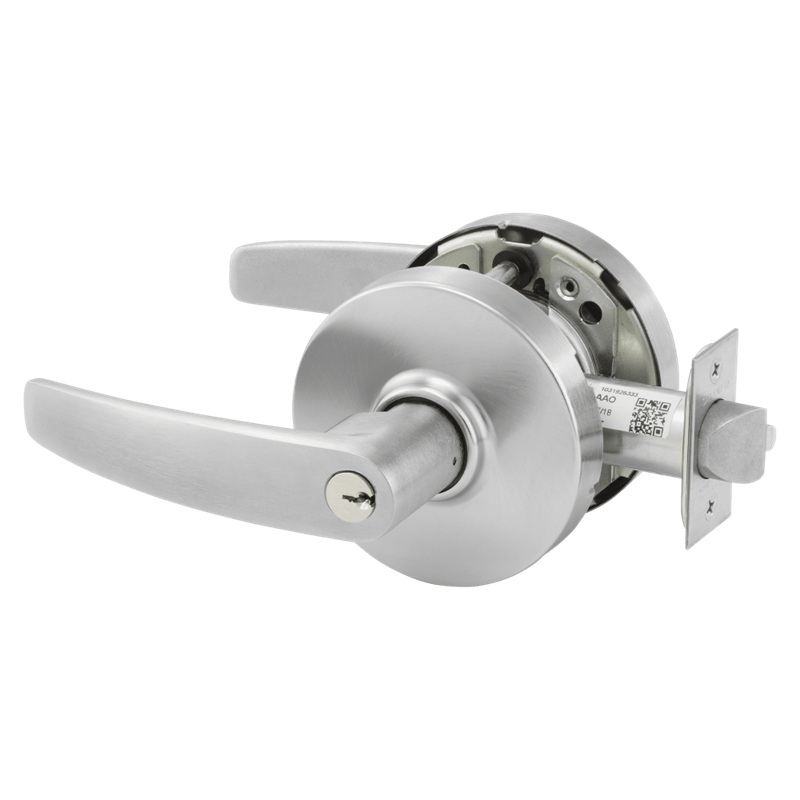

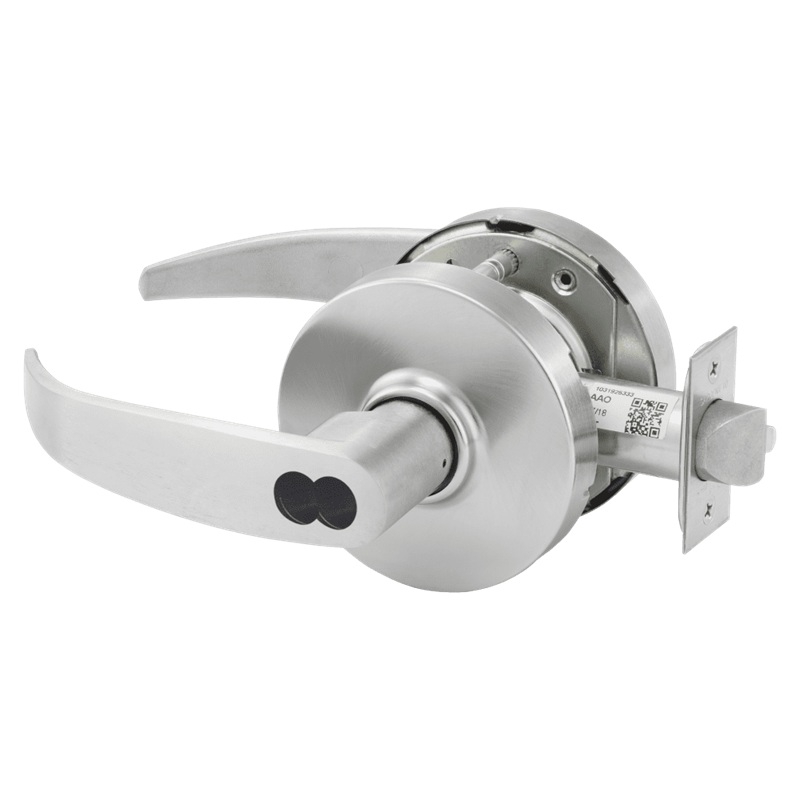

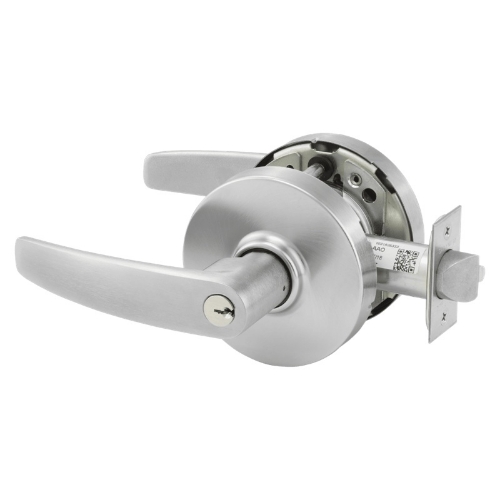

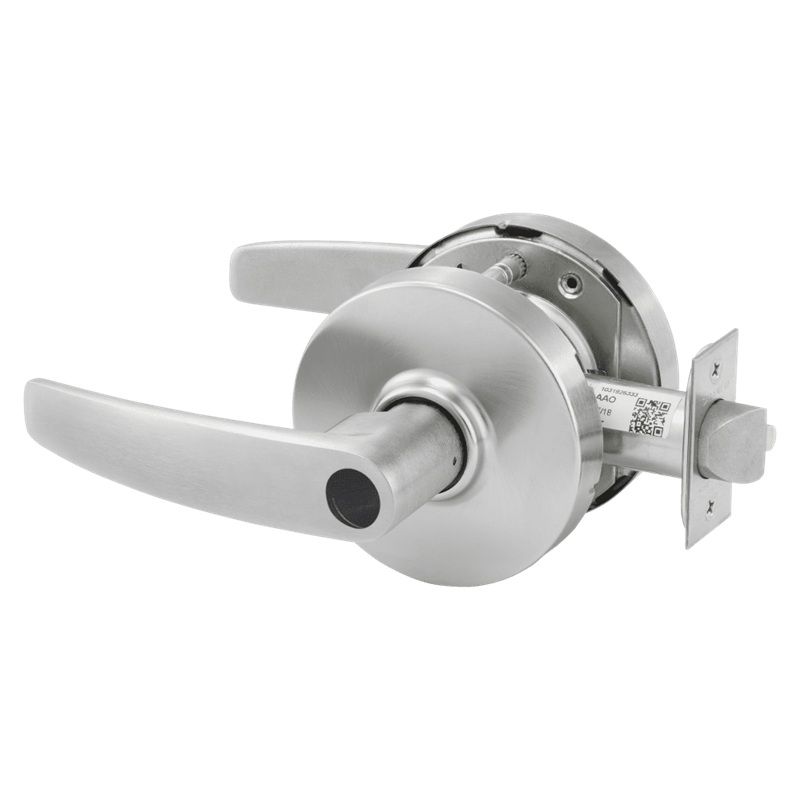

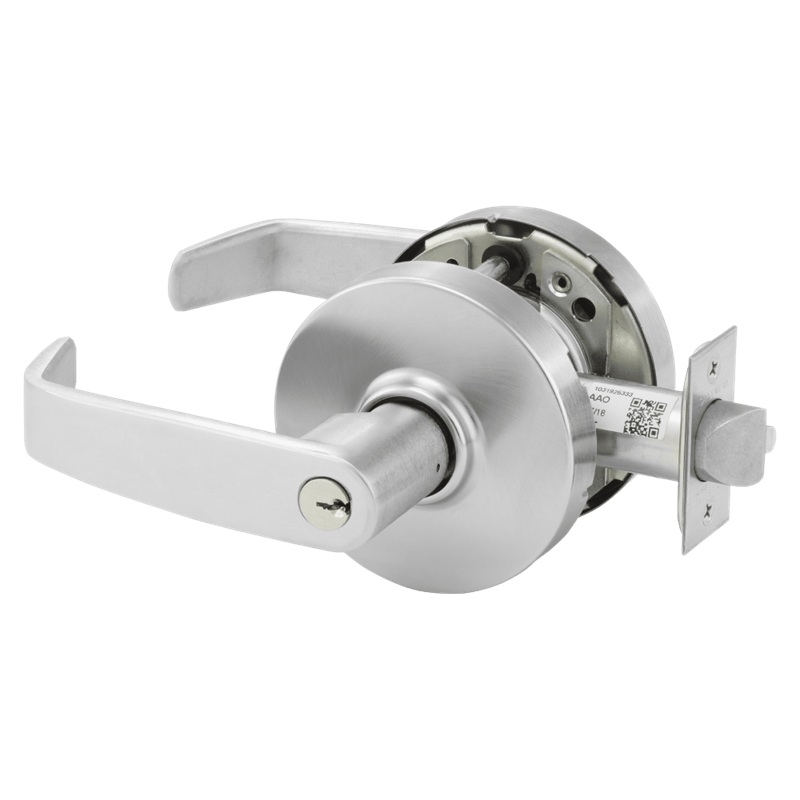

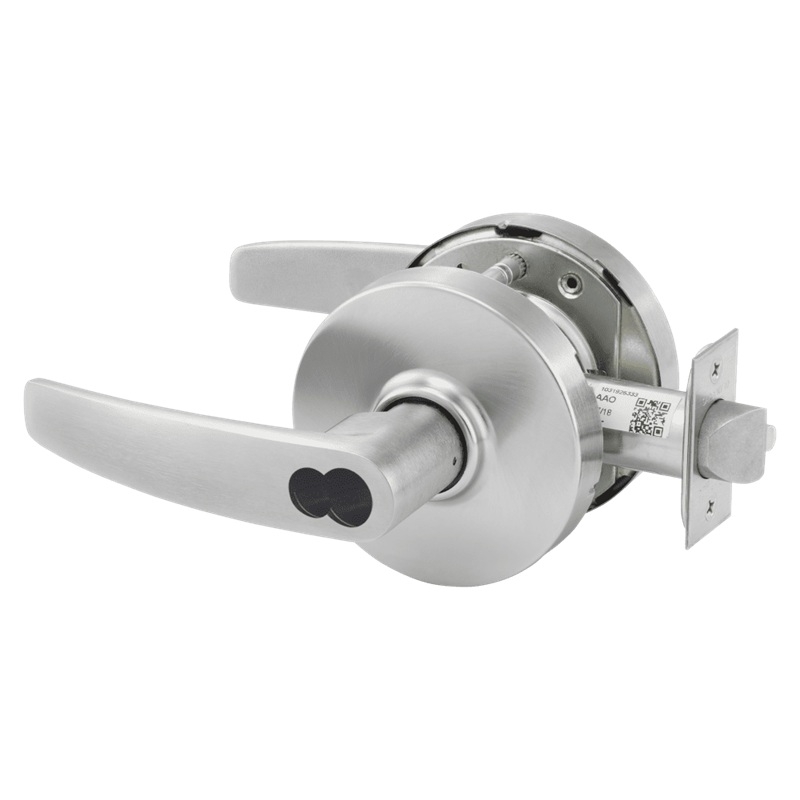

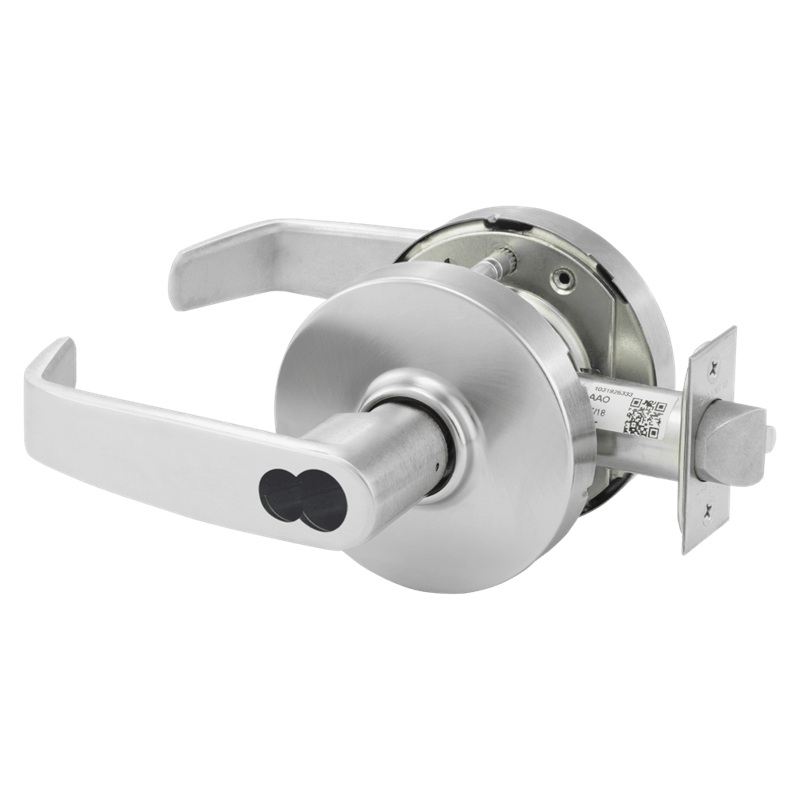

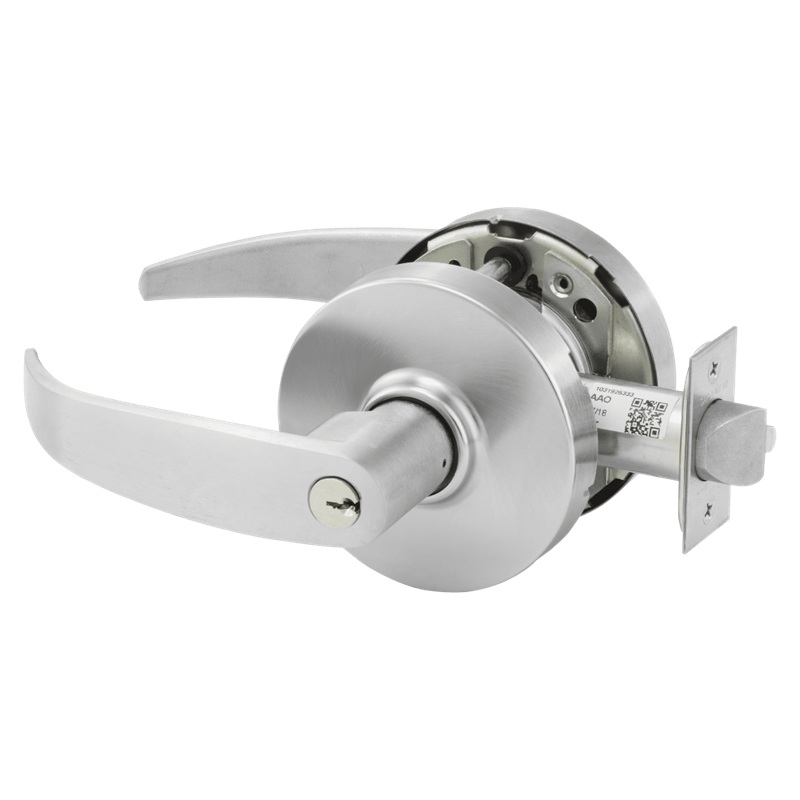

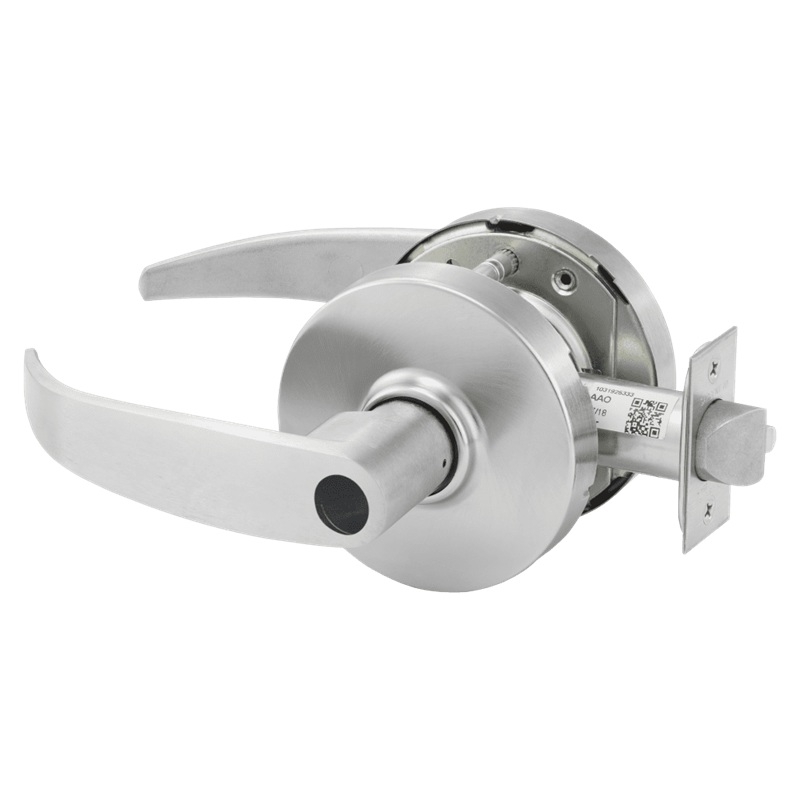

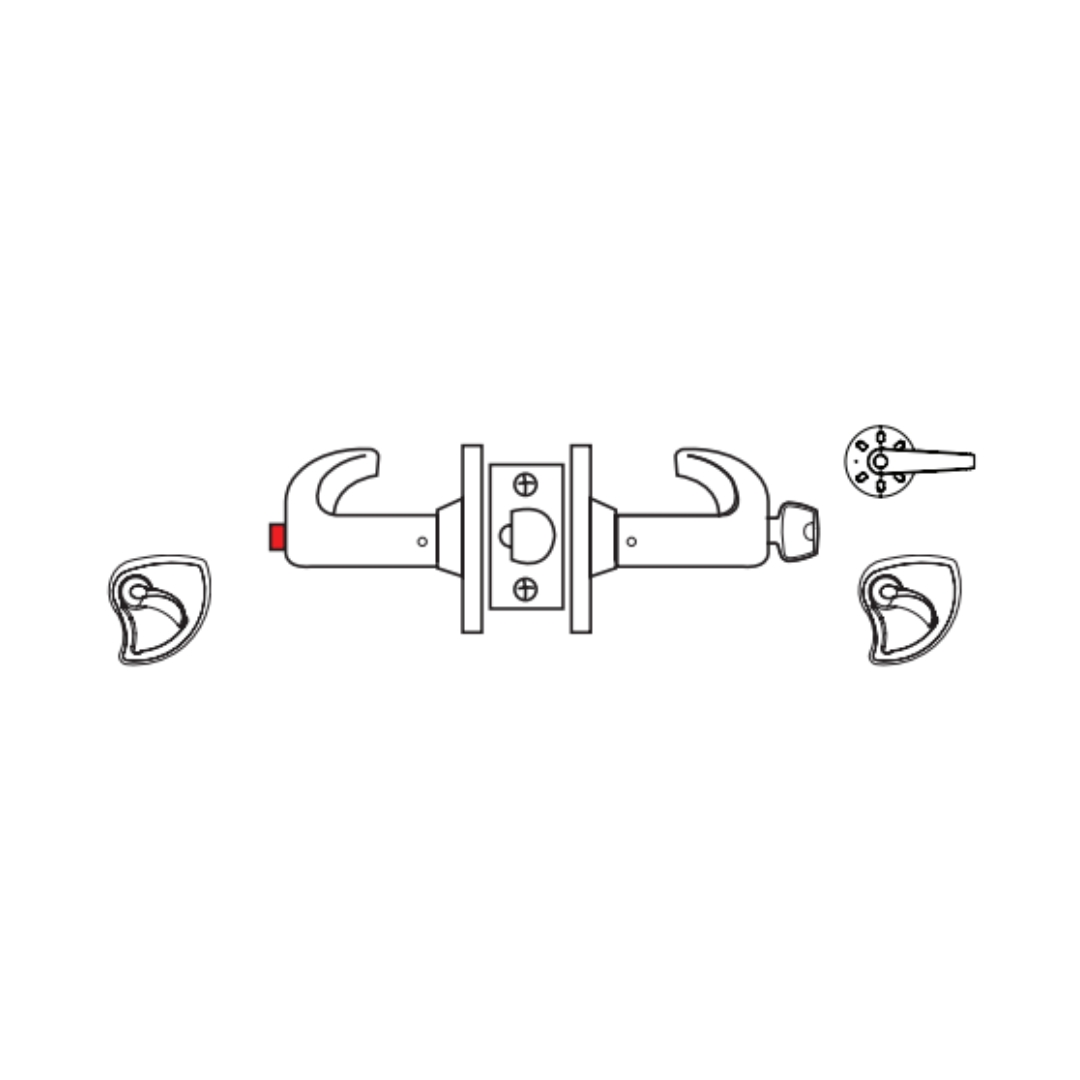

Sargent 10XG54 Grade 1 Corridor, Dormitory Cylindrical Lock

Sargent 10XG54 Grade 1 Corridor, Dormitory Cylindrical Lock

Function: 10XG54- Corridor, Dormitory - ANSI No. F90

•     Deadlocking latch
•     Latch by either lever unless outside lever is locked by push button inside or key outside
•     Rotating inside lever or closing door releases inside button only, but does not unlock the outside lever if locked by key
•     Key outside locks or unlocks outside lever and also retracts latchbolt when locked

Door Prep: ANSI/SDI A250.14

Door Thickness: 1-3/4" (44mm) thick door adjusts to 2" (51mm) standard

Minimum Stile: 4-1/2" (114mm)

Handing: Non-handed

Backset: 2-3/4" (70mm) backset w/ 1-1/8" (29mm) front (standard); 2-3/8" (60mm) backset w/ 1" (25mm) wide front (specify 20- Option)

Latchbolt: Stainless steel, 1/2" (13mm) throw

Front: Wrought brass and stainless steel
            2-1/4" x 1-1-8" (57mm x 29mm) Fixed Bevel
            2-1/4" x 1" (57mm x 25mm) (included with 20- Option)

Strike: Wrought brass, bronze and stainless steel
            808 curved lip ANSI 4-7/8" strike - standard

Cylinder: Brass, 6-pin LA keyway

Keys: Two nickel silver change keys per lock standard

Warranty: Ten-year limited

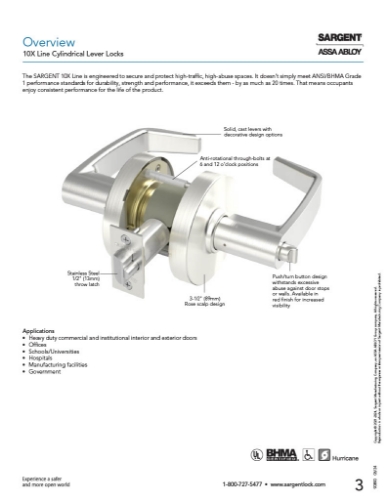

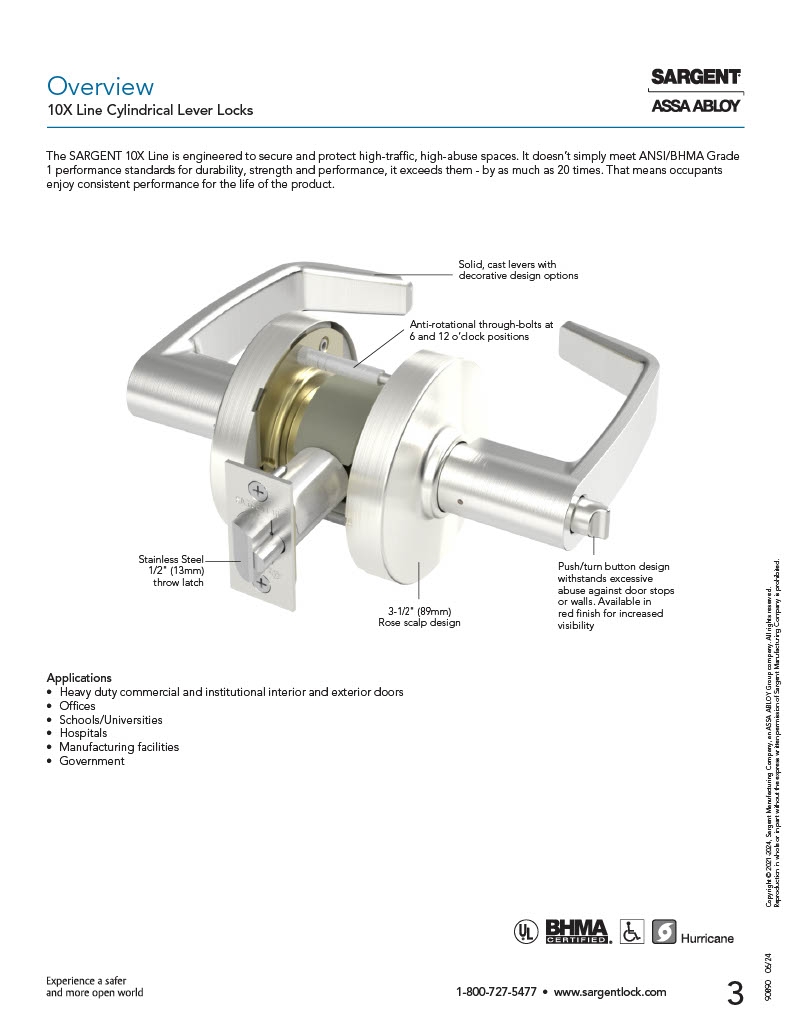

Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements) Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bindProhibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148)Utilizes EcoFlex technology on all electromechanical functions, creating up to 92% energy savingsInnovative push/turn button design prevents damage from door stops and walls26 mechanical and 2 electromechanical functions offeredAvailable in 15 finishes with multiple lever designsLockbody design supports all cylinder formats - from fixed to interchangeable core - and all SARGENT Key SystemsWindstorm certified to comply with Florida Building Code requirements & UL listing

Benefits: Provides maximum resistance to vandalism and other malicious attacks Complements the look of any design style Minimizes inventory stocking requirements Simplifies installation in new and retrofit applicationsIntegrates with new or existing facility's key systems

ANSI/BHMA: Certified ANSI/BHMA A156.2 (2022) Series 4000 — Grade 1; Certified ANSI/BHMA A156.41

UL/cUL: UL/cUL listed to US and Canadian safety standards for 3 hour doors up to 4' x 10' (double doors require 41- option)

UL294: Listed as an Access Control Accessory (10XG70 & 10XG71)

NFPA 80: Conforms for life safety and property protection, Standard for Fire Doors and Other Opening Protectives

Positive Pressure: Meets ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies

ADA: The force required to activate all levers shall be 5 pounds (22.2N) maximum. All levers conform to ADA clear opening width
requirements of ANSI A117.1.

California State Reference Code (Formerly Title 19, California State Fire Marshal Standard): All levers with returns comply; levers return to within 1/2" (13mm) of door face

Windstorm/Hurricane: All individual components of a total door opening are required to comply with each code.
