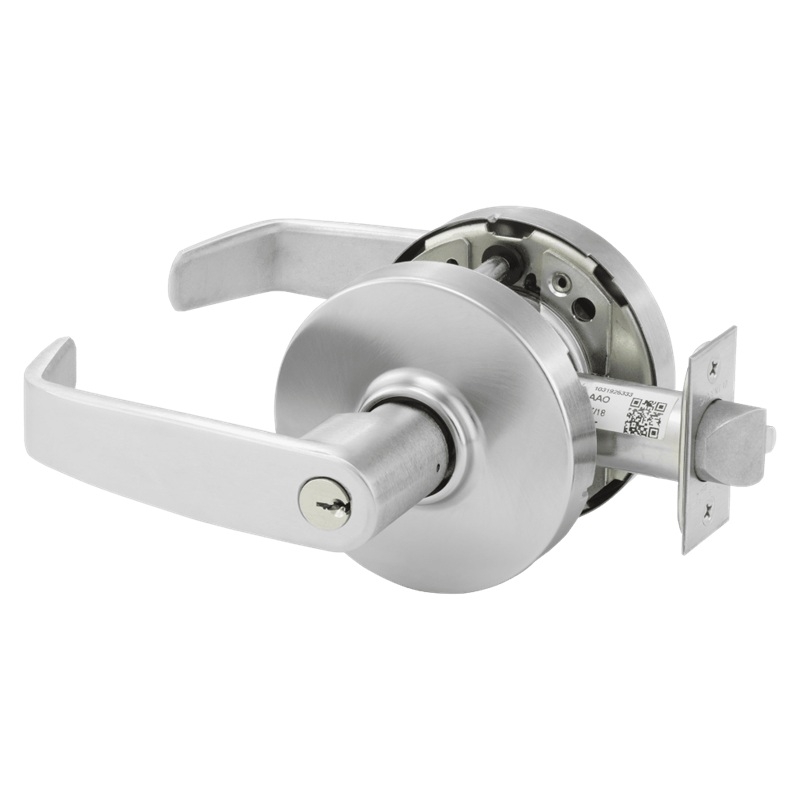

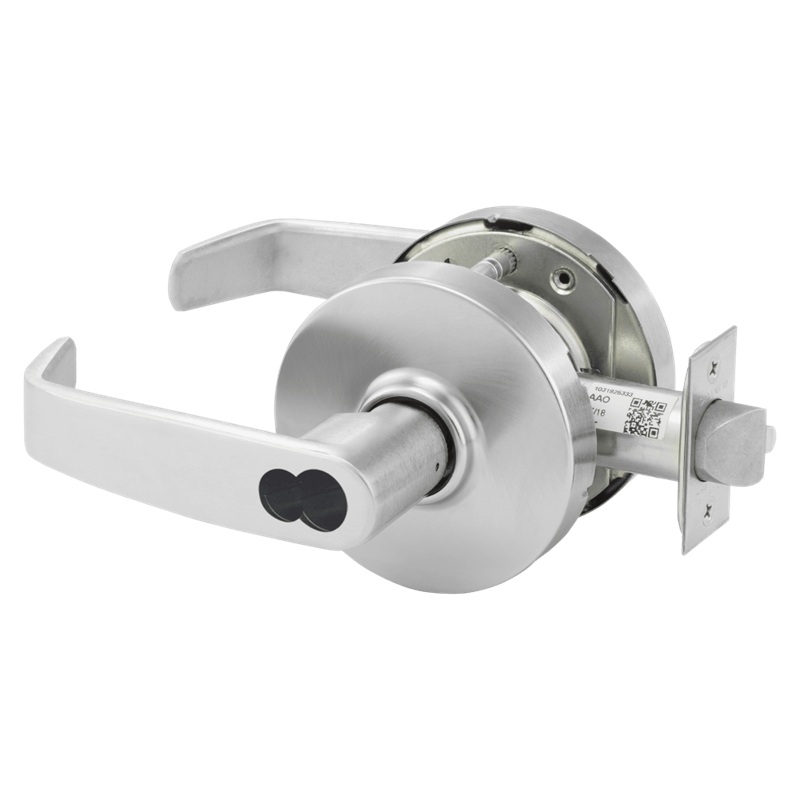

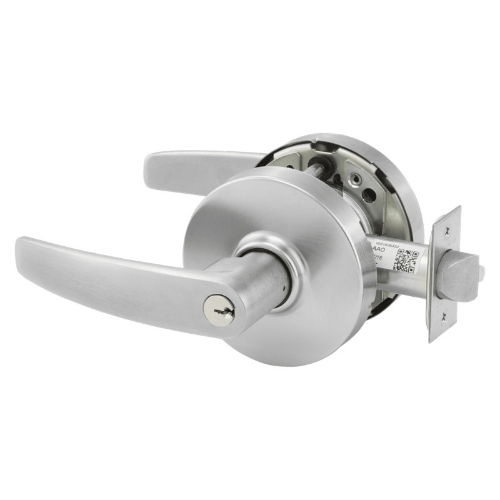

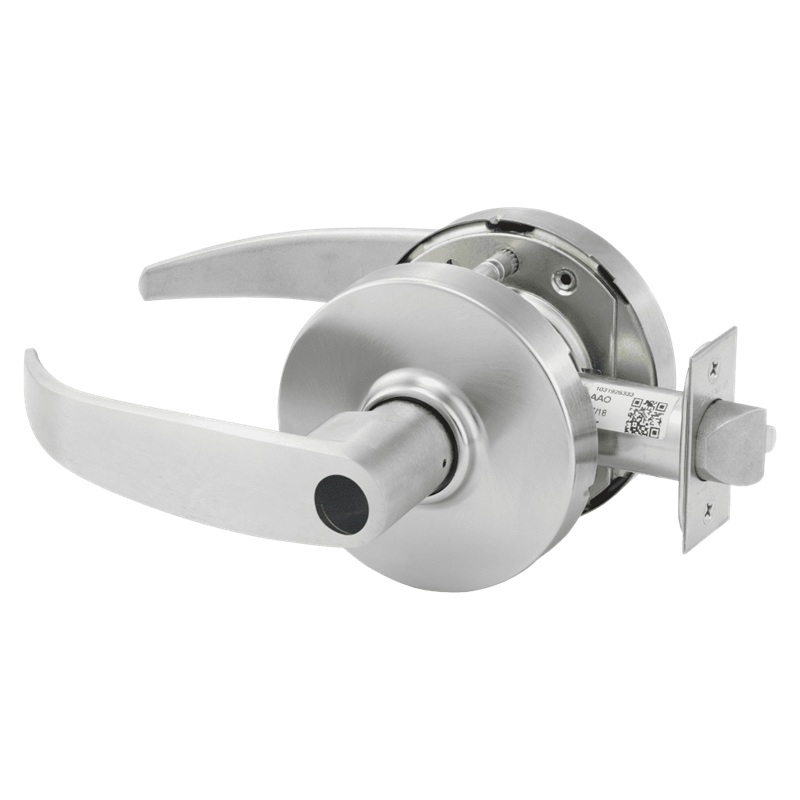

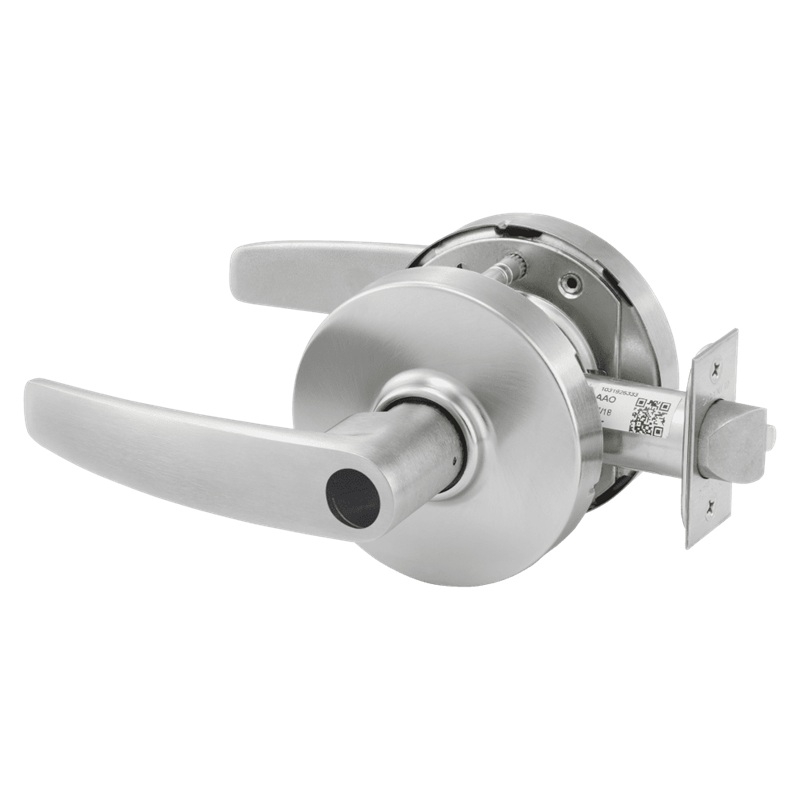

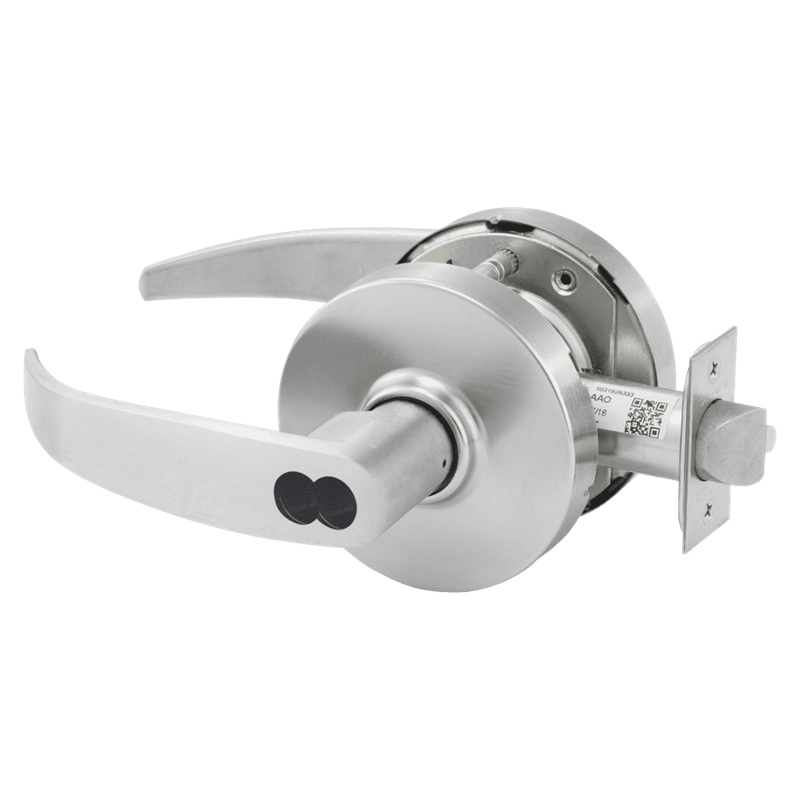

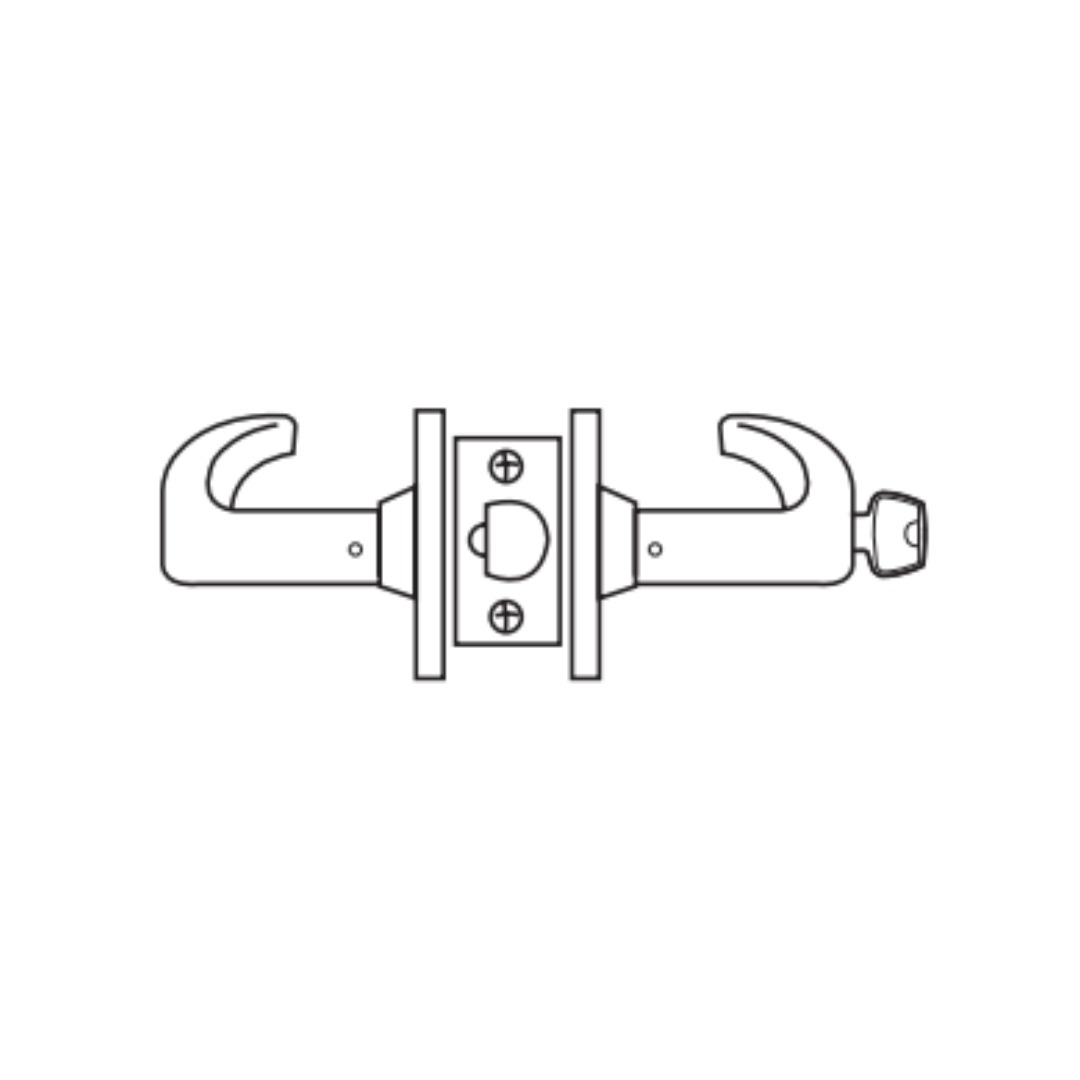

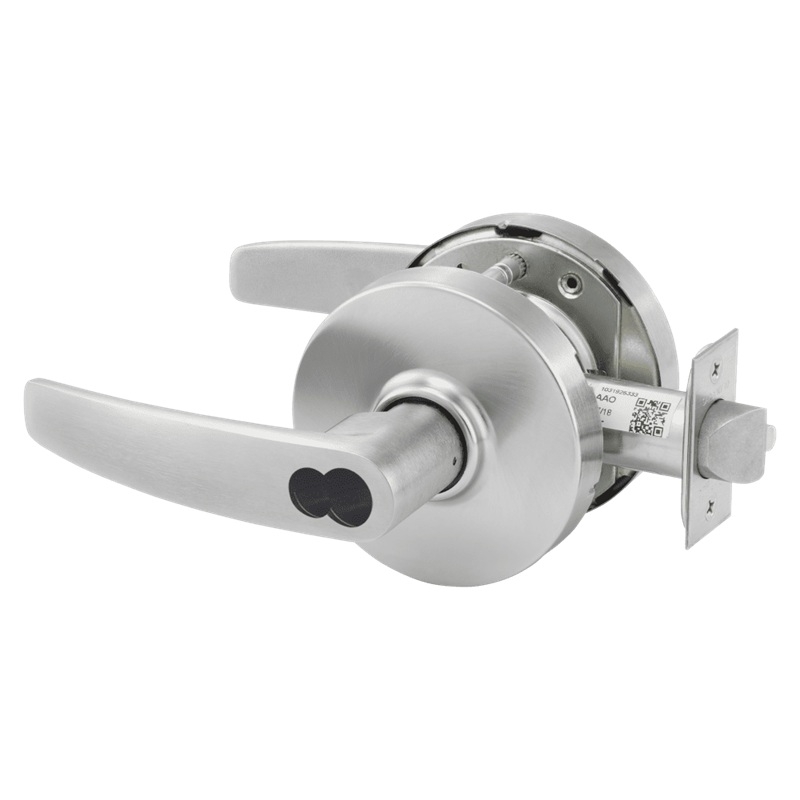

Sargent 10XG60 Grade 1 Barrier Free Storeroom/ Public Restroom Cylindrical Lock

Sargent 10XG60 Grade 1 Barrier Free Storeroom/ Public Restroom Cylindrical Lock

Function: 10XG60 - Barrier Free Storeroom/ Public Restroom

• Deadlocking latch
• Latch by lever inside
• Key in outside lever unlocks outside lever to retract latch
• Key is retained in unlock mode
• When key is removed outside lever is locked

Deadlocking latch: Latch by either lever unless outside lever is locked by key- Key in outside lever locks or unlocks outside lever and retracts latch- Inside lever always operative

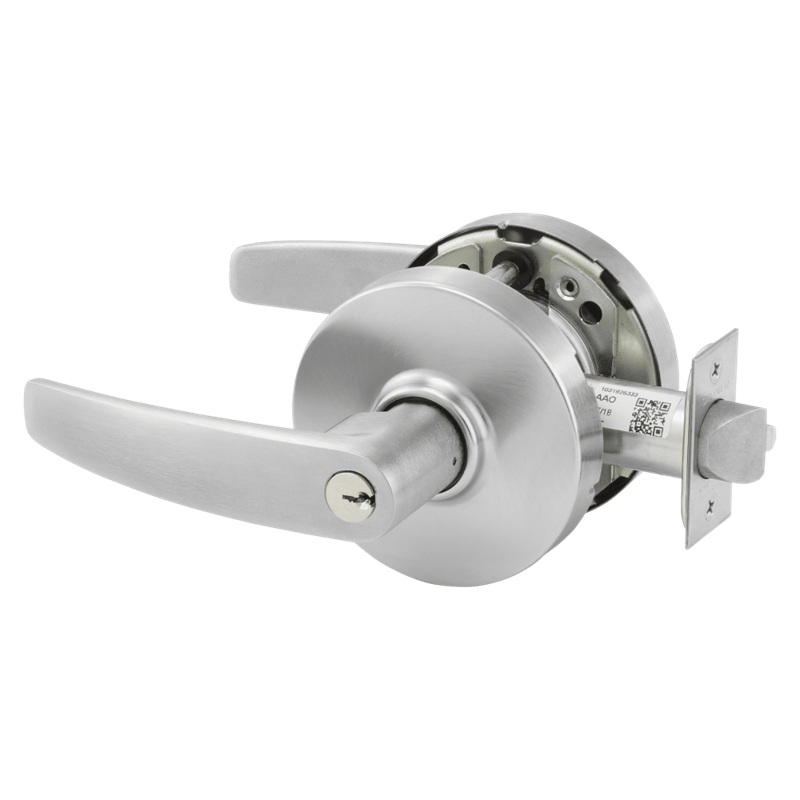

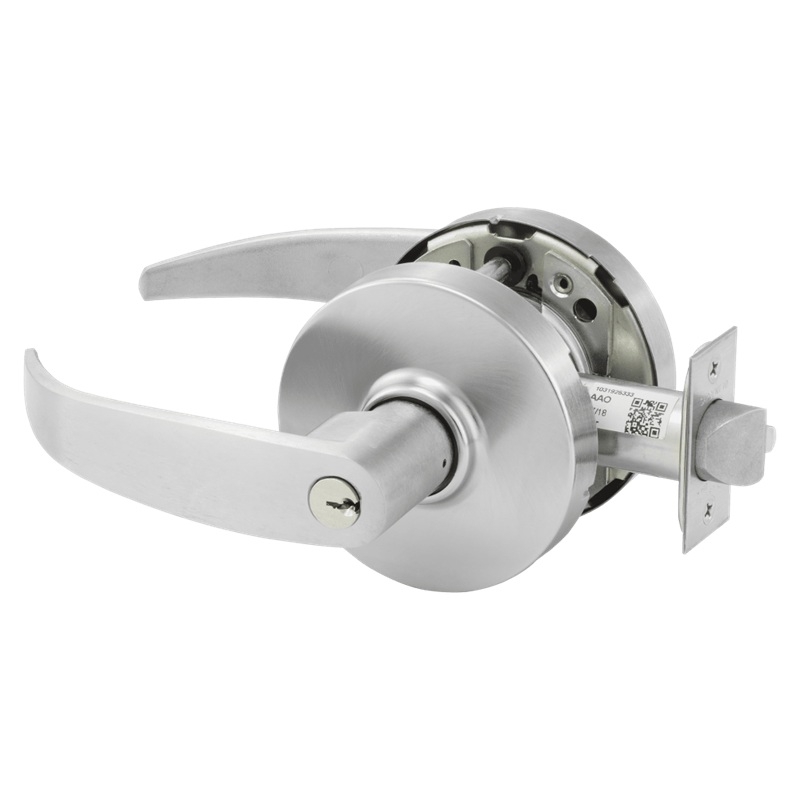

Lever: Standard

Rose: Standard

Cylinder: Conventional

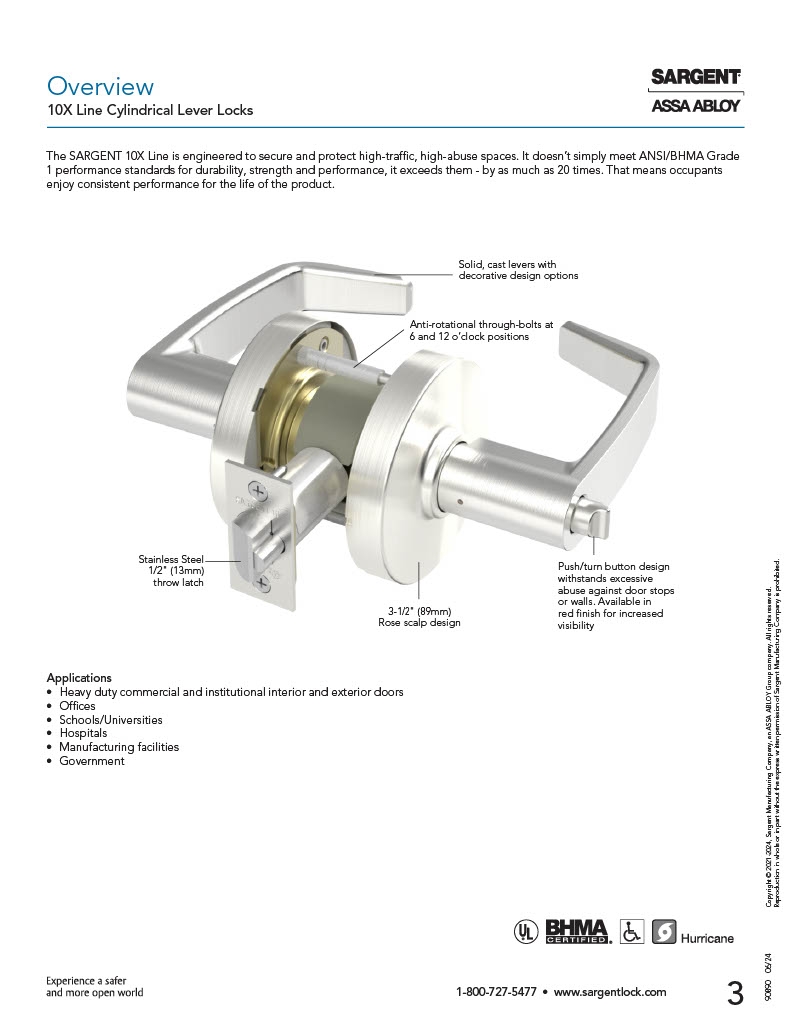

Applications: Heavy duty commercial and institutional interior and exterior doors, Offices, Schools/Universities, Hospitals, Manufacturing facilities, Government

ANSI/BHMA Code: A156.2

Backset Depth (Standard): 2-3/4" (70mm) backset w/ 1-1/8" (29mm) front (standard); 2-3/8" (60mm) backset w/ 1" (25mm) wide front (specify 20- Option)

Cylinder Format: Large Format, Small Format, Conventional

Cylinder Pins: 6 pin, 7 pin

Door Thickness (Standard): 1 3/4"

Grade: Grade 1

Handing: Non-handed

Latchbolt Throw: 1/2"

Maximum Backset: 5"

Minimum Backset: 2 3/8"

Maximum Door Thickness: 2"

Minimum Door Thickness: 1 3/8"

Number of Keys: 2

Strike Type (Standard): T-Strike Curved Lip

UL Listed: Yes

ULC Listed: Yes

Warranty: 10-year limited warranty; 2-year for electrical components

Benefits: Provides maximum resistance to vandalism and other malicious attacksComplements the look of any design styleMinimizes inventory stocking requirementsSimplifies installation in new and retrofit applicationsIntegrates with new or existing facility's key systems

Model: Sargent 10XG05LL26D

Certifications: ANSI/SDI 250.13 CertifiedASTM E330 CertifiedFlorida Building Code Approved FL# 2998Americans with Disabilities Act (ADA) CompliantUL-cUL Fire-Rated Up to 3 HoursASTM E1996 CertifiedASTM E1886 CertifiedNFPA 80 CompliantTAS 201 CertifiedTAS 202 CertifiedTAS 203 CertifiedICC A117.1 CompliantUL 437 listed when using Degree high-security UL 437 cylindersANSI/BHMA A156.2, Series 4000, Grade 1ANSI/BHMA A156.41

Features:

Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements) UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148) Utilizes Eco Flex technology on all electromechanical functions, creating up to 92% energy savings Innovative push/turn button design prevents damage from door stops and walls 26 mechanical and 2 electromechanical functions offered Available in 15 finishes with multiple lever designs Lockbody design supports all cylinder formats - from fixed to interchangeable core - and all SARGENT Key Systems Windstorm certified to comply with Florida Building Code requirements & UL listing
