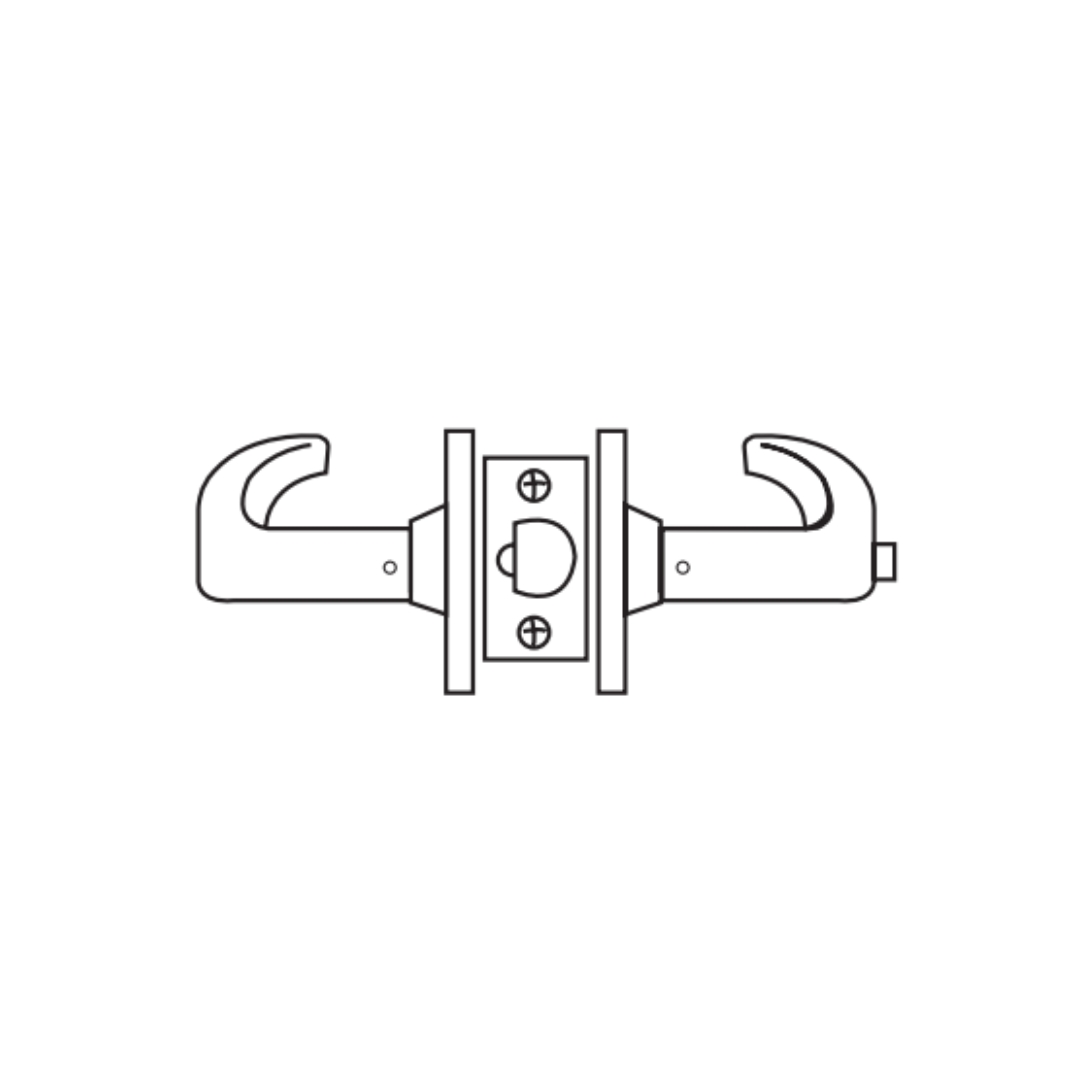

Sargent 10XG64 Grade 1 Time Out Lock Cylindrical Lock, Non-Keyed

Sargent 10XG64 Grade 1 Time Out Lock Cylindrical Lock, Non-Keyed

Function: 10XG64 - Time Out Lock

• Deadlocking latch
• Latch by either lever either side (passage) unless push button depressed and held by caretaker (detention side becomes rigid). Lock returns to passage mode upon release of push button.
• Push button automatically releases when caretaker releases push button.
• Both levers always free

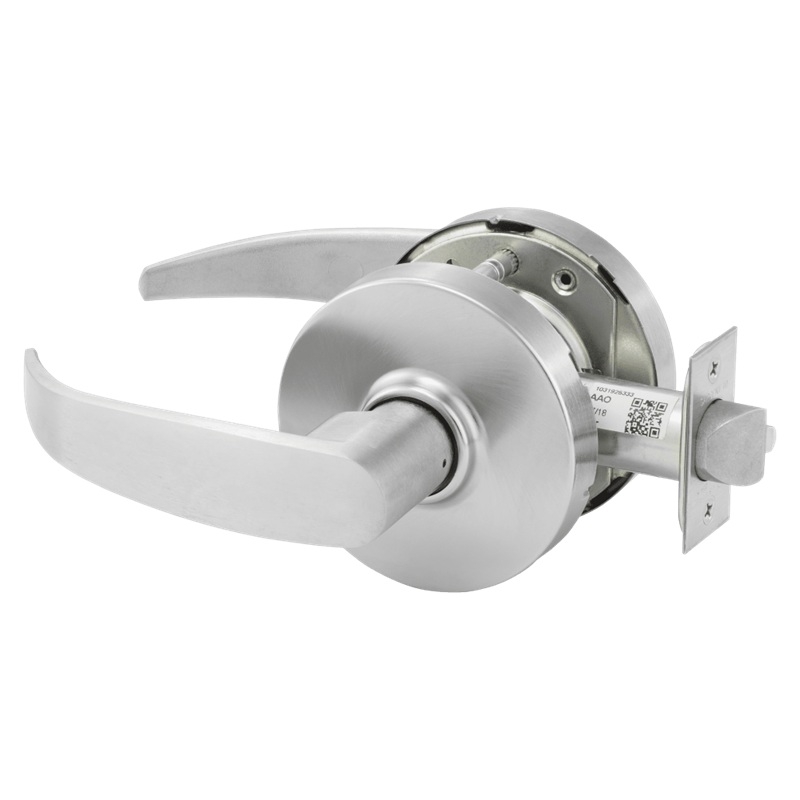

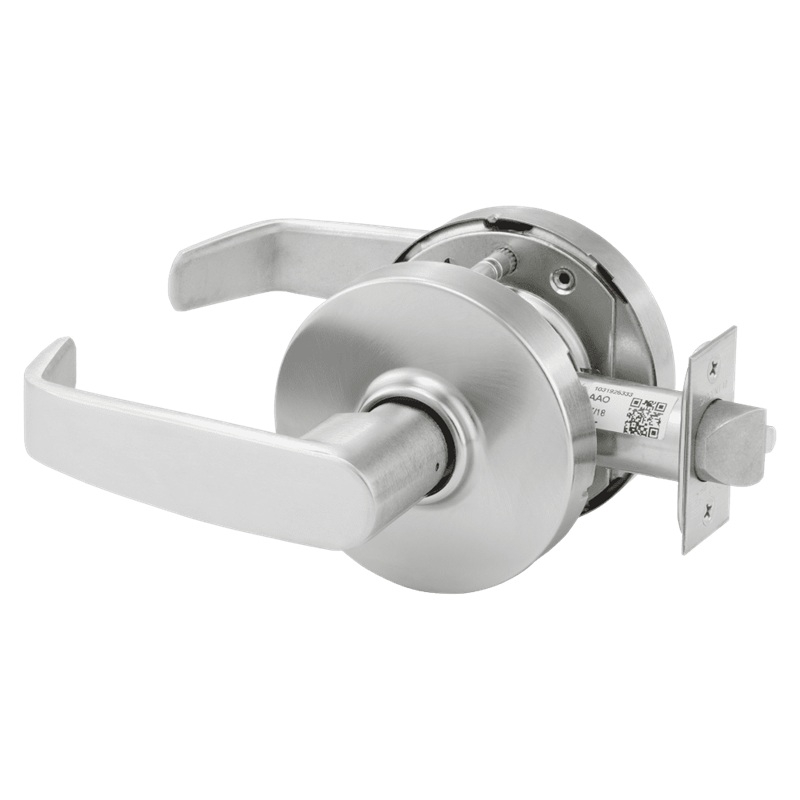

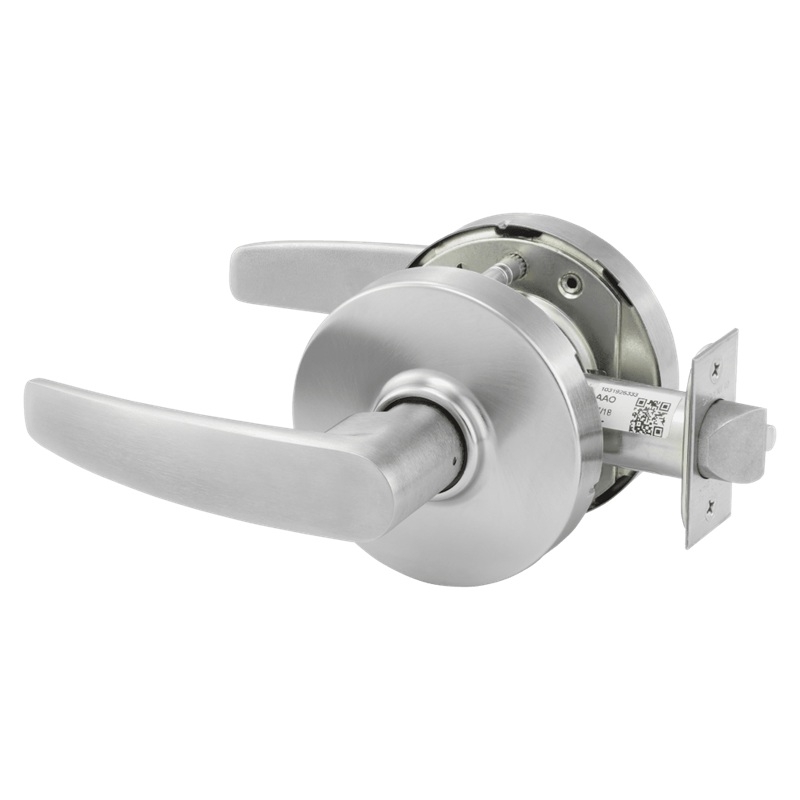

Lever:  - Standard

Rose:- Standard

ANSI/BHMA Code: A156.2

Backset Depth (Standard): 2-3/4" (70mm) backset w/ 1-1/8" (29mm) front (standard); 2-3/8" (60mm) backset w/ 1" (25mm) wide front (specify 20- Option)

Door Thickness (Standard): 1 3/4"

Grade: Grade 1

Handing: Non-handed

Latchbolt Throw: 1/2"

Maximum Backset: 5"

Minimum Backset: 2 3/8"

Maximum Door Thickness: 2"

Minimum Door Thickness: 1 3/8"

Strike: Wrought brass, bronze and stainless steel
            808 curved lip ANSI 4-7/8" strike - standard

UL Listed: Yes

ULC Listed: Yes

Warranty: 10-year limited warranty; 2-year for electrical components

Certifications: ANSI/SDI 250.13 Certified ASTM E330 Certified Florida Building Code Approved FL# 2998 Americans with Disabilities Act (ADA) CompliantUL-c UL Fire-Rated Up to 3 Hours ASTM E1996 Certified ASTM E1886 Certified NFPA 80 Compliant TAS 201 Certified TAS 202 Certified TAS 203 Certified ICC A117.1 Compliant UL 437 listed when using Degree high-security UL 437 cylinders ANSI/BHMA A156.2, Series 4000, Grade 1 ANSI/BHMA A156.41

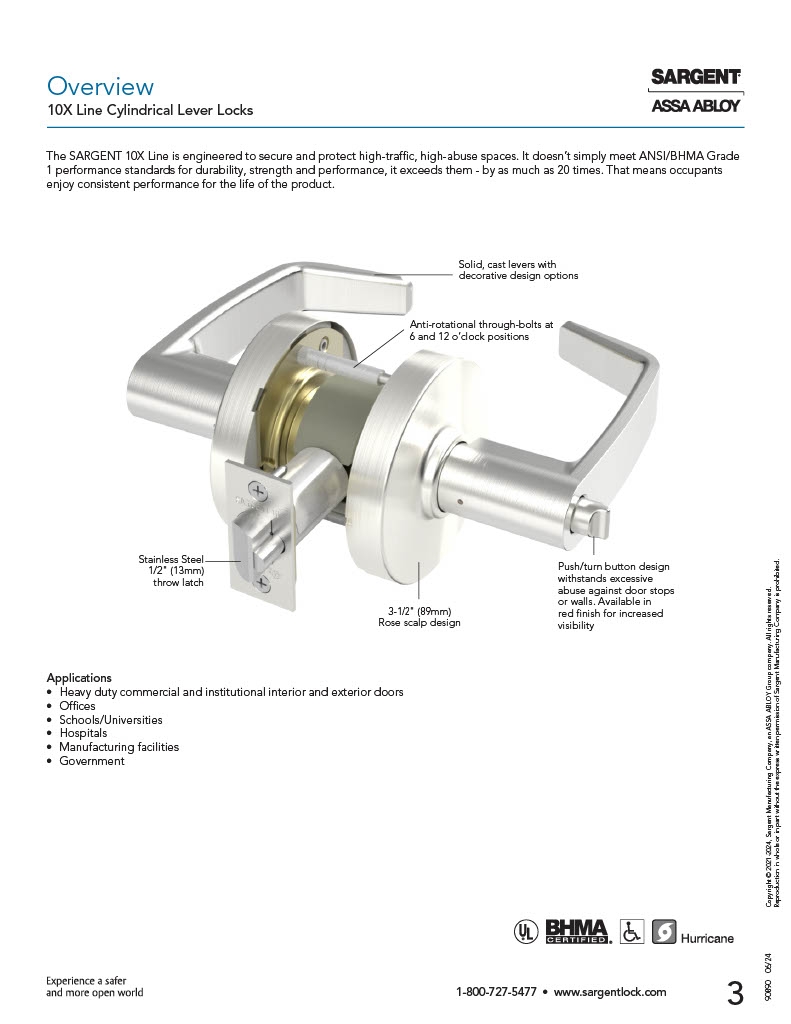

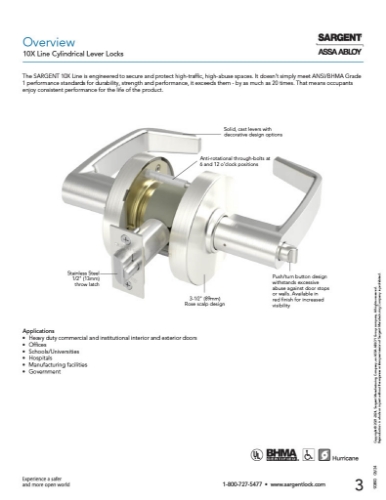

Applications:Heavy duty commercial and institutional interior and exterior doors, Offices, Schools/Universities, Hospitals, Manufacturing facilities, Government

Features: Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements) Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements) UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148)Utilizes Eco Flex technology on all electromechanical functions, creating up to 92% energy savingsInnovative push/turn button design prevents damage from door stops and walls26 mechanical and 2 electromechanical functions offered Available in 15 finishes with multiple lever designsLockbody design supports all cylinder formats - from fixed to interchangeable core - and all SARGENT Key Systems Windstorm certified to comply with Florida Building Code requirements & UL listing

Benefits: Provides maximum resistance to vandalism and other malicious attacksComplements the look of any design styleMinimizes inventory stocking requirementsSimplifies installation in new and retrofit applicationsIntegrates with new or existing facility's key systems
