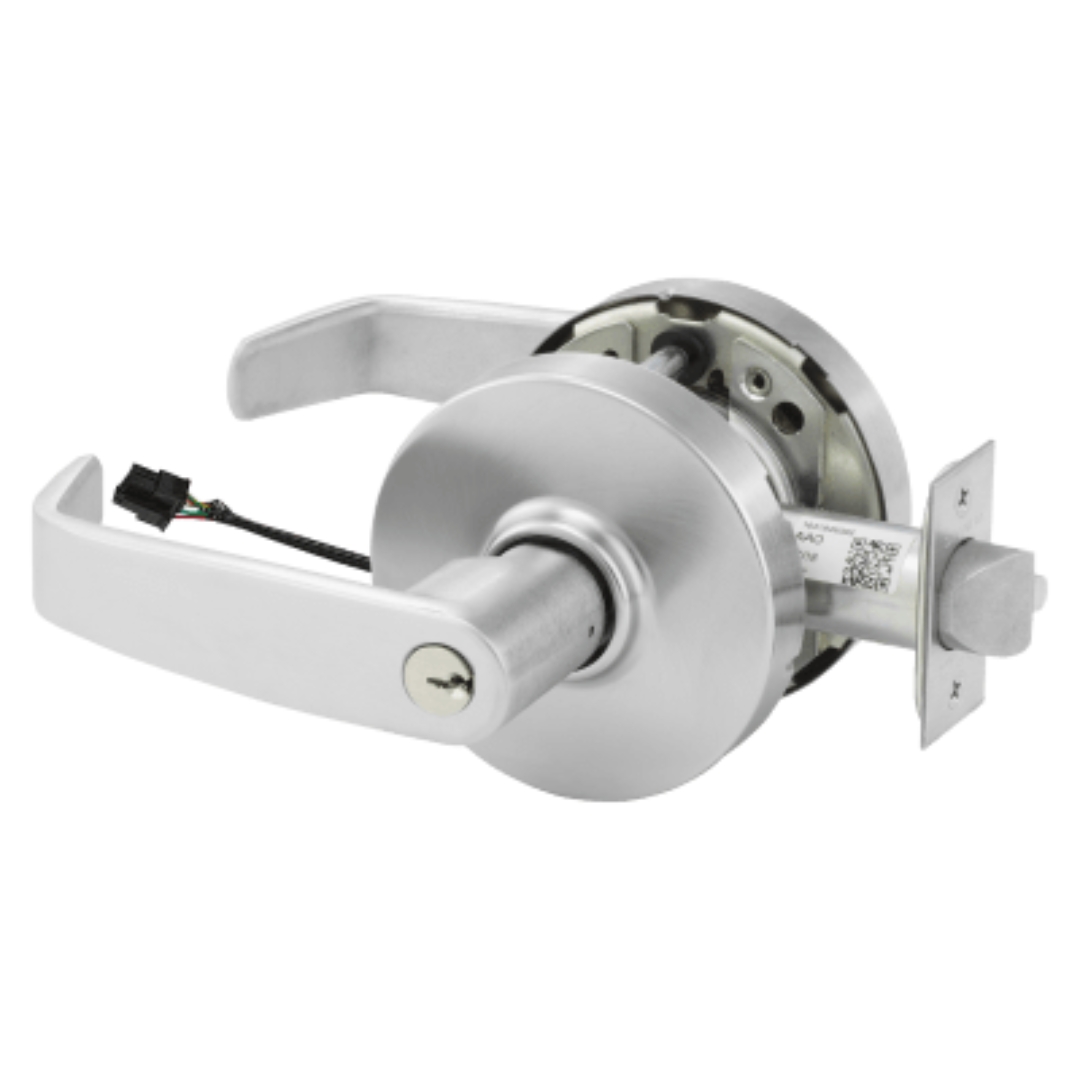

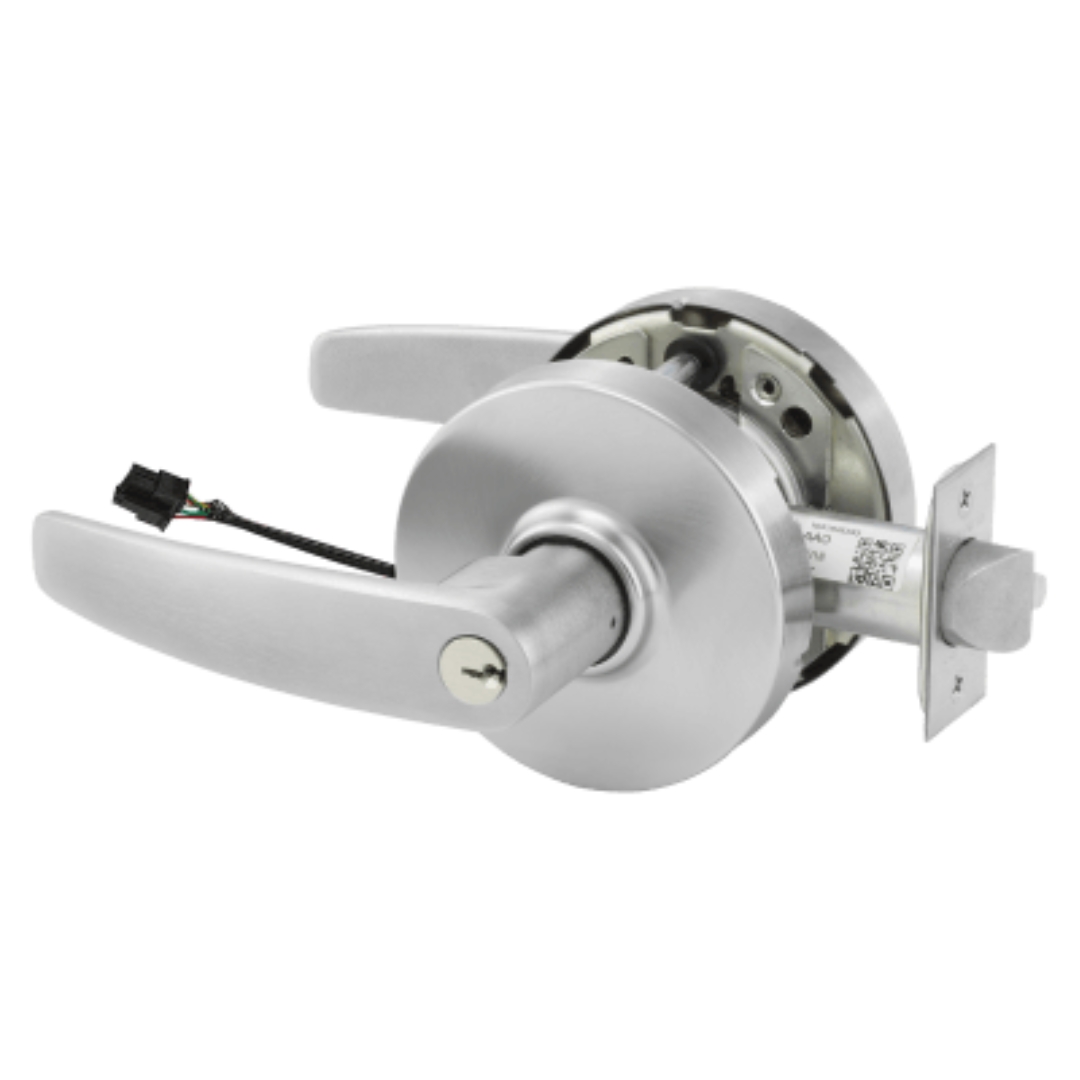

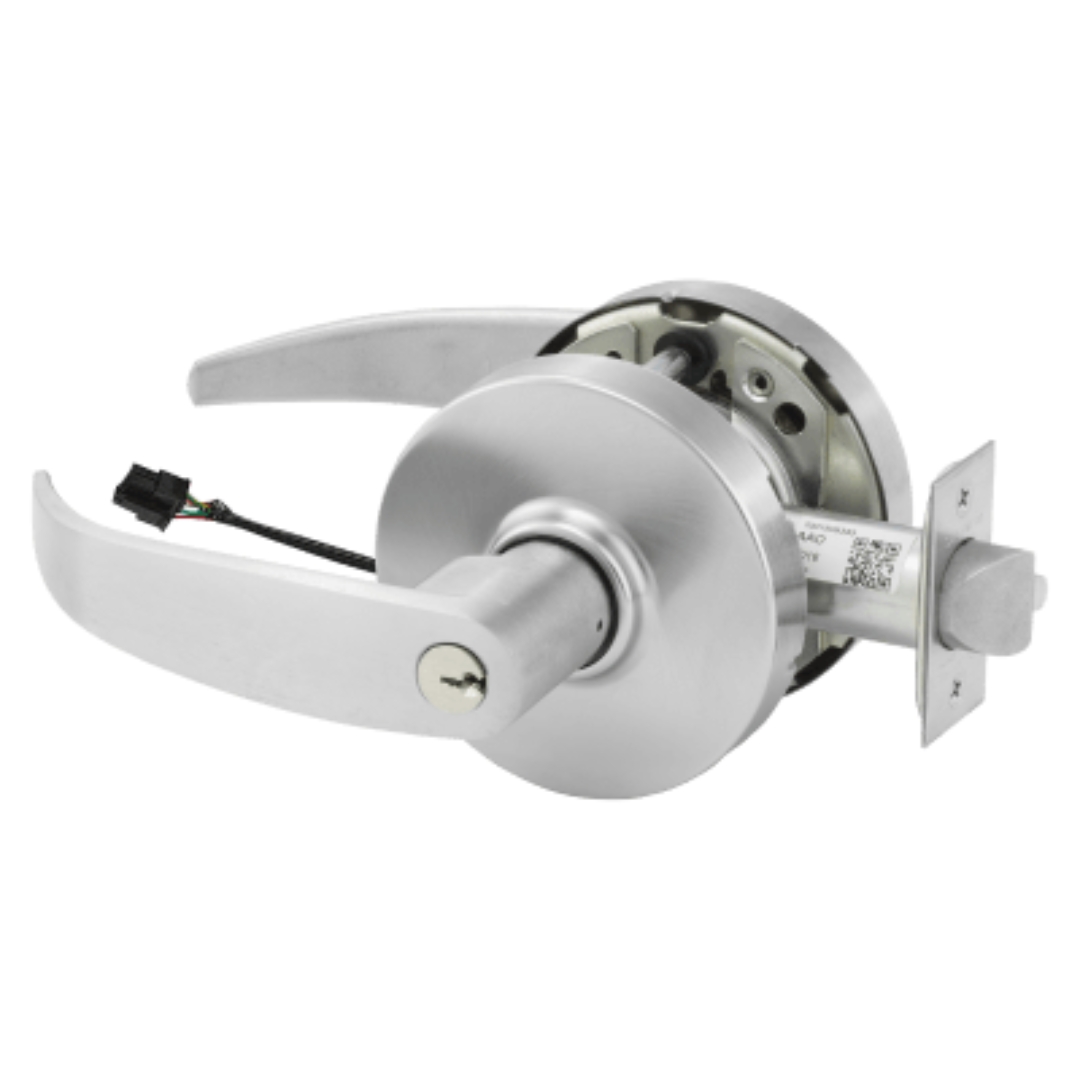

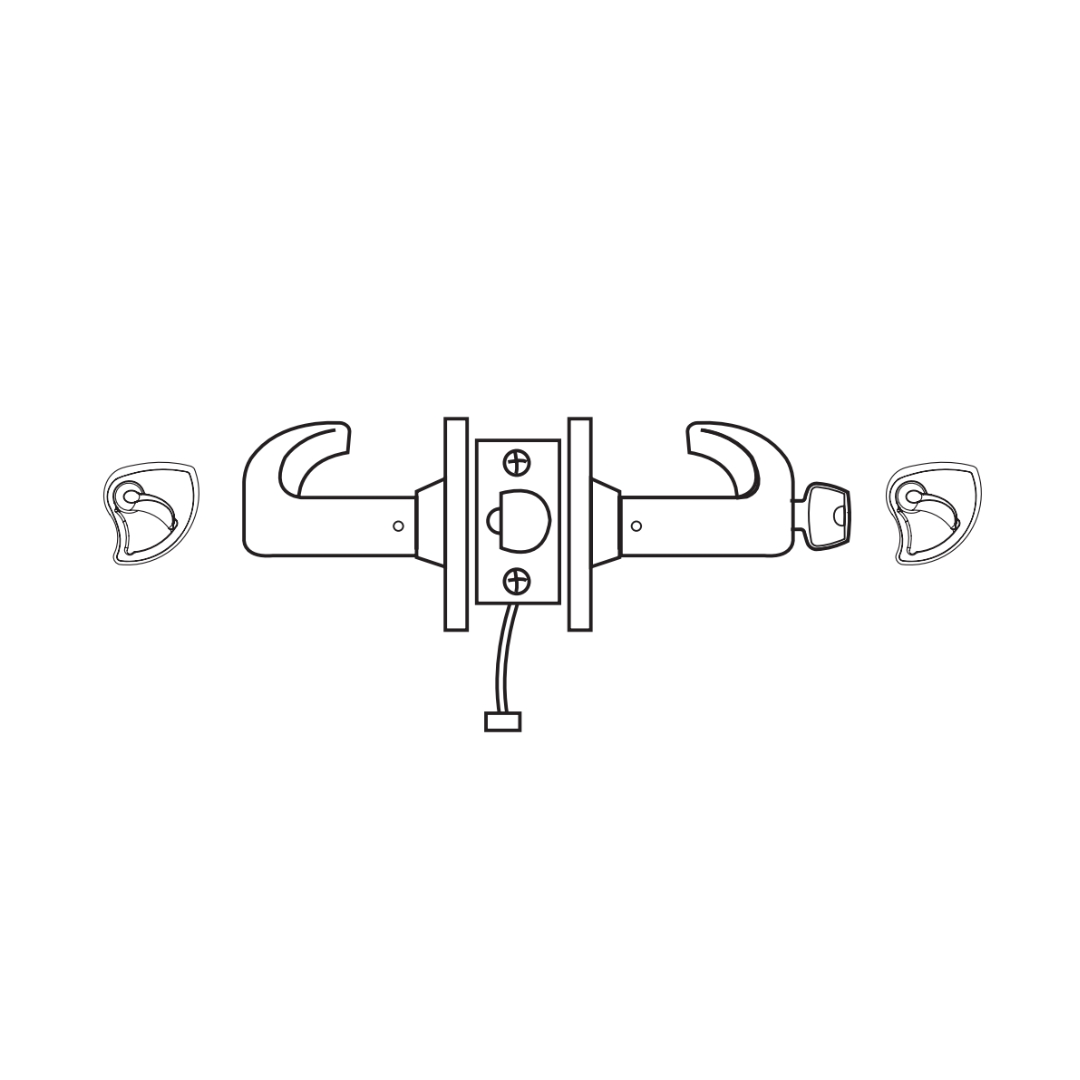

Sargent 10XG71 Grade 1 Electrified Lock, Cylindrical Lock - Fail Secure

Sargent 10XG71 Grade 1 Electrified Lock, Cylindrical Lock - Fail Secure

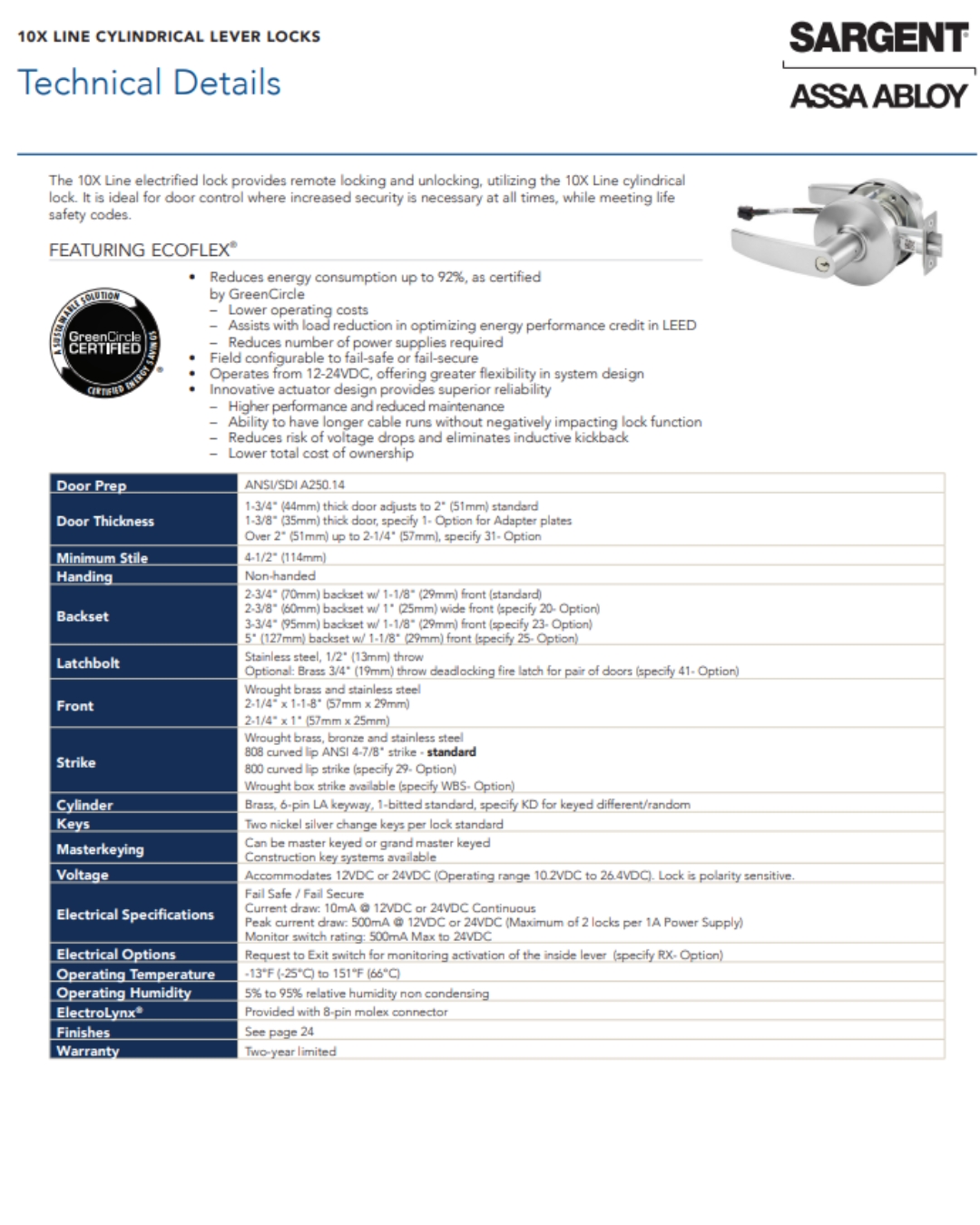

Door Prep: ANSI/SDI A250.14

Door Thickness: 1-3/4" (44mm) thick door adjusts to 2" (51mm) standard

Minimum Stile: 4-1/2" (114mm)

Handing: Non-handed

Backset:

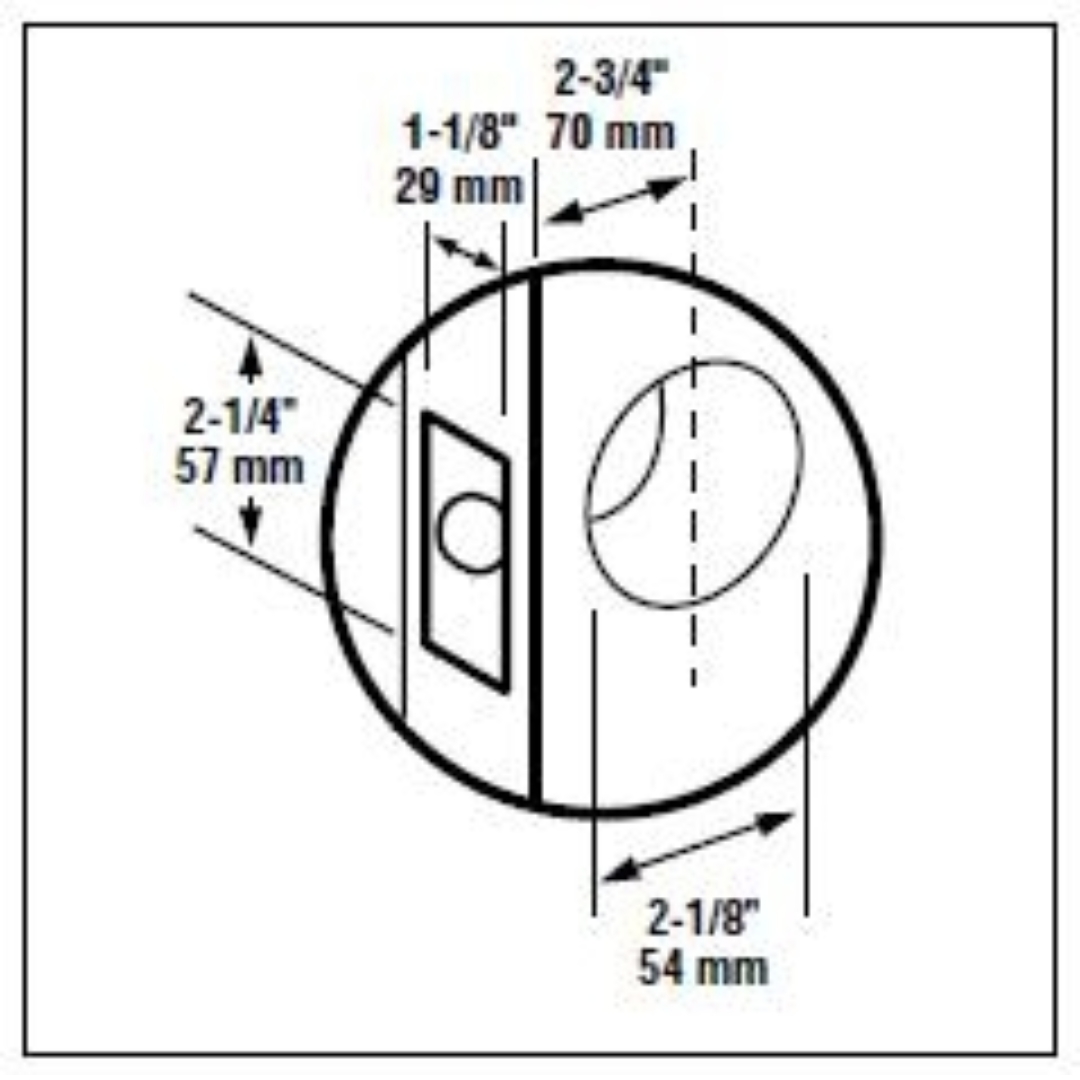

2-3/4" (70mm) backset w/ 1-1/8" (29mm) front (standard)

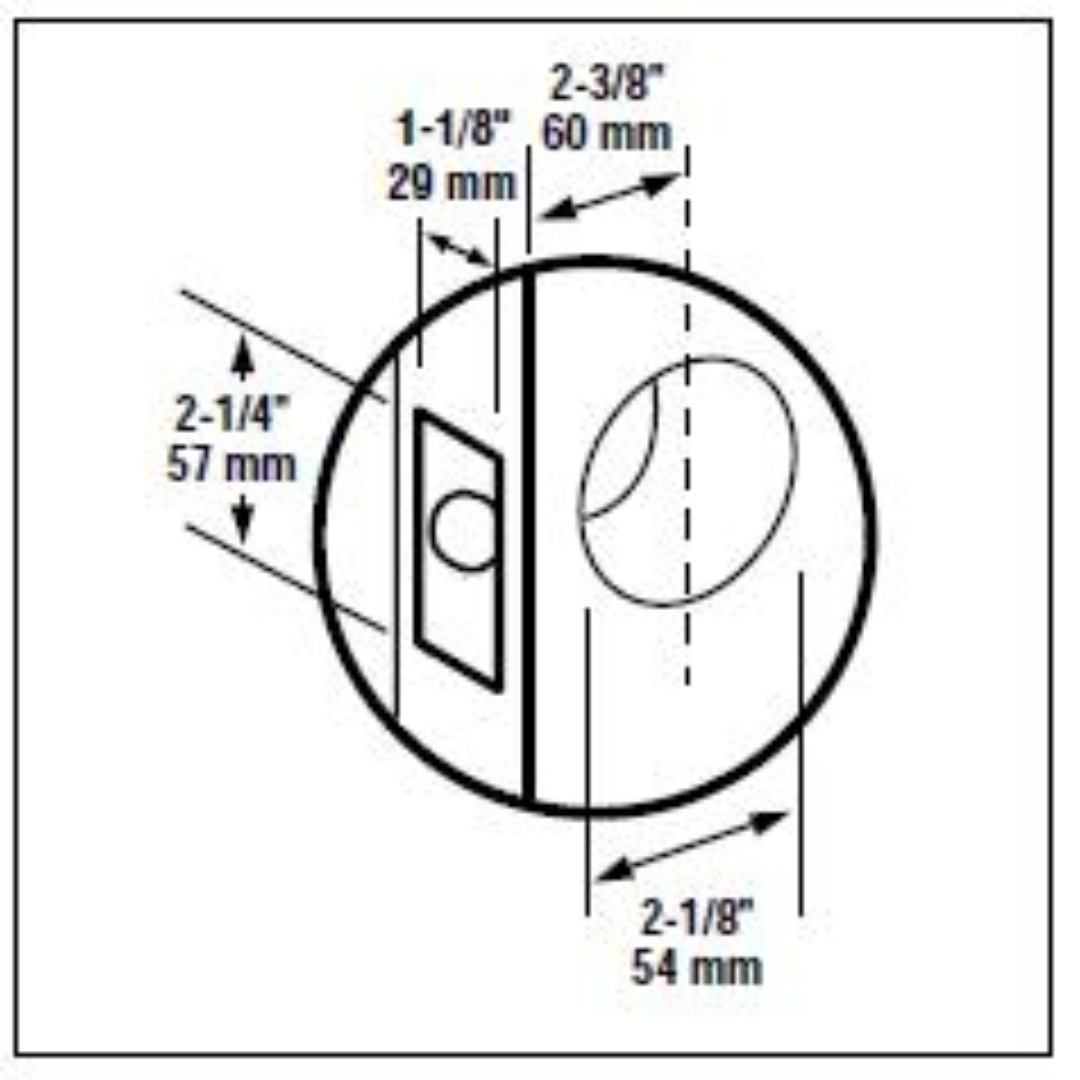

2-3/8" (60mm) backset w/ 1" (25mm) wide front (specify 20- Option)

Latchbolt:

Stainless steel, 1/2" (13mm) throw

Front: Wrought brass and stainless steel

Strike:
Wrought brass, bronze and stainless steel
808 curved lip ANSI 4-7/8" strike - standard

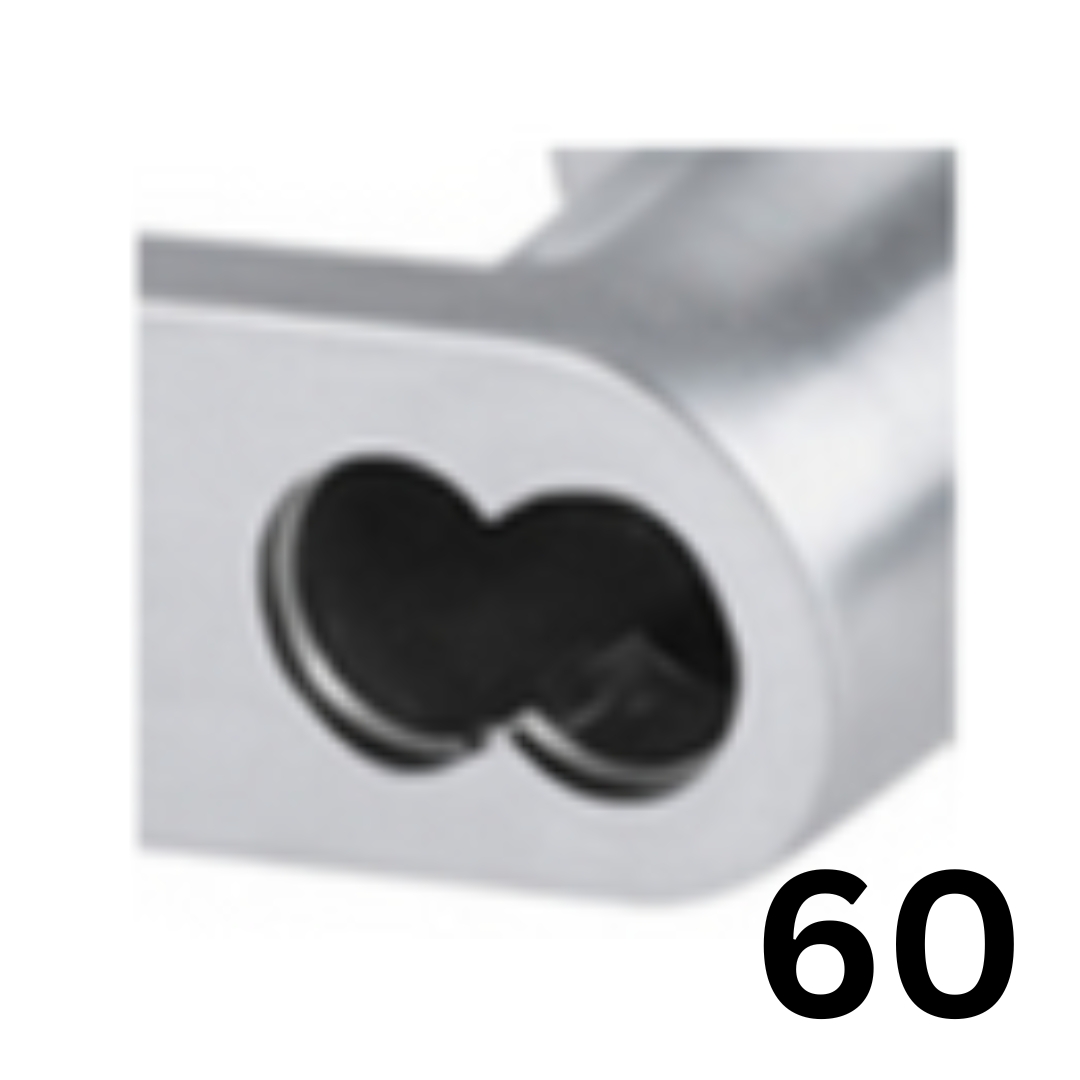

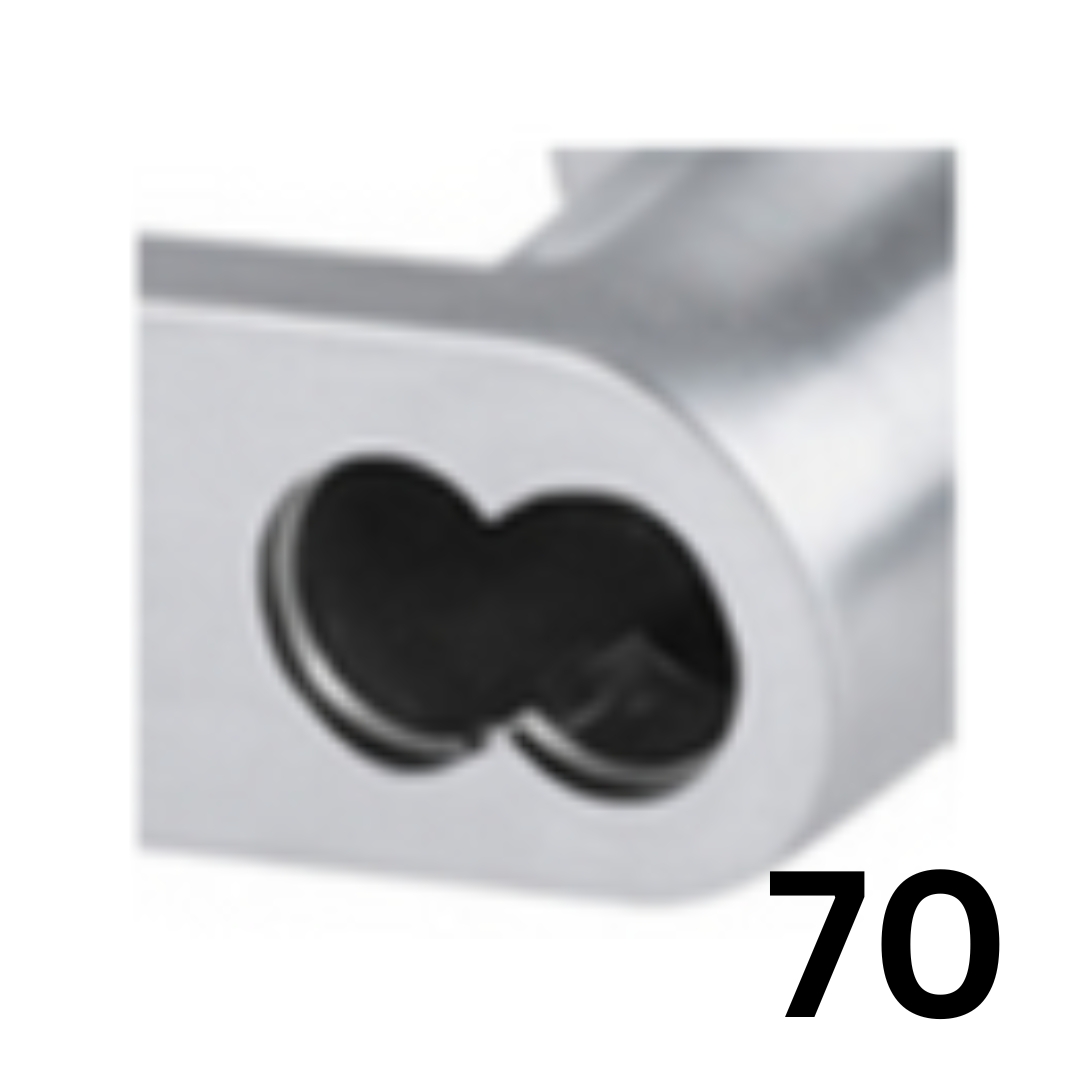

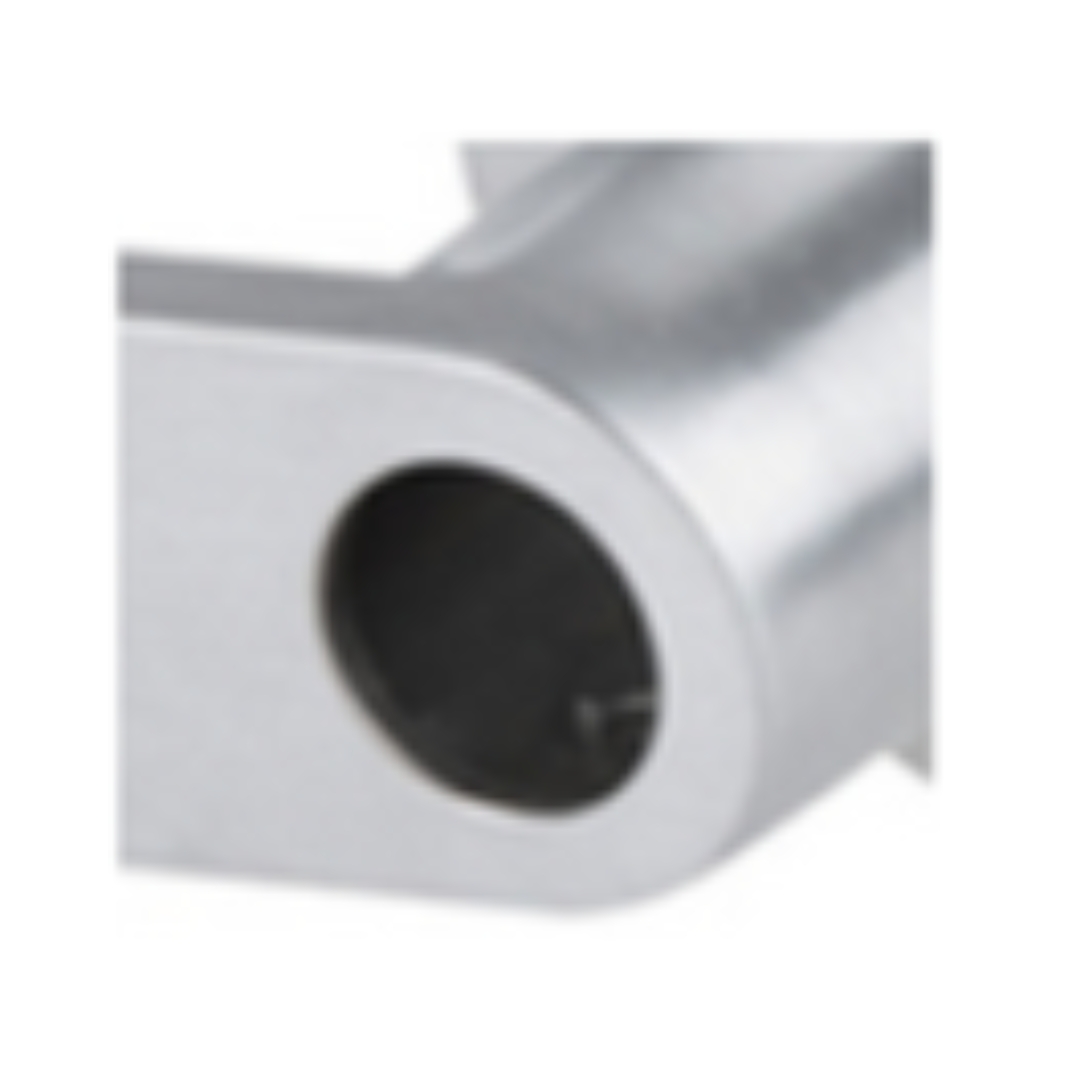

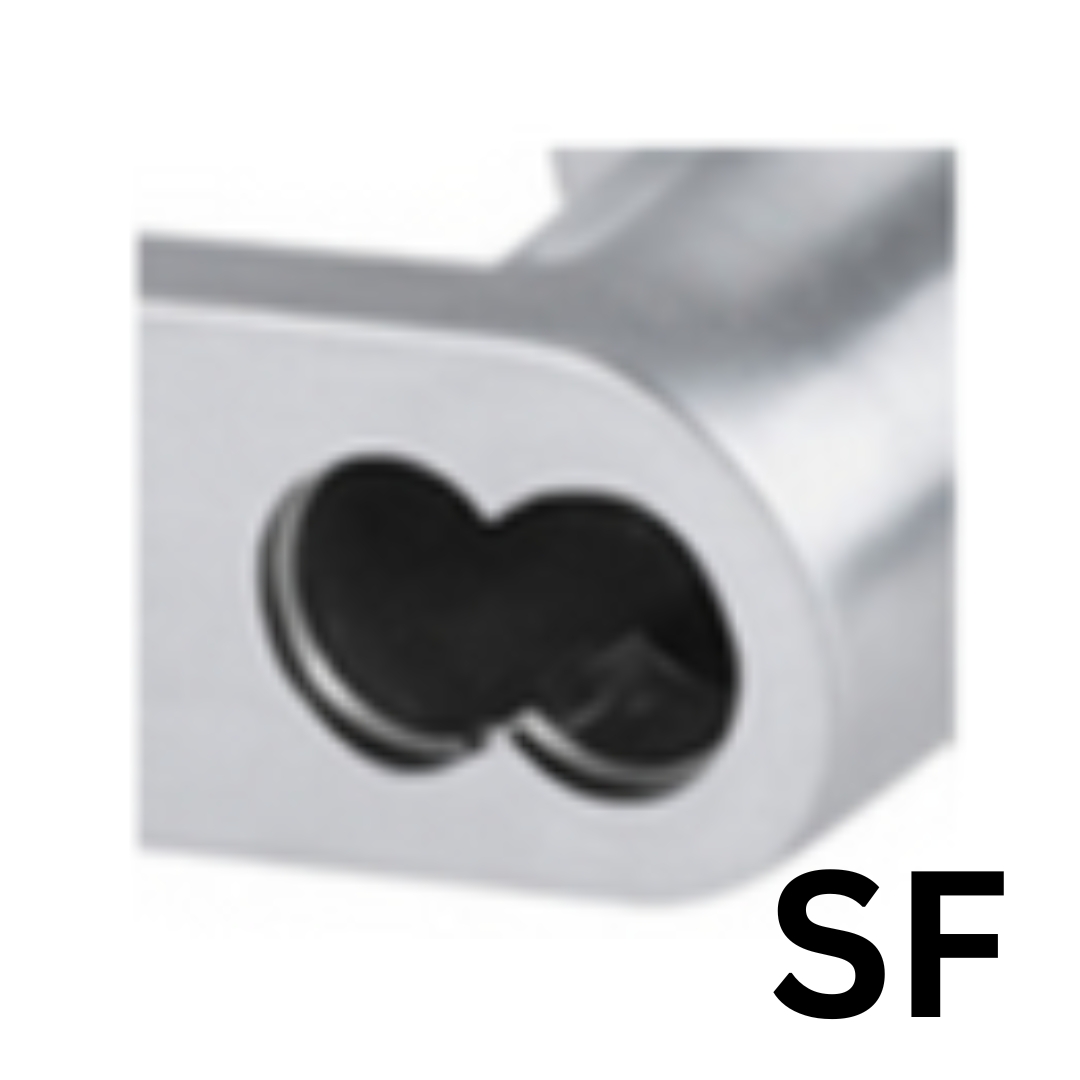

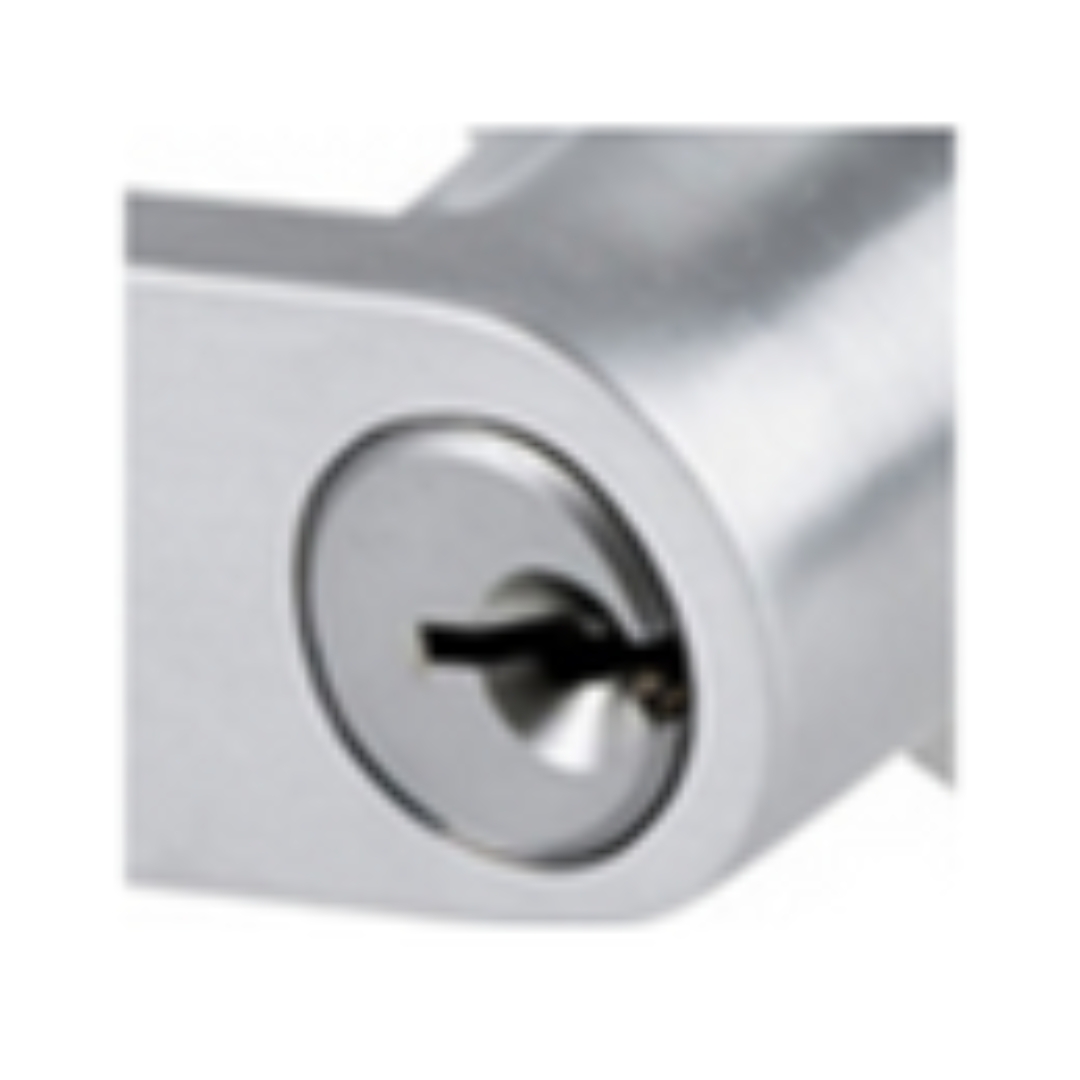

Cylinder: Brass, 6-pin LA keyway

Keys: Two nickel silver change keys per lock standard

Masterkeying: Can be master keyed or grand master keyed; Construction key systems available

Voltage: Accommodates 12VDC or 24VDC (Operating range 10.2VDC to 26.4VDC). Lock is polarity sensitive.

Electrical Specifications:

Fail Safe / Fail Secure
Current draw: 10mA @ 12VDC or 24VDC Continuous
Peak current draw: 500mA @ 12VDC or 24VDC (Maximum of 2 locks per 1A Power Supply)
Monitor switch rating: 500mA Max to 24VDC

Electrical Options: Request to Exit switch for monitoring activation of the inside lever (specify RX- Option)

Operating Temperature: -13°F (-25°C) to 151°F (66°C)

Operating Humidity: 5% to 95% relative humidity non condensing

ElectroLynx®: Provided with 8-pin molex connector

Warranty: Two-year limited

FEATURING ECOFLEX®

• Reduces energy consumption up to 92%, as certified by GreenCircle
– Lower operating costs
– Assists with load reduction in optimizing energy performance credit in LEED
– Reduces number of power supplies required
• Field configurable to fail-safe or fail-secure
• Operates from 12-24VDC, offering greater flexibility in system design
• Innovative actuator design provides superior reliability
– Higher performance and reduced maintenance
– Ability to have longer cable runs without negatively impacting lock function
– Reduces risk of voltage drops and eliminates inductive kickback
– Lower total cost of ownership

Certification/Compliance:

ANSI/BHMA: Certified ANSI/BHMA A156.2 (2022) Series 4000 — Grade 1; Certified ANSI/BHMA A156.41
UL/cUL: UL/cUL listed to US and Canadian safety standards for 3 hour doors up to 4' x 10' (double doors require 41- option)
UL294: Listed as an Access Control Accessory (10XG70 & 10XG71)
NFPA 80: Conforms for life safety and property protection, Standard for Fire Doors and Other Opening Protectives
Positive Pressure: Meets ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies
ADA: The force required to activate all levers shall be 5 pounds (22.2N) maximum. All levers conform to ADA clear opening width
requirements of ANSI A117.1.
California State Reference Code (Formerly Title 19, California State Fire Marshal Standard): All levers with returns comply; levers return to within 1/2" (13mm) of door face
Windstorm/Hurricane: All individual components of a total door opening are required to comply with each code
