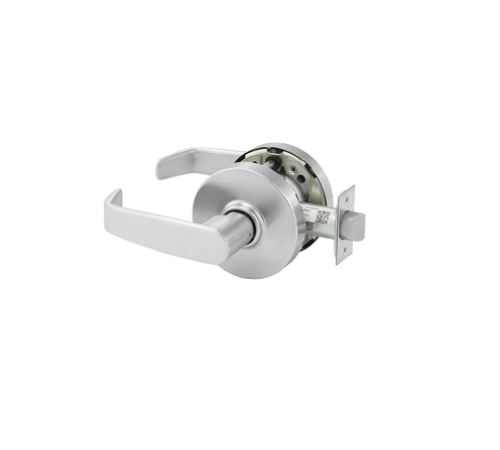

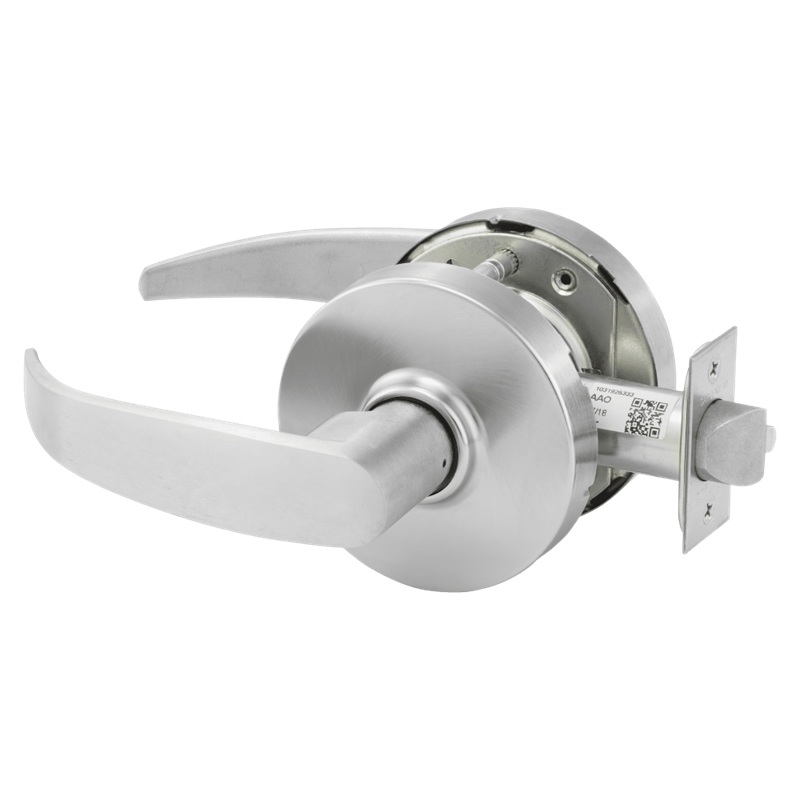

Sargent 10XU15 Grade 1 Passage Cylindrical Lock, Non-Keyed

The Sargent 10XU15 is the passage function in the 10X Line, built to the same structural standards as the keyed entrance and storeroom versions. It exceeds ANSI/BHMA Grade 1 requirements by as much as 20 times depending on the test, and it's been verified to 20 million operating cycles under UL testing (Verification ID: V584148).

For the complete 10X Line in all available functions, browse Sargent 10X Line Grade 1. For all Sargent lever locks, view our Sargent lever locks catalog.

How ANSI F75 Passage Function Works

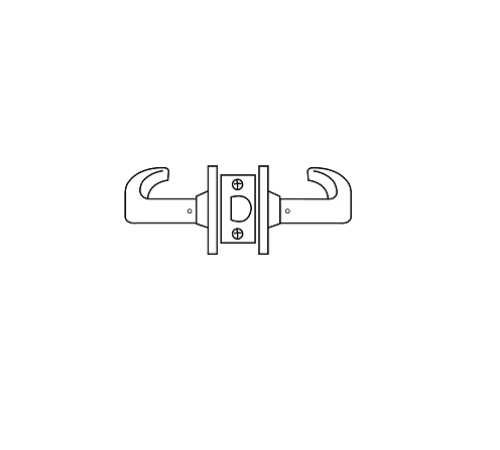

ANSI F75 means both levers are always free. There's no cylinder, no push button, no turn button, and no locking mechanism of any kind. The latch bolt retracts when either lever is turned from either side. The door latches closed when released and opens freely from both sides at all times. The 10XU15 is the non-keyed version: it ships without a cylinder prep. No cylinder position is machined into the housing. If your project requires a passage lock that could accept a cylinder for future function change, confirm at time of order whether the XU configuration or a standard cylindrical passage with less-cylinder option better suits your long-term requirements.

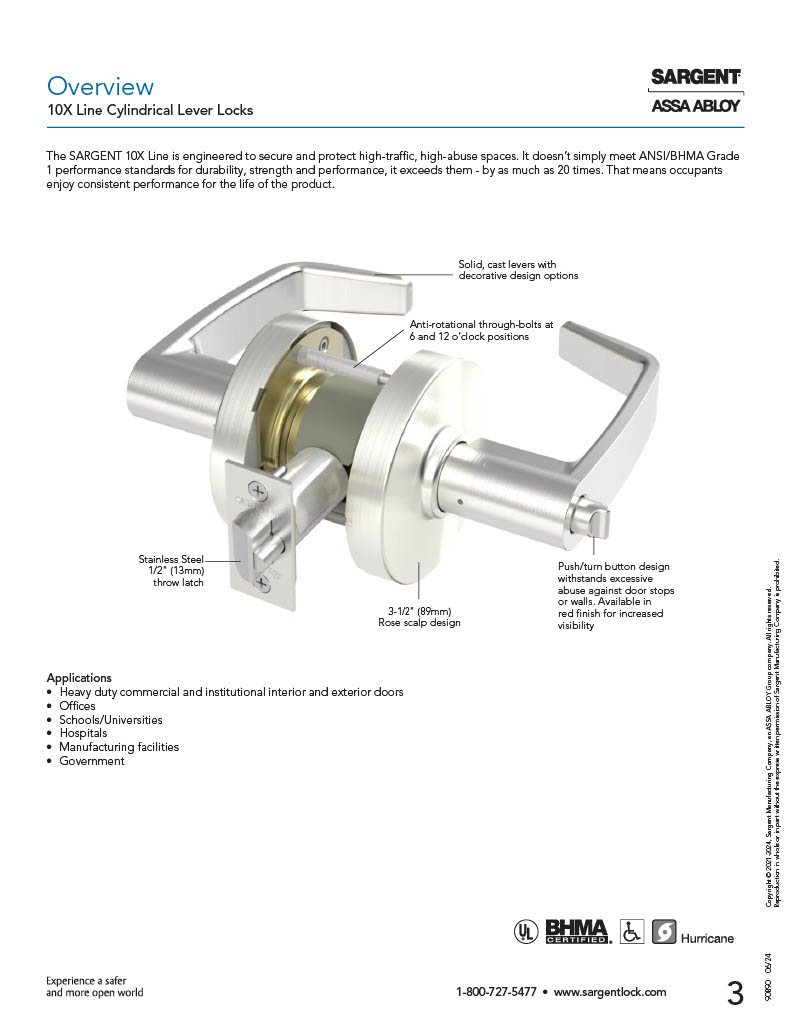

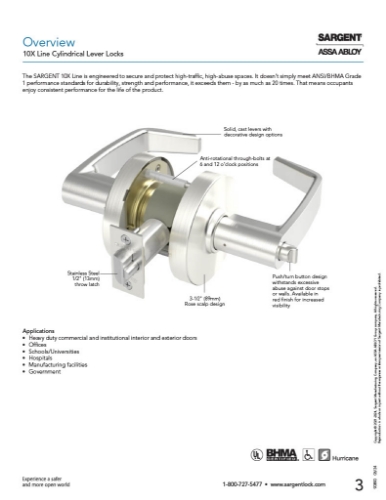

Why the 10X Line Exists: Specs That Exceed Grade 1 By Up to 20x

The ANSI/BHMA A156.2 Grade 1 standard sets the commercial baseline. The 10X Line was engineered for environments where that baseline isn't enough. Here's what that means in hard numbers.

Lever torque: the 10XU15 prevents entry and maintains lever integrity against more than 3,100 in-lbs of torque applied to the locked lever. ANSI Grade 1 requires 1,200 in-lbs. That's 2.6 times the standard. On a passage door where someone forces the lever hard because they expect it to lock when it's actually just latched, the 10X structure absorbs it without failure.

Offset lever pull: the lock withstands 1,600 lbs of offset pull force while continuing to restrict entry. ANSI Grade 1 requires 200 lbs. That's 8 times the standard.

Preload: the 10XU15 ensures latch retraction with 100 lbs of preload applied to the latch bolt, simulating warped doors or latch bind conditions. ANSI Grade 1 requires 50 lbs. That's 2 times the standard.

Vertical impact: the lock prohibits entry after more than 100 vertical impacts. ANSI Grade 1 requires 5 impacts. That's 20 times the standard.

Cycle testing: 20 million successful operating cycles, independently verified by UL (Verification ID: V584148). The ANSI Grade 1 cycle requirement is 1 million.

Sargent 10XU15 Technical Specifications

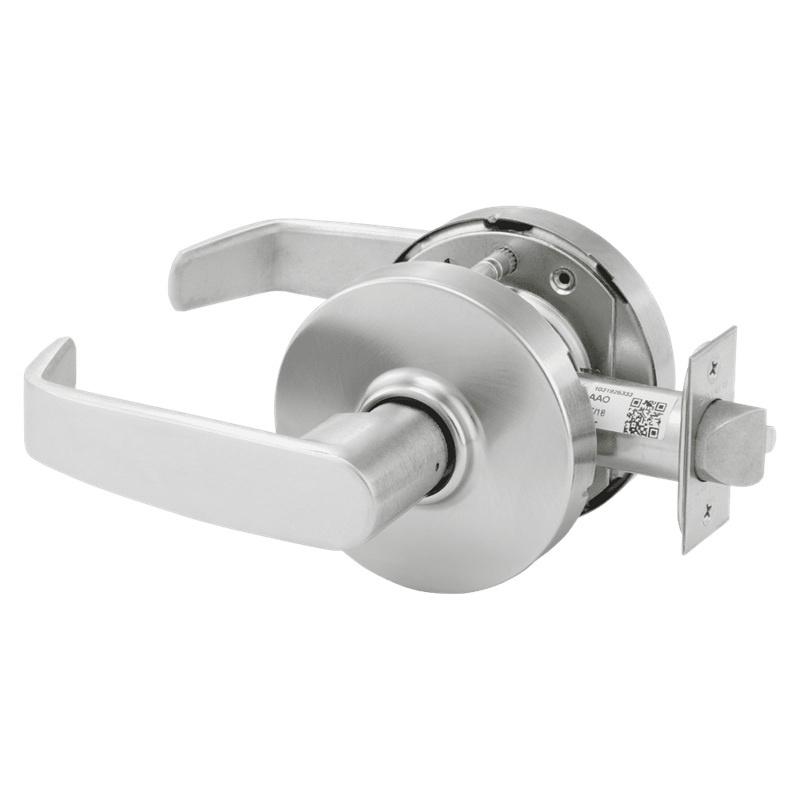

Function: ANSI F75, Passage, both levers always free. Non-keyed, no cylinder prep. Lever: LL, L Lever with L Rose (standard). Finish: 26D Satin Chrome (standard). Backset: 2-3/4" standard, 2-3/8" available. Strike: ANSI 4-7/8" standard. Handing: non-handed. Lever torque resistance: 3,100+ in-lbs (2.6x ANSI Grade 1). Offset lever pull resistance: 1,600 lbs (8x ANSI Grade 1). Preload latch retraction: 100 lbs (2x ANSI Grade 1). Vertical impact resistance: 100+ impacts (20x ANSI Grade 1). UL cycle verification: 20 million cycles, ID V584148. Available functions: 26 mechanical, 2 electromechanical. Available finishes: 15. Push/turn button design protects against door stop and wall damage. Windstorm certified, Florida Building Code compliant. UL Listed. Warranty: 7-year limited.

Lever and Finish Options

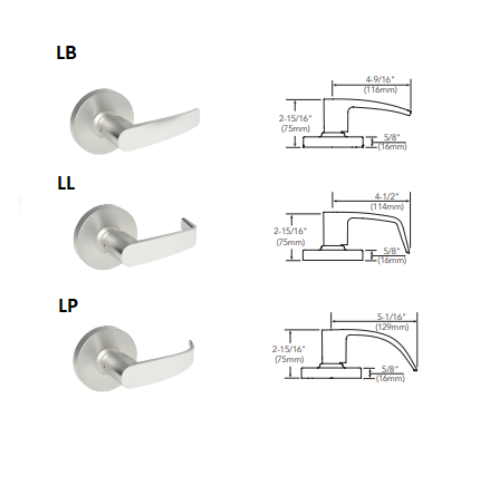

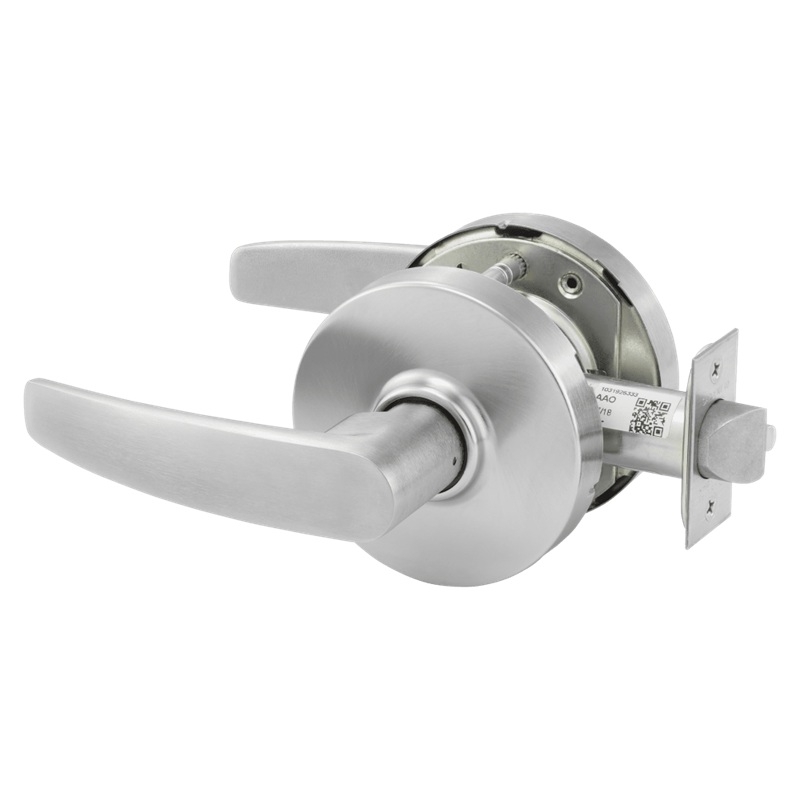

The 10XU15 is available with multiple lever designs and 15 architectural finishes beyond the standard LL lever in 26D Satin Chrome. Finishes include US3 Bright Brass, US4 Satin Brass, US10 Satin Bronze, US10B Dark Bronze, US26 Bright Chrome, US26D Satin Chrome, US32D Satin Stainless, and additional options. Lever designs include the L, P, T, B, and other profiles in the 10X Series trim lineup. Specify lever and finish at time of order.
