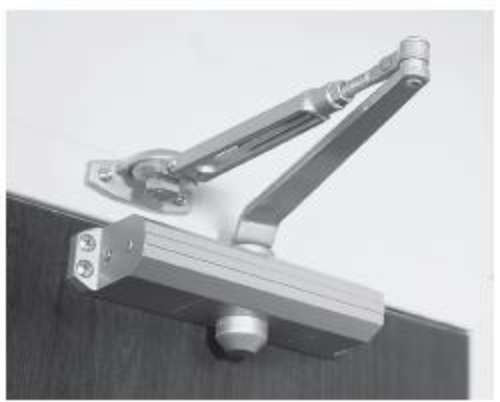

Sargent 1131 HU Door Closer - U. Hold Open Arm, Adjustable size 1-6

Sargent 1131 HUDoor Closer -  Universal Hold Open Arm,Adjustable size 1-6

Hold Open Arm:Adjustable friction holder

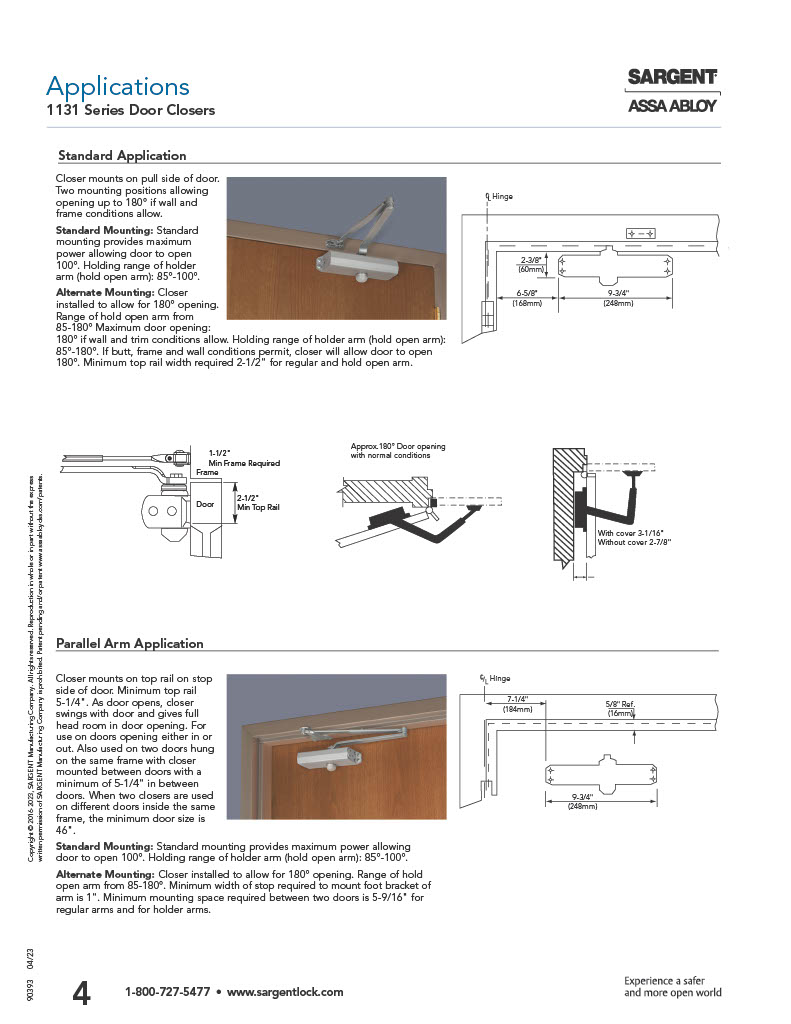

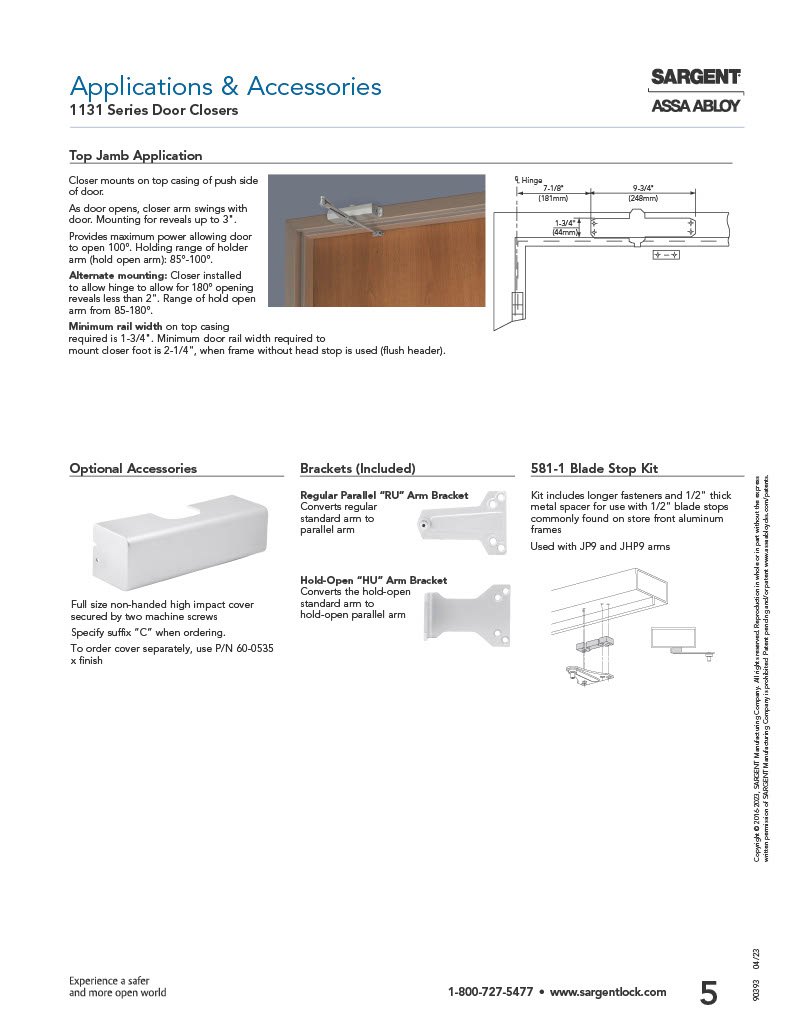

HU- The HU package is provided with hold open arm which includes additional bracket that allows installer the choice of standard, parallel or top jamb application. Used on Rated and Non Fire rated doors.

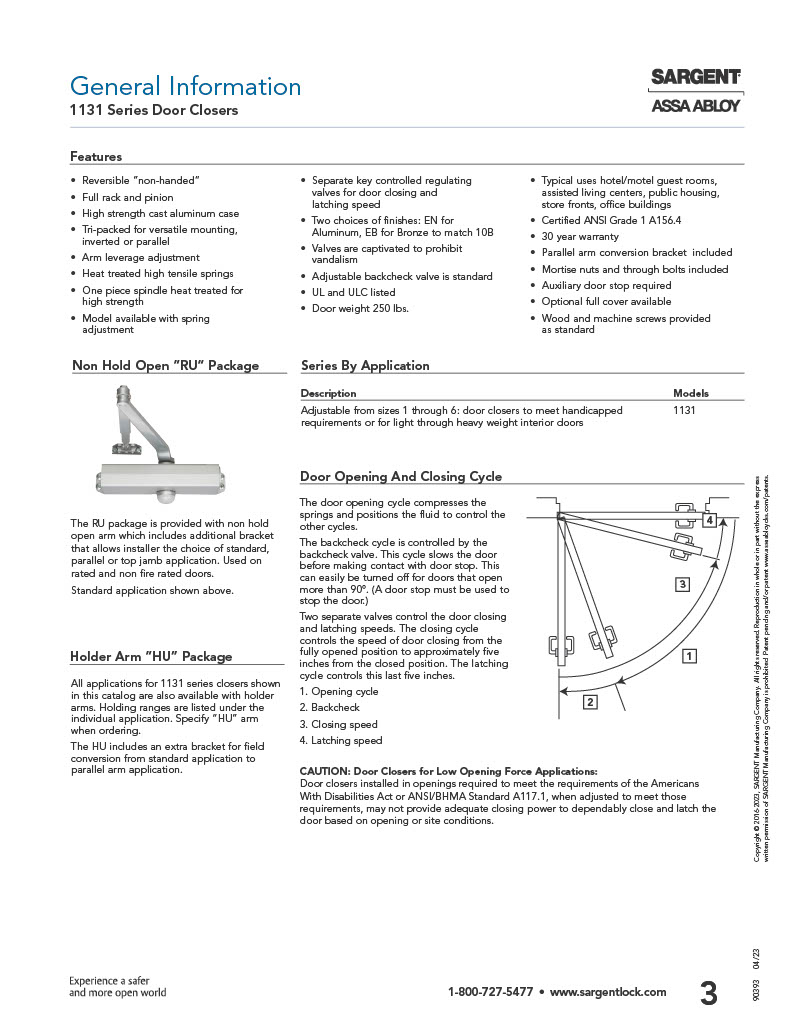

1131 Series:Full rack and pinion - High strength cast aluminum case

Valves:Separate key controlled regulating valves for door closing and latching speed - Valves are captivated to prohibit vandalism

Adjustable backcheck valve is standard

Power Size:Adjustable spring power allows 1131 closers a size range of 1 through 6.

Fasteners:Packed w/Thru Bolts (TB), Wood and machine screws provided

ANSI:Certified ANSI/BHMA  A156.4 Grade 1   UL:UL Listed and ULC Listed

10 year warranty

Finish:EN - Sprayed Aluminum Enamel (BHMA 689), EB - Sprayed Bronze Enamel to match 10B (BHMA 690), EAB - Sprayed Brass Enamel (BHMA 696)

Model:Sargent, 1131, HU, 1131HU, 1131 HU EN TB, 1131HUENTB, 1131 HU EB TB, 1131HUEBTB, 1131 HU EAB TB.
