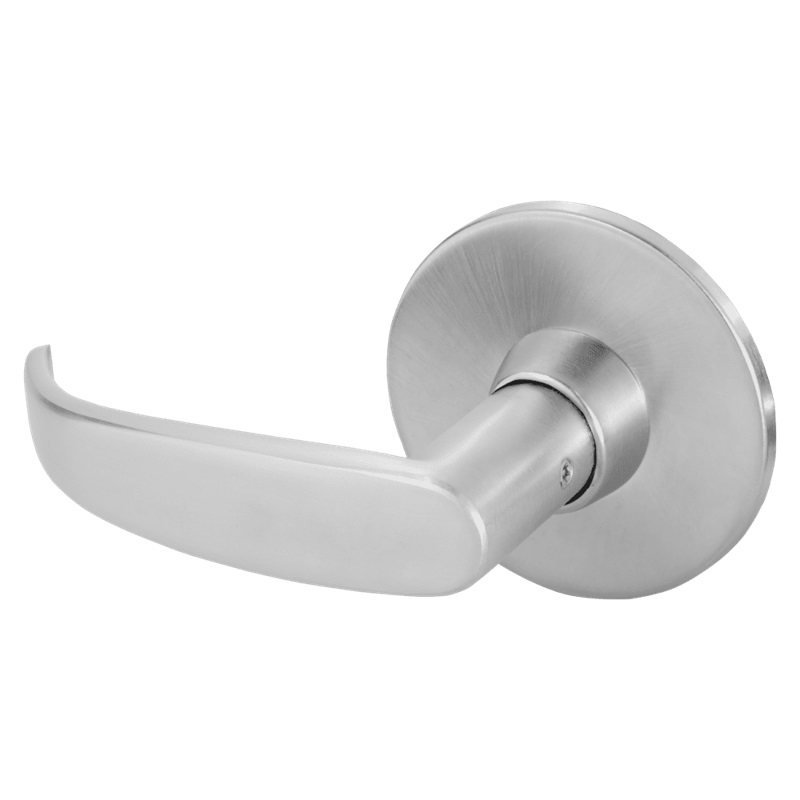

Sargent 11U93 Grade 1 Single Dummy Trim

Sargent 11U93 Single Lever Pull

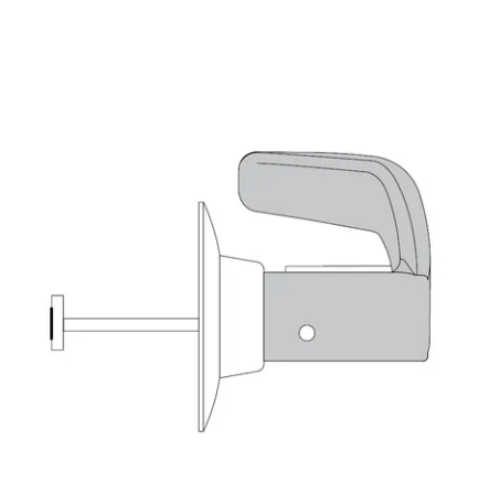

For wood or customhollowmetal doors Lever and rose attached by through-bolt and four surface applied screws (hidden)

Requires 5/16" (8mm) diameter hole

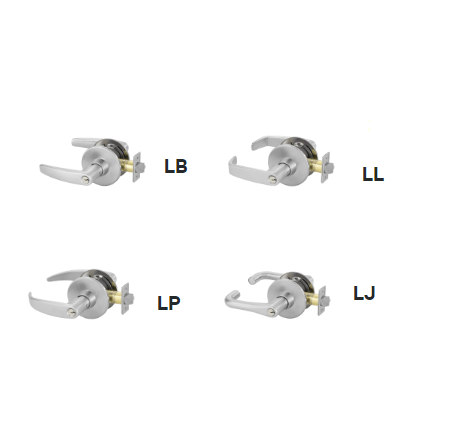

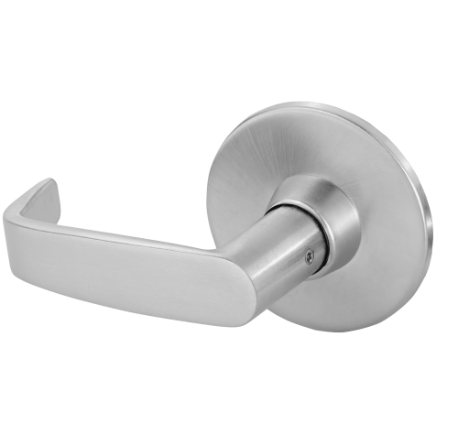

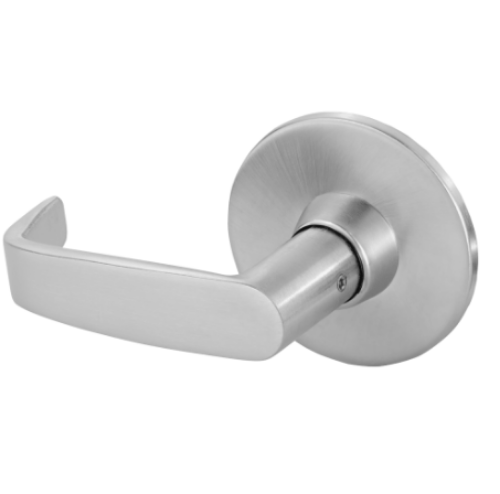

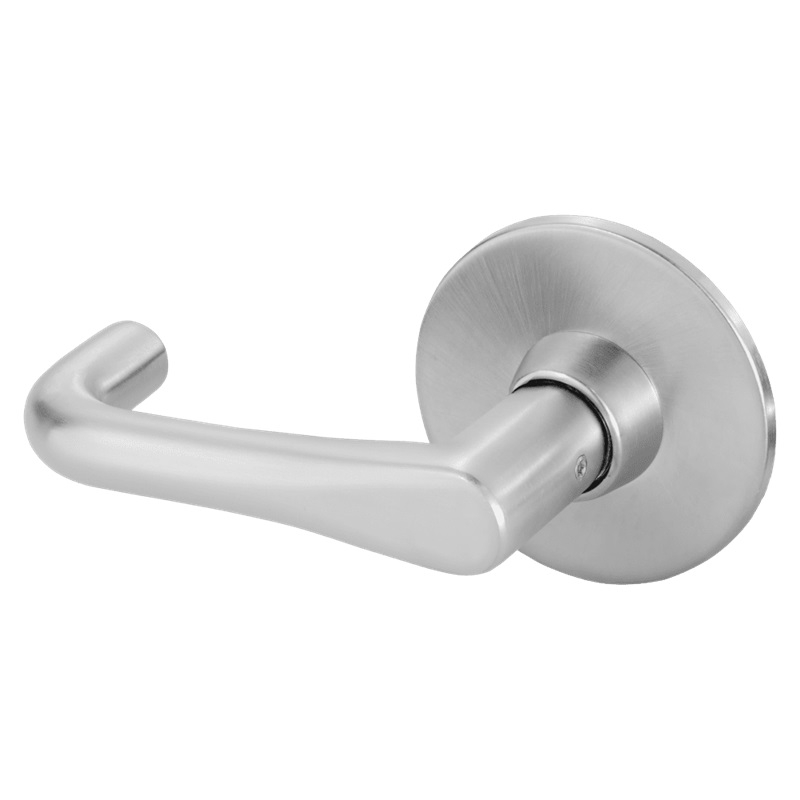

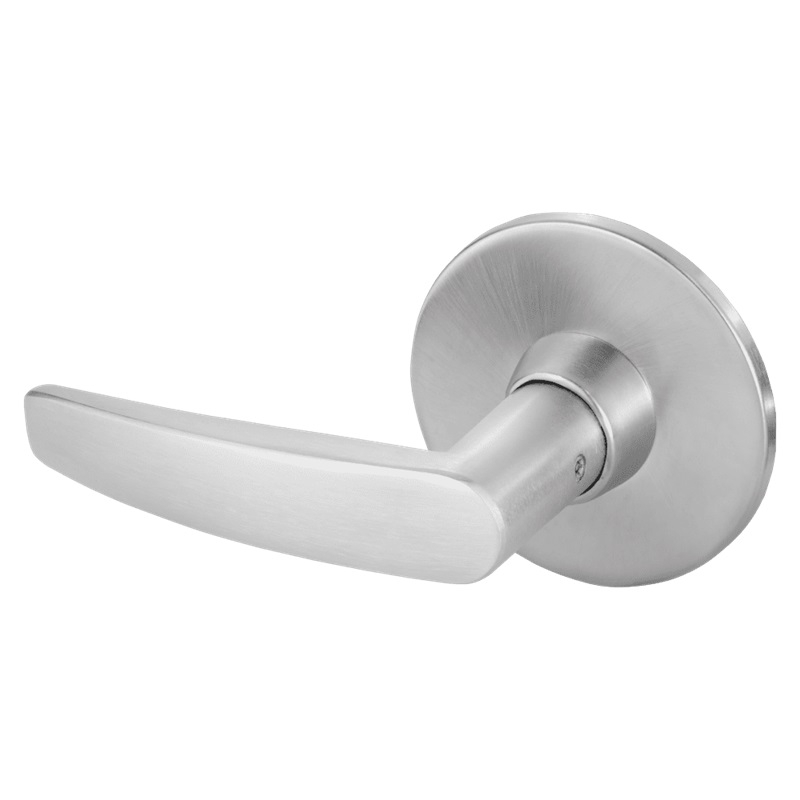

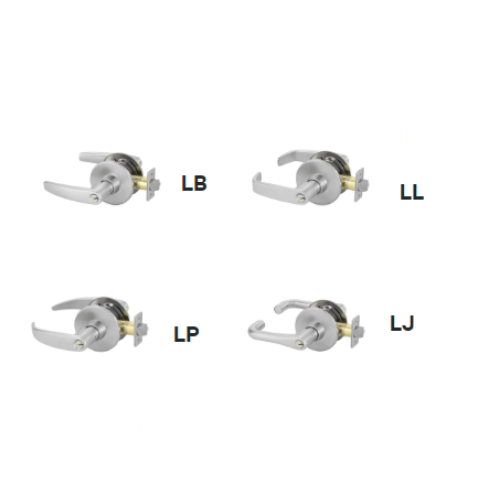

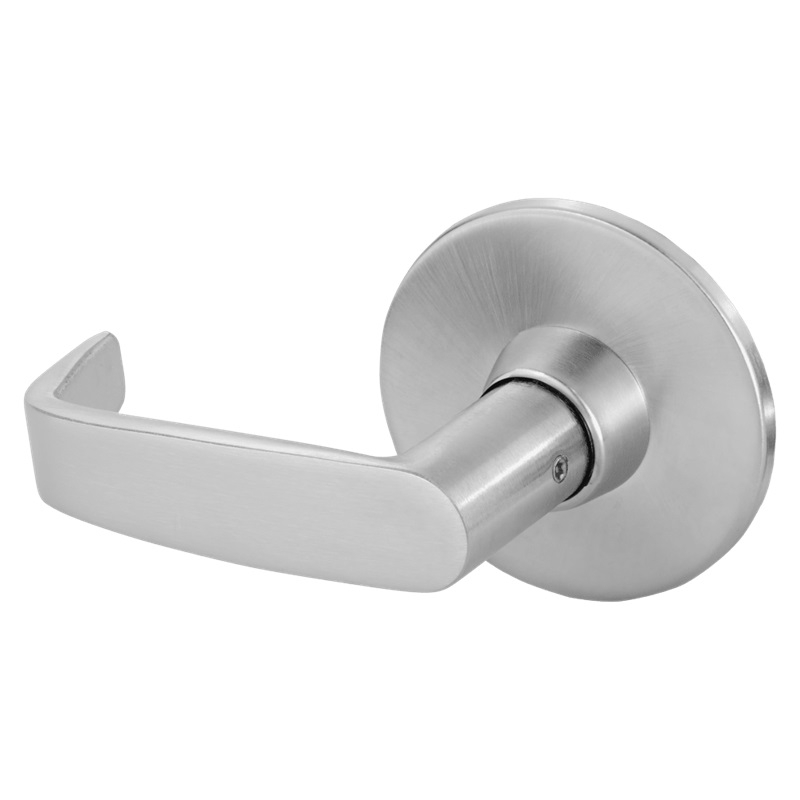

Lever: LL L Lever L Rose, LJ J Lever L Rose, LB B Lever L Rose, LP P Lever L Rose

Finishes: US3 (605) Bright Brass, US4 (606) Satin Brass, US10 (612) Satin Bronze, US10B (613) Dark Oxidized Satin Bronze, Oil Rubbed, US26 (625) Bright Chromium Plated, US26D (626) Satin Chromium Plated

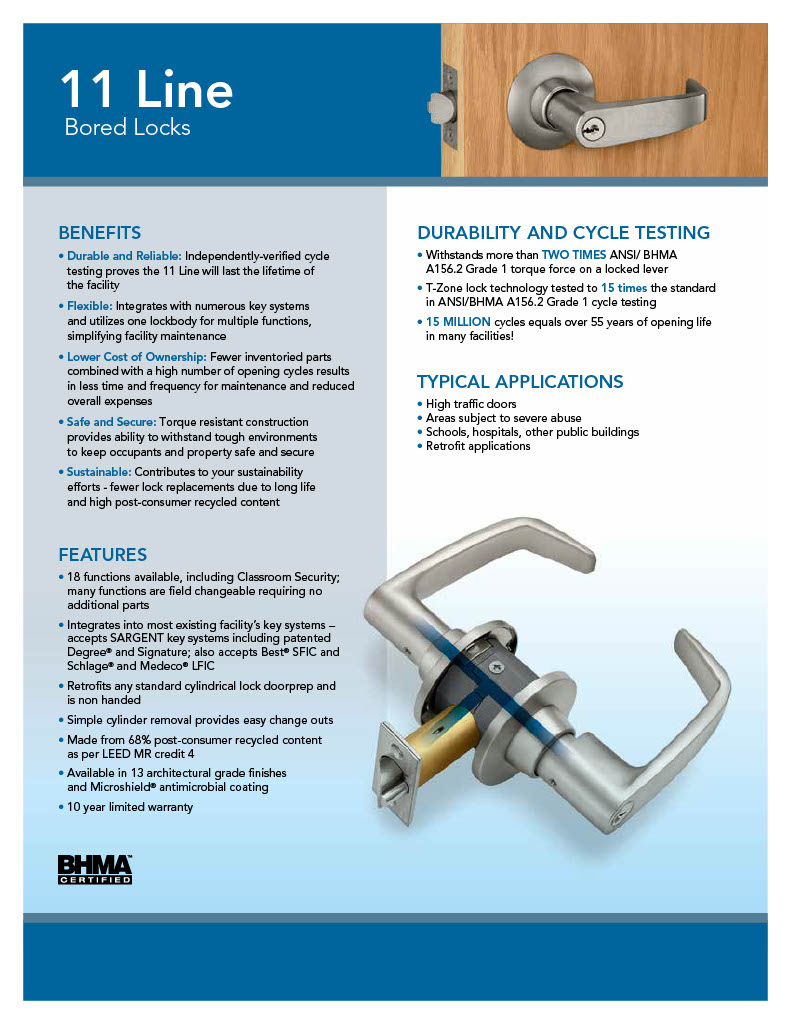

Meets and greatly exceeds ANSI A156.2 Series 4000 - Grade 1

Non handed/field reversible

Accommodates doors 1-3/4" to 2" thick; also available for doors 2-1/4" to 2-1/2" thick (31- prefix)

10 Year limited warranty. No service required to maintain warranty

Model:Sargent, 11U93, 11U93LL, 11U93LP, 11U93LB, 11U93LJ, US26D, 626, 11U93LL26D, 11U93LP26D, 11U93LB26D, 11U93LJ26D, US26, 625, 11U93LL26, 11U93LP26, 11U93LB26, 11U93LJ26, S10, 612, 11U93LL10, 11U93LP10, 11U93LB10, 11U93LJ10, US10B, 613, 11U93LL10B, 11U93LP10B, 11U93LB10B, 11U93LJ10B, US3, 605, 11U93LL3, 11U93LP3, 11U93LB3, 11U93LJ3, US4, 606, 11U93LL4, 11U93LP4, 11U93LB4, 11U93LJ4
