Product Details

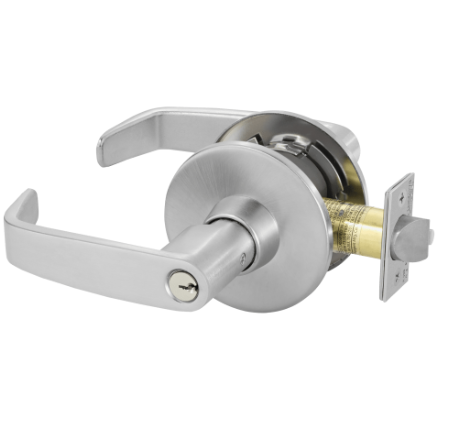

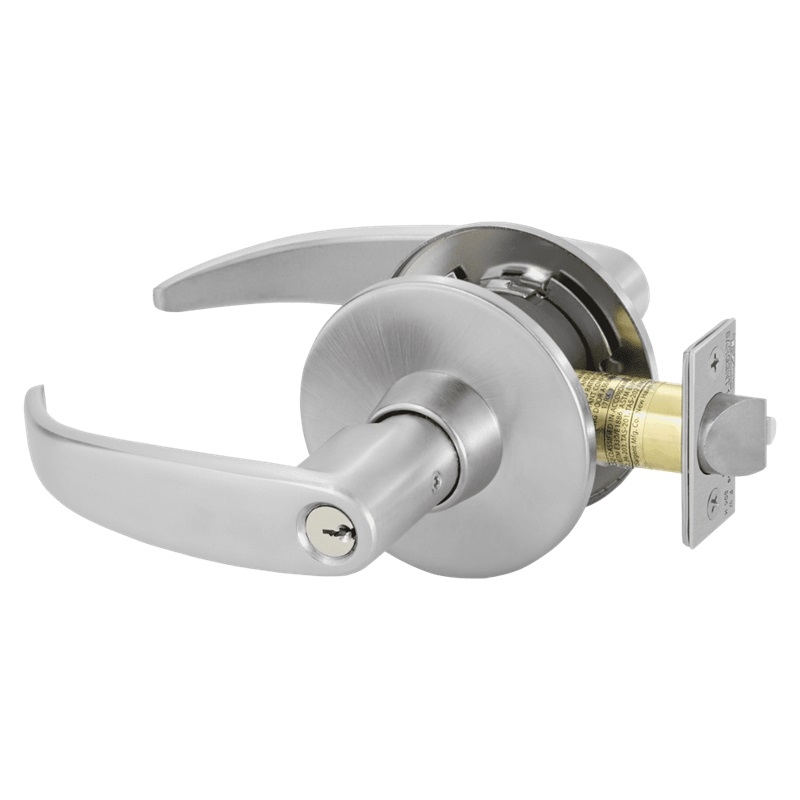

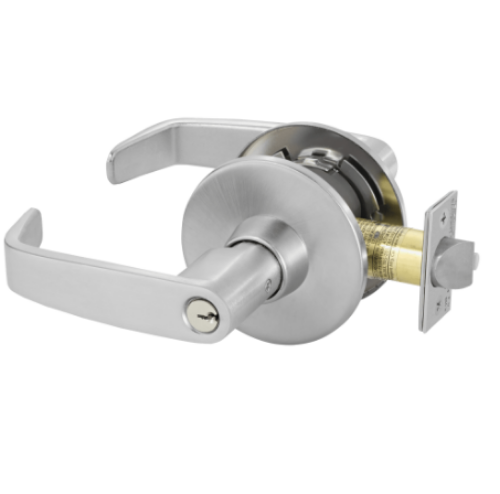

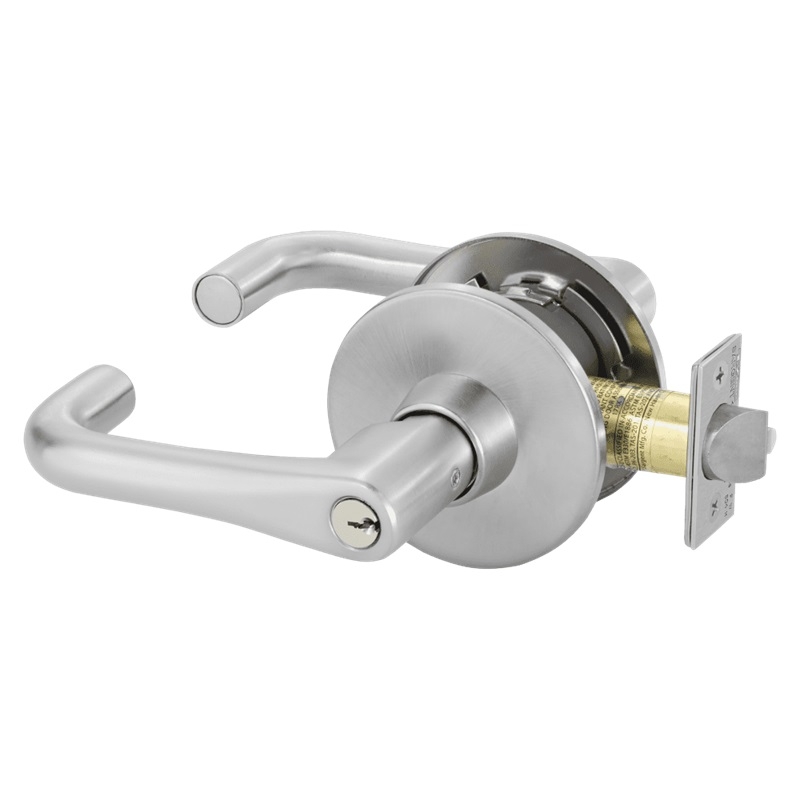

Sargent 28-11G05 Entrance or Office Lever Lock
Entrance or Office-ANSI - F81

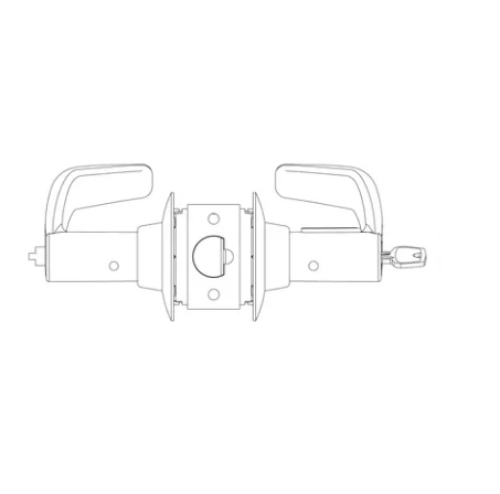

Deadlocking latch. Latchbolt by either lever unless outside lever is locked by push/turn button in inside lever. Turn button must be released manually. Key only retracts latchbolt when outside lever is locked

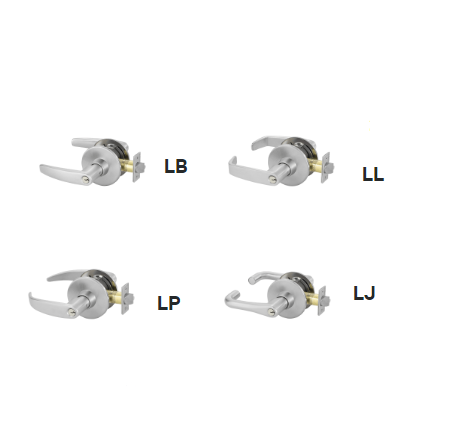

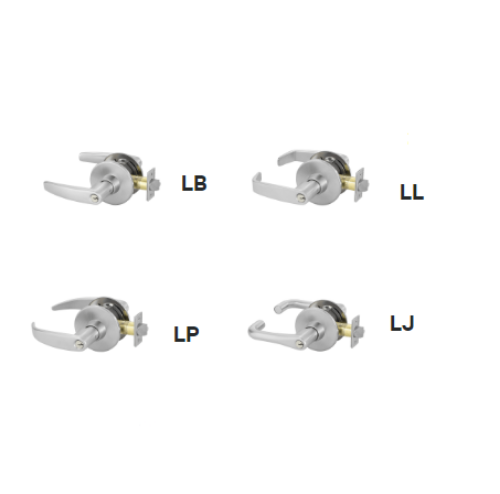

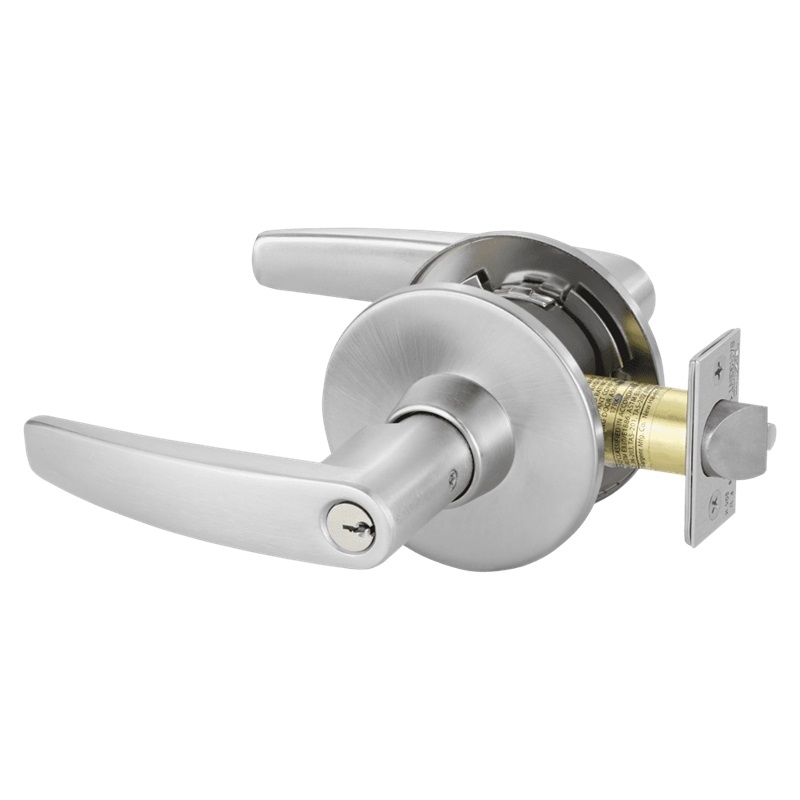

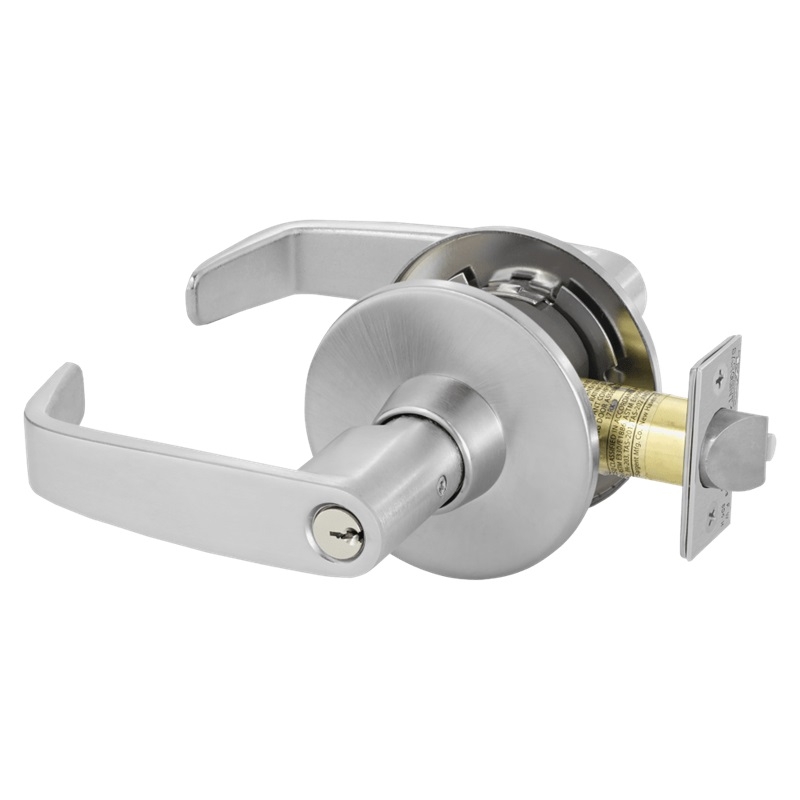

Lever: LL L Lever L Rose, LJ J Lever L Rose, LB B Lever L Rose, LP P Lever L Rose
Finishes: US3 (605) Bright Brass, US4 (606) Satin Brass, US10 (612) Satin Bronze, US10B (613) Dark Oxidized Satin Bronze, Oil Rubbed, US26 (625) Bright Chromium Plated, US26D (626) Satin Chromium Plated
Meets and greatly exceeds ANSI A156.2 Series 4000 - Grade 1
Non handed/field reversible
Accommodates doors 1-3/4" to 2" thick; also available for doors 2-1/4" to 2-1/2" thick (31- prefix)
Standard backset 2-3/4". Also available with 3-3/4" and 5" backsets
1/2" latch bolt throw standard; 3/4" throw (41- prefix) for pairs of doors
Front: Wrought brass, bronze or stainless steel2-1/4" x 1-1/8" (57mmx 29mm)Self-adjusting for flat to 1/8" (3mm) in 2" (51mm) bevel
Strike: Wrought brass, bronze or stainless steel - 808 curved lip strike 4-7/8" x 1-1/8" x 1-1/4"standard
Cylinder: Brass, 6-pin, LA keyway standard.
Keying Features Available:**Master keying, Construction master keying, Interchangeable core (IC).
Keys:Two nickel silver standard
10 Year limited warranty. No service required to maintain warranty
Model:Sargent, 11G05, 2811G05, 286011G05, 287011G05, 11G05LL, 2811G05LL, 286011G05LL, 287011G05LL, 11G05LP, 2811G05LP, 286011G05LP, 287011G05LP, 11G05LB, 2811G05LB, 286011G05LB, 287011G05LB, 11G05LJ, 2811G05LJ, 286011G05LJ, 287011G05LJ
Sargent, US26D, 626, 11G05LL26D, 2811G05LL26D, 286011G05LL26D, 287011G05LL26D, 11G05LP26D, 2811G05LP26D, 286011G05LP26D, 287011G05LP26D, 11G05LB26D, 2811G05LB26D, 286011G05LB26D, 287011G05LB26D, 11G05LJ26D, 2811G05LJ26D, 286011G05LJ26D, 287011G05LJ26D
Sargent, US26, 625, 11G05LL26, 2811G05LL26, 286011G05LL26, 287011G05LL26, 11G05LP26, 2811G05LP26, 286011G05LP26, 287011G05LP26, 11G05LB26, 2811G05LB26, 286011G05LB26, 287011G05LB26, 11G05LJ26, 2811G05LJ26, 286011G05LJ26, 287011G05LJ26
Sargent, US10, 612, 11G05LL10, 2811G05LL10, 286011G05LL10, 287011G05LL10, 11G05LP10, 2811G05LP10, 286011G05LP10, 287011G05LP10, 11G05LB10, 2811G05LB10, 286011G05LB10, 287011G05LB10, 11G05LJ10, 2811G05LJ10, 286011G05LJ10, 287011G05LJ10
Sargent, US10B, 613, 11G05LL10B, 2811G05LL10B, 286011G05LL10B, 287011G05LL10B, 11G05LP10B, 2811G05LP10B, 286011G05LP10B, 287011G05LP10B, 11G05LB10B, 2811G05LB10B, 286011G05LB10B, 287011G05LB10B, 11G05LJ10B, 2811G05LJ10B, 286011G05LJ10B, 287011G05LJ10B
Sargent, US3, 605,11G05LL3, 2811G05LL3, 286011G05LL3, 287011G05LL3, 11G05LP3, 2811G05LP3, 286011G05LP3, 287011G05LP3, 11G05LB3, 2811G05LB3, 286011G05LB3, 287011G05LB3, 11G05LJ3, 2811G05LJ3, 286011G05LJ3, 287011G05LJ3
Sargent, US4, 606, 11G05LL4, 2811G05LL4, 286011G05LL4, 287011G05LL4, 11G05LP4, 2811G05LP4, 286011G05LP4, 287011G05LP4, 11G05LB4, 2811G05LB4, 286011G05LB4, 287011G05LB4, 11G05LJ4, 2811G05LJ4, 286011G05LJ4, 287011G05LJ4
