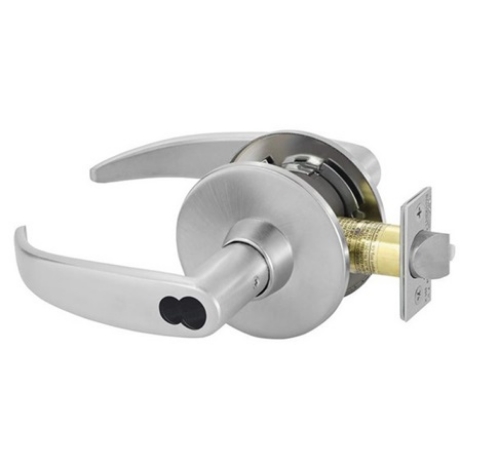

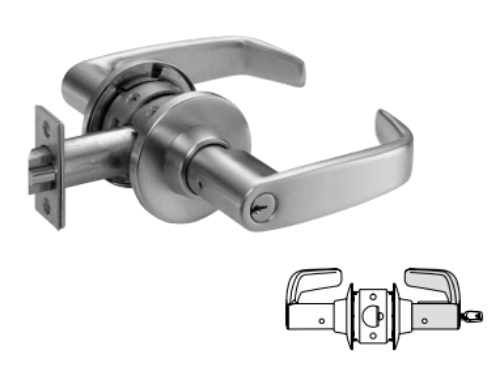

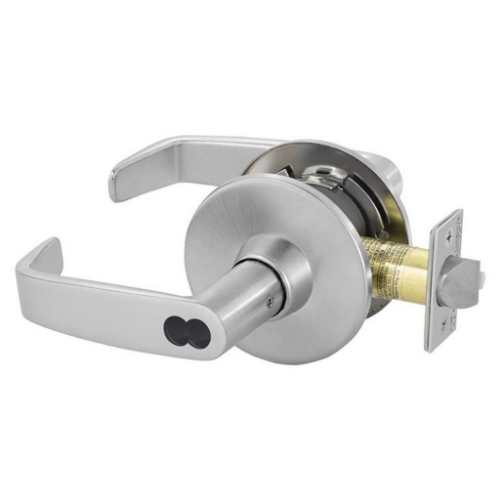

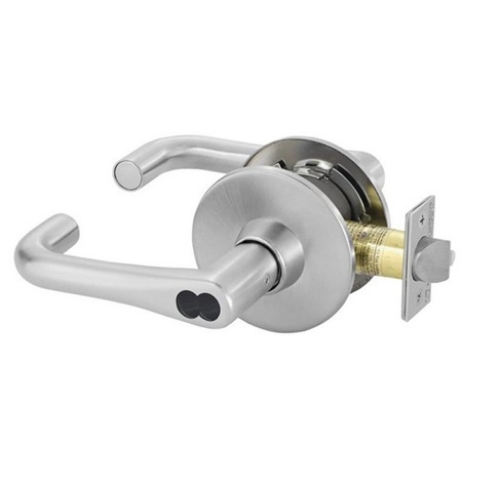

Sargent 28-60-11G04 Grade 1 Storeroom/Closet Cylindrical Lock

Sargent 28-60-11G04 Storeroom Lever Lock - Large format IC core - less core

Storeroom or Closet*-ANSI - F86*

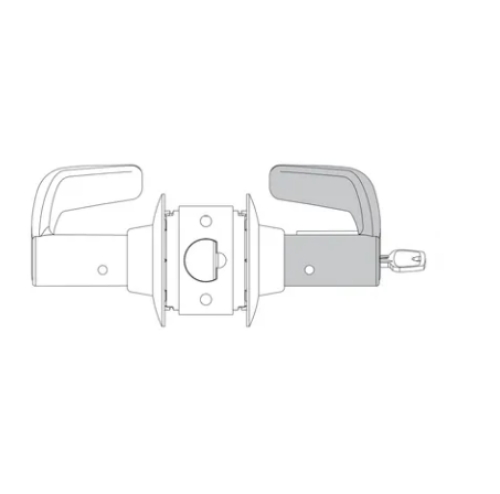

Deadlocking latch. Latchbolt by lever inside or key outside. Outside lever rigid at all times

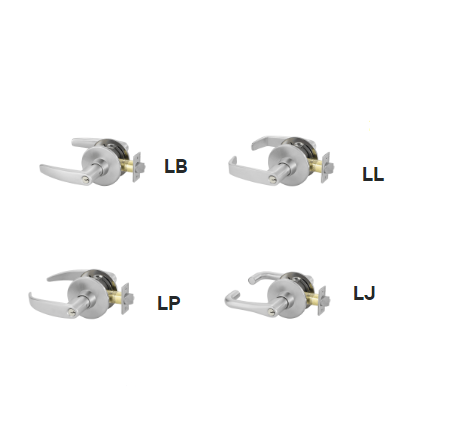

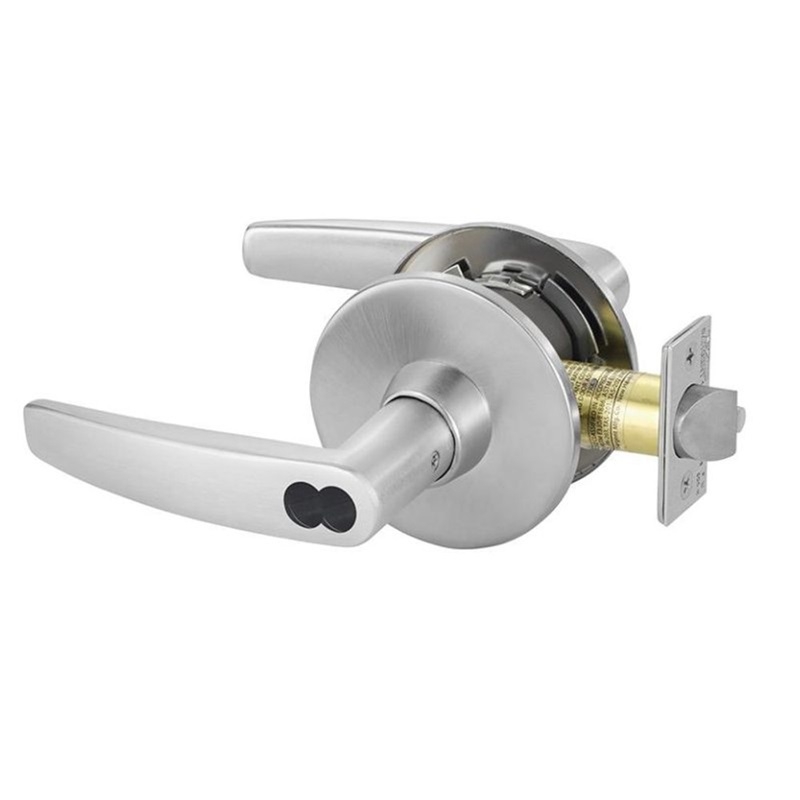

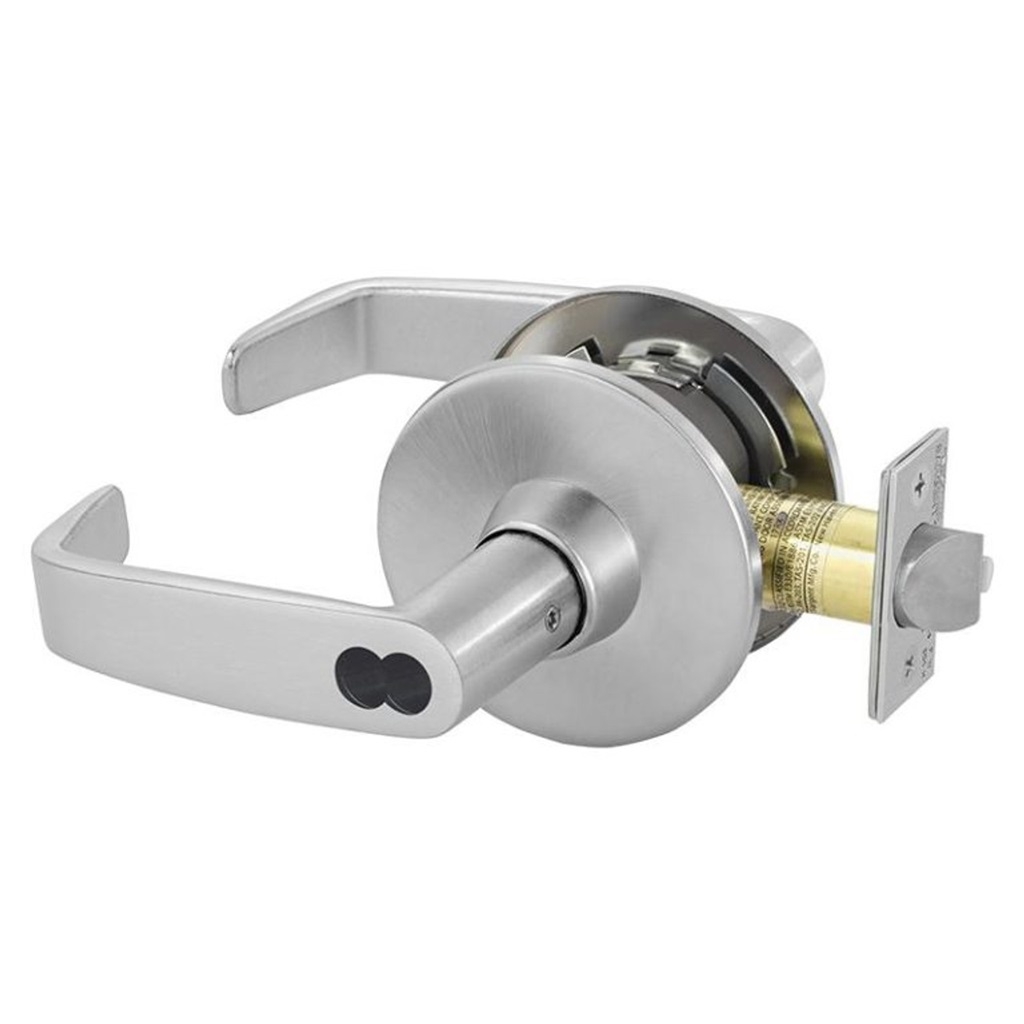

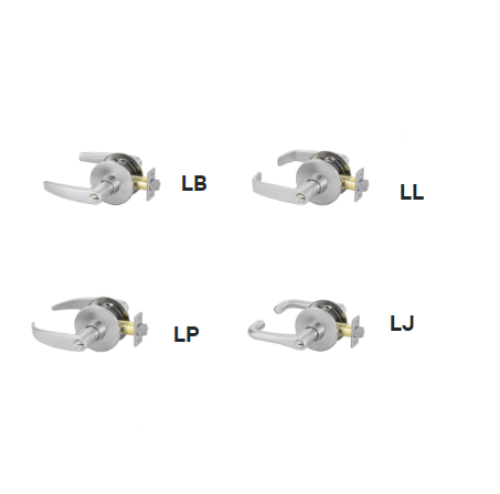

Lever: LL L Lever L Rose, LJ J Lever L Rose, LB B Lever L Rose, LP P Lever L Rose

Finishes: US3 (605) Bright Brass, US4 (606) Satin Brass, US10 (612) Satin Bronze, US10B (613) Dark Oxidized Satin Bronze, Oil Rubbed, US26 (625) Bright Chromium Plated, US26D (626) Satin Chromium Plated

Meets and greatly exceeds ANSI A156.2 Series 4000 - Grade 1

Non handed/field reversible

Accommodates doors 1-3/4" to 2" thick; also available for doors 2-1/4" to 2-1/2" thick (31- prefix)

Standard backset 2-3/4". Also available with 3-3/4" and 5" backsets

1/2" latch bolt throw standard; 3/4" throw (41- prefix) for pairs of doors

Front: Wrought brass, bronze or stainless steel2-1/4" x 1-1/8" (57mmx 29mm)Self-adjusting for flat to 1/8" (3mm) in 2" (51mm) bevel

Strike: Wrought brass, bronze or stainless steel - 808 curved lip strike 4-7/8" x 1-1/8" x 1-1/4"standard

60 - Large format IC core - less core (accepts Sargent Interchangable cores, core not included)

10 Year limited warranty. No service required to maintain warranty

Model:Sargent, 286011G04, 286011G04LL, 286011G04LP, 286011G04LB, 286011G04LJ

Sargent, US26D, 626, 286011G04LL26D, 286011G04LP26D, 286011G04LB26D, 286011G04LJ26D

Sargent,  Sargent, US26, 625, 286011G04LL26, 286011G04LP26, 286011G04LB26, 286011G04LJ26

Sargent, US10, 612, 286011G04LL10, 286011G04LP10, 286011G04LB10, 286011G04LJ10

Sargent, US10B, 613, 286011G04LL10B, 286011G04LP10B, 286011G04LB10B, 286011G04LJ10B

Sargent, US3, 605, 286011G04LL3, 286011G04LP3, 286011G04LB3, 286011G04LJ3

Sargent, US4, 606, 286011G04LL4, 286011G04LP4, 286011G04LB4, 286011G04LJ4

Specifications

Bearing Assembly:Cast andmachined stainless steel

Levers:**Secured with 6 lobe security set screw standard 6 Lobe tool packed with each lock

Roses: Heavy wrought brass, bronze or stainless steel

Minimum Stile:4-1/4" stile required with O and B rose - 4-1/2" stile required with L and E rose

Certification Compliance

Far exceeds ANSI/BHMA Grade 1 requirements

UL and cUL listed to Canadian safety standardsListed for 3 Hour Doors (double doors require 41- option)

Positive Pressure - Meets UL 10C and UBC 7-2

UL Listed: ANSI/SDI-BHMA A250.13; ANSI/ASTME330-2002;Certifications ANSI/ASTME1886-2005 & ASTME1996-2009UL Certification Directory ZHEM.R21744 Latching HardwareListed on Florida Building CodeWebsite: FL4351-R1

All levers conformto ADA requirements for barrier-free accessibility.Levers (L, J and P) conformto California Administrative Code Title 19.

Patented T-Zone Construction U.S. Patent No. 6,626,018

Testing exceeds 8 million cycles (Cycle testing is witnessed and the results are verified by an independent, third party test lab)

Maximum Convenience: Two-piece rose assembly goes quickly into place  Fits any 161 prep; Does not fit 160 door prep Two piece rose & collar for easier installation Only 45 of lever rotation required to retract latchbolt
