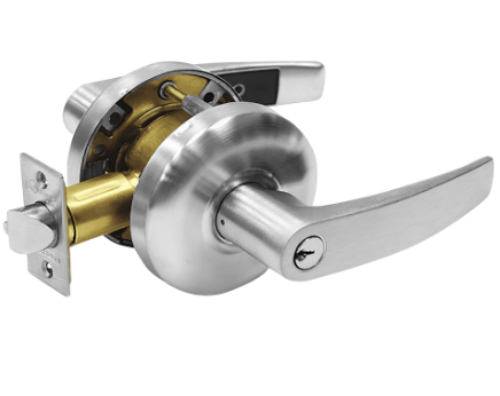

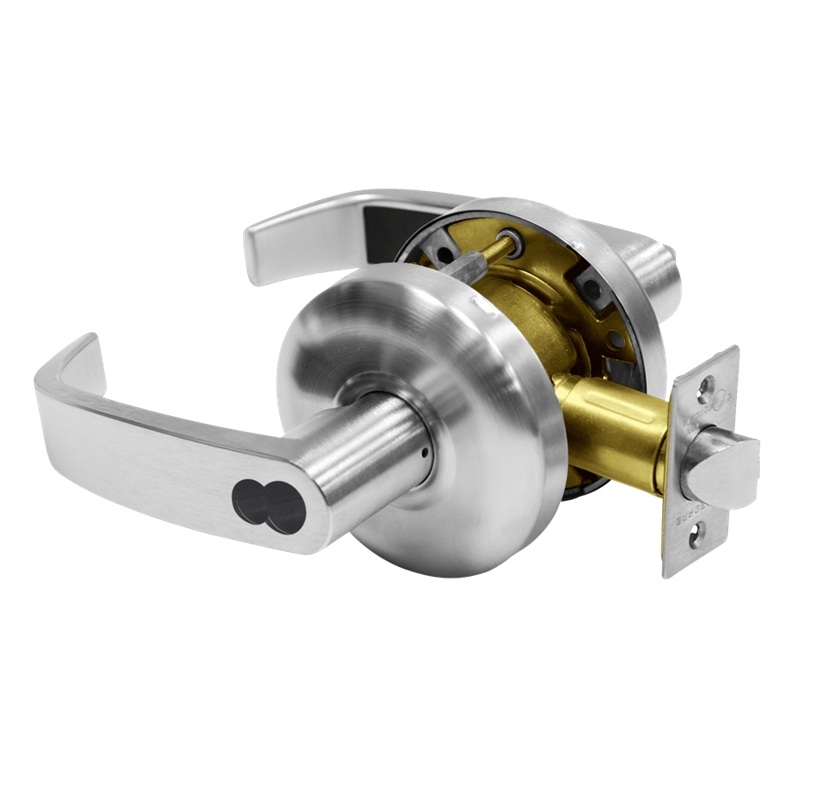

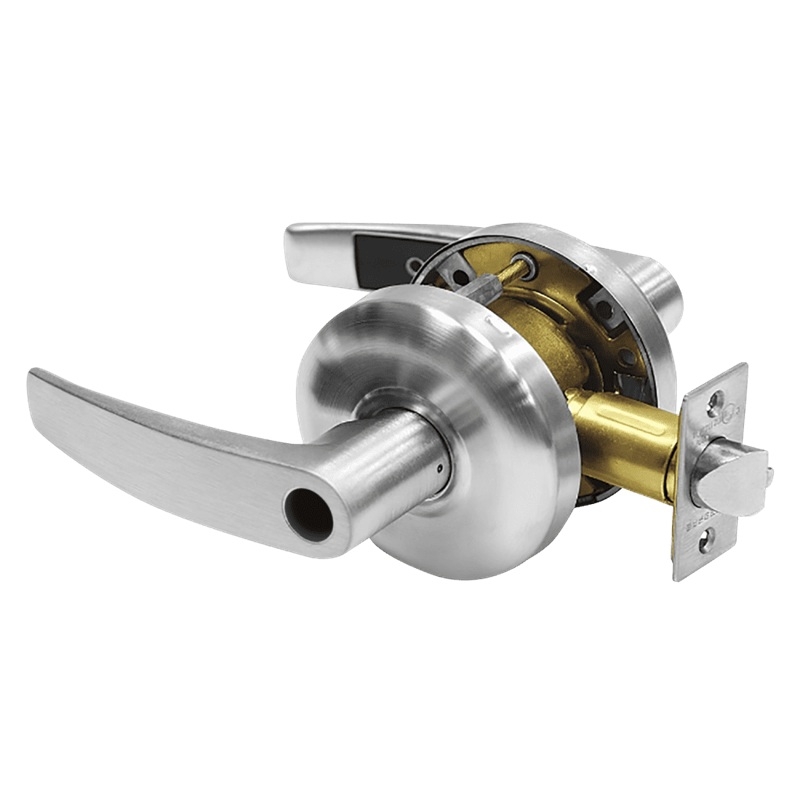

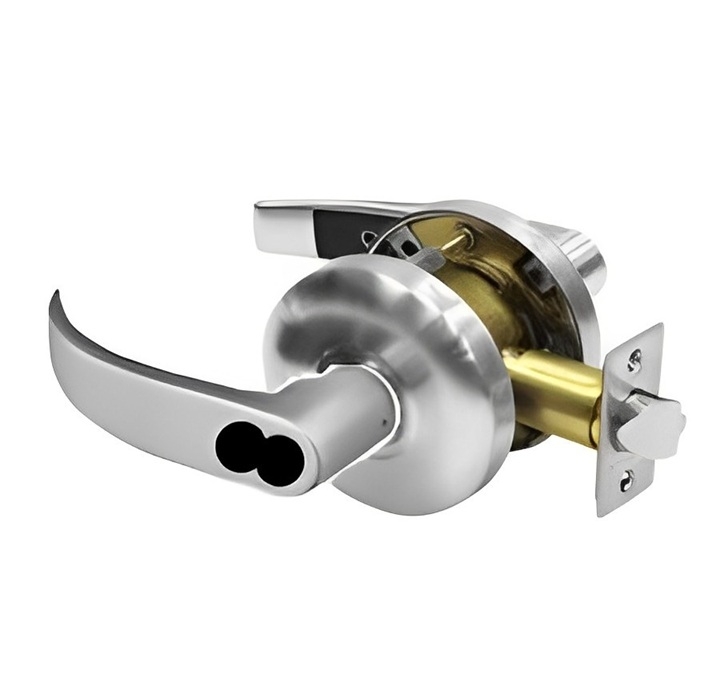

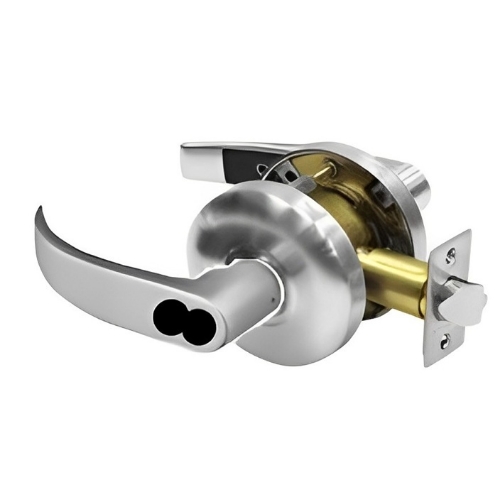

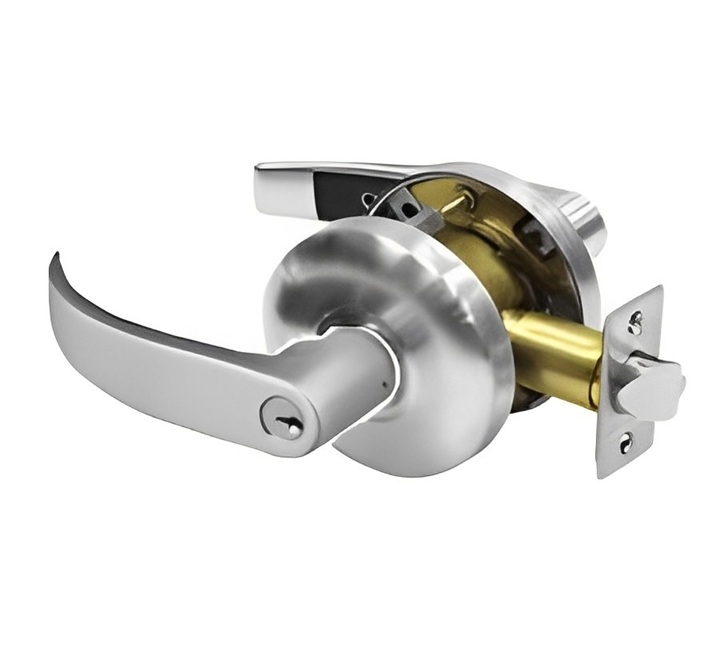

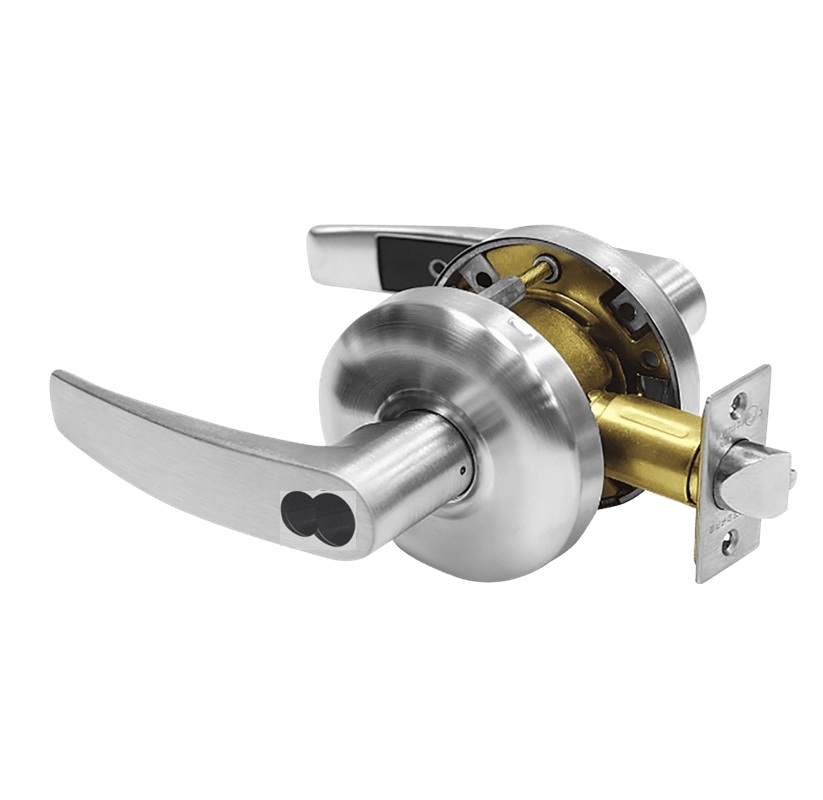

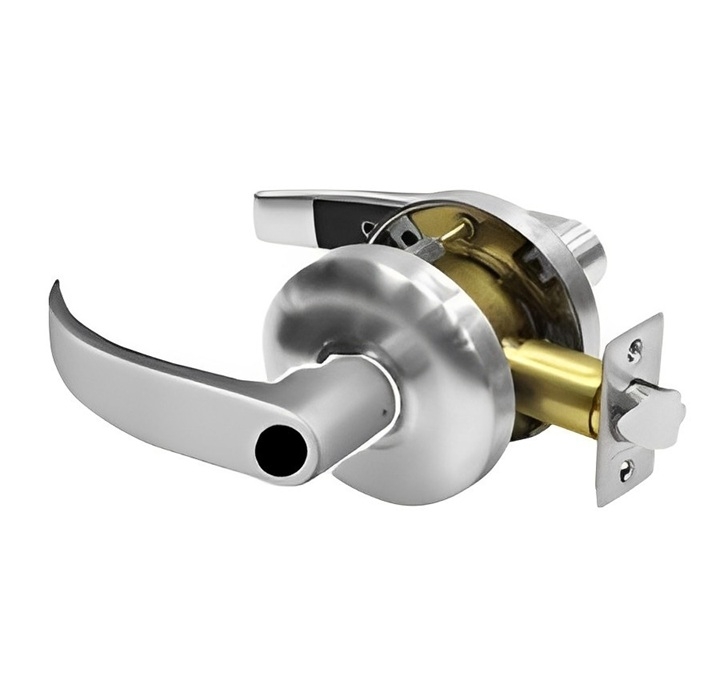

Sargent 65G04 Storeroom or Closet Lock

Sargent 65G04 KL Storeroom or Closet Lock

ANSI F86

Meets and greatly exceeds ANSI A156.2Series 4000, Grade 2

Finishes: US3 Polished brass, clear coat (605) -  US4 Satin brass, clear coat (606) US10B Oxidized bronze, oil rubbed (613) - US26 Polished chrome (625) - US26D Satin chrome (625)

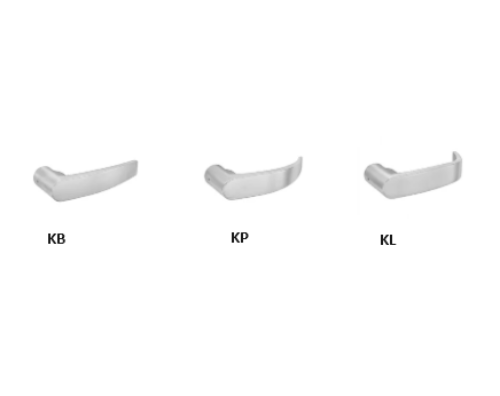

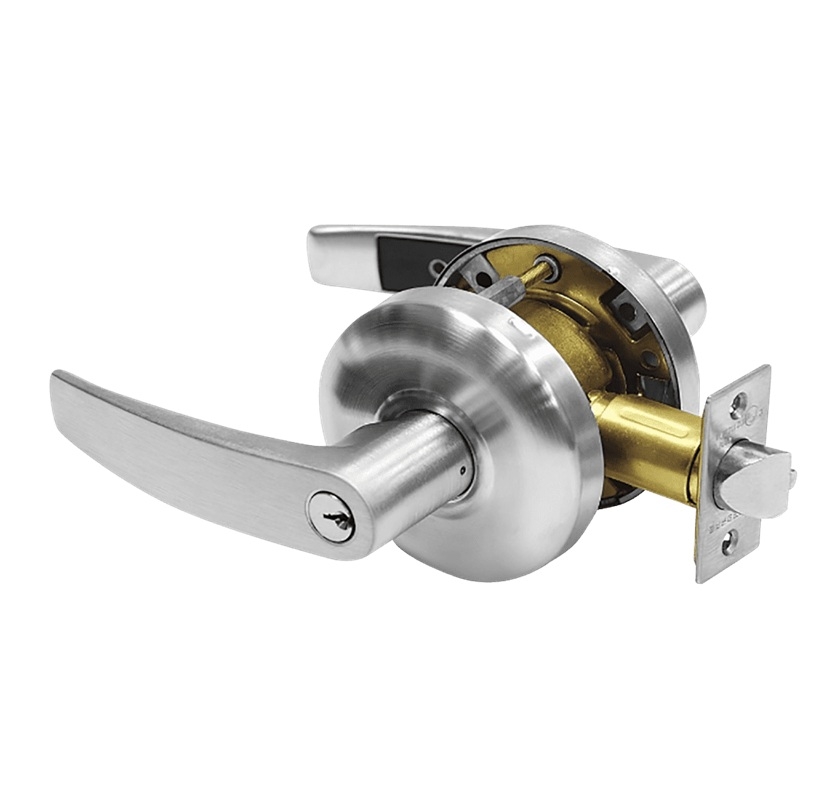

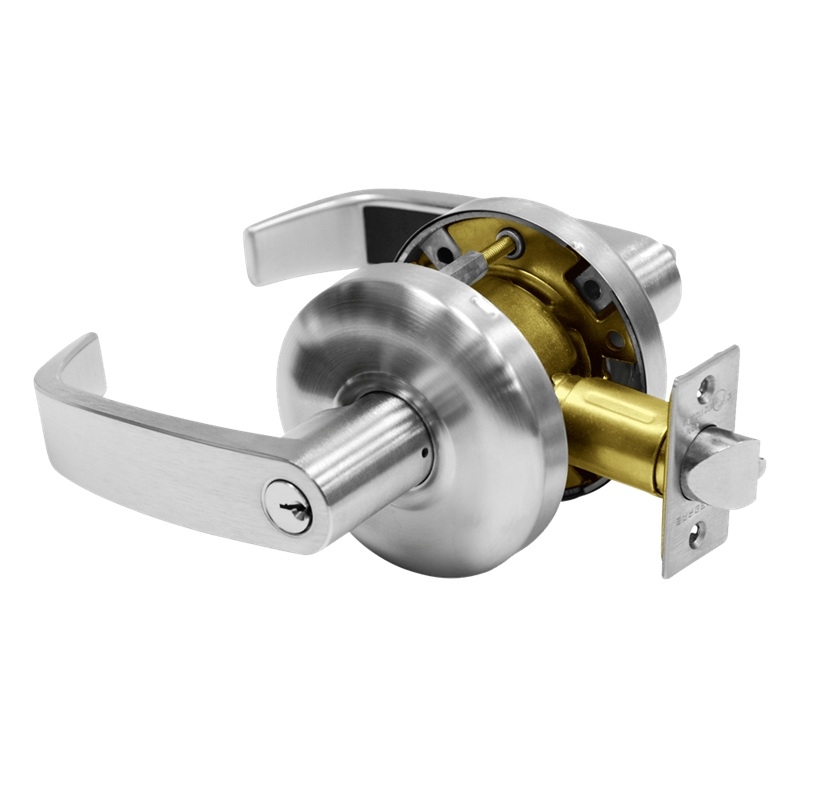

Lever: KL, KB, KP

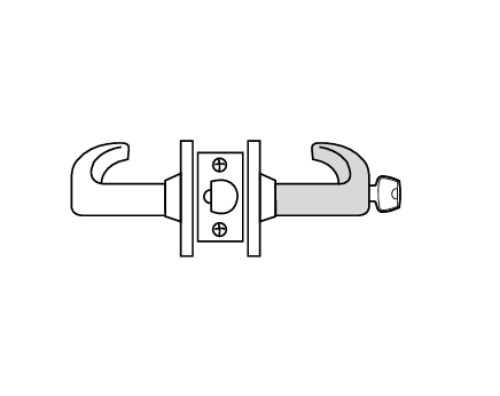

Deadlocking latch Latch by lever inside or key outside Outside lever rigid at all times

Universal, not handed

For Doors: 1-3/8" (35mm) to 1-3/4" (44mm) only

Backset: Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional

Latch: Brass, 1/2" bolt throw

Front: Wrought brass or stainless steel2-1/4" x 1-1/8" (57mmx 29mm)

Strike: Wrought brass or stainless steel 600 curved lip strike 2-3/4" or 808 curved lip ANSI strike 4-7/8".

Minimum Stile: 4-1/2" (114mm)

Cylinder: Brass, 6-pin, LA keyway standard.

Keying Features Available: Master keying, Construction master keying.

Keys: Two nickel silver standard

Model: Sargent 6500 Series, 65G04, 65G04KL, 2865G04KL, 65G04KL3, 65G04KL4, 65G04KL10B, 65G04KL26, 65G04KL26D, 2865G04KL3, 2865G04KL4, 2865G04KL10B, 2865G04KL26, 2865G04KL26D

Cylindrical Housing - Steel, zinc dichromate finish

Certification Compliance

Meets ANSI A156.2 Series 4000 Grade 2UL listed to U.S.A. and Canadian safety standards. Listed for 3 Hour DoorsMeets UL 10C and UBC 7-2 (1997)All levers conform to ADA requirement for barrier-free accessibilityLevers conform to California Administrative CodeTitle 19 and 24All individual components of a total door opening are required to comply with each code
