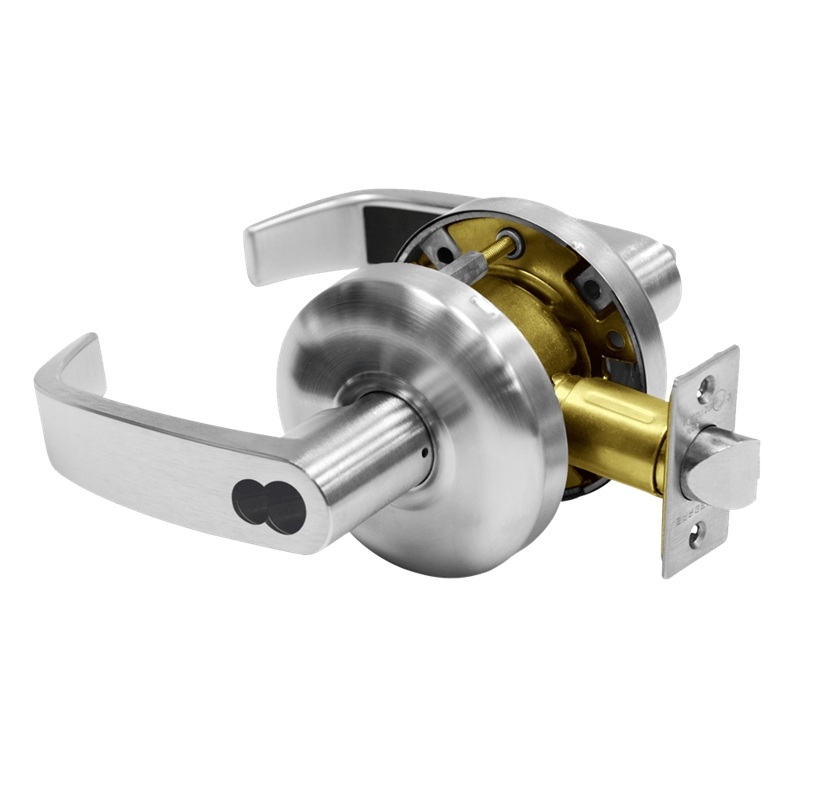

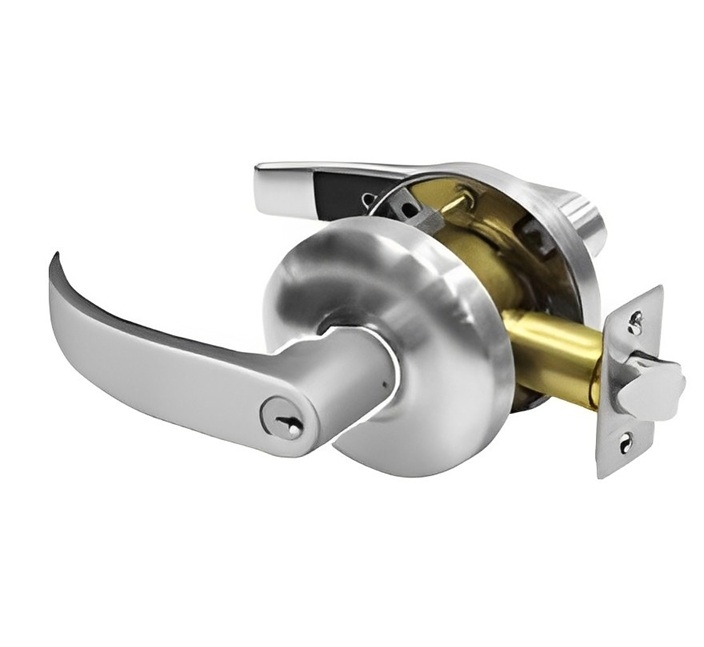

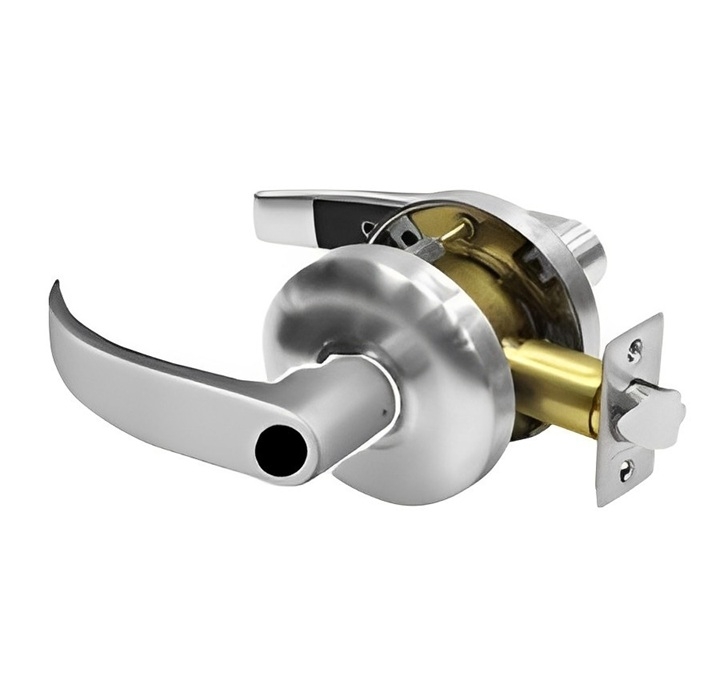

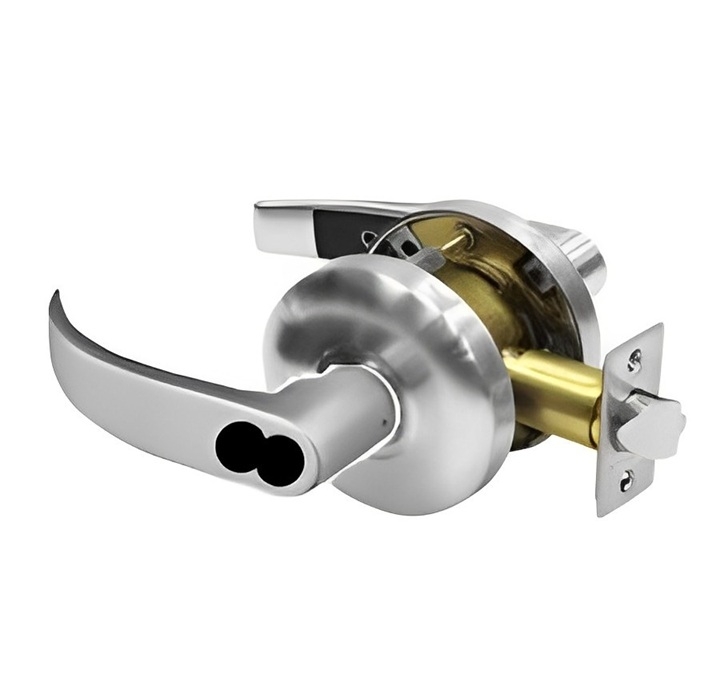

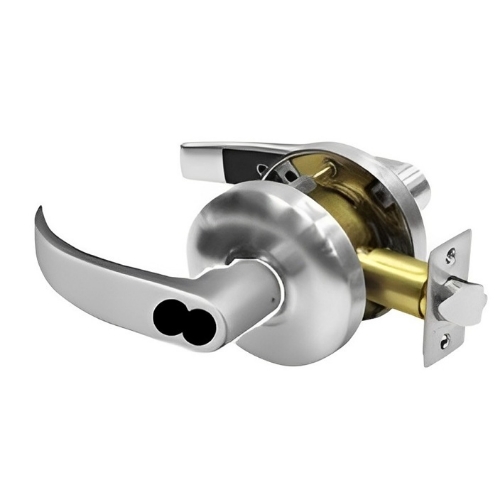

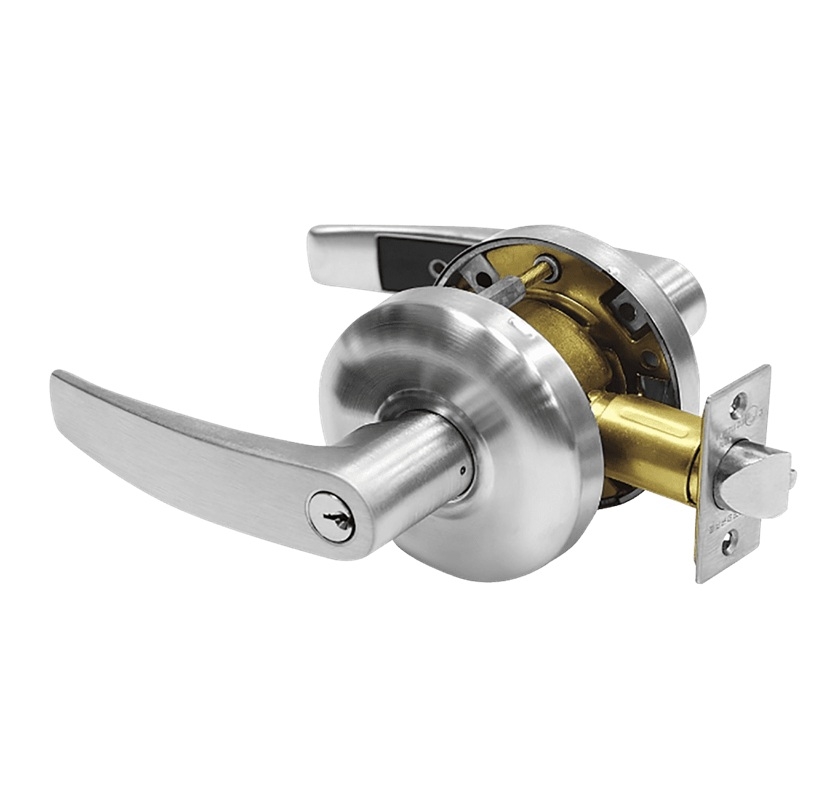

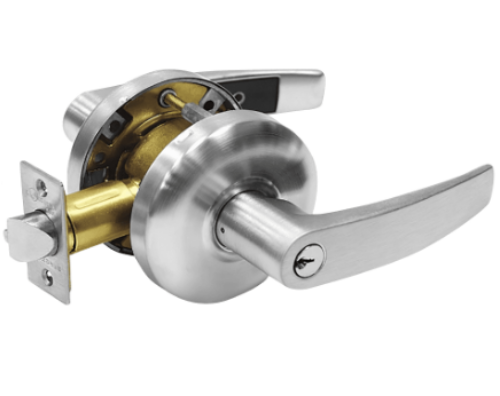

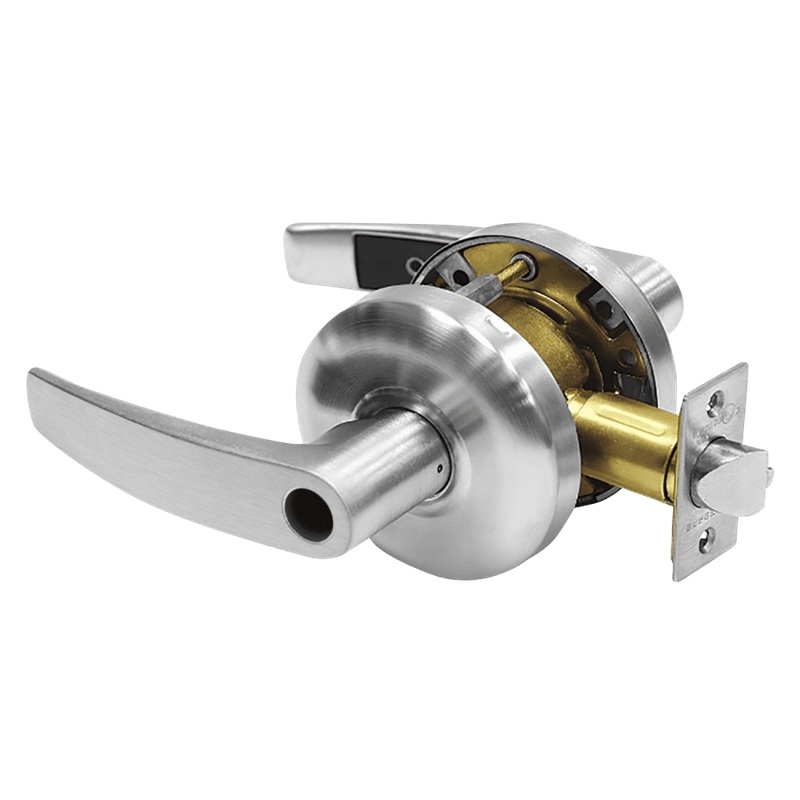

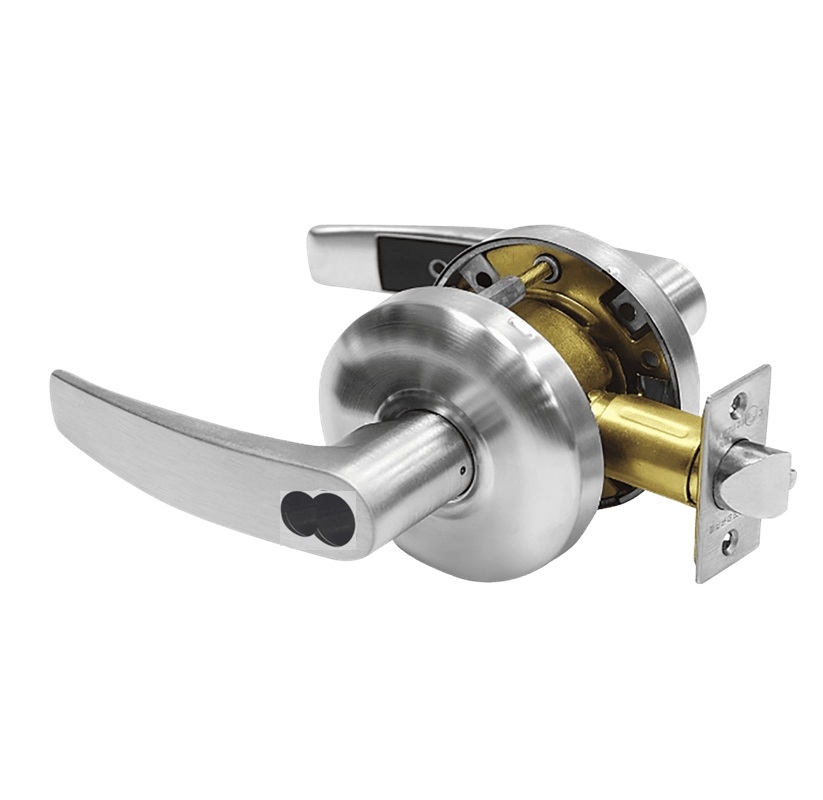

Sargent 65G37 Classroom Lock

Sargent 65G37 KL Classroom Lock

ANSI F84

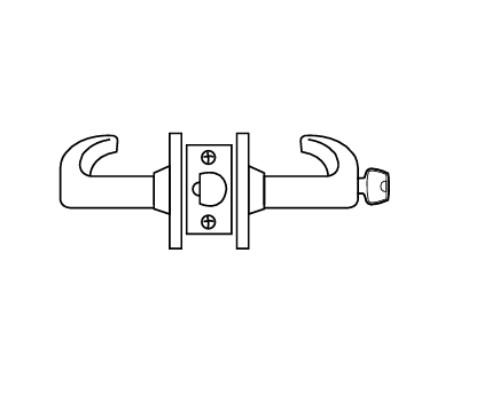

Deadlocking latch Latch by either lever unless outside lever is locked by key Key in outside lever locks or unlocks outside lever and retracts latch Inside lever always operative

Meets and greatly exceeds ANSI A156.2Series 4000, Grade 2

Finishes: US3 Polished brass, clear coat (605) -  US4 Satin brass, clear coat (606) US10B Oxidized bronze, oil rubbed (613) - US26 Polished chrome (625) - US26D Satin chrome (625)

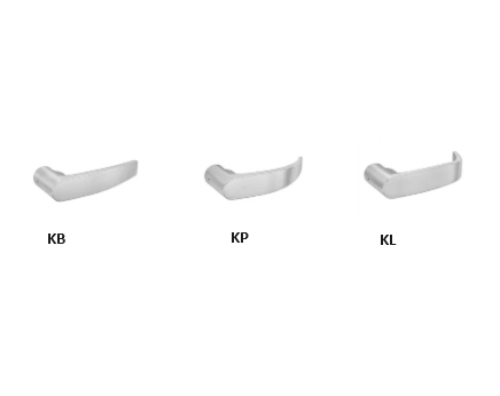

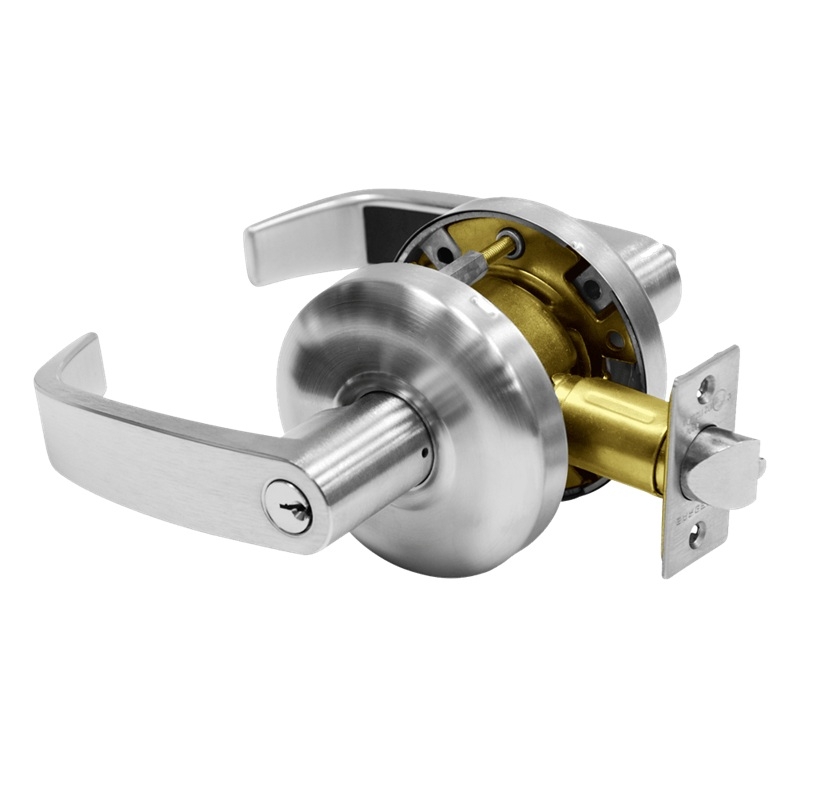

Lever: KL

Universal, not handed

For Doors: 1-3/8" (35mm) to 1-3/4" (44mm) only

Backset: Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional

Latch: Brass, 1/2" bolt throw

Front: Wrought brass or stainless steel2-1/4" x 1-1/8" (57mmx 29mm)

Strike: Wrought brass or stainless steel 600 curved lip strike 2-3/4" or 808 curved lip ANSI strike 4-7/8".

Minimum Stile: 4-1/2" (114mm)

Cylinder: Brass, 6-pin, LA keyway standard.

Keying Features Available: Master keying, Construction master keying.

Keys: Two nickel silver standard

Model: Sargent 6500 Series, 65G37, 65G37KL, 2865G37KL, 65G37KL3, 65G37KL4, 65G37KL10B, 65G37KL26, 65G37KL26D, 2865G37KL3, 2865G37KL4, 2865G37KL10B, 2865G37KL26, 2865G37KL26D

Cylindrical Housing - Steel, zinc dichromate finish

Certification Compliance

Meets ANSI A156.2 Series 4000 Grade 2UL listed to U.S.A. and Canadian safety standards. Listed for 3 Hour DoorsMeets UL 10C and UBC 7-2 (1997) All levers conform to ADA requirement for barrier-free accessibility Levers conform to California Administrative Code Title 19 and 24 All individual components of a total door opening are required to comply with each code
