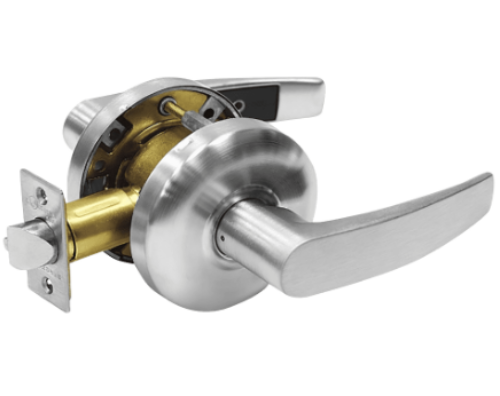

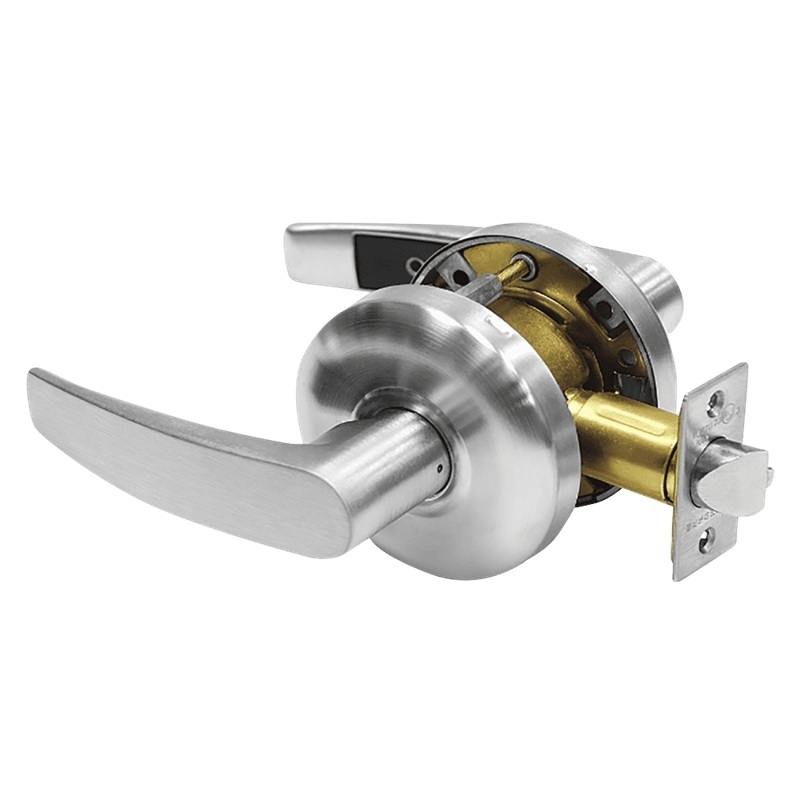

Sargent 65U15 Passage Lever Set

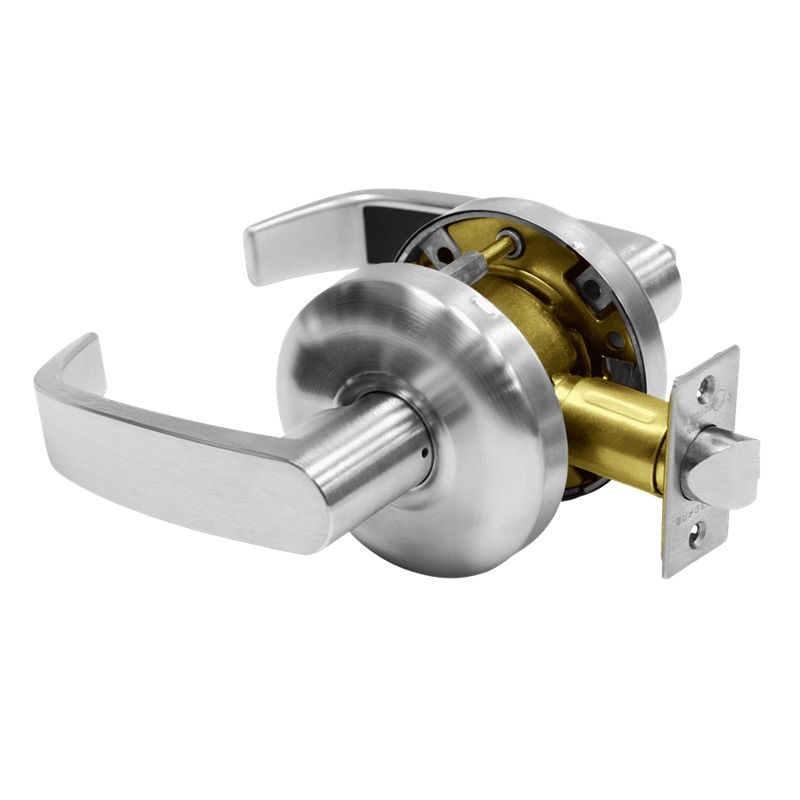

Sargent 65U15 KL Passage Lever Set

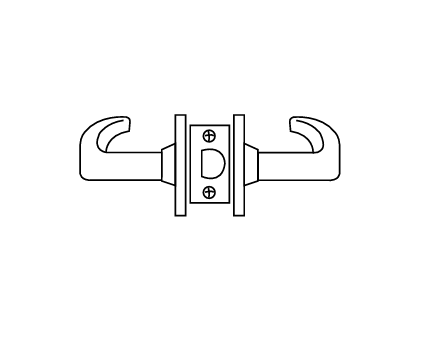

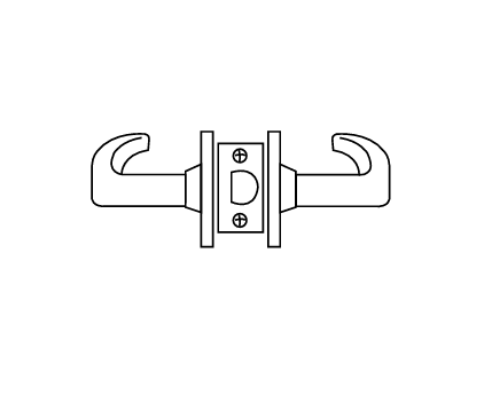

ANSI F75

Latch by either lever

Meets and greatly exceeds ANSI A156.2Series 4000, Grade 2

Finishes: US3 Polished brass, clear coat (605) -  US4 Satin brass, clear coat (606) US10B Oxidized bronze, oil rubbed (613) - US26 Polished chrome (625) - US26D Satin chrome (625)

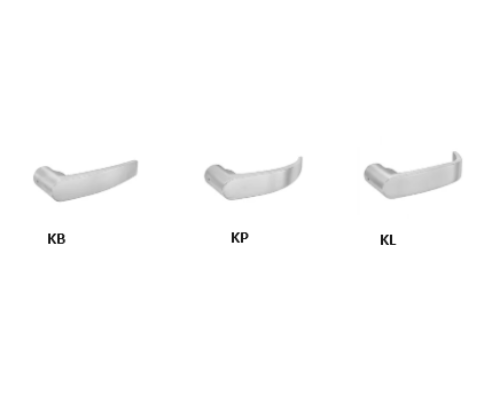

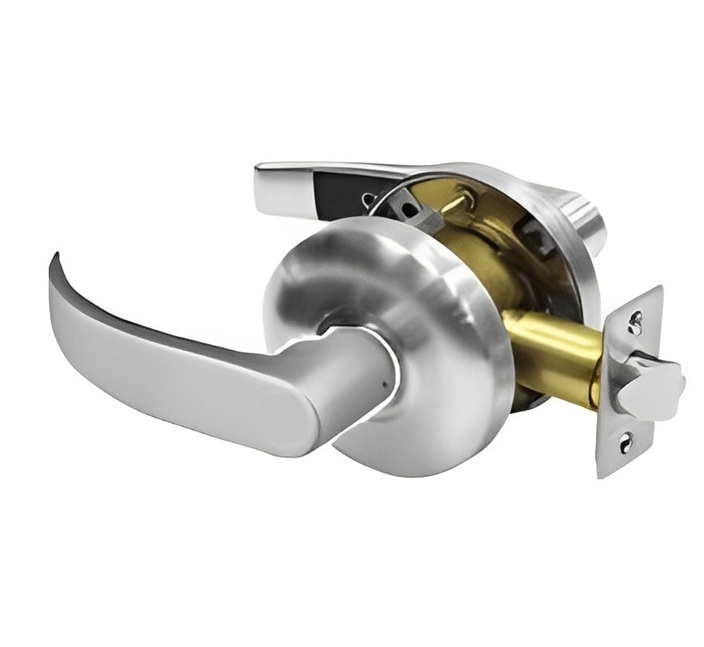

Lever: KL, KB, KP

Universal, not handed

For Doors: 1-3/8" (35mm) to 1-3/4" (44mm) only

Backset: Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional

Latch: Brass, 1/2" bolt throw

Front: Wrought brass or stainless steel2-1/4" x 1-1/8" (57mmx 29mm)

Strike: Wrought brass or stainless steel 600 curved lip strike 2-3/4" or 808 curved lip ANSI strike 4-7/8".

Minimum Stile: 4-1/2" (114mm)

Model: Sargent 6500 Series, 65U15, 65U15KL, 2865U15KL, 65U15KL3, 65U15KL4, 65U15KL10B, 65U15KL26, 65U15KL26D, 2865U15KL3, 2865U15KL4, 2865U15KL10B, 2865U15KL26, 2865U15KL26D

Cylindrical Housing - Steel, zinc dichromate finish

Certification Compliance

Meets ANSI A156.2 Series 4000 Grade 2UL listed to U.S.A. and Canadian safety standards. Listed for 3 Hour DoorsMeets UL 10C and UBC 7-2 (1997)All levers conform to ADA requirement for barrier-free accessibilityLevers conform to California Administrative Code Title 19 and 24All individual components of a total door opening are required to comply with each code
