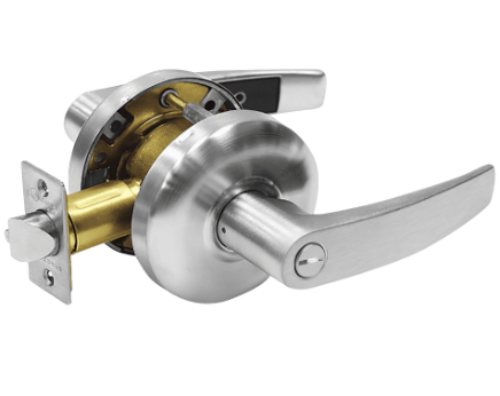

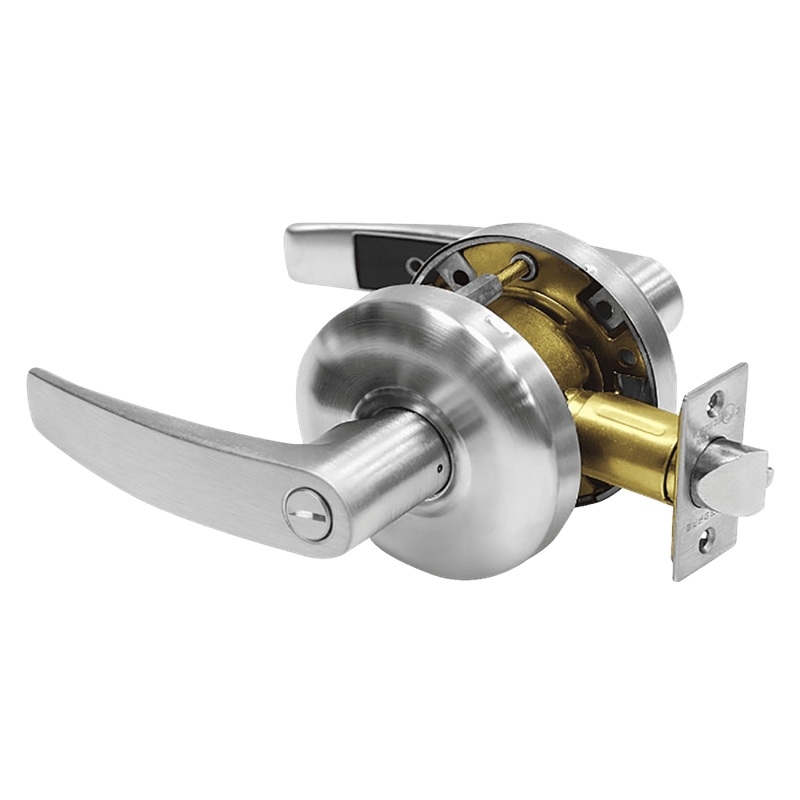

Sargent 65U65 Privacy Lever Set

Sargent 65U65 KL Privacy Lever Set -*ANSI F76*

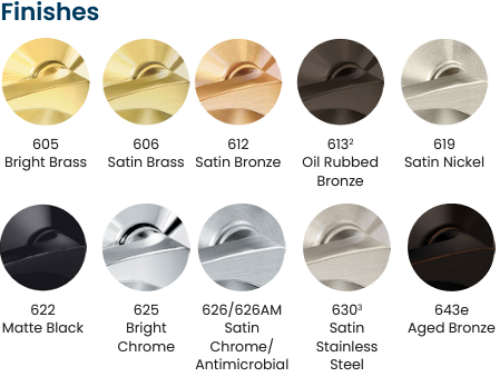

Finishes: US3 Polished brass, clear coat (605) -  US4 Satin brass, clear coat (606) US10B Oxidized bronze, oil rubbed (613) - US26 Polished chrome (625) - US26D Satin chrome (625)

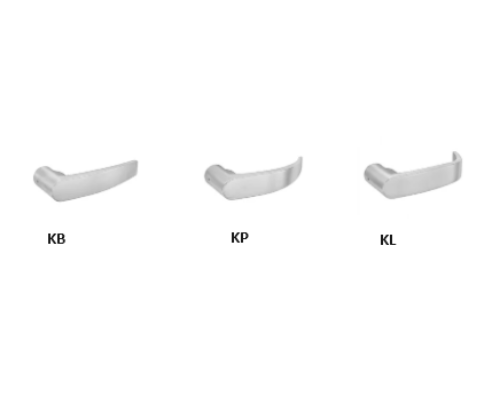

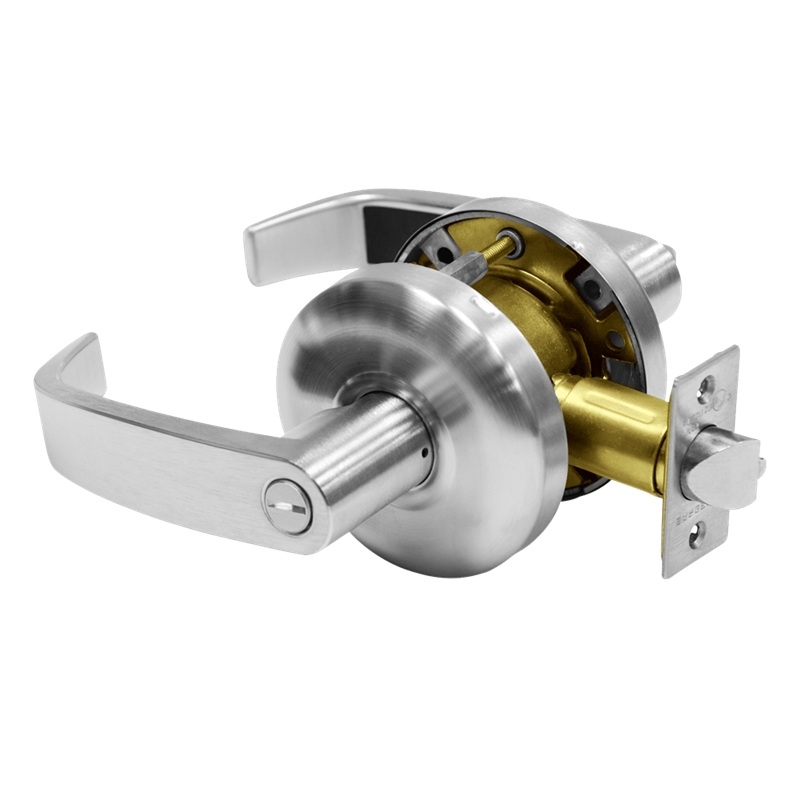

Lever: KL

Meets and greatly exceeds ANSI A156.2Series 4000, Grade 2

Universal, not handed

For Doors: 1-3/8" (35mm) to 1-3/4" (44mm) only

Backset: Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional

Latch: Brass, 1/2" bolt throw

Front: Wrought brass or stainless steel2-1/4" x 1-1/8" (57mmx 29mm)

Strike: Wrought brass or stainless steel 600 curved lip strike 2-3/4" or 808 curved lip ANSI strike 4-7/8".

Minimum Stile: 4-1/2" (114mm)

Model:Sargent 6500 Series, 65U65, 65U65KL, 2865U65KL, 65U65KL3, 65U65KL4, 65U65KL10B, 65U65KL26, 65U65KL26D, 2865U65KL3, 2865U65KL4, 2865U65KL10B, 2865U65KL26, 2865U65KL26D

Latch by either lever unless outside lever is locked by push button in inside lever Turning inside lever or closing door releases button Emergency button in outside lever unlocks, with use of a blade screw driver in outside lever and releases inside button

Cylindrical Housing -Steel, zinc dichromate finish

Certification Compliance

Meets ANSI A156.2 Series 4000  Grade 2UL listed to U.S.A. and Canadian safety standards. Listed for 3 Hour DoorsMeets UL 10C and UBC 7-2 (1997)All levers conform to ADA requirement for barrier-free accessibilityLevers conform to California Administrative Code Title 19 and 24All individual components of a total door opening are required to comply with each code
