Schlage HL6 Push / Pull Latch (Hospital Latch) - Mortise Lock

Schlage HL6 Push / Pull Latch (Hospital Latch) - Mortise Lock

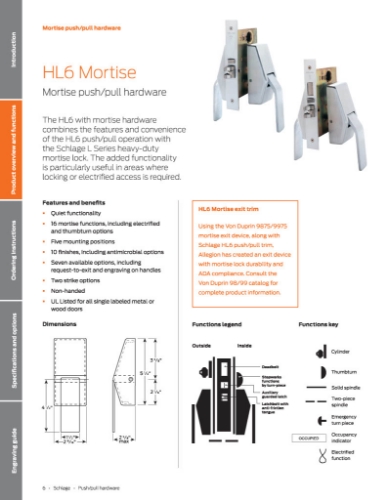

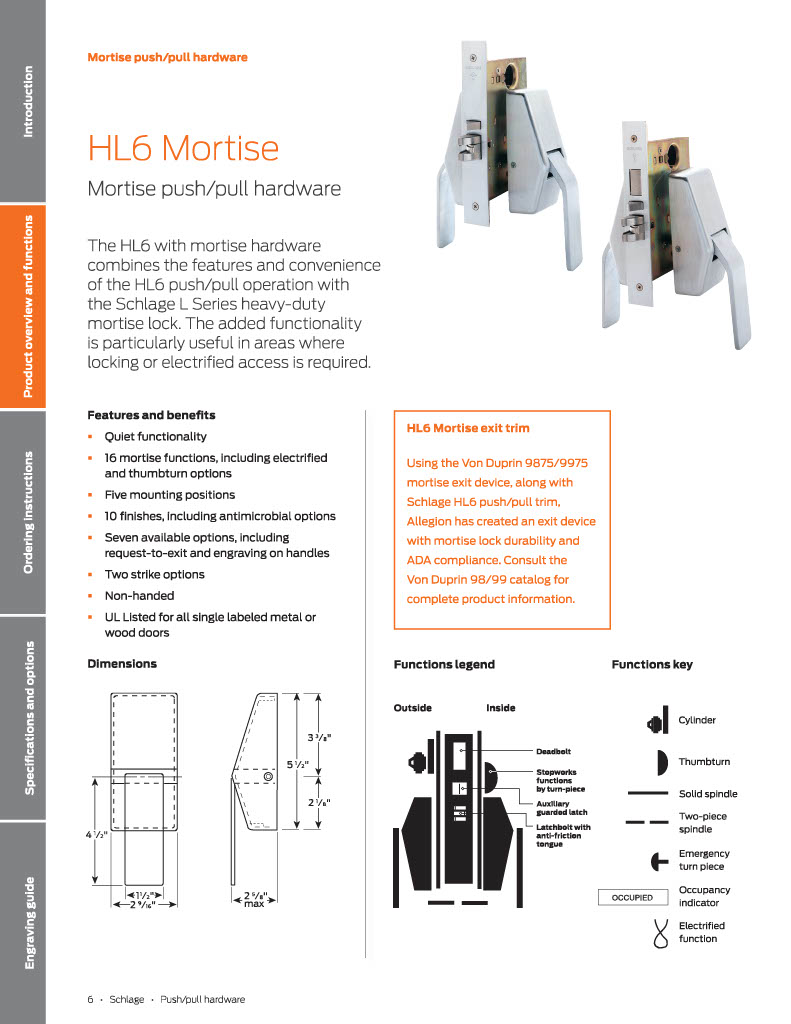

The HL6 Push/Pull Latch Mortise Lock comes with a Schlage L series heavy-duty mortise lock included.

Mortise lock combination models are furnished in 2-3/4" backset.

The sleek design has a short throw angle, allowing the door to be opened with an easy push or pull action, even when hands are not free.

Designed for commercial and institutional doors up to 1-3/4", including single fire doors.

Non-Handed

UL listed for all single labeled metal or wood doors

Mounts in any of five positions –Handles down –Handles up –One handle up, one handle down (either push or pull) –Handles point away from latch

Cylinder Operation: Where cylinders are required, Glynn Johnson will supply locks less cylinders. An 1-1/8" cylinder with a cloverleaf cam is required. Handle on cylinder side must be  ounted in down position, if vertical mounting is used.

Thumbturn Operation: Where thumbturn operations are required, the handle must be mounted in horizontal position. Standard thumbturn is provided.

Mortise Lock Functions Available

9010 – F01 – Passage Latch Latchbolt retracted by handle from either side at all times.

9050 – F04 – Office/Inner Entry Lock Latchbolt retracted by handle from either side unless outside is made inoperative by key outside or by turning inside thumbturn. When outside is locked, latchbolt is retracted by key outside or by handle inside. Outside handle remains locked until thumbturn is turned to the unlocked position or outside key is unlocked. Auxiliary latch deadlocks latchbolt when door is closed.

9070 – F05 – Classroom Lock Latchbolt retracted by handle from either side unless outside is locked by key. Unlocked from outside by key. Inside handle always free for immediate exit. Auxiliary latch deadlocks latchbolt when door is closed.

9080 – F07 – Storeroom Lock Latchbolt retracted by key outside or by handle inside. Outside handle always inoperative. Auxiliary latch deadlocks latchbolt when door is closed.

Finishes: US3, US4, US10, US10B, US26, US26D, US32D

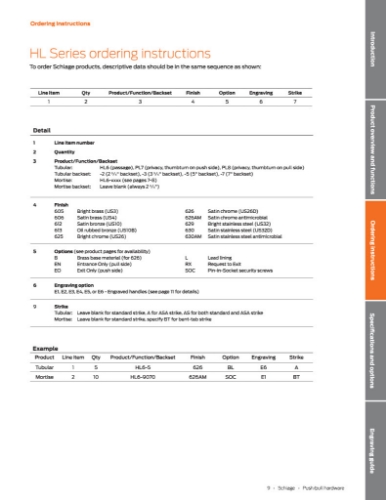

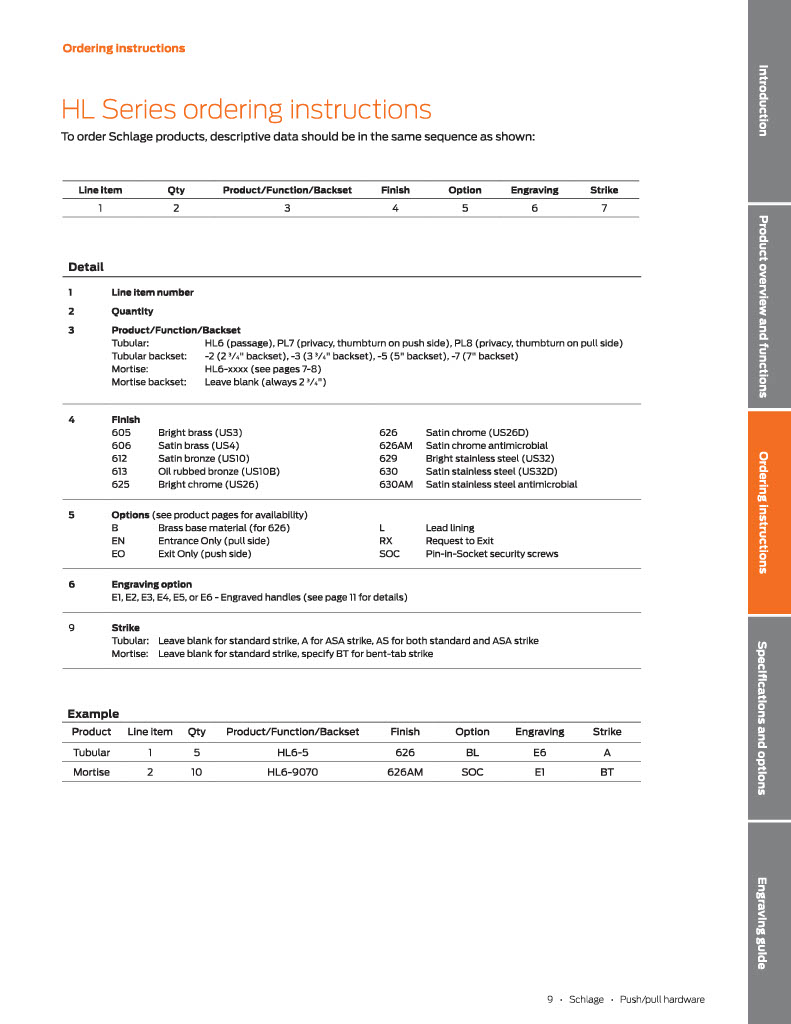

Model:HL6, HL69010, HL69050, HL69070, HL69080, HL69010US26D, HL69050US26D, HL69070US26D, HL69080US26D, HL69010US32D, HL69050US32D, HL69070US32D, HL69080US32D
