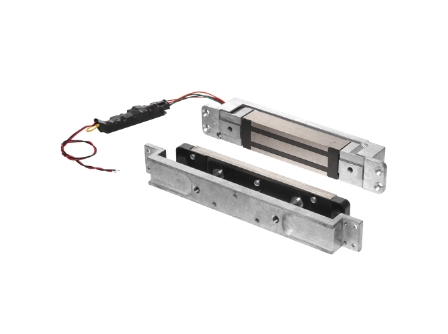

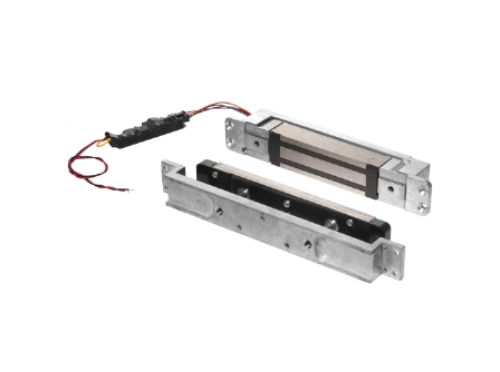

Schlage Locknetics GF3000 Electromagnetic Shear Lock - Mortise Series

GF3000 DSM MBS
1-Page2-GF3000-Mortise
GF3000 DSM MBS
1-Page2-GF3000-Mortise
naxt
prev

Product Details

Schlage Locknetics GF3000 Electromagnetic Shear Lock - Mortise Series Adjustable from top edge of door

The GF3000 Series locks are ideally suited for commercial grade quality hollow metal doors and frames, as well as herculite doors with top rail. Advances in design provide low operating temperatures, making these shear lock suitable for use in the growing demand for concealed locks in wood frames.

Features and benefits

3000 lb. hold force rating

Fully concealed shear lock mortise design

Automatic voltage selection (AVS) 12/24 VDC (filtered)

Built-in automatic relock switch (ARS)

Adjustable time delay on relock, 0-30 seconds from face of magnet

Low temperature operation

Microprocessor controlled

ANSI/BHMA 156.23, UL 10C, cUL, and CSFM certifications

Limited lifetime warranty on magnetic coil

Schlage Locknetics GF3000 Electromagnetic Shear Lock - Mortise Series

SKU: GF3000

In Stock

$1,173.48

About this item

The Schlage Locknetics GF3000 is a high-security electromagnetic shear lock in the mortise series — engineered for access-controlled openings in government buildings, data centers, financial institutions, and high-security commercial facilities. Unlike surface-mounted maglocks, this concealed shear lock provides an extremely clean, tamper-resistant installation while delivering exceptional holding force for maximum security on controlled access doors.

•Electromagnetic Shear Lock — Mortise-mounted concealed design provides maximum security with no exposed mounting hardware; significantly more tamper-resistant than surface-mounted electromagnetic locks
•High Holding Force — Designed to resist forceful entry attempts; shear force design means the lock resists lateral and pulling forces equally — ideal for high-security applications
•Fail Safe Operation — Power off = door unlocked for safe egress; integrates with fire alarm systems for automatic release in emergency conditions; meets life safety code requirements
•Mortise Series Installation — Mounts within the door and frame in a standard mortise preparation; works with standard hollow metal door and frame systems; clean architectural result
•Access Control Integration — Compatible with card readers, keypads, REX (request to exit) devices, and access control panels; 12V or 24V DC operation; ideal for single and double door access points

Schlage Locknetics GF3000 Electromagnetic Shear Lock - Mortise Series Adjustable from top edge of door

The GF3000 Series locks are ideally suited for commercial grade quality hollow metal doors and frames, as well as herculite doors with top rail. Advances in design provide low operating temperatures, making these shear lock suitable for use in the growing demand for concealed locks in wood frames.

Features and benefits

3000 lb. hold force rating

Fully concealed shear lock mortise design

Automatic voltage selection (AVS) 12/24 VDC (filtered)

Built-in automatic relock switch (ARS)

Adjustable time delay on relock, 0-30 seconds from face of magnet

Low temperature operation

Microprocessor controlled

ANSI/BHMA 156.23, UL 10C, cUL, and CSFM certifications

Limited lifetime warranty on magnetic coil

GF3000 DSM MBS
Schlage Locknetics GF3000 Electromagnetic Shear Lock - Mortise Series

Product code: GF3000

In Stock

$1,778.00

$1,173.48

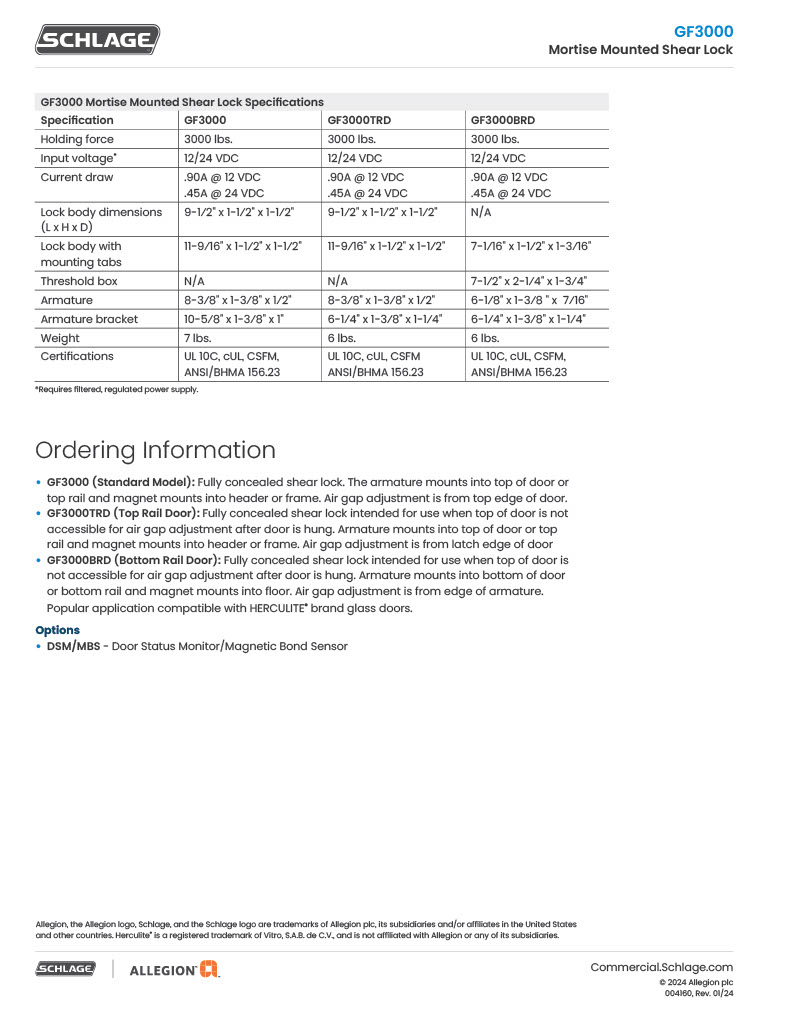

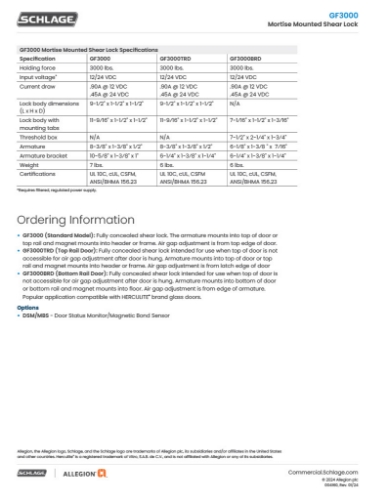

Specifications

Holding force: 3000 lbs

Input voltage: 12/24 VDC

Current draw: .90A @ 12VDC .45A @ 24VDC

Lock body Dimensions: (L x H x D) 9-1⁄2 " x 1-1⁄2 " x 1-1⁄2 "

Lock body with mounting tabs: 11-9⁄16 " x 1-1⁄2 " x 1-1⁄2 "

Armature: 8-3⁄8" x 1-3⁄8" x 1⁄2"

Armature bracket: 10-5⁄8" x 1-3⁄8" x 1"

Certifications: UL 10C, cUL, CSFM, ANSI/BHMA 156.23

GF3000 DSM MBS
Schlage Locknetics GF3000 Electromagnetic Shear Lock - Mortise Series

Product code: GF3000

In Stock

$1,778.00

$1,173.48
