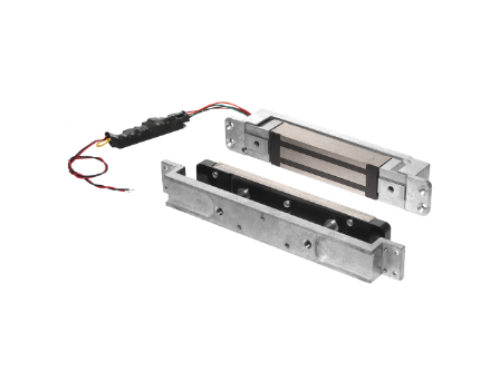

Schlage Locknetics GF3000TRD Electromagnetic Shear Lock - Top Rail Door

Schlage Locknetics GF3000TRD Electromagnetic Shear Lock - Top Rail Door

Mounting assembly which provides armature adjustment from latch edge of door Recommended with zero clearance condition between top of door and ceiling

The GF3000 Series locks are ideally suited for commercial grade quality hollow metal doors and frames, as well as herculite doors with top rail. Advances in design provide low operating temperatures, making these shear lock suitable for use in the growing demand for concealed locks in wood frames.

Features and benefits

3000 lb. hold force rating

Fully concealed shear lock mortise design

Automatic voltage selection (AVS) 12/24 VDC (filtered)

Built-in automatic relock switch (ARS)

Adjustable time delay on relock, 0-30 seconds from face of magnet

Low temperature operation

Microprocessor controlled

ANSI/BHMA 156.23, UL 10C, cUL, and CSFM certifications

Limited lifetime warranty on magnetic coil

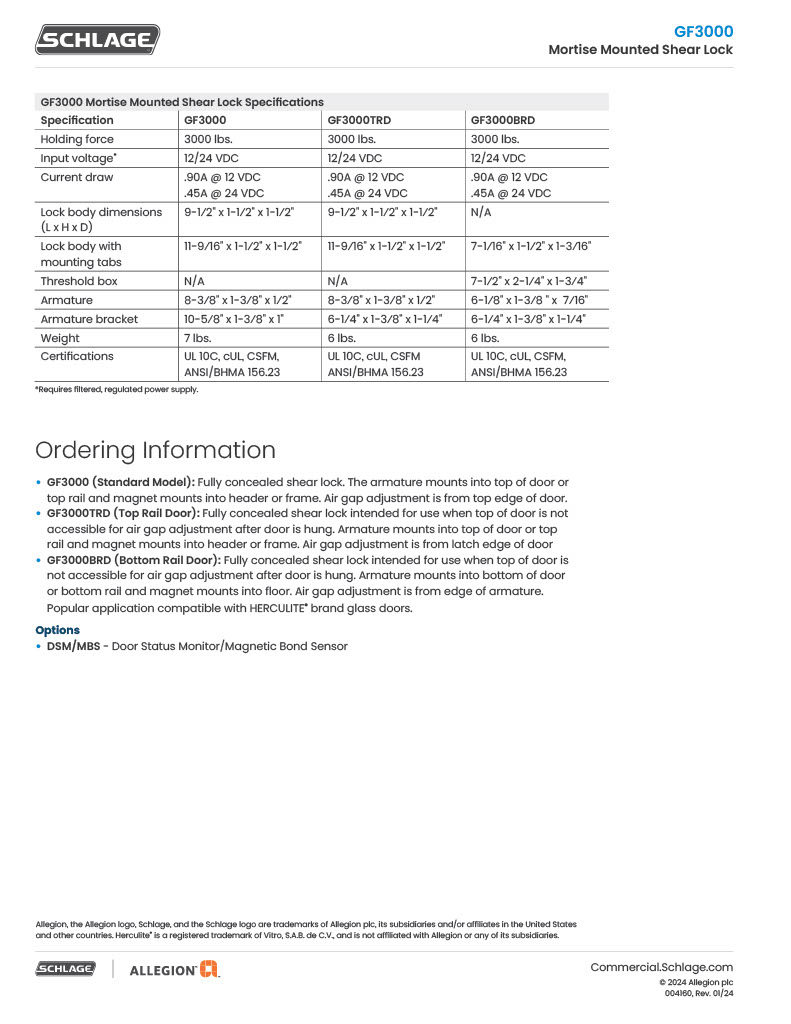

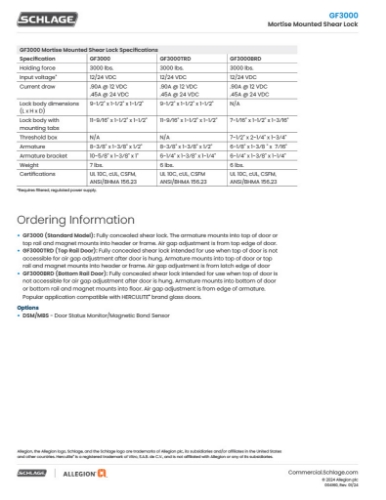

Specifications

Holding force: 3000 lbs

Input voltage: 12/24 VDC

Current draw: .90A @ 12VDC .45A @ 24VDC

Lock body Dimensions: (L x H x D) 9-1⁄2 " x 1-1⁄2 " x 1-1⁄2 "

Lock body with mounting tabs: 11-9⁄16 " x 1-1⁄2 " x 1-1⁄2 "

Armature: 8-3⁄8" x 1-3⁄8" x 1⁄2"

Armature bracket: 6-1⁄4" x 1-3⁄8" x 1"

Certifications: UL 10C, cUL, CSFM, ANSI/BHMA 156.23
