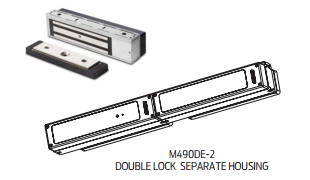

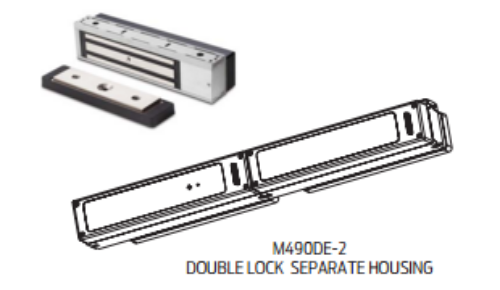

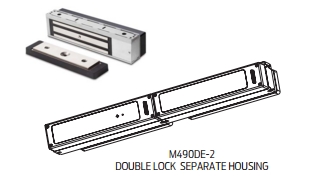

Schlage Locknetics M490DEP-2 Delayed Egress Electromagnetic Double Lock - 1500 Lb. Hold W/ MBS & DPS

Schlage M490DEP-2 Delayed egress*Electromagnetic Double Lock -  1500 Lb. Hold - Automatic Voltage Selection W/ MBS & DPS*

 The M490DE has a 15-second delayed egress timer with audible alarm which can be configured to trigger by an internal “plunger switch," or by external contacts, such as a request-to-exit push bar.

All M400 Series electromagnetic locks are symmetrical with field-selectable handing, allowing optimum placement of the magnet, no matter the application.

Designed to provide automatic voltage sensing for 12 and 24 volts along with polarity protection to make wiring less complex. M490 models are tested and certified to meet or exceed UL and BHMA 1500 lb hold force requirements.

Features and benefits

1500 lb. hold force rating for traffic control applications

15 second delay - activated by internal plunger switch or auxiliary input

Magnetic Bond Sensor (MBS) monitors the strength of the bond between the lock and armature so you know the door is secure § Door Position Switch (DPS) monitors whether the door is open or closed

Internal plunger switch activates delayed egress timer

LED Indication with audible alerts

Release input, reset input, fire alarm input

Automatic voltage selection (AVS)

Bayonet mount simplifies installation by eliminating the need to hold lock overhead while securing

Armature pivot feature compensates for slight copening imperfections

Aluminum housing in 628 satin finish

UL special locking arrangements, UL 10C, cUL, CSFM certifications

Meets NFPA 101 life safety code § BOCA compliant option available

Limited lifetime warranty on magnetic coil assembly

Specification

Holding force: meets or exceeds BHMA standard of 1500 lbs

Input voltage (auto selected): 12/24 VDC

Current draw (amps standard unit): 1.25A @ 12 VDC .76A @ 24 VDC

Automatic dual voltage: 12/24 VDC

Height: 3" Length: 25-1/16" Depth: 3-1⁄6"

Temperature: 0 Degree to 49 Degree C (32 Degree to 120 Degree F)

Wire gauge: 14-22 AWG

Optional accessories

Herculite door bracket kit (HDB490-2)
