Schlage Locknetics M490G Electromagnetic Gate Lock - 1500 Lb. Hold

Schlage Locknetics M490G Electromagnetic Gate Lock -  1500 Lb. Hold

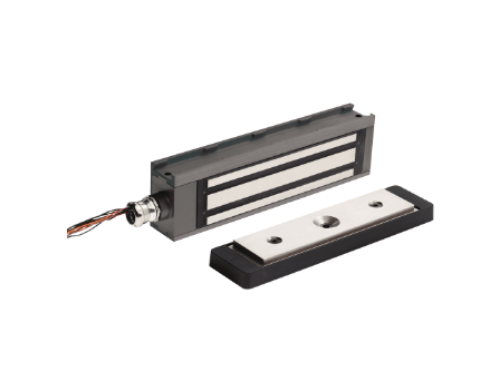

The Schlage M490G is a weather resistant electromagnetic gate lock with 1500 lbs of holding force designed for use on all types of sliding and swinging gates.

Note:Brackets for Sliding Gate and Swinging Gate applications included

A 1 ⁄2" compression connector is provided for installation of 1 ⁄2" EMT conduit, ensuring protection of hook-up wiring from weather and vandalism. Heavy-duty plating resists corrosion of mating surfaces, providing a low maintenance locking device. A modified top jamb mounting bracket allows a single M490G to be mounted in a variety of positions.

The M490G gate lock may be mounted to any gate frame or post. Special brackets may be required to adapt the lock to a particular frame or post. It is important that the lock is mounted so that the armature pulls straight back from the magnet face.

The M490G can be field configured for either 12 or 24 VDC operation. Magnetic Bond Sensor (MBS) and Gate Status Monitor (DPS) are standard.

Features and benefits

1500 lb. hold force rating for traffic control applications

Built-in voltage spike suppressor

Corrosion and weather resistant for exterior use

Universal mounting brackets for swinging or sliding gate applications

Two foot wire leads

Accommodates gate misalignment

Limited lifetime warranty on magnetic coil assembly

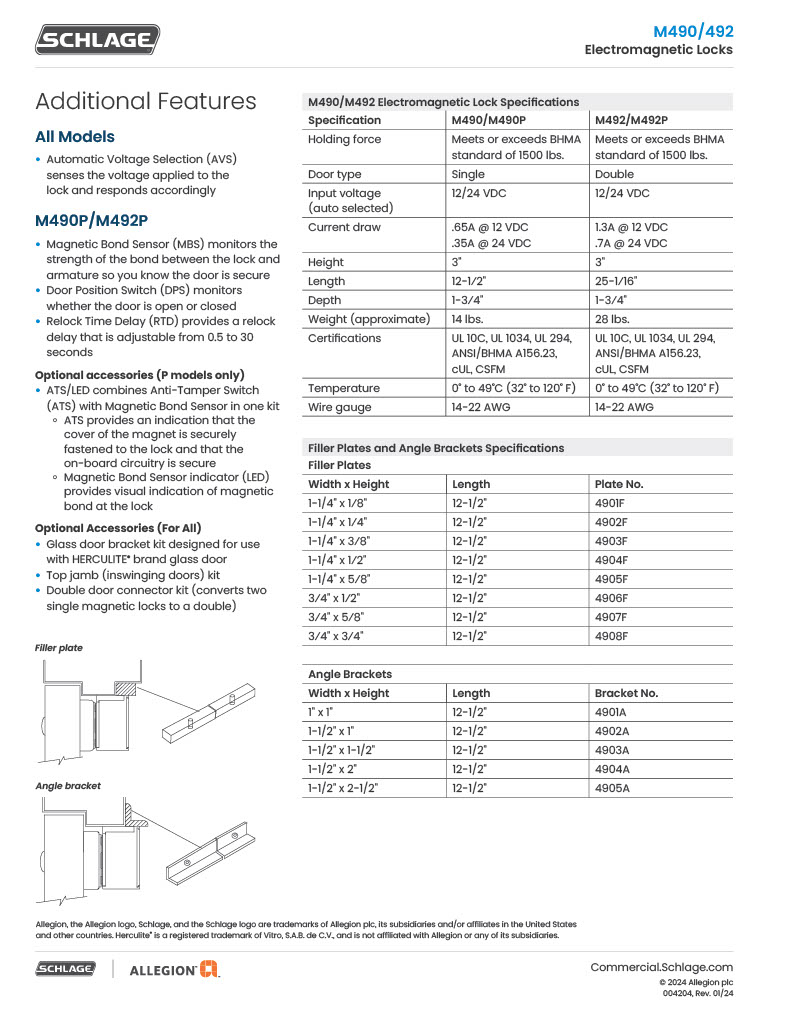

Specification

Holding force: meets or exceeds BHMA standard of 1500 lbs

Input voltage (auto selected): 12/24 VDC

Current draw (amps standard unit): .65A @ 12 VDC .35A @ 24 VDC

Automatic dual voltage: 12/24 VDC

Height: 3" Length: 11" Depth: 1-3⁄4"

Temperature: -31 Degree to 151 Degree F (-35 Degree to 66 Degree C)

Wire gauge: 14-22 AWG
