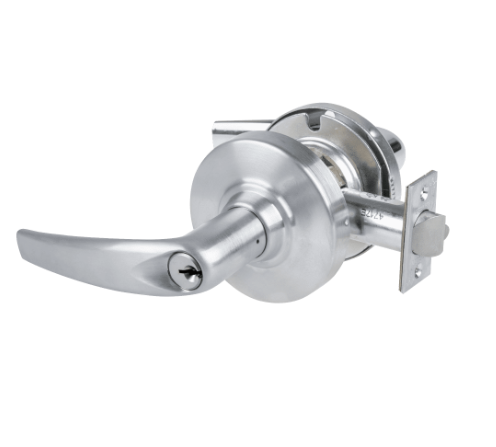

Schlage ND25X80 - Grade 1 Storeroom Exit Lock - XN12-005

Schlage ND25X80 - Heavy Duty Storeroom Exit Lever Lock -*XN12-005*

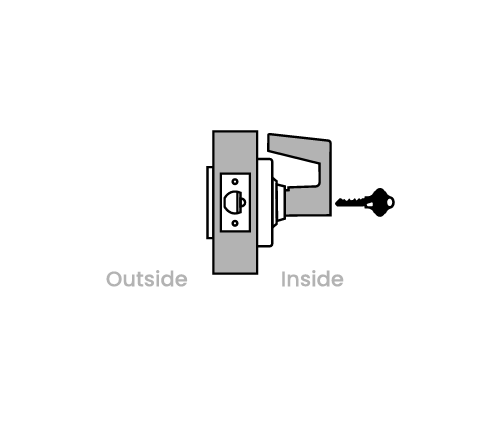

Blank plate outside. Key in fixed inside lever retracts latch.

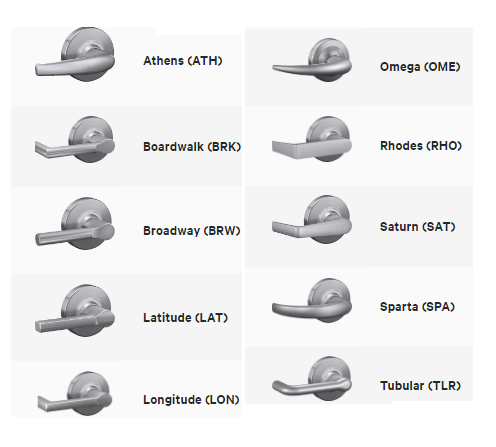

Lever Styles:Athens (ATH), Rhodes (RHO), Tubular (TLR), Sparta (SPA), Omega (OME).

Finishes:626 - Satin Chrome

Certifications:ANSI A156.2, 1996, Series 4000 Grade 1. UL Listed.   Keying:6-Pin Solid brass Cylinder, C or Everest C123 keyway with two nickel silver keys per lock. Other keying options available include master keying, grand master keying, construction keying, and interchangeable core.    The door range is 1 5/8" - 2 1/8" standard. The 1 3/8" door thickness requires 2 spacers in order to fit and must be specified or ordered separately(please call).

Backset:2 3/4" (70 mm) standard. 2 3/8" (60 mm) available. 3-3/4" Backset and 5" (127 mm) backset link also available(please call).

Latch Bolt:Steel, 1/2" (12 mm) throw. 3/4" (19 mm) throw anti-friction latch available for pairs of fire doors(please call).   Strikes:ANSI curved lip strike 1 1/4" x 4 7/8" (32 mm x 124 mm), 1 3/16" (30 mm) to center standard. Optional strikes, lip lengths and ANSI strike box available.

ND80PD- 6-Pin conventional (standard)

ND80LD- Conventional - Less Cylinder

ND80BD- Small format IC core - less core (accepts "Best" Interchangable cores, core not included)

ND80JD- Large format IC core - less core (accepts Schlage Interchangable cores, core not included)

Model:Schlage, ND25X80, ND25X80PDATH, ND25X80PDRHO ND25X80PDTLR, ND25X80PDSPA, ND25X80PDOME, ND25X80PDATH626, ND25X80PDRHO626, ND25X80PDTLR626, ND25X80PDSPA626, ND25X80PDOME626,

ND25X80BDATH, ND25X80BDRHO ND25X80BDTLR, ND25X80BDSPA, ND25X80BDOME, ND25X80BDATH626, ND25X80BDRHO626, ND25X80BDTLR626, ND25X80BDSPA626, ND25X80BDOME626,

ND25X80JDATH, ND25X80JDRHO ND25X80JDTLR, ND25X80JDSPA, ND25X80JDOME, ND25X80JDATH626, ND25X80JDRHO626, ND25X80JDTLR626, ND25X80JDSPA626, ND25X80JDOME626,

ND25X80LDATH, ND25X80LDRHO ND25X80LDTLR, ND25X80LDSPA, ND25X80LDOME, ND25X80LDATH626, ND25X80LDRHO626, ND25X80LDTLR626, ND25X80LDSPA626, ND25X80LDOME626

ATH, RHO, TLR, SPA, OME, 626.

Standard Features

Cylindrical lock housing. Cold rolled steel, corrosion treated for normal atmospheric conditions Key removable o utside knobs for easy cylinder replacement

Solid brass 6-pin cylinders

No exposed mounting screws

Exceeds 800,000 cycle ANSI Grade 1 requirements by nearly 4 times (3,000,000 cycles)

Warranty:Seven-year limited warranty for all functions including Vandlgard.   Exposed Trim:Levers are pressure cast zinc, plated to match finishes. Roses are solid brass plated to match finishes.

Adjustable brass or bronze latch faceplates and strikes, furnished in compatible lock trim finishes.
