About this item

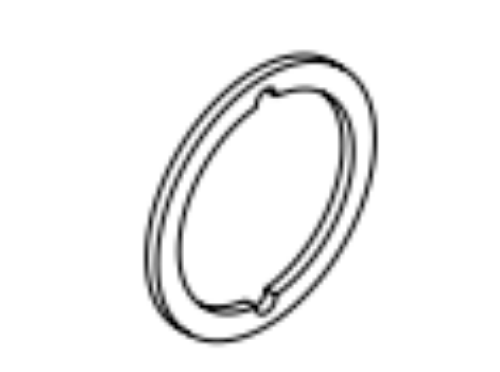

The Schlage XN12-012 is the OEM chassis spacer for installing Schlage ND Series cylindrical lever locks on 1-3/8" thick doors. If you’re dealing with a thinner door and your lock isn’t sitting flush, this spacer is exactly what you need. It’s designed specifically for ND Series installations where a standard fit just doesn’t work properly.Whether you’ve been looking for a door knob spacer, handle spacer, or lock spacer, this part solves that gap issue cleanly and reliably. For proper installation, you’ll need two spacers per door to ensure everything fits securely and functions as it should. They are sold individually, so order two per opening.
Why the Schlage ND Series Needs a Spacer on 1-3/8" Doors
The Schlage ND Series chassis is engineered for standard commercial door thickness of 1-3/4". On a 1-3/4" door, both sides of the chassis draw together correctly when the thru-bolts are tightened, the rose plates seat flush against the door face, and the lever returns operate smoothly with proper geometry.
On a 1-3/8" door, which is common on interior wood doors, older residential construction, and some light commercial applications, the standard chassis span is too wide for the door thickness. When you attempt to install an ND lock on a 1-3/8" door without spacers, the chassis cannot fully compress, the rose plates gap away from the door surface, the thru-bolts cannot develop adequate clamping force, and the lever return mechanism operates incorrectly. The lock will function poorly, if at all, and will feel loose on the door.
The XN12-012 spacer fills the 0.180" gap on each side by inserting between the spring cage and the door skin. With both spacers installed, the chassis compression geometry is restored, the rose plates seat flat, and the ND lock functions identically to a standard 1-3/4" installation.
Installation: Where the Spacers Go
Each spacer mounts between the spring cage and the door skin, one on the exterior side and one on the interior side. The chassis adjustment plate on the ND Series should still be set for the standard 1-3/4" door position during installation. The spacers handle the thickness compensation; the adjustment plate does not need to be rotated for 1-3/8" applications when spacers are used. Two spacers total per door, installed before the chassis is assembled through the door.
Included vs Separately Ordered
When a Schlage ND Series lock is factory-ordered specified for a 1-3/8" door thickness, the XN12-012 spacers are included with the lock shipment. When ordering a standard ND lock at 1-3/4" and then encountering a thinner door, or when retrofitting an existing ND installation onto a thinner door, the XN12-012 spacers need to be ordered separately. That's exactly what this listing covers. Any existing ND Series lock can be retrofitted with these spacers if the door thickness changes.
Finish, Compatibility, and What to Order
The XN12-012 is available in all standard Schlage ND Series architectural finishes including 605 Polished Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 618 Satin Nickel, and 626 Satin Chrome. Each spacer is finished to match the lock, so the install looks clean with no visible mismatched hardware. Specify the finish suffix when ordering to match your installed or planned ND lock finish.
The XN12-012 is compatible with the full Schlage ND Series lever line across all functions and lever styles: ND10, ND13, ND14, ND20, ND25, ND40, ND44, ND50, ND53, ND60, ND70, ND80, and all others in the ND Series. Non-handed. Works on both right-hand and left-hand swinging doors without modification.
