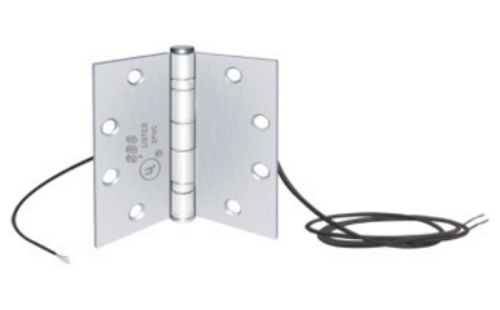

SDC PTH-4Q-DPS Four Conductor Power Transfer Hinge with Door Status Contact 1 Amp @ 12/24V per pair

SDC PTH-4Q-DPS Four Conductor Power Transfer Hinge *with Door Status Contact*1 Amp @ 12/24V per pair, (4x) 26 AWG- Dull Chrome

DPS: Concealed Door Position Switch SPDT, 250mA @ 30VDC

Features:

• UL 10B Listed for 3Hr fire rated doors

• 800,000 cycles. 8 Times UL Test Criteria

• Wire Replacement Warranty

Specification:

Finish: 626 Dull Chrome (standard)

Standard Size: 4-1/2" x 4-1/2"

Cable: 5’ (standard)

Application:

Installed in the center hinge position of the door, PTH Power Transfer Hinges provide the concealed wires required between the door and the frame, for the purpose of powering and monitoring electric door hardware.

• Electric Lock Power and Control

• Door and Lock Status Signaling

• Request-to-Exit Signaling

Compatible with:

• Electrified Mortise Locks

• Electrified Cylindrical Locks

• Delayed Egress Exit Devices

• Electric Trim

• Electric Strikes in Pair of Doors

In addition to compatibility with other manufacturers electric hardware products, the PTH power transfer hinge may be used with the following SDC products:

• Electrified Mortise Locksets 7800 Series

• Electrified Cylindrical Locksets Z7200 Series

• Delayed Egress Exit Devices S6000 Series

• Request-to-Exit Bars PSB560 Series, MSB550 Series
