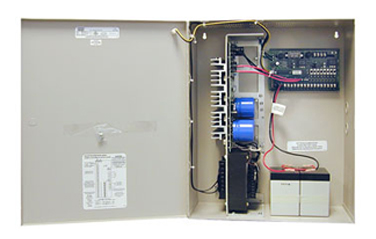

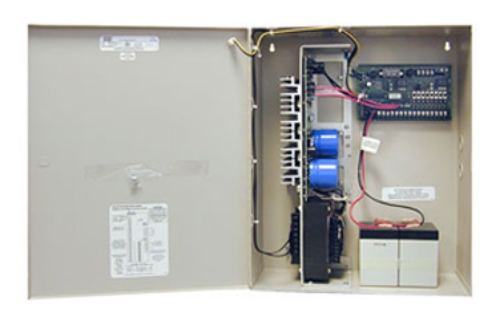

Securitron BPSM-24-4 - Power Supply 24VDC - 4A with Status Monitor

Securitron BPSM-24-4 - Power Supply 24VDC - 4A with Status Monitor

Features:

8 polyswitch (PTC) 2A output breakersSlide switches connect or disconnect load from powerLED indication (AC and DC) showing power supply statusEmergency low current fire release terminalsAC status output terminals, SPDT, 3 AmpBattery status output terminals, Form "C" SPDT, 3 AmpLine voltage and DC fusesSealed lead acid-gel battery charging capability (battery not included)During battery operation, if voltage drops below 10.4VDC for 12VDC (20.8VDC for 24VDC) the battery will automatically disconnect to prevent possible damage to the systemClean linear power for flawless operation with all sensitive active electronic componentsMagnaCare Lifetime Replacement No Fault WarrantyUL Listed

Input Voltage:120VAC

Voltage and Capacity:24VDC - 4A

Operating Temperature:+32 to +105F [0 to +40C]

Monitoring:110VAC Status, Battery Status

Shipping Weight:24 lbs. [10.89 kg]

Model:BPSM244

ANSI/UL 294 ListedCSA - C22.2 No.205 Listed
