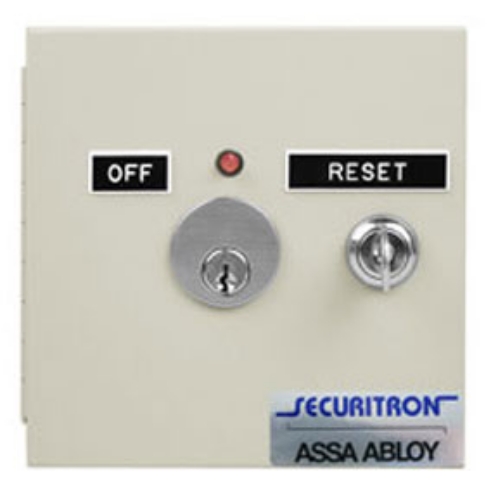

Securitron FAR-24 Fire Alert Reset Control - 24VDC

Product Details

Securitron FAR-24 Fire Alert Reset Control - 24VDC

Features: ? Fire Alarm releases all locks and cuts power to all devices connected to power supply until FAR is manually reset ? Allows key-switch manual release of all locks/devices manually during tests and other emergency (non-fire) evacuations ? Simple bi-color LED status indicator on front cover - Green = On, Red = Off ? Easy to mount metal enclosure equipped with security cam lock ? 5 Amp rated SPDT plunger switches ? UL Listed

Dimensions:5-1/4"Lx5-1/2"Hx2-1/2"D

Input Voltage:24VDC

Operating Temperature:-4 to +122F [-20 to +50C]

Environment:Indoor use only

Shipping Weight:3 lbs.

Model:FAR24

Securitron FAR-24 Fire Alert Reset Control - 24VDC

SKU: FAR24

In Stock

$362.88

$504.00

You saved $141.12

About this item

The FAR module provides functionality (beyond a standard fire trigger relay) when local code requires manual reset after a fire alarm.This self-contained unit interfaces to a fire alarm unit to cut power to devices downstream of the power supply in an alarm situations.The power stays off until the FAR's keyswitch is manually reset.This feature is required in certain jurisdictions to prevent the access control system from automatically (when the fire alarm is reset) relocking doors during an evacuation.

Securitron FAR-24 Fire Alert Reset Control - 24VDC

Features: ? Fire Alarm releases all locks and cuts power to all devices connected to power supply until FAR is manually reset ? Allows key-switch manual release of all locks/devices manually during tests and other emergency (non-fire) evacuations ? Simple bi-color LED status indicator on front cover - Green = On, Red = Off ? Easy to mount metal enclosure equipped with security cam lock ? 5 Amp rated SPDT plunger switches ? UL Listed

Dimensions:5-1/4"Lx5-1/2"Hx2-1/2"D

Input Voltage:24VDC

Operating Temperature:-4 to +122F [-20 to +50C]

Environment:Indoor use only

Shipping Weight:3 lbs.

Model:FAR24

FAR
Securitron FAR-24 Fire Alert Reset Control - 24VDC

Product code: FAR24

In Stock

$504.00

$362.88

FAR
Securitron FAR-24 Fire Alert Reset Control - 24VDC

Product code: FAR24

In Stock

$504.00

$362.88
