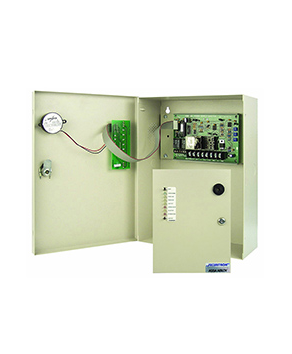

Securitron PSM - Power Supply Monitor 12VDC/24VDC

PSM-12
1-Page1-AADSS1058430
1-Page2-AADSS1058430
PSM-12
1-Page1-AADSS1058430
1-Page2-AADSS1058430
naxt
prev

Product Details

Securitron PSM - Power Supply Monitor 12VDC/24VDC

Features:

Available for both 12 and 24VDC systemsMonitors the power supply system's output voltageAudio and visual alarmLoad tests the battery pack every 8 hoursMonitors/tests DC output of power supply loadMagnaCare Lifetime Replacement No Fault Warranty

Recommended Power Supplies: PSM-12: 3 Amp or greater at 12VDC PSM-24: 2 Amp or greater at 24VDC

Operating Temperature:+32 to +105F [0 to +40C]

Voltage:VDC power from corresponding power supply

Current Draw:250mA at 12VDC; 200mA at 24VDC

Shipping Weight:5 lbs. [2.27kg]

Model:PSM, PSM12, PSM24

Securitron PSM - Power Supply Monitor 12VDC/24VDC

SKU: PSM

In Stock
icon Chat
Picture for manufacturer Securitron

Voltage *

$706.23

$1,121.00

You saved $414.77

About this item

The PSM Series is for use with larger DC power supplies. They operate with all BPS supplies of 2 Amps or more and act as a power supply alarm system, monitoring all key functions and reporting any trouble. The output voltage is read to ensure it remains within tight limits for proper float charging of the battery pack.

Resources

Securitron PSM - Power Supply Monitor 12VDC/24VDC

Features:

Available for both 12 and 24VDC systemsMonitors the power supply system's output voltageAudio and visual alarmLoad tests the battery pack every 8 hoursMonitors/tests DC output of power supply loadMagnaCare Lifetime Replacement No Fault Warranty

Recommended Power Supplies: PSM-12: 3 Amp or greater at 12VDC PSM-24: 2 Amp or greater at 24VDC

Operating Temperature:+32 to +105F [0 to +40C]

Voltage:VDC power from corresponding power supply

Current Draw:250mA at 12VDC; 200mA at 24VDC

Shipping Weight:5 lbs. [2.27kg]

Model:PSM, PSM12, PSM24

PSM-12
Securitron PSM - Power Supply Monitor 12VDC/24VDC

Product code: PSM

In Stock

$1,121.00

$706.23

PSM-12
Securitron PSM - Power Supply Monitor 12VDC/24VDC

Product code: PSM

In Stock

$1,121.00

$706.23
