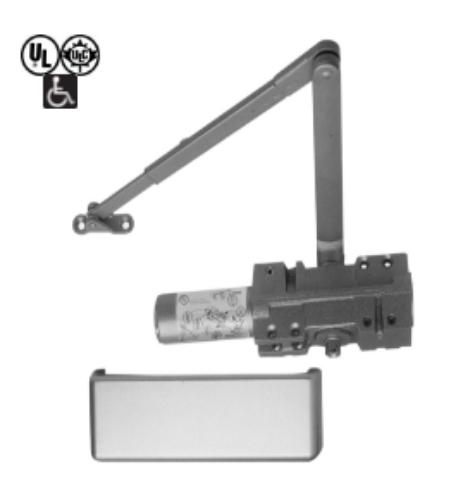

S.Parker 441BC Heavy Duty Door Closer

About this item

S.Parker 441BC Heavy Duty Door Closer

Features:

• Cast iron body

• ANSI A156.4, Grade1 and ANSI A117.1 compliant

• UL listed

• ADA (Handicap) multi-sized closers with adjustable Spring Power for a Range of sizes, adjustable after installation

• Manufactured under ISO 9002 guidelines

Functions:

• Tri-Style installation: installs regular, parallel arm or top jamb.

• Non-handed: installs on either side of door.

• Adjustable sweep and latch speeds: separate valves to adjust each speed.

• Adjustable backcheck: standard.

• Installs 3 ways: regular arm, parallel arm and top jamb.

• Cover: high impact, UL listed molded plastic full cover.

• Power of closer can be adjusted to conform to the requirements of the American with Disabilities Act (ADA) and as outlined in ANSI A 117.1, Specifications for Making Buildings and Facilities Accessible to, and Usable, by the Physically Disabled.

• Door Opening: regular arm 120°, parallel arm 180° and top jamb 120°.

Crossover Footprint:

The following manufacturers’ product fit the
same physical footprint as our 441 BC Series
Door Closer. Same hole positions as:
• LCN 4041
• Norton 7500/7700
• Dorma 8916
• Dor-O-Matic SC70
• SARGENT 351
• Yale P400/4400
• RYOBI D3530
