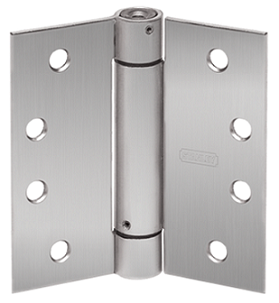

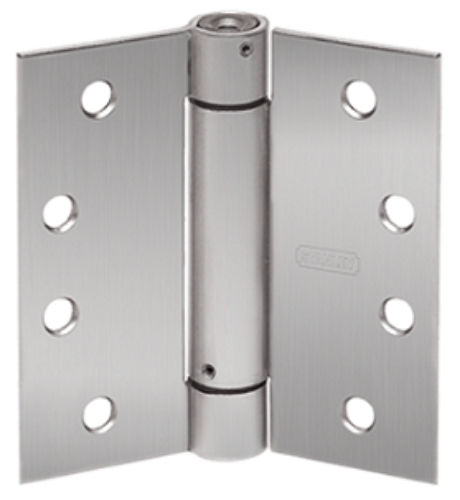

Stanley 2060R 4-1/2X4 Standard Weight Spring Hinge

Stanley 2060R 4-1/2"X 4" Standard Weight Spring Hinge

For labeled fire doors, stairwell doors, motel and hotel guest room doors, apartment unit entrance doors.

Meets NFPA80 standard for 3 hour fire doors (NFPA-80 stipulates minimum of 2 spring hinges shall be used on labeled doors)

4 1/2" (114mm) size - UL listed for door up to 4' x 8' (1219 x 2438mm)

Size Open:4 1/2" x 4" (114 x 102mm)

Gauge of Metal:.134" (3.4mm)

Flat Head Screws Per Piece:Machine: 8-12-24 x 1/2 Wood: 8-12 x 1 1/4

Number of Spring Hinges Required:

For doors up to 80 lbs. (36Kg) not exceeding 3' 0" x 7' 6" x 1 3/4" (914 x 2286 x 44mm): Use 1 each of**2060R, with 2 each anti-friction bearing hinges of same size

For doors up to 130 lbs. (59Kg) not exceeding 3' 0" x 7' 6" x 1 3/4" (914 x 2286 x 44mm): Use 2 each of**2060R, with 1 each anti-friction bearing hinges of same size

For doors up to 180 lbs. (81.6Kg) not exceeding 3' 0" x 7' 6" x 1 3/4" (914 x 2286 x 44mm): Use 3 each of**2060R

For doors up to 180 lbs. (81.6Kg) not exceeding 4' 0" x 8' 0" x 1 3/4" (1219 x 2438 x 44mm): Use 4 each of**2060R

When drafts or wind conditions exist, or carpets, door bottoms, bowed or twisted doors or frames, pivot point misalignment or improper latch adjustment affect either the free swinging or latching of the door, additional spring hinges may be required.

Limited lifetime warranty for the life of the building

Internal ratchet mechanism eliminates loose adjustment pins

Closing power is adjustable up or down

Excellent alternative to more expensive overhead mounted closers

Model:StanleySpring Hinge,2060R4-1/2X4US26D,  2060R4-1/2X4USP, 2060R4-1/2X4US3,
