Stanley CB179 5X4-1/2 Five Knuckle Standard Weight Concealed Bearing Full Mortise Hinge

Stanley CB179 5X4-1/2 Five Knuckle Standard Weight Concealed Bearing Full Mortise Hinge

Product Details

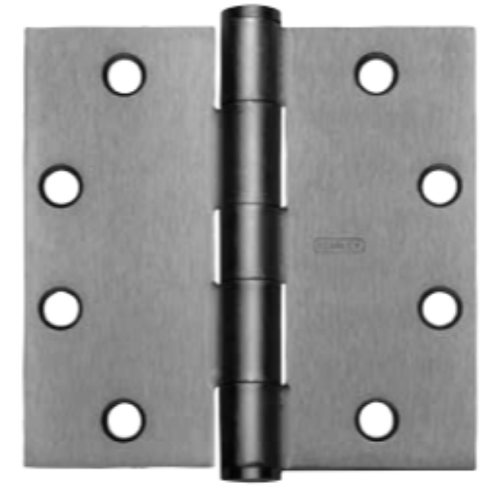

Stanley CB179 5" X 4-1/2" Five Knuckle Standard Weight Concealed Bearing Full Mortise Hinge

For medium weight doors of average frequency

All hinges have template screw hole location for use on either wood or hollow metal doors and frames

(ANSI A8112) Steel - polished and plated or phosphated and prime coated for painting

Size Open:5" x 4 1/2" (127 x 114mm) Hinge Type:Full Mortise

Gauge of Metal:146 (3.7mm)

Flat Head Screws Per Piece:Wood Screws: 4 -12 x 1 1/4 Machine Screws: 8 - 12-24 x 1/2

Concealed bearing is maintenance free - no oil, no grease

Pins in non-ferrous hinges are stainless steel

Hole in bottom tip for easy pin removal

Reversible flush tips and pins

Limited lifetime warranty

Model: StanleyCB179 5" X 4-1/2" US26D

Stanley CB179 5X4-1/2 Five Knuckle Standard Weight Concealed Bearing Full Mortise Hinge

Name: Stanley CB179 5X4-1/2 Five Knuckle Standard Weight Concealed Bearing Full Mortise Hinge
SKU: CB179 5" X 4-1/2"
Price: 24.84 USD
Availability: InStock

SKU: CB179 5" X 4-1/2"

In Stock

Chat

$24.84

About this item

CB Series hinges are concealed bearing hinges that have vertical and lateral wear performance that exceeds ANSI/BHMA Grade 1 standards. STANLEY patented a revolutionary bear construction called LifeSpan to eliminate metal-to-metal contact between knuckles. As the stainless steel washer extends into the sleeve, it eliminates metal-to-metal contact between the pin and barrel, resulting in a smooth, quiet operation superior to that of a ball bearing assembly. In addition, the concealed bearings allow for fewer horizontal barrel lines that provide a more seamless appearance. The CB Series is ideal for medium to heavy weight wood and metal doors in high frequency usage applications.
