Door Hinges
Commercial Hinges
Five Knuckle Plain Bearing
Stanley 5 Knuckle Plain Bearing
Stanley CB191NRP 4-1/2X4-1/2 Five Knuckle Standard Weight Concealed Bearing Full Mortise Hinge, Non-Removable Pin

Stanley CB191NRP 4-1/2X4-1/2 Five Knuckle Standard Weight Concealed Bearing Full Mortise Hinge, Non-Removable Pin

Product Details

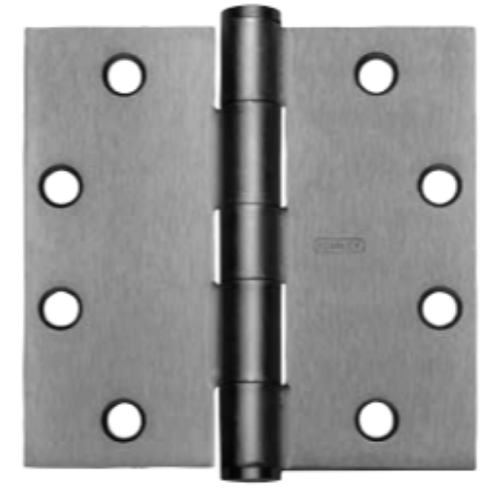

Stanley CB191NRP 4-1/2" X 4-1/2" Five Knuckle Standard Weight Concealed Bearing Full Mortise Hinge, Non-Removable Pin

For medium weight doors of average frequency

All hinges have template screw hole location for use on either wood or hollow metal doors and frames

(ANSI A2112) Brass or bronze - polished and plated or painted (ANSI A5112) Stainless steel - highly polished (ANSI A5112) Stainless steel - satin finish

Size Open:4 1/2 x 4 1/2 (114 x 114mm) Hinge Type:Full Mortise

Gauge of Metal:.134 (3.4mm)

Flat Head Screws Per Piece:Wood Screws: 4 -12 x 1 1/4 Machine Screws: 8 - 12-24 x 1/2

Concealed bearing is maintenance free - no oil, no grease

Pins in non-ferrous hinges are stainless steel

Hole in bottom tip for easy pin removal

Reversible flush tips and pins

Limited lifetime warranty

Model: StanleyCB191 4-1/2" X 4-1/2" US26D

Stanley CB191NRP 4-1/2X4-1/2 Five Knuckle Standard Weight Concealed Bearing Full Mortise Hinge, Non-Removable Pin

Name: Stanley CB191NRP 4-1/2X4-1/2 Five Knuckle Standard Weight Concealed Bearing Full Mortise Hinge, Non-Removable Pin
SKU: CB179NRP 4-1/2" X 4-1/2"
Price: 47.81 USD
Availability: InStock

SKU: CB179NRP 4-1/2" X 4-1/2"

In Stock

Chat

$47.81

About this item

CB Series hinges are concealed bearing hinges that have vertical and lateral wear performance that exceeds ANSI/BHMA Grade 1 standards. STANLEY patented a revolutionary bear construction called LifeSpan to eliminate metal-to-metal contact between knuckles. As the stainless steel washer extends into the sleeve, it eliminates metal-to-metal contact between the pin and barrel, resulting in a smooth, quiet operation superior to that of a ball bearing assembly. In addition, the concealed bearings allow for fewer horizontal barrel lines that provide a more seamless appearance. The CB Series is ideal for medium to heavy weight wood and metal doors in high frequency usage applications.

Resources

General_Hinge_STANLEY.pdf
