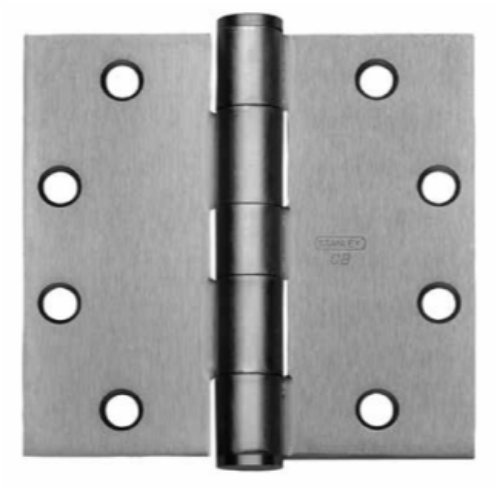

Stanley CB199 4-1/2X4 Five Knuckle Heavy Weight Concealed Bearing Full Mortise Hinge

Stanley CB199 4-1/2" X 4" Five Knuckle Heavy Weight Concealed Bearing Full Mortise Hinge

For use on heavy weight doors or doors where high frequency is expected such as entrance doors to office buildings, stores, public buildings and corridor entrance doors to offices.

All hinges have template screw hole location for use on either wood or hollow metal doors and frames

(ANSI A2111) Brass or bronze - polished and plated or painted (ANSI A5111) Stainless steel - highly polished (ANSI A5111) Stainless steel - satin finish

Size Open:4-1/2" x 4"    Hinge Type:Full Mortise

Gauge of Metal:180 (4.6mm)

Flat Head Screws Per Piece:Wood Screws: 8 -12 x 1 1/4 Machine Screws: 8 - 12-24 x 1/2

Concealed bearing is maintenance free - no oil, no grease

Pins in non-ferrous hinges are stainless steel

Hole in bottom tip for easy pin removal

Reversible flush tips and pin

Model: StanleyCB199NRP 4-1/2" X 4-1/2" US26D
