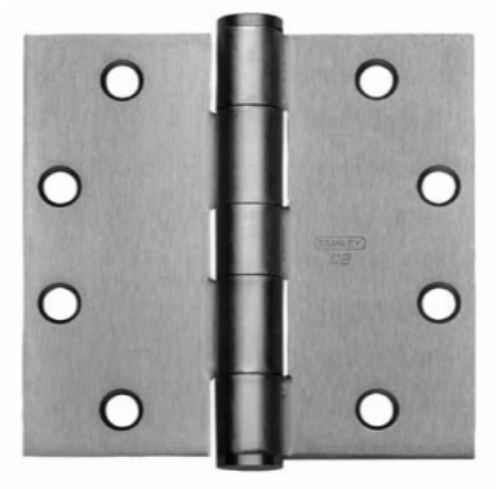

Stanley CB199NRP 4-1/2X4-1/2 Five Knuckle Heavy Weight Concealed Bearing Full Mortise Hinge

Stanley CB199NRP 4-1/2X4-1/2 Five Knuckle Heavy Weight Concealed Bearing Full Mortise Hinge

Product Details

Stanley CB199NRP 4-1/2" X 4-1/2" Five Knuckle Heavy Weight Concealed Bearing Full Mortise Hinge

For use on heavy weight doors or doors where high frequency is expected such as entrance doors to office buildings, stores, public buildings and corridor entrance doors to offices.

All hinges have template screw hole location for use on either wood or hollow metal doors and frames

(ANSI A2111) Brass or bronze - polished and plated or painted (ANSI A5111) Stainless steel - highly polished (ANSI A5111) Stainless steel - satin finish

N.R.P. (Non-Removable Pin)

Size Open:4-1/2" x 4 1/2" (114 x 114mm) Hinge Type:Full Mortise

Gauge of Metal:180 (4.6mm)

Flat Head Screws Per Piece:Wood Screws: 8 -12 x 1 1/4 Machine Screws: 8 - 12-24 x 1/2

Concealed bearing is maintenance free - no oil, no grease

Pins in non-ferrous hinges are stainless steel

Hole in bottom tip for easy pin removal

Reversible flush tips and pin

Model: StanleyCB199NRP 4-1/2" X 4-1/2" US26D

Stanley CB199NRP 4-1/2X4-1/2 Five Knuckle Heavy Weight Concealed Bearing Full Mortise Hinge

Name: Stanley CB199NRP 4-1/2X4-1/2 Five Knuckle Heavy Weight Concealed Bearing Full Mortise Hinge
SKU: CB199NRP 4-1/2 X 4-1/2
Price: 62.85 USD
Availability: InStock

SKU: CB199NRP 4-1/2 X 4-1/2

In Stock

Chat

$62.85

$88.52

You saved $25.67

About this item

CB Series hinges are concealed bearing hinges that have vertical and lateral wear performance that exceeds ANSI/BHMA Grade 1 standards. STANLEY patented a revolutionary bear construction called LifeSpan to eliminate metal-to-metal contact between knuckles. As the stainless steel washer extends into the sleeve, it eliminates metal-to-metal contact between the pin and barrel, resulting in a smooth, quiet operation superior to that of a ball bearing assembly. In addition, the concealed bearings allow for fewer horizontal barrel lines that provide a more seamless appearance. The CB Series is ideal for medium to heavy weight wood and metal doors in high frequency usage applications.
