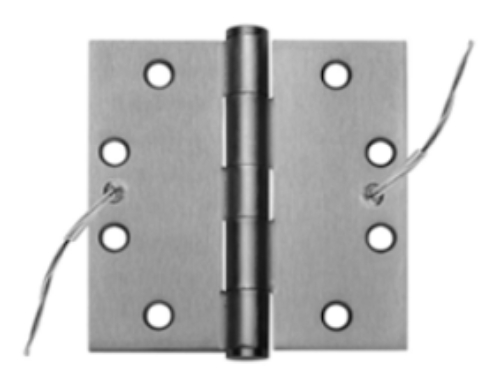

Stanley CECB199-18 4-1/2" X 4-1/2" 32D Heavy Weight 8 Wire Electric Hinge Satin Stainless

Stanley CECB199-18 4-1/2" X 4-1/2" 32D Heavy Weight 8 Wire Electric Hinge Satin Stainless

CB199- (ANSI A2111) Brass or bronze - polished and plated or painted

CB199 (32D)- (ANSI A5111) Stainless steel - satin finish

For use on heavy weight doors or doors where high frequency is expected such as entrance doors to office buildings, stores, public buildings and corridor entrance doors to offices. All hinges have template screw hole location for use on either wood or hollow metal doors and frames Concealed LifeStan bearing is maintenance free no oil, no grease Pins in non-ferrous hinges are stainless steel Hole in bottom tip for easy pin removal Reversible flush tips and pins LifeSpan limited lifetime warranty

Size Open:4-1/2X 4-1/2" (114mm X 114mm)

Gauge of Metal:.134" (3.4mm)

Flat Head Screws:Machine; 8-12-24 x 1/Wood; 8- 12 x 1-1/4

CEConcealed electric hinges conduct current regardless of door position to electric locks, exit devices, or hold open devices where tamper-proof hinge is required. Also to transmit signals from code readers on doors to remote computers for access control No electrical parts are exposed when hinge is installed Permanent fast pin Hinges should be installed in the center hinge location Not available as swing clear or raised barrel Hinges may be equipped with both concealed wires and concealed switches.When both are desired on the same hinge use prefix "CECS" Packed one per box with all machine screws and installlation instructions When ordering specify class number, size, finish and number of wires, Suffix -54 for 4 wires, 56 for 6 wires -66 for 6 wires (2@24AWG, 4@28AWG), 58 for 8 wires or 10 for 10 wires -18 for 8 wires (2@18AWG, 6@28AWG) Should be used along with a junction box

Wire Gage:2@24AWG 4@28AWG

Model:Stanley CECB19918
