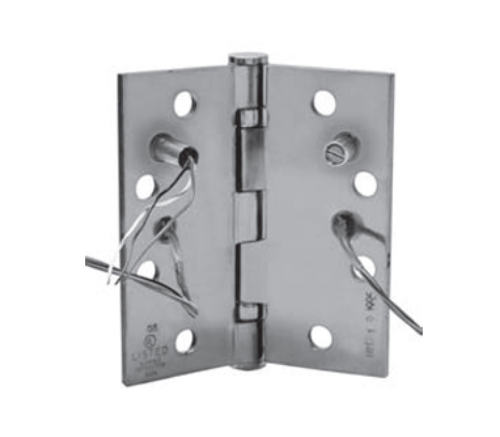

Stanley CECSFBB179-58 4-1/2" X 4-1/2" 26D 8 Wire Electric Hinge W/ Switch Satin Chrome

Stanley CECSFBB179-58 4-1/2" X 4-1/2" 26D 8 Wire Electric Hinge W/ Switch Satin Chrome

FBB179(ANSI A8112) Steel polished and plated or phosphated and prime coated for painting

For medium weight doors of average frequency All hinges have template screw hole location for use on either wood or hollow metal doors and frames Equipped with two Stanley permanently lubricated non-detachable ball bearings Pins in non-ferrous hinges are stainless steel Hole in bottom tip for easy pin removal Reversible flush tips and pins

Size Open:4-1/2" X 4-1/2" (114mm X 114mm)

Gauge of Metal:.134" (3.4mm)

Flat Head Screws:Machine; 8-12-24 x 1/2, Wood; 8- 12 x 1-1/4

CEConcealed electric hinges conduct current regardless of door position to electric locks, exit devices, or hold open devices where tamper-proof hinge is required. Also to transmit signals from code readers on doors to remote computers for access control CS(Concealed Switch) Allows opening monitoring, switch operates when door is either open or closed.Used to activate alarms, monitoring devices, or other security equipment when a tamper-proof hinge is required Single pole double throw switch No electrical parts are exposed when hinge is installed Permanent fast pin Hinges should be installed in the center hinge location Not available as swing clear or raised barrel Hinges may be equipped with both concealed wires and concealed switches. When both are desired on the same hinge use prefix "CECS" Packed one per box with all machine screws and installlation instructions When ordering specify class number, size, finish and number of wires, Suffix -54 for 4 wires, 56 for 6 wires -66 for 6 wires (2@24AWG, 4@28AWG), 58 for 8 wires or 10 for 10 wires -18 for 8 wires (2@18AWG, 6@28AWG) Should be used along with a junction box

Wire Gage:28AWG

Model:Stanley CECSFBB17958
