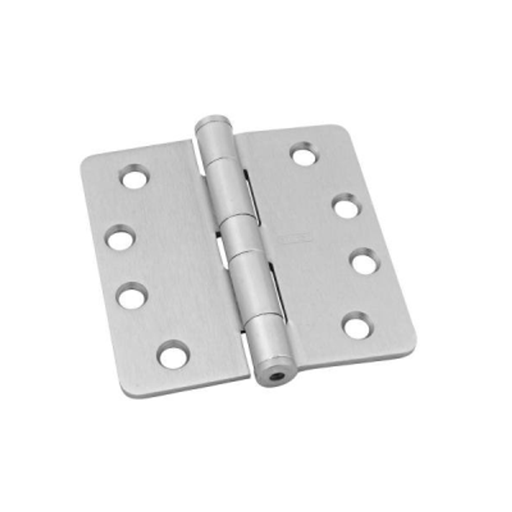

Stanley CERDFBB179-54 4-1/2" X 4" 26D Standard Weight 4 Wire Electric Hinge, Radius Corner, Satin Chrome

About this item

Stanley CERDFBB179-54 4-1/2" X 4" 26D Standard Weight 4 Wire Electric Hinge, Radius Corner, Satin Chrome

FBB179 (ANSI A8112) Steel polished and plated or phosphated and prime coated for painting

For medium weight doors of average frequency
All hinges have template screw hole location for use on either wood or hollow metal doors and frames
Equipped with two Stanley permanently lubricated non-detachable ball bearings
Pins in non-ferrous hinges are stainless steel
Hole in bottom tip for easy pin removal
Reversible flush tips and pins

Size Open: 4-1/2" X 4" (114mm X 102mm)

Gauge of Metal: .134" (3.4mm)

Flat Head Screws: Machine; 8-12-24 x 1/2, Wood; 8- 12 x 1-1/4

Concealed electric hinges conduct current regardless of door position to electric locks, exit devices, or hold open devices where tamper-proof hinge is required. Also to transmit signals from code readers on doors to remote computers for access control
No electrical parts are exposed when hinge is installed
Permanent fast pin
Hinges should be installed in the center hinge location
Not available as swing clear or raised barrel
Hinges may be equipped with both concealed wires and concealed switches. When both are desired on the same hinge use prefix "CECS"
Packed one per box with all machine screws and installlation instructions
When ordering specify class number, size, finish and number of wires, Suffix -54 for 4 wires, 56 for 6 wires -66 for 6 wires (2@24AWG, 4@28AWG), 58 for 8 wires or 10 for 10 wires -18 for 8 wires (2@18AWG, 6@28AWG)
Should be used along with a junction box

Wire Gage: 28AWG

Model: Stanley CERDFBB179-54
