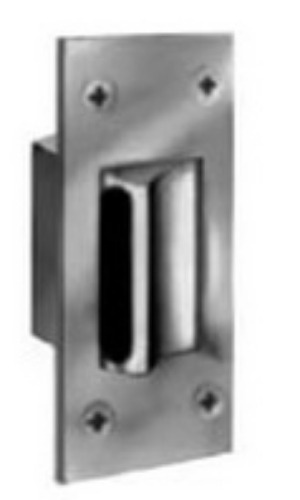

Stanley ES-1 US26D Emergency Door Stop - Satin Chrome

Stanley ES-1 US26D Emergency Door Stop - Satin Chrome

For converting double acting doors to single acting doors

Emergency release allows door to swing open in opposite direction to reach ill patients who fall and block normal path of door

Stop release resets automatically. Spring action stop, with finger-tip release, using pullman-type latch bolt with rubber bumper insert

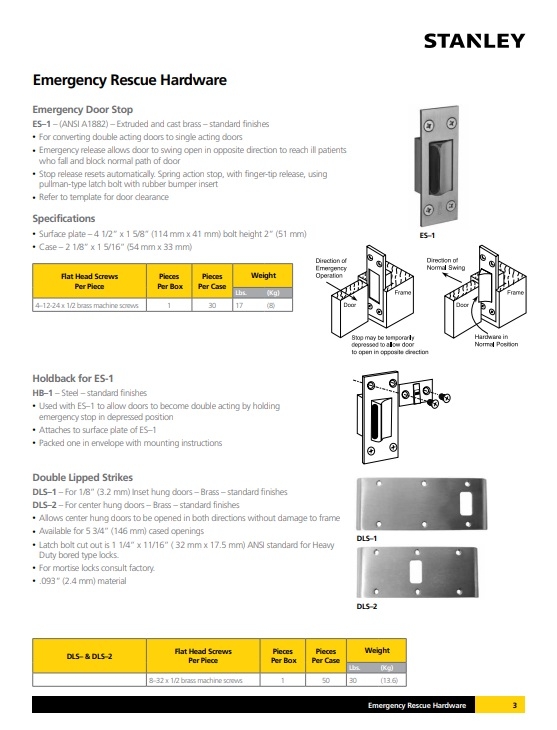

Emergency Door Stop ES'1 (ANSI A1882) Extruded and cast brass standard finishes

Specifications: Surface plate: 4 1/2" x 1-5/8" (114mm x 41mm)

Bolt height: 2" (51mm)

Case: 2 1/8" x 15/16" (54mm x 33mm

Flat Head Screws: 412-24 x 1/2 brass machine screws
