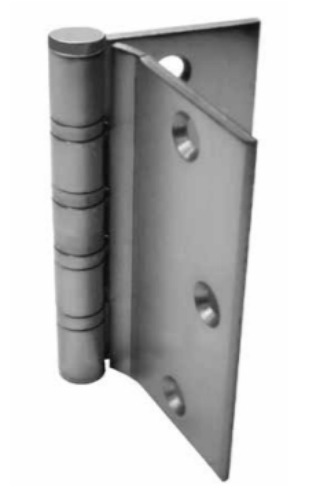

Stanley FBB163 5 26D Five Knuckle Ball Bearing Half Surface Heavy weight Hinge - Satin Chrome

Stanley FBB163 5 26D Five Knuckle Ball Bearing*Half Surface*Heavy weight Hinge - Satin Chrome

For heavy or high frequency wood, or mineral core doors with edge rails that won't hold screws hung on hollow metal frames

Equipped with four Stanley permanently lubricated non-detachable ball bearings

Heavy weight gauges increase available bearing surface area for maximum friction reduction

(ANSI A8411) - Steel - polished and plated or phosphated and prime coated for painting

Size Length of Joint:5" (127mm)

Width:Frame Leaf: 2 1/8" (54mm) Door Leaf: 2 7/8" (73mm)

Offset:5/8" (15.9)

Flat Head Screws:Frame Leaf 4-12-24 x 1/2 Door Leaf 4-1/4-20 x 2 Gauge of Metal: .190 (4.8mm)

Pins in non-ferrous hinges are stainless steel

Reversible flush tips and pins

Hinges can be furnished with hospital tips (HT)

Consider using a back plate with these hinges

Packed with machine screws and grommet nuts for 1 3/4" door      Model: Stanley FBB163 5 26D , FBB163526D ,
