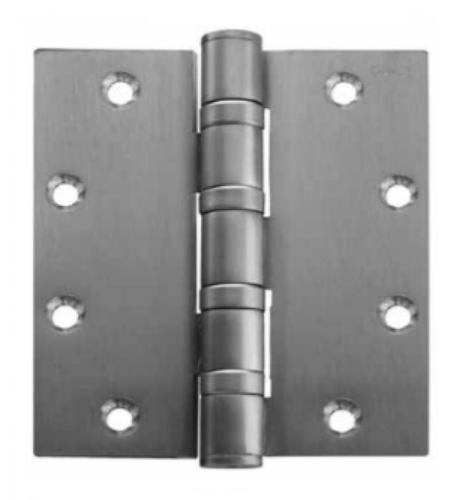

Stanley FBB168NRP 4-1/2X4-1/2 Heavy Weight Five Knuckle Ball Bearing Hinge

Stanley FBB168NRP 4-1/2" X 4-1/2" Heavy Weight Five Knuckle Ball Bearing Hinge

For use on heavy doors or doors where high frequency is expected such as entrance doors to office buildings, stores, public buildings and corridor entrance doors to offices

Equipped with four Stanley permanently lubricated non-detachable ball bearings

(ANSI A8111) Steel - polished and plated or phosphated and prime coated for painting

(NRP)non-removable pins Hinge Size: 4-1/2" X 4-1/2"

Hinge Type:Full Mortise

Bearing Type: 4 Ball Bearing

Gauge of Metal:180 (4.6 mm)

Flat Head Screws Per Piece:Wood Screws: 8-12 x 1 1/4- Machine Screws: 8 - 12-24 x 1/2

All hinges have template screw hole location for use on either wood or hollow metal doors and frames

Pins in non-ferrous hinges are stainless steel

Hole in bottom tip for easy pin removal

Reversible flush tips and pins

Finishes: P - Primed for Painting, US3 - Bright Brass, US10 - Satin Bronze, US26D - Satin Chrome, US10 - Satin Bronze, US4 - Satin Brass,

Model: Stanley FBB168NRP 4-1/2X 4-1/2 US26D, FBB168NRP 4-1/2X 4-1/2 US26, FBB168NRP 4-1/2X 4-1/2 P, FBB179NRP 4-1/2X 4-1/2 US3 , FBB168NRP 4-1/2X 4-1/2 US4 ,FBB168NRP 4-1/2X 4-1/2 US26, FBB168NRP  4-1/2X 4-1/2 US15, FBB168NRP 4-1/2X 4-1/2 US10B, FBB168NRPUS 4-1/2X 4-1/2 10, FBB168NRP 5X5 US10 ,
