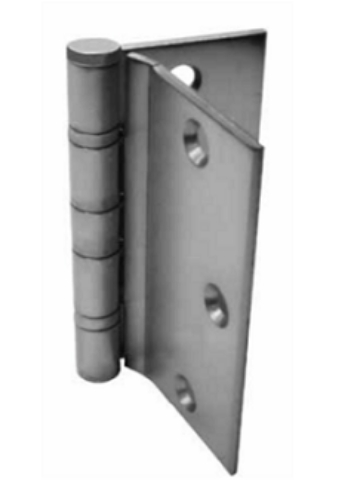

Stanley FBB173 4-1/2 Five Knuckle Ball Bearing Hinge, Half Surface

Product Details

Stanley FBB173 4-1/2 Five Knuckle Ball Bearing Hinge, Half Surface, Standard Weight

For medium weight wood, kalamein, or mineral core doors with edge rails that won't hold screws, hung on hollow metal frames, of average frequency

Equipped with two Stanley permanently lubricated non-detachable ball bearings (ANSI A8412) - Steel  - polished and plated or phosphated and prime coated for painting

Size Length of Joint:4-1/2" (114mm)

Width:Frame Leaf: 2 1/16" (52.4mm) Door Leaf: 2 9/16" (65.1mm)

Offset:9/16" (14.3mm)

Flat Head Screws:Frame Leaf 4-12-24 x 1/2 Door Leaf 3-1/4-20 x 2 Gauge of Metal: .134 (3.4mm)

Pins in non-ferrous hinges are stainless steel

Reversible flush tips and pins

Hinges can be furnished with hospital tips (HT)

Consider using a back plate with these hinges

Packed with machine screws and grommet nuts for 1 3/4" door      Model: Stanley FBB173 4-1/2 26D , FBB1734-1/226D, FBB1734-1/2 P,  FBB1734-1/2 4, FBB1734-1/210B,

Stanley FBB173 4-1/2 Five Knuckle Ball Bearing Hinge, Half Surface

SKU: FBB173 4-1/2

In Stock

Finish *

USP ~ Prime Coat
USP ~ Prime Coat
US10 - Satin Bronze [-$1.38]
US10 - Satin Bronze [-$1.38]
US26D - Satin Chrome [+$0.73]
US26D - Satin Chrome [+$0.73]
US10B - Oil Rubbed Bronze [+$4.83]
US10B - Oil Rubbed Bronze [+$4.83]
US4 - Satin Brass [+$4.83]
US4 - Satin Brass [+$4.83]

$21.95

$34.84

You saved $12.89

About this item



Stanley FBB173 4-1/2 Five Knuckle Ball Bearing Hinge, Half Surface, Standard Weight

For medium weight wood, kalamein, or mineral core doors with edge rails that won't hold screws, hung on hollow metal frames, of average frequency

Equipped with two Stanley permanently lubricated non-detachable ball bearings (ANSI A8412) - Steel  - polished and plated or phosphated and prime coated for painting

Size Length of Joint:4-1/2" (114mm)

Width:Frame Leaf: 2 1/16" (52.4mm) Door Leaf: 2 9/16" (65.1mm)

Offset:9/16" (14.3mm)

Flat Head Screws:Frame Leaf 4-12-24 x 1/2 Door Leaf 3-1/4-20 x 2 Gauge of Metal: .134 (3.4mm)

Pins in non-ferrous hinges are stainless steel

Reversible flush tips and pins

Hinges can be furnished with hospital tips (HT)

Consider using a back plate with these hinges

Packed with machine screws and grommet nuts for 1 3/4" door      Model: Stanley FBB173 4-1/2 26D , FBB1734-1/226D, FBB1734-1/2 P,  FBB1734-1/2 4, FBB1734-1/210B,
